LE63, LF63 and LL63 Control Valves

Manufacturer	Spirax Sarco

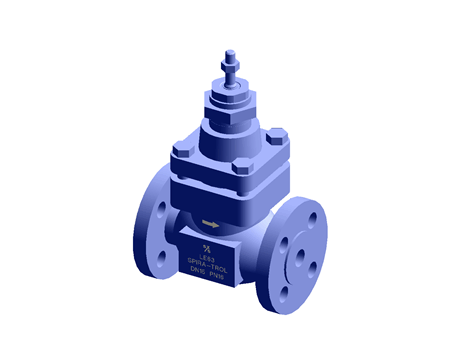

Description	LE63 Spira-trol Two-port Control Valve DN15 PN16 Stainless Steel KV4.0 (LE63PSSUSS)
Part Number	LE63PSSUSS_DN15_(1/2")_PN16
Connection Size	DN15 (1/2")
Connection Type	Flanged
Connection Detail	PN16
Weight	5 Kg
Primary Material Group	Stainless Steel

Primary Material Standard/Grade	EN 10213 1.4408
Body Design Conditions	PN16
PMO - Maximum Operating Pressure
TMO - Maximum Operating Temperature
Minimum Operating Temperature
Cold Hydraulic Test Pressure	24 Bar g
Variant	LE63PSSUSS

CAD models

Request for quotation

Product selection

Index	CAD	Selector	Part Number	Description	Connection Size	Connection Type	Connection Detail	Weight	Primary Material Group	Primary Material Standard/Grade	Body Design Conditions	PMO - Maximum Operating Pressure	TMO - Maximum Operating Temperature	Minimum Operating Temperature	Cold Hydraulic Test Pressure	Variant
1		1	LE63PSSUSS_DN15_(1/2")_PN16	LE63 Spira-trol Two-port Control Valve DN15 PN16 Stainless Steel KV4.0 (LE63PSSUSS)	DN15 (1/2")	Flanged	PN16	5 Kg	Stainless Steel	EN 10213 1.4408	PN16				24 Bar g	LE63PSSUSS
2		2	LL63PSSUSS_DN15_(1/2")_PN16	LL63 Spira-trol Two-port Control Valve DN15 PN16 Stainless Steel KV4.0 (LL63PSSUSS)	DN15 (1/2")	Flanged	PN16	5 Kg	Stainless Steel	EN 10213 1.4408	PN16				24 Bar g	LL63PSSUSS
3	No CAD available	3	LE63PCSUSS_DN15_(1/2")_PN16	LE63PCSUSS DN15 PN16 Kv4 .	DN15 (1/2")	Flanged	PN16	5 Kg	Stainless Steel	EN 10213 1.4408	PN16	16 Bar g @ 120°C	300°C			LE63PCSUSS
4		4	LE63PSSUSS_DN20_(3/4")_PN16	LE63 Spira-trol Two-port Control Valve DN20 PN16 Stainless Steel KV6.3 (LE63PSSUSS)	DN20 (3/4")	Flanged	PN16	6 Kg	Stainless Steel	EN 10213 1.4408	PN16				24 Bar g	LE63PSSUSS
5		5	LF63PSSUSS_DN20_(3/4")_PN16	LE43 Spira-trol Two-port Control Valves DN20 PN16 (LF63PSSUSS)	DN20 (3/4")	Flanged	PN16	6 Kg	Stainless Steel	EN 10213 1.4408	PN16			-28°C	24 Bar g	LF63PSSUSS
6	No CAD available	6	LE63PCSUSS_DN20_(3/4")_PN16	LE63PCSUSS DN20 PN16 Kv6,3 .	DN20 (3/4")	Flanged	PN16	6 Kg	Stainless Steel	EN 10213 1.4408	PN16	16 Bar g @ 120°C	300°C			LE63PCSUSS
7		7	LE63PSSUSS_DN25_(1")_JIS/KS10	LE63PSSUSS Two-port Control Valve DN25JIS/KS10 (KV 10) Stainless Steel	DN25 (1")	Flanged	JIS/KS10	6.5 Kg	Stainless Steel	EN 10213 1.4408	PN16			-28°C	24 Bar g	LE63PSSUSS
8		8	LE63PSSUSS_DN25_(1")_PN16	LE63 Spira-trol Two-port Control Valve DN25 PN16 Stainless Steel KV10 (LE63PSSUSS)	DN25 (1")	Flanged	PN16	6.5 Kg	Stainless Steel	EN 10213 1.4408	PN16				24 Bar g	LE63PSSUSS
9		9	LF63PSSUSS_DN25_(1")_PN16	LF63 Spira-trol Two-port Control Valve DN25 PN16 Stainless Steel KV10 (LF63PSSUSS)	DN25 (1")	Flanged	PN16	6.5 Kg	Stainless Steel	EN 10213 1.4408	PN16				24 Bar g	LF63PSSUSS
10		10	LL63PSSUSS_DN25_(1")_PN16	LL63 Spira-trol Two-port Control Valve DN25 PN16 Stainless Steel KV10 (LL63PSSUSS)	DN25 (1")	Flanged	PN16	6.5 Kg	Stainless Steel	EN 10213 1.4408	PN16				24 Bar g	LL63PSSUSS
11	No CAD available	11	LE63PCSUSS_DN25_(1")_PN16	LE63PCSUSS DN25 PN16 Kv10 .	DN25 (1")	Flanged	PN16	6.5 Kg	Stainless Steel	EN 10213 1.4408	PN16	16 Bar g @ 120°C	300°C			LE63PCSUSS
12		12	LE63PSSUSS_DN32_(1.1/4")_PN16	LE63 Spira-trol Two-port Control Valve DN32 PN16 Stainless Steel KV16 (LE63PSSUSS)	DN32 (1.1/4")	Flanged	PN16	10 Kg	Stainless Steel	EN 10213 1.4408	PN16				24 Bar g	LE63PSSUSS
13		13	LF63PSSUSS_DN32_(1.1/4")_PN16	LF63 Spira-trol Two-port Control Valve DN32 PN16 Stainless Steel KV18 (LF63PSSUSS)	DN32 (1.1/4")	Flanged	PN16	10 Kg	Stainless Steel	EN 10213 1.4408	PN16				24 Bar g	LF63PSSUSS
14	No CAD available	14	LE63PCSUSS_DN32_(1.1/4")_PN16	LE63PCSUSS DN32 PN16 Kv16 .	DN32 (1.1/4")	Flanged	PN16	10 Kg	Stainless Steel	EN 10213 1.4408	PN16	16 Bar g @ 120°C	300°C			LE63PCSUSS
15		15	LF63PGSUSS_DN40_(1.1/2")_PN16	LF63PGSUSS Two-port Control Valve DN40 PN16 (KV S28) N Stainless Steel	DN40 (1.1/2")	Flanged	PN16	12.8 Kg	Stainless Steel	EN 10213 1.4408	PN16			-28°C	24 Bar g	LF63PGSUSS
16		16	LE63PSSUSS_DN40_(1.1/2")_JIS/KS10	LE63 Spira-trol Two-port Control Valve DN40 JIS/KS 10K Stainless Steel KV25 (LE63PSSUSS)	DN40 (1.1/2")	Flanged	JIS/KS10	12.8 Kg	Stainless Steel	EN 10213 1.4408	PN16				24 Bar g	LE63PSSUSS
17		17	LE63PSSUSS_DN40_(1.1/2")_PN16	LE63 Spira-trol Two-port Control Valve DN40 PN16 Stainless Steel KV25 (LE63PSSUSS)	DN40 (1.1/2")	Flanged	PN16	12.8 Kg	Stainless Steel	EN 10213 1.4408	PN16				24 Bar g	LE63PSSUSS
18		18	LL63PSSUSS_DN40_(1.1/2")_PN16	LL63 Spira-trol Two-port Control Valve DN40 PN16 Stainless Steel KV25 (LL63PSSUSS)	DN40 (1.1/2")	Flanged	PN16	12.8 Kg	Stainless Steel	EN 10213 1.4408	PN16				24 Bar g	LL63PSSUSS
19	No CAD available	19	LE63PCSUSS_DN40_(1.1/2")_PN16	LE63PCSUSS DN40 PN16 Kv25 .	DN40 (1.1/2")	Flanged	PN16	12.8 Kg	Stainless Steel	EN 10213 1.4408	PN16	16 Bar g @ 120°C	300°C			LE63PCSUSS
20		20	LE63PSSUSS_DN50_(2")_JIS/KS10	LE63PSSUSS Two-port Control Valve DN50 JIS/KS10 (KV 10) N Stainless Steel	DN50 (2")	Flanged	JIS/KS10	15 Kg	Stainless Steel	EN 10213 1.4408	PN16			-28°C	24 Bar g	LE63PSSUSS
21		21	LE63PSSUSS_DN50_(2")_PN16	LE63PSSUSS Two-port Control Valve DN50 PN16 (KV 36) Stainless Steel	DN50 (2")	Flanged	PN16	15 Kg	Stainless Steel	EN 10213 1.4408	PN16			-28°C	24 Bar g	LE63PSSUSS
22		22	LL63PSSUSS_DN50_(2")_PN16	LL63PSSUSS Two-port Control Valve DN50 PN16 (KV 36) Stainless Steel	DN50 (2")	Flanged	PN16	15 Kg	Stainless Steel	EN 10213 1.4408	PN16			-28°C	24 Bar g	LL63PSSUSS
23		23	LLA63PSSUSS_DN50_(2")_ASME_150	LLA63PSSUSS Two-port Control Valve 2" ASME 150 (CV 42) Stainless Steel	DN50 (2")	Flanged	ASME 150	17.2 Kg	Carbon Steel	ASTM A216 WCB	ASME 150			-29°C	29.5 Bar g	LLA63PSSUSS
24		24	LF63PSSUSS_DN50_(2")_PN16	LF63 Spira-trol Two-port Control Valve DN50 PN16 Stainless Steel KV50 (LF63PSSUSS)	DN50 (2")	Flanged	PN16	15 Kg	Stainless Steel	EN 10213 1.4408	PN16				24 Bar g	LF63PSSUSS
25	No CAD available	25	LE63PCSUSS_DN50_(2")_PN16	LE63PCSUSS DN50 PN16 Kv36 .	DN50 (2")	Flanged	PN16	15 Kg	Stainless Steel	EN 10213 1.4408	PN16	16 Bar g @ 120°C	300°C			LE63PCSUSS
26		26	LE63PSSUSS_DN65_(2.1/2")_JIS/KS10	LE63PSSUSS Two-port Control Valve DN65 JIS/KS10 (KV 25) N Stainless Steel	DN65 (2.1/2")	Flanged	JIS/KS10	32 Kg	Stainless Steel	EN 10213 1.4408	PN16			-28°C	24 Bar g	LE63PSSUSS
27		27	LF63PSSUSS_DN65_(2.1/2")_PN16	LF63PSSUSS Two-port Control Valve DN65 PN16 (KV 85) Stainless Steel	DN65 (2.1/2")	Flanged	PN16	32 Kg	Stainless Steel	EN 10213 1.4408	PN16			-28°C	24 Bar g	LF63PSSUSS
28		28	LL63PSSUSS_DN65_(2.1/2")_PN16	LL63PSSUSS Two-port Control Valve DN65 PN16 (KV 63) Stainless Steel	DN65 (2.1/2")	Flanged	PN16	32 Kg	Stainless Steel	EN 10213 1.4408	PN16			-28°C	24 Bar g	LL63PSSUSS
29		29	LE63PSSUSS_DN65_(2.1/2")_PN16	LE63 Spira-trol Two-port Control Valve DN65 PN16 Stainless Steel KV63 (LE63PSSUSS)	DN65 (2.1/2")	Flanged	PN16	32 Kg	Stainless Steel	EN 10213 1.4408	PN16				24 Bar g	LE63PSSUSS
30	No CAD available	30	LE63PCSUSS_DN65_(2.1/2")_PN16	LE63PCSUSS DN65 PN16 Kv63 .	DN65 (2.1/2")	Flanged	PN16	32 Kg	Stainless Steel	EN 10213 1.4408	PN16	16 Bar g @ 120°C	300°C			LE63PCSUSS
31		31	LE63PSSUSS_DN80_(3")_PN16	LE63PSSUSS Two-port Control Valve DN80 PN16 (KV 63) Stainless Steel	DN80 (3")	Flanged	PN16	36 Kg	Stainless Steel	EN 10213 1.4408	PN16			-28°C	24 Bar g	LE63PSSUSS
32		32	LL63PSSUSS_DN80_(3")_PN16	LL63PSSUSS Two-port Control Valve DN80 PN16 (KV 63) N Stainless Steel	DN80 (3")	Flanged	PN16	36 Kg	Stainless Steel	EN 10213 1.4408	PN16			-28°C	24 Bar g	LL63PSSUSS
33		33	LFA63PSSUSS_DN80_(3")_ASME_150	LFA63PSSUSS Two-port Control Valve 3" ASME 150 (CV 135) N Stainless Steel	DN80 (3")	Flanged	ASME 150	40 Kg	Stainless Steel	ASTM A351 CF8M	ASME 150			-29°C	28.4 Bar g	LFA63PSSUSS
34	No CAD available	34	LE63PCSUSS_DN80_(3")_PN16	LE63PCSUSS DN80 PN16 Kv100 .	DN80 (3")	Flanged	PN16	36 Kg	Stainless Steel	EN 10213 1.4408	PN16	16 Bar g @ 120°C	300°C			LE63PCSUSS
35		35	LF63PGSUSS_DN100_(4")_PN16	LF63PGSUSS Two-port Control Valve DN100 PN16 (KV 180) Stainless Steel	DN100 (4")	Flanged	PN16	53 Kg	Stainless Steel	EN 10213 1.4408	PN16			-28°C	24 Bar g	LF63PGSUSS
36		36	LE63PSSUSS_DN100_(4")_PN16	LE63 Spira-trol Two-port Control Valve DN100 PN16 Stainless Steel KV160 (LE63PSSUSS)	DN100 (4")	Flanged	PN16	53 Kg	Stainless Steel	EN 10213 1.4408	PN16				24 Bar g	LE63PSSUSS
37	No CAD available	37	LE63PCSUSS_DN100_(4")_PN16	LE63PCSUSS DN100 PN16 Kv160 .	DN100 (4")	Flanged	PN16	53 Kg	Stainless Steel	EN 10213 1.4408	PN16	16 Bar g @ 120°C	300°C			LE63PCSUSS

Product Description

Spira-trolTM is a range of two-port single seat globe valves with cage retained seats conforming to EN standard. These valves are available in four body materials in sizes ranging from DN15 to DN100. When used in conjunction with a pneumatic or electric linear actuator they provide characterised modulating or on / off control. It is important to note that with references to the standard KE or LE control valve the KE, LE, KF, LF, KL and LL control valves are identical, with the exception of trim type.
