Waveguide to Coaxial Transitions - 65699-000

Manufacturer	Microwave Techniques

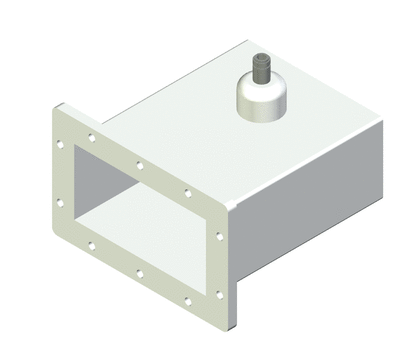

Description	WR2300 (R3) Waveguide to 6-1/8 Coaxial Transition (Crossbar Style) - 65699-000
Manufacturer Part Number	65699-000
Product Page	https://catalog.microwavetechniques.com/item/all-categories/waveguide-to-coaxial-transitions/65699-000
Material	Aluminum
Type	Waveguide to Coaxial Transitions
Waveguide Size	WR2300 (R3)
Frequency [MHz]	321-489
Bandwidth [MHz]	10%
Wall [in]	0.19
Power	Data requires discussion with Microwave Techniques
Finish	RoHS Compliant Per MIL-DTL-5541

Interface - Waveguide	EIA-271 CPRF
Interface - Coax	Female\|50 Ohm\|EIA-RS-225 Fixed
Weight [lb]	51.2
Paint	Microwave Techniques Grey
Marking	Standard Label Containing PN, SN, QR Code
VSWR	1.10:1
Length A [in]	18
Configuration	Crossbar Transitions
Frequency Note	Center Frequency To Be Specified (321-489)
Pressure [psi]	0.25
Coaxial Size	6-1/8

CAD models

Request for quotation

Product selection

Index	Selector	Manufacturer Part Number	Description	Material	Type	Waveguide Size	Frequency [MHz]	Bandwidth [MHz]	Wall [in]	Power	Finish	Interface - Waveguide	Interface - Coax	Weight [lb]	Paint	Marking	VSWR	Length A [in]	Configuration	Frequency Note	Pressure [psi]	Coaxial Size
1	1	65699-000	WR2300 (R3) Waveguide to 6-1/8 Coaxial Transition (Crossbar Style) - 65699-000	Aluminum	Waveguide to Coaxial Transitions	WR2300 (R3)	321-489	10%	0.19	Data requires discussion with Microwave Techniques	RoHS Compliant Per MIL-DTL-5541	EIA-271 CPRF	Female\|50 Ohm\|EIA-RS-225 Fixed	51.2	Microwave Techniques Grey	Standard Label Containing PN, SN, QR Code	1.10:1	18	Crossbar Transitions	Center Frequency To Be Specified (321-489)	0.25	6-1/8

Product Description

Waveguide to Coaxial Transitions

Microwave Techniques manufactures waveguide to coaxial transitions, available with several different flange interfaces and configurations. Our standard offering includes probe type and cross-bar designs. In addition, we also offer transitions with custom interfaces, as well as options for non-standard waveguide sizes.

Other types of waveguide to coaxial transitions manufactured by Microwave Techniques include: end launch, liquid-cooled, step transitions, taper transitions, stoop transitions, door knob transitions, magnetron transitions, half-height waveguide transitions, and more.
