T-slot plates PT

CAD models

Request for quotation

Product selection

T-slot plate

Length (mm)

Index	Selector	W x H (mm)	Weight (kg/m)	T-slots	Ix (cm⁴)	Iy (cm⁴)	Wx (cm³)	Wy (cm³)

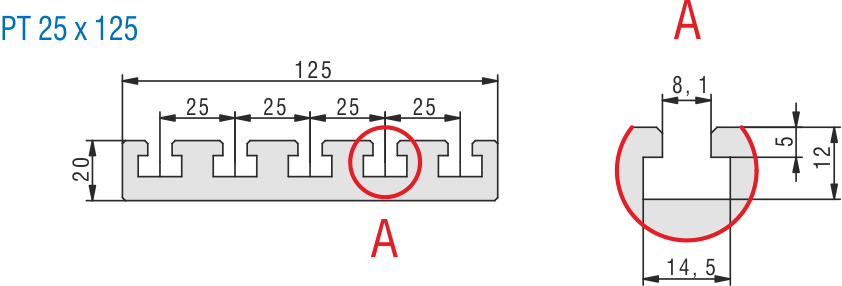

1	1	125 x 20 mm	4.8	one-sided in 25 mm raster	243.36	6.46	38.94	6.46

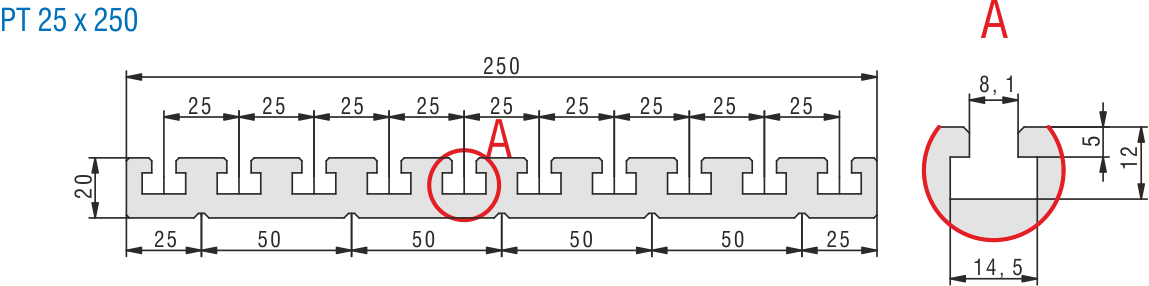

2	2	250 x 20 mm	9.6	one-sided in 25 mm raster	1848.57	12.77	147.88	12.77

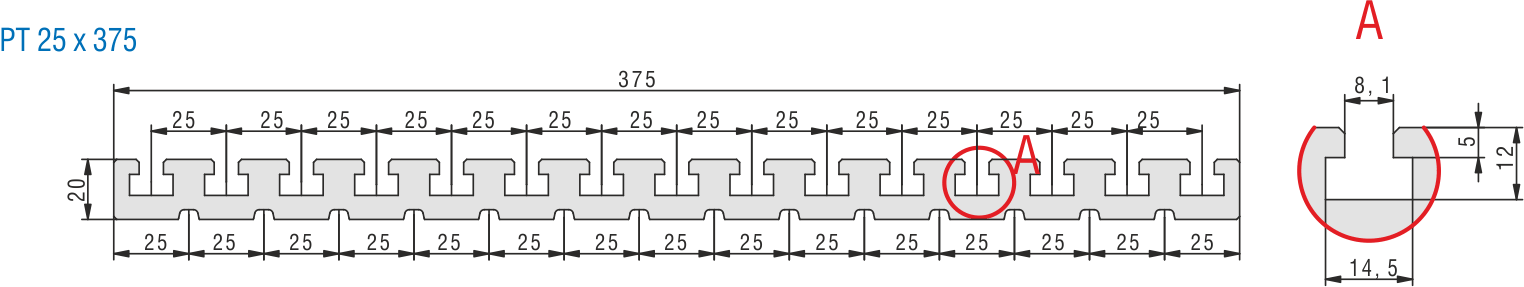

3	3	375 x 20 mm	13.7	one-sided in 25 mm raster	5996.01	17.9	319.79	17.9

Mechanics
