Integrated Circuit Quad Flat Packages - STM32F030C8T6, STM32F030CCT6, STM32F103C8T6, STM32F103C8T6TR, STM32F103CBT6

Manufacturer	STMicroelectronics
Description	Integrated Circuit Quad Flat Packages - STM32F030C8T6
Part number	STM32F030C8T6

CAD modelleri

Fiyat teklif talebi

Ürün seçimi

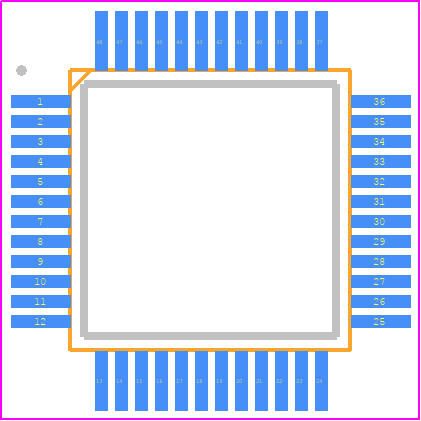

	Part number	Footprint name	Core	Maximum clock frequency	Program memory size	Number of I/Os	Operating supply voltage	A max (Inch)	A max (mm)	A2 min/max (Inch)	A2 min/max (mm)	b min/max (Inch)	b min/max (mm)	D min/max (Inch)	D min/max (mm)	D1 min/max (Inch)	D1 min/max (mm)	E min/max (Inch)	E min/max (mm)	E1 min/max (Inch)	E1 min/max (mm)	E3 typ (Inch)	e typ (Inch)	e typ (mm)
	STM32F030C8T6	LQFP48	ARM Cortex M0	48 MHz	64 kB	39 I/O	2.4 V to 3.6 V	0.0630	1.600	0.0531 - 0.0571	1.350 - 1.450	0.0067 - 0.0106	0.170 - 0.270	0.3465 - 0.3622	8.800 - 9.200	0.2677 - 0.2835	6.800 - 7.200	0.3465 - 0.3622	8.800 - 9.200	0.2677 - 0.2835	6.800 - 7.200	0.2165	0.0197	0.500
	STM32F030CCT6	LQFP48	ARM Cortex M0	48 MHz	256 kB	37 I/O	2.4 V to 3.6 V	0.0630	1.600	0.0531 - 0.0571	1.350 - 1.450	0.0067 - 0.0106	0.170 - 0.270	0.3465 - 0.3622	8.800 - 9.200	0.2677 - 0.2835	6.800 - 7.200	0.3465 - 0.3622	8.800 - 9.200	0.2677 - 0.2835	6.800 - 7.200	0.2165	0.0197	0.500
	STM32F103C8T6	LQFP48	ARM Cortex M3	72 MHz	64 kB	37 I/O	2 V to 3.6 V	0.0630	1.600	0.0531 - 0.0571	1.350 - 1.450	0.0067 - 0.0106	0.170 - 0.270	0.3465 - 0.3622	8.800 - 9.200	0.2677 - 0.2835	6.800 - 7.200	0.3465 - 0.3622	8.800 - 9.200	0.2677 - 0.2835	6.800 - 7.200	0.2165	0.0197	0.500
	STM32F103C8T6TR	LQFP48	ARM Cortex M3	72 MHz	64 kB	37 I/O	2 V to 3.6 V	0.0630	1.600	0.0531 - 0.0571	1.350 - 1.450	0.0067 - 0.0106	0.170 - 0.270	0.3465 - 0.3622	8.800 - 9.200	0.2677 - 0.2835	6.800 - 7.200	0.3465 - 0.3622	8.800 - 9.200	0.2677 - 0.2835	6.800 - 7.200	0.2165	0.0197	0.500
	STM32F103CBT6	LQFP48	ARM Cortex M3	72 MHz	128 kB	37 I/O	2 V to 3.6 V	0.0630	1.600	0.0531 - 0.0571	1.350 - 1.450	0.0067 - 0.0106	0.170 - 0.270	0.3465 - 0.3622	8.800 - 9.200	0.2677 - 0.2835	6.800 - 7.200	0.3465 - 0.3622	8.800 - 9.200	0.2677 - 0.2835	6.800 - 7.200	0.2165	0.0197	0.500
