[STAINLESS STANDARD] Cam Follower CF..MA

Hexagon socket on stud head (Ød: 5mm ~ 10mm)

Manufacturer	JNS
Description	[Stainless Standard] Cam Follower: hexagon socket on stud head
Part Number	JNS_CF3MA
Installation Method	Hexagon socket on stud head
Material	STAINLESS STEEL

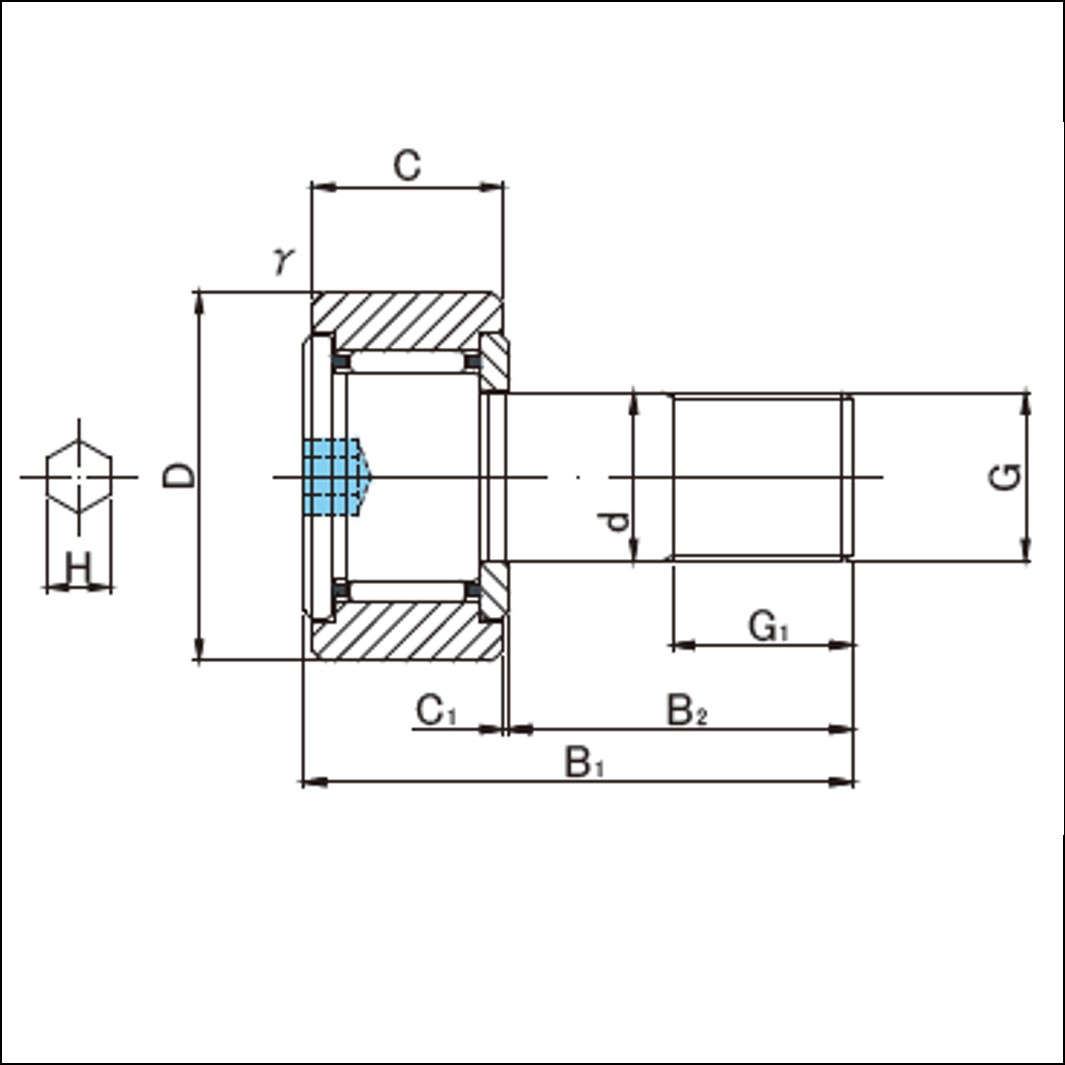

Outer Diameter D (mm)	10

Outer Ring	Cylinderical
Outer Ring Width C (mm)	7
Roller Guide	Cage
Seal Structure	Shield Type
Stud Diameter d (mm)	3
Type	Standard

Modelli CAD

Richiedi un preventivo

Prodotto da selezionare

Index	Selector	Part Number	Description	Installation Method	Material	Outer Diameter D (mm)	Outer Ring	Outer Ring Width C (mm)	Roller Guide	Overall Length B1 (mm)	Seal Structure	Stud Diameter d (mm)	Thread Stud G	Type
1	1	JNS_CF3MA	[Stainless Standard] Cam Follower: hexagon socket on stud head	Hexagon socket on stud head	STAINLESS STEEL	10	Cylinderical	7	Cage	17	Shield Type	3	M3 x 0.5	Standard
2	12	JNS_CF3MUUA	[Stainless Standard] Cam Follower: hexagon socket on stud head - seals	Hexagon socket on stud head	STAINLESS STEEL	10	Cylinderical	7	Cage	17	Sealed Type	3	M3 x 0.5	Standard
3	23	JNS_CF3MRA	[Stainless Standard] Cam Follower: hexagon socket on stud head - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	10	Crowned	7	Cage	17	Shield Type	3	M3 x 0.5	Standard
4	34	JNS_CF3MUURA	[Stainless Standard] Cam Follower: hexagon socket on stud head - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	10	Crowned	7	Cage	17	Sealed Type	3	M3 x 0.5	Standard
5	45	JNS_CF3VMA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement	Hexagon socket on stud head	STAINLESS STEEL	10	Cylinderical	7	Full Complement	17	Shield Type	3	M3 x 0.5	Standard
6	53	JNS_CF3VMUUA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - seals	Hexagon socket on stud head	STAINLESS STEEL	10	Cylinderical	7	Full Complement	17	Sealed Type	3	M3 x 0.5	Standard
7	54	JNS_CF3VMRA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	10	Crowned	7	Full Complement	17	Shield Type	3	M3 x 0.5	Standard
8	55	JNS_CF3VMUURA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	10	Crowned	7	Full Complement	17	Sealed Type	3	M3 x 0.5	Standard
9	56	JNS_CF4MA	[Stainless Standard] Cam Follower: hexagon socket on stud head	Hexagon socket on stud head	STAINLESS STEEL	12	Cylinderical	8	Cage	20	Shield Type	4	M4 x 0.7	Standard
10	2	JNS_CF4MUUA	[Stainless Standard] Cam Follower: hexagon socket on stud head - seals	Hexagon socket on stud head	STAINLESS STEEL	12	Cylinderical	8	Cage	20	Sealed Type	4	M4 x 0.7	Standard
11	3	JNS_CF4MRA	[Stainless Standard] Cam Follower: hexagon socket on stud head - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	12	Crowned	8	Cage	20	Shield Type	4	M4 x 0.7	Standard
12	4	JNS_CF4MUURA	[Stainless Standard] Cam Follower: hexagon socket on stud head - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	12	Crowned	8	Cage	20	Sealed Type	4	M4 x 0.7	Standard
13	5	JNS_CF4VMA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement	Hexagon socket on stud head	STAINLESS STEEL	12	Cylinderical	8	Full Complement	20	Shield Type	4	M4 x 0.7	Standard
14	6	JNS_CF4VMUUA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - seals	Hexagon socket on stud head	STAINLESS STEEL	12	Cylinderical	8	Full Complement	20	Sealed Type	4	M4 x 0.7	Standard
15	7	JNS_CF4VMRA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	12	Crowned	8	Full Complement	20	Shield Type	4	M4 x 0.7	Standard
16	8	JNS_CF4VMUURA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	12	Crowned	8	Full Complement	20	Sealed Type	4	M4 x 0.7	Standard
17	9	JNS_CF5MA	[Stainless Standard] Cam Follower: hexagon socket on stud head	Hexagon socket on stud head	STAINLESS STEEL	13	Cylinderical	9	Cage	23	Shield Type	5	M5 x 0.8	Standard
18	10	JNS_CF5MUUA	[Stainless Standard] Cam Follower: hexagon socket on stud head - seals	Hexagon socket on stud head	STAINLESS STEEL	13	Cylinderical	9	Cage	23	Sealed Type	5	M5 x 0.8	Standard
19	11	JNS_CF5MRA	[Stainless Standard] Cam Follower: hexagon socket on stud head - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	13	Crowned	9	Cage	23	Shield Type	5	M5 x 0.8	Standard
20	13	JNS_CF5MUURA	[Stainless Standard] Cam Follower: hexagon socket on stud head - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	13	Crowned	9	Cage	23	Sealed Type	5	M5 x 0.8	Standard
21	14	JNS_CF5VMA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement	Hexagon socket on stud head	STAINLESS STEEL	13	Cylinderical	9	Full Complement	23	Shield Type	5	M5 x 0.8	Standard
22	15	JNS_CF5VMUUA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - seals	Hexagon socket on stud head	STAINLESS STEEL	13	Cylinderical	9	Full Complement	23	Sealed Type	5	M5 x 0.8	Standard
23	16	JNS_CF5VMRA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	13	Crowned	9	Full Complement	23	Shield Type	5	M5 x 0.8	Standard
24	17	JNS_CF5VMUURA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	13	Crowned	9	Full Complement	23	Sealed Type	5	M5 x 0.8	Standard
25	18	JNS_CF6MA	[Stainless Standard] Cam Follower: hexagon socket on stud head	Hexagon socket on stud head	STAINLESS STEEL	16	Cylinderical	11	Cage	28	Shield Type	6	M6 x 1	Standard
26	19	JNS_CF6MUUA	[Stainless Standard] Cam Follower: hexagon socket on stud head - seals	Hexagon socket on stud head	STAINLESS STEEL	16	Cylinderical	11	Cage	28	Sealed Type	6	M6 x 1	Standard
27	20	JNS_CF6MRA	[Stainless Standard] Cam Follower: hexagon socket on stud head - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	16	Crowned	11	Cage	28	Shield Type	6	M6 x 1	Standard
28	21	JNS_CF6MUURA	[Stainless Standard] Cam Follower: hexagon socket on stud head - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	16	Crowned	11	Cage	28	Sealed Type	6	M6 x 1	Standard
29	22	JNS_CF6VMA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement	Hexagon socket on stud head	STAINLESS STEEL	16	Cylinderical	11	Full Complement	28	Shield Type	6	M6 x 1	Standard
30	24	JNS_CF6VMUUA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - seals	Hexagon socket on stud head	STAINLESS STEEL	16	Cylinderical	11	Full Complement	28	Sealed Type	6	M6 x 1	Standard
31	25	JNS_CF6VMRA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	16	Crowned	11	Full Complement	28	Shield Type	6	M6 x 1	Standard
32	26	JNS_CF6VMUURA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	16	Crowned	11	Full Complement	28	Sealed Type	6	M6 x 1	Standard
33	27	JNS_CF8MA	[Stainless Standard] Cam Follower: hexagon socket on stud head	Hexagon socket on stud head	STAINLESS STEEL	19	Cylinderical	11	Cage	32	Shield Type	8	M8 x 1.25	Standard
34	28	JNS_CF8MUUA	[Stainless Standard] Cam Follower: hexagon socket on stud head - seals	Hexagon socket on stud head	STAINLESS STEEL	19	Cylinderical	11	Cage	32	Sealed Type	8	M8 x 1.25	Standard
35	29	JNS_CF8MRA	[Stainless Standard] Cam Follower: hexagon socket on stud head - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	19	Crowned	11	Cage	32	Shield Type	8	M8 x 1.25	Standard
36	30	JNS_CF8MUURA	[Stainless Standard] Cam Follower: hexagon socket on stud head - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	19	Crowned	11	Cage	32	Sealed Type	8	M8 x 1.25	Standard
37	31	JNS_CF8VMA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement	Hexagon socket on stud head	STAINLESS STEEL	19	Cylinderical	11	Full Complement	32	Shield Type	8	M8 x 1.25	Standard
38	32	JNS_CF8VMUUA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - seals	Hexagon socket on stud head	STAINLESS STEEL	19	Cylinderical	11	Full Complement	32	Sealed Type	8	M8 x 1.25	Standard
39	33	JNS_CF8VMRA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	19	Crowned	11	Full Complement	32	Shield Type	8	M8 x 1.25	Standard
40	35	JNS_CF8VMUURA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	19	Crowned	11	Full Complement	32	Sealed Type	8	M8 x 1.25	Standard
41	36	JNS_CF10MA	[Stainless Standard] Cam Follower: hexagon socket on stud head	Hexagon socket on stud head	STAINLESS STEEL	22	Cylinderical	12	Cage	36	Shield Type	10	M10 x 1.25	Standard
42	37	JNS_CF10MUUA	[Stainless Standard] Cam Follower: hexagon socket on stud head - seals	Hexagon socket on stud head	STAINLESS STEEL	22	Cylinderical	12	Cage	36	Sealed Type	10	M10 x 1.25	Standard
43	38	JNS_CF10MRA	[Stainless Standard] Cam Follower: hexagon socket on stud head - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	22	Crowned	12	Cage	36	Shield Type	10	M10 x 1.25	Standard
44	39	JNS_CF10MUURA	[Stainless Standard] Cam Follower: hexagon socket on stud head - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	22	Crowned	12	Cage	36	Sealed Type	10	M10 x 1.25	Standard
45	40	JNS_CF10VMA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement	Hexagon socket on stud head	STAINLESS STEEL	22	Cylinderical	12	Full Complement	36	Shield Type	10	M10 x 1.25	Standard
46	41	JNS_CF10VMUUA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - seals	Hexagon socket on stud head	STAINLESS STEEL	22	Cylinderical	12	Full Complement	36	Sealed Type	10	M10 x 1.25	Standard
47	42	JNS_CF10VMRA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	22	Crowned	12	Full Complement	36	Shield Type	10	M10 x 1.25	Standard
48	43	JNS_CF10VMUURA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	22	Crowned	12	Full Complement	36	Sealed Type	10	M10 x 1.25	Standard
49	44	JNS_CF10-1MA	[Stainless Standard] Cam Follower: hexagon socket on stud head	Hexagon socket on stud head	STAINLESS STEEL	26	Cylinderical	12	Cage	36	Shield Type	10	M10 x 1.25	Standard
50	46	JNS_CF10-1MUUA	[Stainless Standard] Cam Follower: hexagon socket on stud head - seals	Hexagon socket on stud head	STAINLESS STEEL	26	Cylinderical	12	Cage	36	Sealed Type	10	M10 x 1.25	Standard
51	47	JNS_CF10-1MRA	[Stainless Standard] Cam Follower: hexagon socket on stud head - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	26	Crowned	12	Cage	36	Shield Type	10	M10 x 1.25	Standard
52	48	JNS_CF10-1MUURA	[Stainless Standard] Cam Follower: hexagon socket on stud head - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	26	Crowned	12	Cage	36	Sealed Type	10	M10 x 1.25	Standard
53	49	JNS_CF10-1VMA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement	Hexagon socket on stud head	STAINLESS STEEL	26	Cylinderical	12	Full Complement	36	Shield Type	10	M10 x 1.25	Standard
54	50	JNS_CF10-1VMUUA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - seals	Hexagon socket on stud head	STAINLESS STEEL	26	Cylinderical	12	Full Complement	36	Sealed Type	10	M10 x 1.25	Standard
55	51	JNS_CF10-1VMRA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	26	Crowned	12	Full Complement	36	Shield Type	10	M10 x 1.25	Standard
56	52	JNS_CF10-1VMUURA	[Stainless Standard] Cam Follower: hexagon socket on stud head - full complement - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	26	Crowned	12	Full Complement	36	Sealed Type	10	M10 x 1	Standard

Descrizione prodotto

UU: with seals - R: crowned outer ring - V: full complement

Documentazione

Catalog

Contatta il fornitore

JNS

Manufacturer of Needle Roller Bearings

JNS - Headquarter

JNS - Headquarter
16-4 Enmyo-cho
582-0027 Kashiwara
JP-27
Giappone
www.nose-seiko.co.jp/en/
