[STAINLESS STANDARD] Cam Follower CF..M

Screwdriver slot on stud head (Ød: 5mm ~ 10mm)

Manufacturer	JNS
Description	[Stainless Standard] Cam Follower: screwdriver slot
Part Number	CF5M
Installation Method	Screwdriver slot
Material	STAINLESS STEEL
Outer Diameter D (mm)	13

Outer Ring	Cylinderical
Outer Ring Width C (mm)	9
Roller Guide	Cage
Seal Structure	Shield Type
Stud Diameter d (mm)	5
Type	Standard

Modelli CAD

Richiedi un preventivo

Prodotto da selezionare

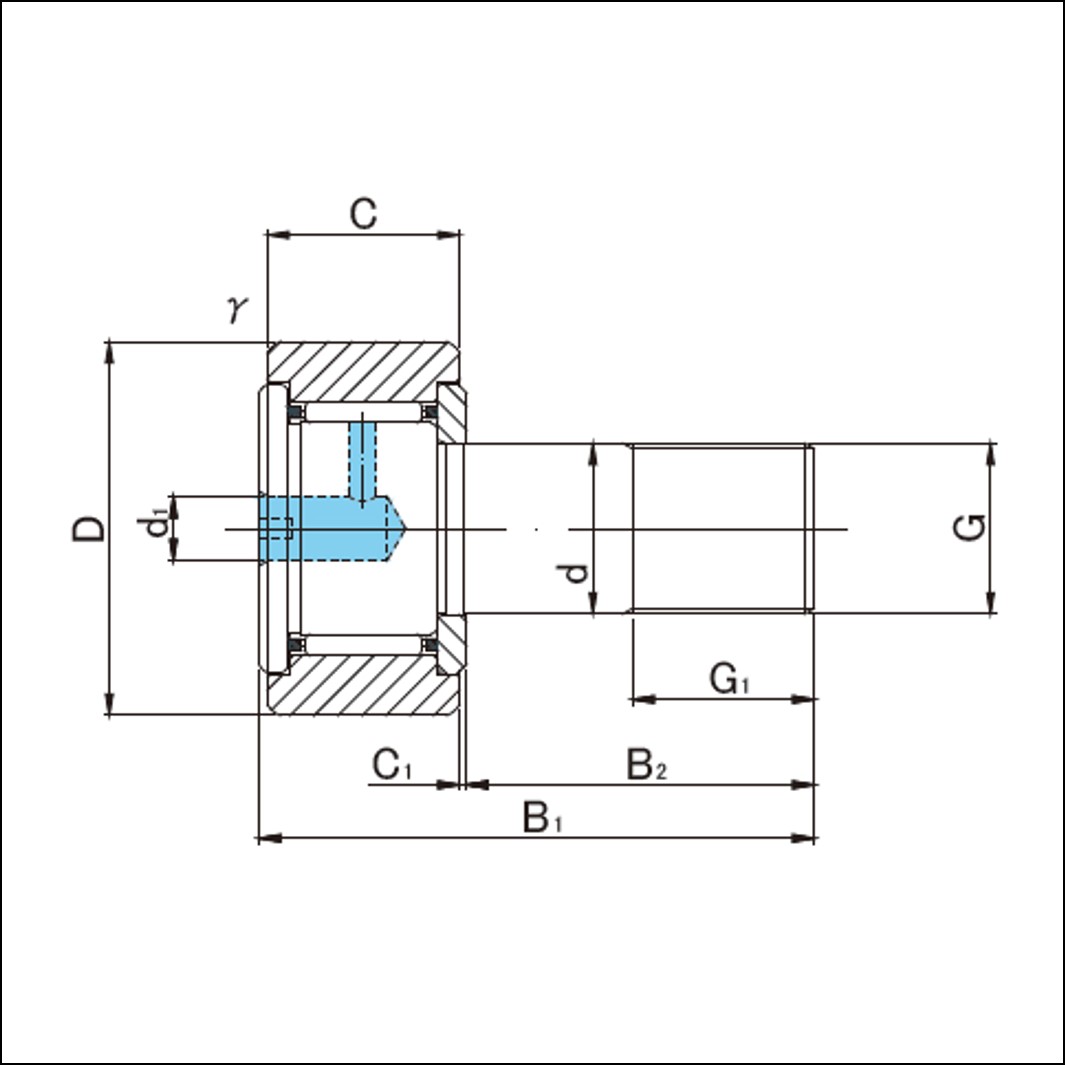

Index	Selector	Part Number	Description	Installation Method	Material	Outer Diameter D (mm)	Outer Ring	Outer Ring Width C (mm)	Roller Guide	Overall Length B1 (mm)	Seal Structure	Stud Diameter d (mm)	Thread Stud G	Type
1	1	CF5M	[Stainless Standard] Cam Follower: screwdriver slot	Screwdriver slot	STAINLESS STEEL	13	Cylinderical	9	Cage	23	Shield Type	5	M5 x 0.8	Standard
2	12	CF5MUU	[Stainless Standard] Cam Follower: screwdriver slot - seals	Screwdriver slot	STAINLESS STEEL	13	Cylinderical	9	Cage	23	Sealed Type	5	M5 x 0.8	Standard
3	23	CF5MR	[Stainless Standard] Cam Follower: screwdriver slot - crowned outer ring	Screwdriver slot	STAINLESS STEEL	13	Crowned	9	Cage	23	Shield Type	5	M5 x 0.8	Standard
4	34	CF5MUUR	[Stainless Standard] Cam Follower: screwdriver slot - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	13	Crowned	9	Cage	23	Sealed Type	5	M5 x 0.8	Standard
5	36	CF5VM	[Stainless Standard] Cam Follower: screwdriver slot - full complement	Screwdriver slot	STAINLESS STEEL	13	Cylinderical	9	Full Complement	23	Shield Type	5	M5 x 0.8	Standard
6	37	CF5VMUU	[Stainless Standard] Cam Follower: screwdriver slot - full complement - seals	Screwdriver slot	STAINLESS STEEL	13	Cylinderical	9	Full Complement	23	Sealed Type	5	M5 x 0.8	Standard
7	38	CF5VMR	[Stainless Standard] Cam Follower: screwdriver slot - full complement - crowned outer ring	Screwdriver slot	STAINLESS STEEL	13	Crowned	9	Full Complement	23	Shield Type	5	M5 x 0.8	Standard
8	39	CF5VMUUR	[Stainless Standard] Cam Follower: screwdriver slot - full complement - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	13	Crowned	9	Full Complement	23	Sealed Type	5	M5 x 0.8	Standard
9	40	CF6M	[Stainless Standard] Cam Follower: screwdriver slot	Screwdriver slot	STAINLESS STEEL	16	Cylinderical	11	Cage	28	Shield Type	6	M6 x 1	Standard
10	2	CF6MUU	[Stainless Standard] Cam Follower: screwdriver slot - seals	Screwdriver slot	STAINLESS STEEL	16	Cylinderical	11	Cage	28	Sealed Type	6	M6 x 1	Standard
11	3	CF6MR	[Stainless Standard] Cam Follower: screwdriver slot - crowned outer ring	Screwdriver slot	STAINLESS STEEL	16	Crowned	11	Cage	28	Shield Type	6	M6 x 1	Standard
12	4	CF6MUUR	[Stainless Standard] Cam Follower: screwdriver slot - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	16	Crowned	11	Cage	28	Sealed Type	6	M6 x 1	Standard
13	5	CF6VM	[Stainless Standard] Cam Follower: screwdriver slot - full complement	Screwdriver slot	STAINLESS STEEL	16	Cylinderical	11	Full Complement	28	Shield Type	6	M6 x 1	Standard
14	6	CF6VMUU	[Stainless Standard] Cam Follower: screwdriver slot - full complement - seals	Screwdriver slot	STAINLESS STEEL	16	Cylinderical	11	Full Complement	28	Sealed Type	6	M6 x 1	Standard
15	7	CF6VMR	[Stainless Standard] Cam Follower: screwdriver slot - full complement - crowned outer ring	Screwdriver slot	STAINLESS STEEL	16	Crowned	11	Full Complement	28	Shield Type	6	M6 x 1	Standard
16	8	CF6VMUUR	[Stainless Standard] Cam Follower: screwdriver slot - full complement - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	16	Crowned	11	Full Complement	28	Sealed Type	6	M6 x 1	Standard
17	9	CF8M	[Stainless Standard] Cam Follower: screwdriver slot	Screwdriver slot	STAINLESS STEEL	19	Cylinderical	11	Cage	32	Shield Type	8	M8 x 1.25	Standard
18	10	CF8MUU	[Stainless Standard] Cam Follower: screwdriver slot - seals	Screwdriver slot	STAINLESS STEEL	19	Cylinderical	11	Cage	32	Sealed Type	8	M8 x 1.25	Standard
19	11	CF8MR	[Stainless Standard] Cam Follower: screwdriver slot - crowned outer ring	Screwdriver slot	STAINLESS STEEL	19	Crowned	11	Cage	32	Shield Type	8	M8 x 1.25	Standard
20	13	CF8MUUR	[Stainless Standard] Cam Follower: screwdriver slot - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	19	Crowned	11	Cage	32	Sealed Type	8	M8 x 1.25	Standard
21	14	CF8VM	[Stainless Standard] Cam Follower: screwdriver slot - full complement	Screwdriver slot	STAINLESS STEEL	19	Cylinderical	11	Full Complement	32	Shield Type	8	M8 x 1.25	Standard
22	15	CF8VMUU	[Stainless Standard] Cam Follower: screwdriver slot - full complement - seals	Screwdriver slot	STAINLESS STEEL	19	Cylinderical	11	Full Complement	32	Sealed Type	8	M8 x 1.25	Standard
23	16	CF8VMR	[Stainless Standard] Cam Follower: screwdriver slot - full complement - crowned outer ring	Screwdriver slot	STAINLESS STEEL	19	Crowned	11	Full Complement	32	Shield Type	8	M8 x 1.25	Standard
24	17	CF8VMUUR	[Stainless Standard] Cam Follower: screwdriver slot - full complement - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	19	Crowned	11	Full Complement	32	Sealed Type	8	M8 x 1.25	Standard
25	18	CF10M	[Stainless Standard] Cam Follower: screwdriver slot	Screwdriver slot	STAINLESS STEEL	22	Cylinderical	12	Cage	36	Shield Type	10	M10 x 1.25	Standard
26	19	CF10MUU	[Stainless Standard] Cam Follower: screwdriver slot - seals	Screwdriver slot	STAINLESS STEEL	22	Cylinderical	12	Cage	36	Sealed Type	10	M10 x 1.25	Standard
27	20	CF10MR	[Stainless Standard] Cam Follower: screwdriver slot - crowned outer ring	Screwdriver slot	STAINLESS STEEL	22	Crowned	12	Cage	36	Shield Type	10	M10 x 1.25	Standard
28	21	CF10MUUR	[Stainless Standard] Cam Follower: screwdriver slot - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	22	Crowned	12	Cage	36	Sealed Type	10	M10 x 1.25	Standard
29	22	CF10VM	[Stainless Standard] Cam Follower: screwdriver slot - full complement	Screwdriver slot	STAINLESS STEEL	22	Cylinderical	12	Full Complement	36	Shield Type	10	M10 x 1.25	Standard
30	24	CF10VMUU	[Stainless Standard] Cam Follower: screwdriver slot - full complement - seals	Screwdriver slot	STAINLESS STEEL	22	Cylinderical	12	Full Complement	36	Sealed Type	10	M10 x 1.25	Standard
31	25	CF10VMR	[Stainless Standard] Cam Follower: screwdriver slot - full complement - crowned outer ring	Screwdriver slot	STAINLESS STEEL	22	Crowned	12	Full Complement	36	Shield Type	10	M10 x 1.25	Standard
32	26	CF10VMUUR	[Stainless Standard] Cam Follower: screwdriver slot - full complement - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	22	Crowned	12	Full Complement	36	Sealed Type	10	M10 x 1.25	Standard
33	27	CF10-1M	[Stainless Standard] Cam Follower: screwdriver slot	Screwdriver slot	STAINLESS STEEL	26	Cylinderical	12	Cage	36	Shield Type	10	M10 x 1.25	Standard
34	28	CF10-1MUU	[Stainless Standard] Cam Follower: screwdriver slot - seals	Screwdriver slot	STAINLESS STEEL	26	Cylinderical	12	Cage	36	Sealed Type	10	M10 x 1.25	Standard
35	29	CF10-1MR	[Stainless Standard] Cam Follower: screwdriver slot - crowned outer ring	Screwdriver slot	STAINLESS STEEL	26	Crowned	12	Cage	36	Shield Type	10	M10 x 1.25	Standard
36	30	CF10-1MUUR	[Stainless Standard] Cam Follower: screwdriver slot - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	26	Crowned	12	Cage	36	Sealed Type	10	M10 x 1.25	Standard
37	31	CF10-1VM	[Stainless Standard] Cam Follower: screwdriver slot - full complement	Screwdriver slot	STAINLESS STEEL	26	Cylinderical	12	Full Complement	36	Shield Type	10	M10 x 1.25	Standard
38	32	CF10-1VMUU	[Stainless Standard] Cam Follower: screwdriver slot - full complement - seals	Screwdriver slot	STAINLESS STEEL	26	Cylinderical	12	Full Complement	36	Sealed Type	10	M10 x 1.25	Standard
39	33	CF10-1VMR	[Stainless Standard] Cam Follower: screwdriver slot - full complement - crowned outer ring	Screwdriver slot	STAINLESS STEEL	26	Crowned	12	Full Complement	36	Shield Type	10	M10 x 1.25	Standard
40	35	CF10-1VMUUR	[Stainless Standard] Cam Follower: screwdriver slot - full complement - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	26	Crowned	12	Full Complement	36	Sealed Type	10	M10 x 1.25	Standard

Descrizione prodotto

UU: with seals - R: crowned outer ring - V: full complement
