TraceParts Classification › Material handling and lifting equipment › Material handling (Conveyors systems, packaging...) › Components for conveyors › Support components for conveyors › Beams support for conveyors
YA-VA Intelligent Systems Co., Ltd.
By YA-VA Intelligent Systems Co., Ltd.

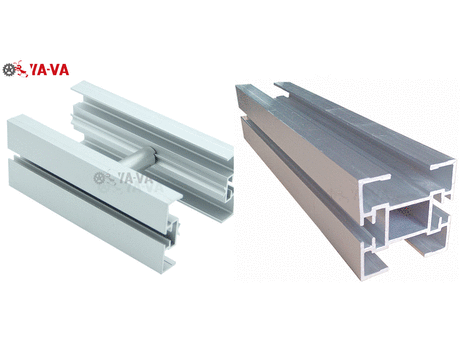

Conveyor Beam


Manufacturer YA-VA Intelligent Systems Co., Ltd.

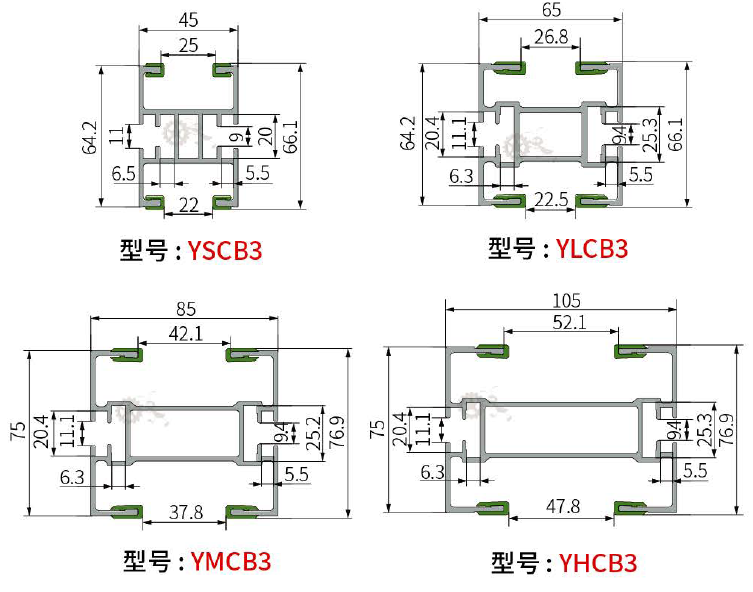

Description Conveyor Beam YSCB3-C1
Part number YSCB3-C1
Applicable Conveyor Chain YS
Length(Metre) 3M
Weight(Kg) 5.04
Color Silver
Surface Treatment Frosting Oxidation
Body Material A6063
Square Nut Material Galvanized Carbon Steel
Fastener Material SUS202
CAD models
Request for quotation
Please make sure this software has been installed.

Product selection

Documentation

Technical Document

Contact the supplier

YA-VA Intelligent Systems Co., Ltd.

YA-VA Intelligent Systems Co., Ltd.

YA-VA INTELLIGENT SYSTEMS CO., LTD. consists of Conveyor Components Business Unit , Conveyor Systems Business Unit , Overseas Business Unit (former name: SHANGHAI DAOQIN INTERNATIONAL TRADING CO., LTD.) and YA-VA Foshan Factory. YA-VA have a strong design and manufacturing capacity with 30,000 m² facility: including R & D, injection and molding shop, components assembly shop, conveyor systems assembly shop, QA inspection center and warehousing. We have professional experience from the components to customized conveyor systems. Our products are widely used in packaging, Food, medicine, daily chemical, new energy, logistics. YA-VA have been focusing on conveyor industry for about 20 years under YA-VA brand. Currently there are more than 7000 clients worldwide.
