1" Electric Actuated High Pressure Stainless Ball Valve 24 VDC

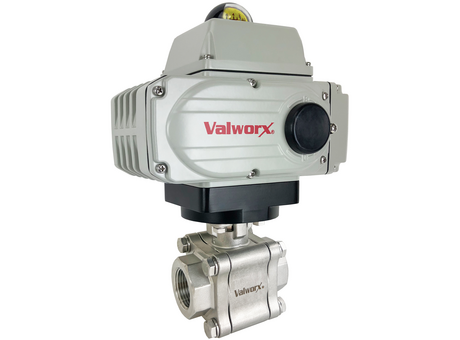

Stainless High Pressure Ball Valves

Manufacturer	Valworx
Description	1" Electric Actuated High Pressure Stainless Ball Valve 24 VDC
Manufacturer Part Number	542149
Buy Now	https://www.valworx.com/stainless-high-pressure-ball-valve-1-24-vdc
Product Page	https://www.valworx.com/stainless-high-pressure-ball-valve-1-24-vdc
Type	Electric Actuated 3 Piece Ball Valve- On/Off
Voltage	24 VDC
Current Rating	2.03A (full load amps)
Cycle Time	30 seconds per 90° rotation (no load)
Pipe Size	1" NPT female
Port Size	Full Port, orifice 1.00 inches, Cv 55.4
Pressure (Max)	2000 PSI (see P/T chart)
Valve Temperature Range	-4 to 392 °F (-20 to 200 °C)
Actuator Temperature Range	-13 to 131 °F (-25 to +55 °C)

Valve Body	316 stainless steel
Ball	316 stainless steel
Stem Seals	Braided Graphite
Ball Seats	RTFE (reinforced Teflon)
Duty Cycle	70%
Enclosure	Aluminum alloy, polyester painted, SS fasteners
Enclosure Rating	Type 4X (IP67) weatherproof
Electrical Connections	Terminal strip, 1/2" NPT conduit (optional) / cable connector (included)
Valve Position Confirmation	2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load
Manual Override	5mm hex drive with protective cover
Motor Protection	Current sensor
Anti-Condensation Heater	4 watts thermostatically controlled
Max Fluid Velocity	10 feet per second

CAD models

Buy now

Product selection

Index	Selector	Manufacturer Part Number	Type	Voltage	Current Rating	Cycle Time	Pipe Size	Port Size	Pressure (Max)	Valve Temperature Range	Actuator Temperature Range	Valve Body	Ball	Stem Seals	Ball Seats	Duty Cycle	Enclosure	Enclosure Rating	Electrical Connections	Valve Position Confirmation	Manual Override	Motor Protection	Anti-Condensation Heater	Max Fluid Velocity
1	1	542149	Electric Actuated 3 Piece Ball Valve- On/Off	24 VDC	2.03A (full load amps)	30 seconds per 90° rotation (no load)	1" NPT female	Full Port, orifice 1.00 inches, Cv 55.4	2000 PSI (see P/T chart)	-4 to 392 °F (-20 to 200 °C)	-13 to 131 °F (-25 to +55 °C)	316 stainless steel	316 stainless steel	Braided Graphite	RTFE (reinforced Teflon)	70%	Aluminum alloy, polyester painted, SS fasteners	Type 4X (IP67) weatherproof	Terminal strip, 1/2" NPT conduit (optional) / cable connector (included)	2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load	5mm hex drive with protective cover	Current sensor	4 watts thermostatically controlled	10 feet per second
