By STMicroelectronics

Integrated Circuit Quad Flat Packages - STM32F407ZGT6, STM32F767ZIT6, STM32H743ZIT6

Manufacturer	STMicroelectronics
Description	Integrated Circuit Quad Flat Packages - STM32F407ZGT6
Part number	STM32F407ZGT6

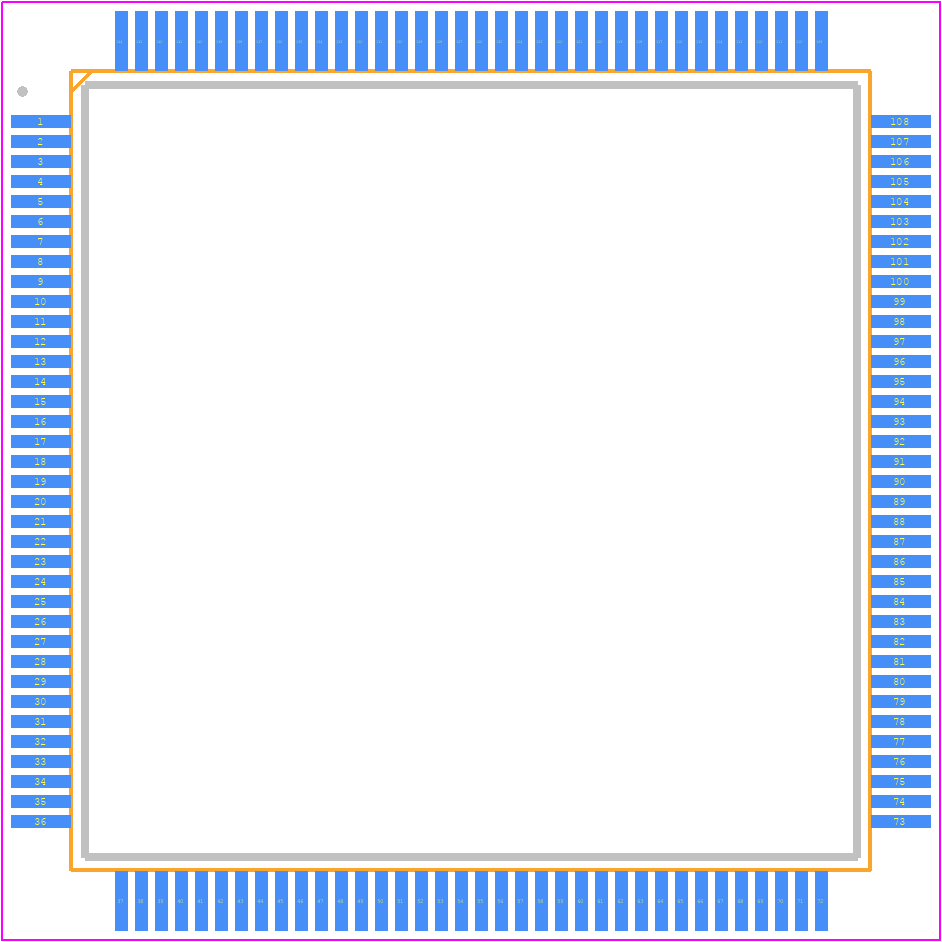

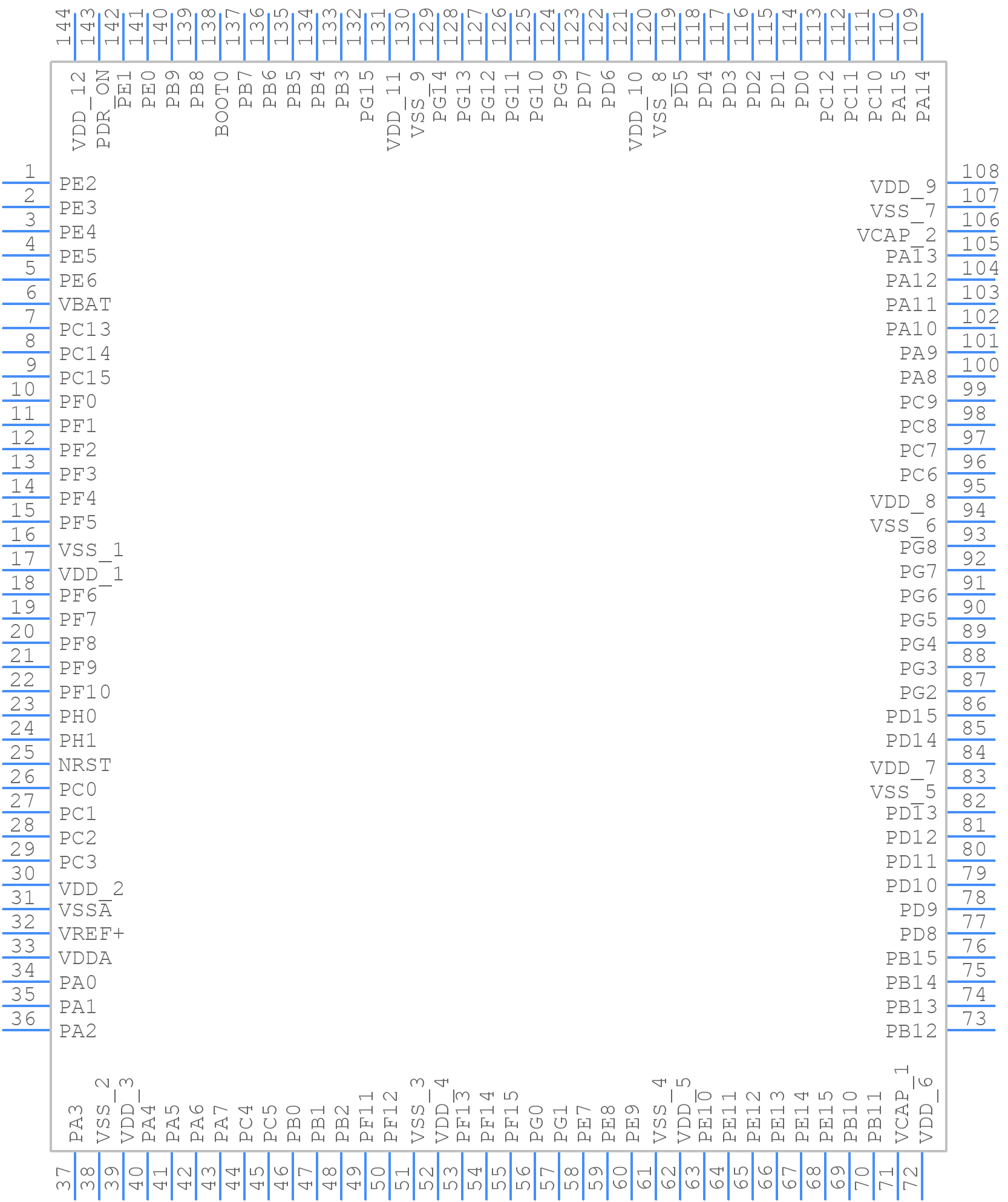

CAD models

Request for quotation

Product selection

Index	Selector	Part number	Footprint name	Core	Maximum clock frequency	Program memory size	Number of I/Os	Operating supply voltage	A max (Inch)	A max (mm)	A2 min/max (Inch)	A2 min/max (mm)	b min/max (Inch)	b min/max (mm)	c min/max (Inch)	c min/max (mm)	D min/max (Inch)	D min/max (mm)	D1 min/max (Inch)	D1 min/max (mm)	D3 typ (Inch)	D3 typ (mm)	E min/max (Inch)	E min/max (mm)	E1 min/max (Inch)	E1 min/max (mm)	E3 typ (Inch)	E3 typ (mm)	e typ (Inch)	e typ (mm)
1	1	STM32F407ZGT6	ST LPQF-144	ARM Cortex M4	168 MHz	1024 kB	114 I/O	1.8 V to 3.6 V	0.0630	1.600	0.0531 - 0.0571	1.350 - 1.450	0.0067 - 0.0106	0.170 - 0.270	0.0035 - 0.0079	0.090 - 0.200	0.8583 - 0.874	21.800 - 22.200	0.7795 - 0.7953	19.800 - 20.200	0.689	17.500	0.8583 - 0.8740	21.800 - 22.200	0.7795 - 0.7953	19.800 - 20.200	0.6890	17.500	0.0197	0.500
2	2	STM32F767ZIT6	ST LPQF-144	ARM Cortex M7	216 MHz	2 MB	114 I/O	3.3 V	0.0630	1.600	0.0531 - 0.0571	1.350 - 1.450	0.0067 - 0.0106	0.170 - 0.270	0.0035 - 0.0079	0.090 - 0.200	0.8583 - 0.874	21.800 - 22.200	0.7795 - 0.7953	19.800 - 20.200	0.689	17.500	0.8583 - 0.8740	21.800 - 22.200	0.7795 - 0.7953	19.800 - 20.200	0.6890	17.500	0.0197	0.500
3	3	STM32H743ZIT6	ST LPQF-144	ARM Cortex M7	400 MHz	2 MB	114 I/O	1.62 V to 3.6 V	0.0630	1.600	0.0531 - 0.0571	1.350 - 1.450	0.0067 - 0.0106	0.170 - 0.270	0.0035 - 0.0079	0.090 - 0.200	0.8583 - 0.874	21.800 - 22.200	0.7795 - 0.7953	19.800 - 20.200	0.689	17.500	0.8583 - 0.8740	21.800 - 22.200	0.7795 - 0.7953	19.800 - 20.200	0.6890	17.500	0.0197	0.500

Contact the supplier
