By STMicroelectronics

Integrated Circuit Quad Flat Packages - STM32F103VET6, STM32F401VCT7, STM32F407VET6, STM32F407VGT6, STM32F407VGT7, STM32H743VIT6, STM32H750VBT6

Manufacturer	STMicroelectronics
Description	Integrated Circuit Quad Flat Packages - STM32F103VET6
Part number	STM32F103VET6

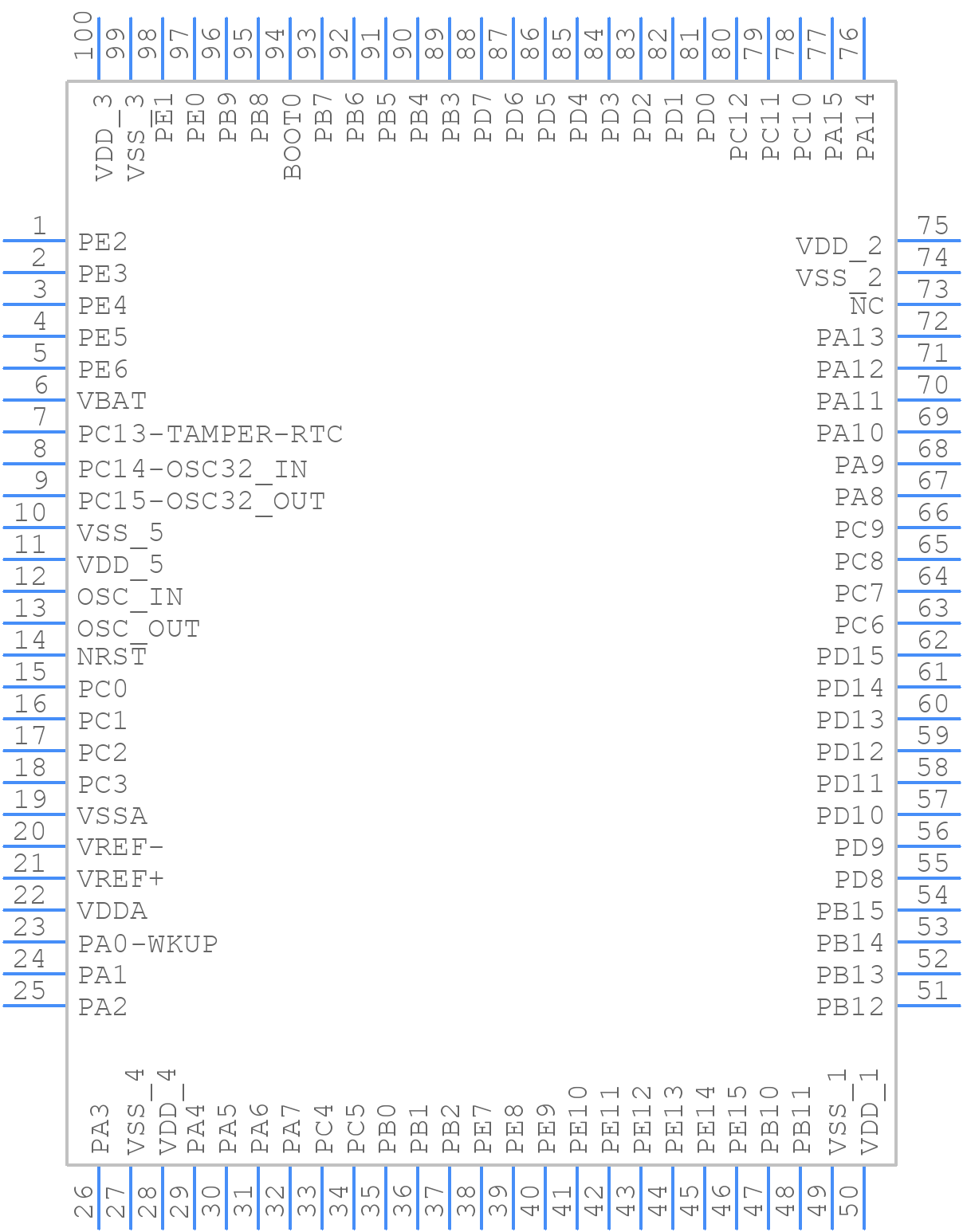

CAD models

Request for quotation

Product selection

	Part number	Footprint name	Core	Maximum clock frequency	Program memory size	Number of I/Os	Operating supply voltage	A max (Inch)	A max (mm)	A2 min/max (Inch)	A2 min/max (mm)	b min/max (Inch)	b min/max (mm)	c min/max (Inch)	c min/max (mm)	D min/max (Inch)	D min/max (mm)	D1 min/max (Inch)	D1 min/max (mm)	D3 typ (Inch)	D3 typ (mm)	E min/max (Inch)	E min/max (mm)	E1 min/max (Inch)	E1 min/max (mm)	E3 typ (Inch)	E3 typ (mm)	e typ (Inch)	e typ (mm)

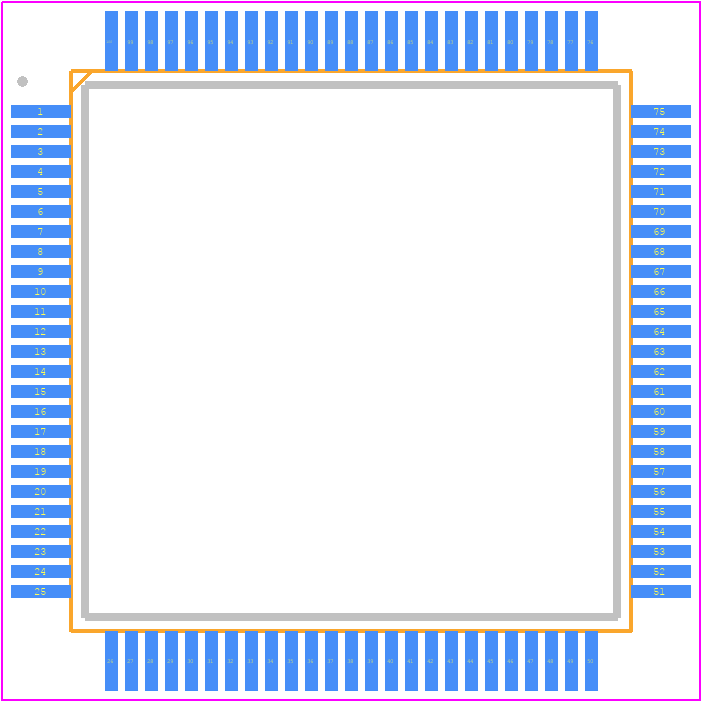

	STM32F103VET6	ST LQFP100 ST LQFP100	ARM Cortex M3	72 MHz	512 kB	80 I/O	2 V to 3.6 V	0.063	1.60	0.0531 - 0.0571	1.350 - 1.450	0.0067 - 0.0106	0.170 - 0.270	0.0035 - 0.0079	0.090 - 0.200	0.622 - 0.6378	15.800 - 16.200	0.5433 - 0.5591	13.800 - 14.200	0.4724	12.000	0.622 - 0.6378	15.800 - 16.200	0.5433 - 0.5591	13.800 - 14.200	0.4724	12.000	0.0197	0.500
	STM32F401VCT7	ST LQFP100 ST LQFP100	ARM Cortex M4	84 MHz	256 kB	81 I/O	1.7 V to 3.6 V	0.063	1.60	0.0531 - 0.0571	1.350 - 1.450	0.0067 - 0.0106	0.170 - 0.270	0.0035 - 0.0079	0.090 - 0.200	0.622 - 0.6378	15.800 - 16.200	0.5433 - 0.5591	13.800 - 14.200	0.4724	12.000	0.622 - 0.6378	15.800 - 16.200	0.5433 - 0.5591	13.800 - 14.200	0.4724	12.000	0.0197	0.500
	STM32F407VET6	ST LQFP100 ST LQFP100	ARM Cortex M4	168 MHz	512 kB	82 I/O	1.8 V to 3.6 V	0.063	1.60	0.0531 - 0.0571	1.350 - 1.450	0.0067 - 0.0106	0.170 - 0.270	0.0035 - 0.0079	0.090 - 0.200	0.622 - 0.6378	15.800 - 16.200	0.5433 - 0.5591	13.800 - 14.200	0.4724	12.000	0.622 - 0.6378	15.800 - 16.200	0.5433 - 0.5591	13.800 - 14.200	0.4724	12.000	0.0197	0.500
	STM32F407VGT6	ST LQFP100 ST LQFP100	ARM Cortex M4	168 MHz	1024 kB	82 I/O	1.8 V to 3.6 V	0.063	1.60	0.0531 - 0.0571	1.350 - 1.450	0.0067 - 0.0106	0.170 - 0.270	0.0035 - 0.0079	0.090 - 0.200	0.622 - 0.6378	15.800 - 16.200	0.5433 - 0.5591	13.800 - 14.200	0.4724	12.000	0.622 - 0.6378	15.800 - 16.200	0.5433 - 0.5591	13.800 - 14.200	0.4724	12.000	0.0197	0.500
	STM32F407VGT7	ST LQFP100 ST LQFP100	ARM Cortex M4	168 MHz	1024 kB	82 I/O	1.8 V to 3.6 V	0.063	1.60	0.0531 - 0.0571	1.350 - 1.450	0.0067 - 0.0106	0.170 - 0.270	0.0035 - 0.0079	0.090 - 0.200	0.622 - 0.6378	15.800 - 16.200	0.5433 - 0.5591	13.800 - 14.200	0.4724	12.000	0.622 - 0.6378	15.800 - 16.200	0.5433 - 0.5591	13.800 - 14.200	0.4724	12.000	0.0197	0.500
	STM32H743VIT6	ST LQFP100 ST LQFP100	ARM Cortex M7	480 MHz	2 MB	82 I/O	1.71 V to 3.6 V	0.063	1.60	0.0531 - 0.0571	1.350 - 1.450	0.0067 - 0.0106	0.170 - 0.270	0.0035 - 0.0079	0.090 - 0.200	0.622 - 0.6378	15.800 - 16.200	0.5433 - 0.5591	13.800 - 14.200	0.4724	12.000	0.622 - 0.6378	15.800 - 16.200	0.5433 - 0.5591	13.800 - 14.200	0.4724	12.000	0.0197	0.500
	STM32H750VBT6	ST LQFP100 ST LQFP100	ARM Cortex M7	480 MHz	128 kB	82 I/O	1.71 V to 3.6 V	0.063	1.60	0.0531 - 0.0571	1.350 - 1.450	0.0067 - 0.0106	0.170 - 0.270	0.0035 - 0.0079	0.090 - 0.200	0.622 - 0.6378	15.800 - 16.200	0.5433 - 0.5591	13.800 - 14.200	0.4724	12.000	0.622 - 0.6378	15.800 - 16.200	0.5433 - 0.5591	13.800 - 14.200	0.4724	12.000	0.0197	0.500
