CJHCH - Axial ventilation units with acoustically insulated box

Axial ventilation units with acoustically insulated box

Manufacturer	SODECA, SLU
Description	Axial ventilation units with acoustically insulated box - CJHCH-56-4T-0.75
Model	CJHCH-56-4T-0.75
Mass (kg)	52
Unit Length (mm)	V2+30630
Unit Width (mm)	825
Unit Height (mm)	825
Input Width (mm)	690
Input Height (mm)	690
Output Width (mm)	690

Output Height (mm)	690
Voltage (V)	400
Number of poles	3
Frequency (Hz)	50
Current (A)	1.25
Apparent Load (VA)	866
Maximum Flow (m3/h)	11040
Minimum Flow (m3/h)	1450
Speed (r/min)	1420

CAD models

Request for quotation

Product selection

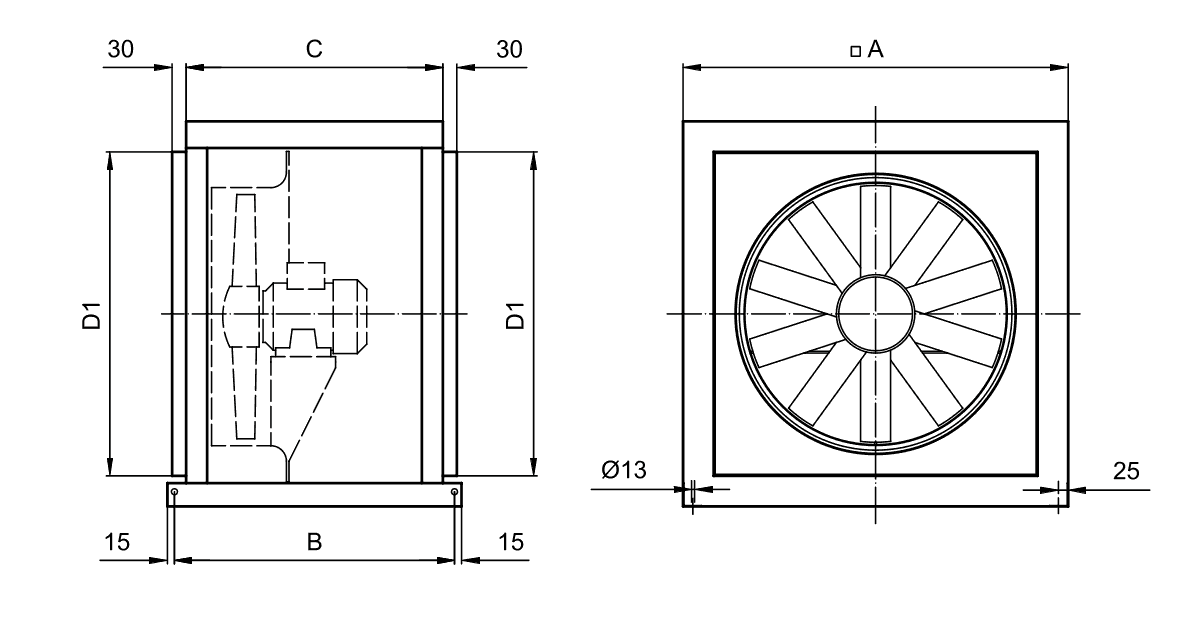

Index	Selector	Model	A (mm)	B (mm)	C (mm)	D1 (mm)
1	1	CJHCH-56-4T-0.75	825	600	550	690
2	12	CJHCH-56-4T-1 IE3	825	600	550	690
3	23	CJHCH-56-4T-1.5 IE3	825	600	550	690
4	32	CJHCH-56-4T-2 IE3	825	600	550	690
5	41	CJHCH-56-6T-0.33	825	600	550	690
6	2	CJHCH-56-6T-0.5	825	600	550	690
7	3	CJHCH-56-6T-0.75	825	600	550	690
8	4	CJHCH-63-4T-1 IE3	825	600	550	690
9	5	CJHCH-63-4T-1.5 IE3	825	600	550	690
10	6	CJHCH-63-4T-2 IE3	825	600	550	690
11	7	CJHCH-63-4T-3 IE3	825	600	550	690
12	8	CJHCH-63-4T-4 IE3	825	600	550	690
13	9	CJHCH-63-6T-0.5	825	600	550	690
14	10	CJHCH-63-6T-0.75	825	600	550	690
15	11	CJHCH-71-4T-1.5 IE3	1000	700	650	850
16	13	CJHCH-71-4T-2 IE3	1000	700	650	850
17	14	CJHCH-71-4T-3 IE3	1000	700	650	850
18	15	CJHCH-71-4T-4 IE3	1000	700	650	850
19	16	CJHCH-71-6T-0.75	1000	700	650	850
20	17	CJHCH-71-6T-1 IE3	1000	700	650	850
21	18	CJHCH-71-6T-1.5 IE3	1000	700	650	850
22	19	CJHCH-80-4T-3 IE3	1000	700	650	850
23	20	CJHCH-80-4T-4 IE3	1000	700	650	850
24	21	CJHCH-80-4T-5.5 IE3	1000	700	650	850
25	22	CJHCH-80-6T-1 IE3	1000	700	650	850
26	24	CJHCH-80-6T-1.5 IE3	1000	700	650	850
27	25	CJHCH-80-6T-2 IE3	1000	700	650	850
28	26	CJHCH-80-6T-3 IE3	1000	700	650	850
29	27	CJHCH-90-4T-4 IE3	1200	800	750	1050
30	28	CJHCH-90-4T-5.5 IE3	1200	800	750	1050
31	29	CJHCH-90-4T-7.5 IE3	1200	800	750	1050
32	30	CJHCH-90-4T-10 IE3	1200	800	750	1050
33	31	CJHCH-90-6T-3 IE3	1200	800	750	1050
34	33	CJHCH-90-6T-4 IE3	1200	800	750	1050
35	34	CJHCH-100-4T-7.5 IE3	1200	800	750	1050
36	35	CJHCH-100-4T-10 IE3	1200	800	750	1050
37	36	CJHCH-100-4T-15 IE3	1200	800	750	1050
38	37	CJHCH-100-4T-20 IE3	1200	800	750	1050
39	38	CJHCH-100-6T-3 IE3	1200	800	750	1050
40	39	CJHCH-100-6T-4 IE3	1200	800	750	1050
41	40	CJHCH-100-6T-5.5 IE3	1200	800	750	1050
