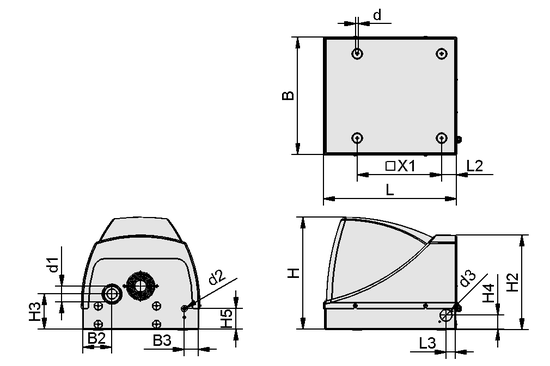

Silencer Box SBB

CAD models

Request for quotation

Product selection

Type

Width B [mm]

586

Width B1 [mm]

Width B2 [mm]

145

Width B3 [mm]

Index	Selector	Width B4 [mm]	Diameter d [mm]	Diameter d1 [mm]	Diameter d2 [mm]	Diameter d3 [mm]
1	3	-	13	79	13	60

Thread Diameter G1 / D2

Index	Selector	Suitable for Blower	Thread Diameter G2	Thread Diameter G5	Height H [mm]	Height H1 [mm]	Height H2 [mm]	Height H3 [mm]	Height H4 [mm]	Height H5 [mm]	Length L [mm]	Length L1 [mm]	Length L2 [mm]	Length L3 [mm]	Length X1 [mm]	Length Y1 [mm]
1	3	-	-	-	565	-	470	175	70	103	661	-	75	48	420	-
