Compact-Terminal SCTSi



Manufacturer	SCHMALZ
Description	Compact-Terminal SCTSi
Part number	10.02.02.06584
Selection	SCTSi-IOL 4 AB 4C7A

CAD models

Request for quotation

Product selection

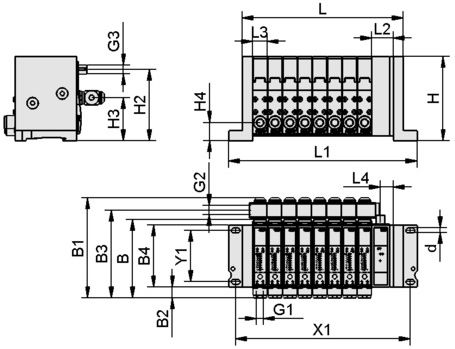

Index	Selector	Type	Part number	B (mm)	B1 (mm)	B2 (mm)	B3 (mm)	B4 (mm)	D (mm)	G1	G2	G3	G4	H (mm)	H2 (mm)	h3 (mm)	H4 (mm)	L (mm)	L1 (mm)	L2 (mm)	L3 (mm)	L4 (mm)	X1 (mm)	Y1 (mm)
1	1	SCTSi-IOL 4 AB 4C7A	10.02.02.06584	97.3	125	13.5	109	77	6	G1/8-IG	G1/4-IG	M12x1-IG	-	105	88.5	53.5	12.5	126.2	160.2	27	18.5	16	143.2	64
2	2	SCTSi-IOL 4 AB 4C7N	10.02.02.06588	97.3	125	13.5	109	77	6	G1/8-IG	G1/4-IG	M12x1-IG	-	105	88.5	53.5	12.5	126.2	160.2	27	18.5	16	143.2	64
3	3	SCTSi-IOL 8 AB 8C7A	10.02.02.06592	97.3	135	13.5	109	77	6	G1/8-IG	G1/4-IG	M12x1-IG	-	107.5	91.5	56.5	15.5	200.7	234.7	27	18.5	16	217.7	64
4	4	SCTSi-IOL 8 AB 8C7N	10.02.02.06596	97.3	135	13.5	109	77	6	G1/8-IG	G1/4-IG	M12x1-IG	-	107.5	91.5	56.5	15.5	200.7	234.7	27	18.5	16	217.7	64
5	5	SCTSi-EIP 4 AB 4C7A	10.02.02.06586	97.3	125	13.5	109	77	6	G1/8-IG	G1/4-IG	M12x1-IG	M12x1-AG	105	88.5	53.5	12.5	126.2	160.2	27	18.5	16	143.2	64
6	6	SCTSi-EIP 4 AB 4C7N	10.02.02.06590	97.3	125	13.5	109	77	6	G1/8-IG	G1/4-IG	M12x1-IG	M12x1-AG	105	88.5	53.5	12.5	126.2	160.2	27	18.5	16	143.2	64
7	7	SCTSi-EIP 8 AB 8C7A	10.02.02.06594	97.3	135	13.5	109	77	6	G1/8-IG	G1/4-IG	M12x1-IG	M12x1-AG	107.5	91.5	56.5	15.5	200.7	234.7	27	18.5	16	217.7	64
8	8	SCTSi-EIP 8 AB 8C7N	10.02.02.06598	97.3	135	13.5	109	77	6	G1/8-IG	G1/4-IG	M12x1-IG	M12x1-AG	107.5	91.5	56.5	15.5	200.7	234.7	27	18.5	16	217.7	64
9	9	SCTSi-ECT 4 AB 4C7A	10.02.02.06585	97.3	125	13.5	109	77	6	G1/8-IG	G1/4-IG	M12x1-IG	M12x1-AG	105	88.5	53.5	12.5	126.2	160.2	27	18.5	16	143.2	64
10	10	SCTSi-ECT 4 AB 4C7N	10.02.02.06589	97.3	125	13.5	109	77	6	G1/8-IG	G1/4-IG	M12x1-IG	M12x1-AG	105	88.5	53.5	12.5	126.2	160.2	27	18.5	16	143.2	64
11	11	SCTSi-ECT 8 AB 8C7A	10.02.02.06593	97.3	135	13.5	109	77	6	G1/8-IG	G1/4-IG	M12x1-IG	M12x1-AG	107.5	91.5	56.5	15.5	200.7	234.7	27	18.5	16	217.7	64
12	12	SCTSi-ECT 8 AB 8C7N	10.02.02.06597	97.3	135	13.5	109	77	6	G1/8-IG	G1/4-IG	M12x1-IG	M12x1-AG	107.5	91.5	56.5	15.5	200.7	234.7	27	18.5	16	217.7	64
13	13	SCTSi-PNT 4 AB 4C7A	10.02.02.06587	97.3	125	13.5	109	77	6	G1/8-IG	G1/4-IG	M12x1-IG	M12x1-AG	105	88.5	53.5	12.5	126.2	160.2	27	18.5	16	143.2	64
14	14	SCTSi-PNT 4 AB 4C7N	10.02.02.06591	97.3	125	13.5	109	77	6	G1/8-IG	G1/4-IG	M12x1-IG	M12x1-AG	105	88.5	53.5	12.5	126.2	160.2	27	18.5	16	143.2	64
15	15	SCTSi-PNT 8 AB 8C7A	10.02.02.06595	97.3	135	13.5	109	77	6	G1/8-IG	G1/4-IG	M12x1-IG	M12x1-AG	107.5	91.5	56.5	15.5	200.7	234.7	27	18.5	16	217.7	64
16	16	SCTSi-PNT 8 AB 8C7N	10.02.02.06600	97.3	135	13.5	109	77	6	G1/8-IG	G1/4-IG	M12x1-IG	M12x1-AG	107.5	91.5	56.5	15.5	200.7	234.7	27	18.5	16	217.7	64
