Compact Ejectors X-Pump SXPi / SXMPi with IO-Link

Manufacturer	SCHMALZ
Description	Schmalz X-Pump
Part number	10.02.02.03776
Selection	SXPi 25 NO H M12-8
Omniclass number	23.33.31.13

CAD models

Request for quotation

Product selection

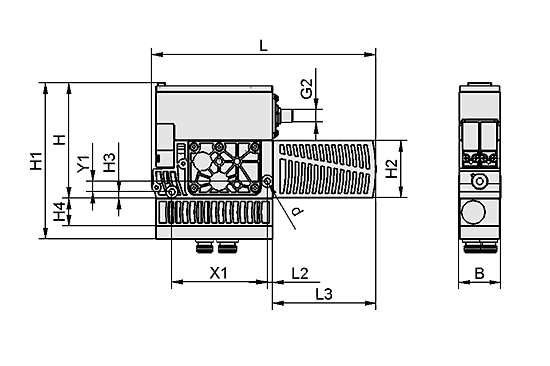

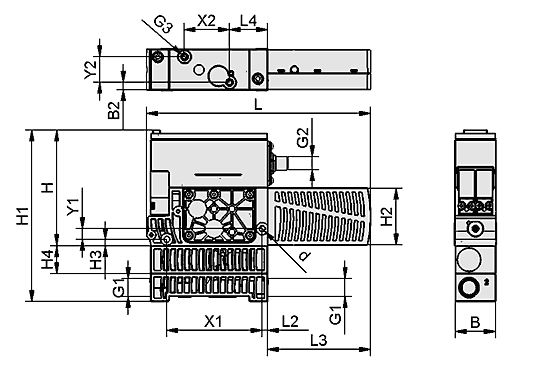

Index	Selector	Type	Width B (mm)	Width B2 (mm)	Diameter d (mm)	Connecting thread G1	Connecting thread G2	Connecting thread G3	Height H (mm)	Height H1 (mm)	Height H2 (mm)	Height H3 (mm)	Height H4 (mm)	Length L (mm)	Length L2 (mm)	Length L3 (mm)	Length L4 (mm)	Length X1 (mm)	Length X2 (mm)	Height Y1 (mm)	Height Y2 (mm)
1	1	SXPi 25 NO H M12-8	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	134	54	6	-	210	5	97	35.5	89	42	10	24
2	2	SXPi 25 NO Q M12-8	39	-	5.5	-	M12x1-AG	-	108	120	54	6	-	210	5	97	-	89	-	10	-
3	3	SXPi 25 NO H 2xM12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	134	54	6	-	210	5	97	35.5	89	42	10	24
4	4	SXPi 25 NO Q 2xM12-5	39	-	5.5	-	M12x1-AG	-	108	120	54	6	-	210	5	97	-	89	-	10	-
5	5	SXPi 30 NO H M12-8	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	134	54	6	-	210	5	97	35.5	89	42	10	24
6	6	SXPi 30 NO Q M12-8	39	-	5.5	-	M12x1-AG	-	108	120	54	6	-	210	5	97	-	89	-	10	-
7	7	SXPi 30 NO H 2xM12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	134	54	6	-	210	5	97	35.5	89	42	10	24
8	8	SXPi 30 NO Q 2xM12-5	39	-	5.5	-	M12x1-AG	-	108	120	54	6	-	210	5	97	-	89	-	10	-
9	9	SXPi 25 NC H M12-8	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	134	54	6	-	210	5	97	35.5	89	42	10	24
10	10	SXPi 25 NC Q M12-8	39	-	5.5	-	M12x1-AG	-	108	120	54	6	-	210	5	97	-	89	-	10	-
11	11	SXPi 25 NC H 2xM12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	134	54	6	-	210	5	97	35.5	89	42	10	24
12	12	SXPi 25 NC Q 2xM12-5	39	-	5.5	-	M12x1-AG	-	108	120	54	6	-	210	5	97	-	89	-	10	-
13	13	SXPi 30 NC H M12-8	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	134	54	6	-	210	5	97	35.5	89	42	10	24
14	14	SXPi 30 NC Q M12-8	39	-	5.5	-	M12x1-AG	-	108	120	54	6	-	210	5	97	-	89	-	10	-
15	15	SXPi 30 NC H 2xM12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	134	54	6	-	210	5	97	35.5	89	42	10	24
16	16	SXPi 30 NC Q 2xM12-5	39	-	5.5	-	M12x1-AG	-	108	120	54	6	-	210	5	97	-	89	-	10	-
17	17	SXPi 25 IMP H M12-8	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	134	54	6	-	210	5	97	35.5	89	42	10	24
18	18	SXPi 25 IMP Q M12-8	39	-	5.5	-	M12x1-AG	-	108	120	54	6	-	210	5	97	-	89	-	10	-
19	19	SXPi 25 IMP H 2xM12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	134	54	6	-	210	5	97	35.5	89	42	10	24
20	20	SXPi 25 IMP Q 2xM12-5	39	-	5.5	-	M12x1-AG	-	108	120	54	6	-	210	5	97	-	89	-	10	-
21	21	SXPi 30 IMP H M12-8	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	134	54	6	-	210	5	97	35.5	89	42	10	24
22	22	SXPi 30 IMP Q M12-8	39	-	5.5	-	M12x1-AG	-	108	120	54	6	-	210	5	97	-	89	-	10	-
23	23	SXPi 30 IMP H 2xM12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	134	54	6	-	210	5	97	35.5	89	42	10	24
24	24	SXPi 30 IMP Q 2xM12-5	39	-	5.5	-	M12x1-AG	-	108	120	54	6	-	210	5	97	-	89	-	10	-
25	25	SXMPi 25 NO H M12-8	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	160	160	54	6	-	210	5	97	35.5	89	42	10	24
26	26	SXMPi 25 NO Q M12-8	39	-	5.5	-	M12x1-AG	-	146	160	54	6	-	210	5	97	-	89	-	10	-
27	27	SXMPi 25 NO H 2xM12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	160	160	54	6	-	210	5	97	35.5	89	42	10	24
28	28	SXMPi 25 NO Q 2xM12-5	39	-	5.5	-	M12x1-AG	-	146	160	54	6	-	210	5	97	-	89	-	10	-
29	29	SXMPi 30 NO H M12-8	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	160	160	54	6	-	210	5	97	35.5	89	42	10	24
30	30	SXMPi 30 NO Q M12-8	39	-	5.5	-	M12x1-AG	-	146	160	54	6	-	210	5	97	-	89	-	10	-
31	31	SXMPi 30 NO H 2xM12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	160	160	54	6	-	210	5	97	35.5	89	42	10	24
32	32	SXMPi 30 NO Q 2xM12-5	39	-	5.5	-	M12x1-AG	-	146	160	54	6	-	210	5	97	-	89	-	10	-
33	33	SXMPi 25 NC H M12-8	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	160	160	54	6	-	210	5	97	35.5	89	42	10	24
34	34	SXMPi 25 NC Q M12-8	39	-	5.5	-	M12x1-AG	-	146	160	54	6	-	210	5	97	-	89	-	10	-
35	35	SXMPi 25 NC H 2xM12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	160	160	54	6	-	210	5	97	35.5	89	42	10	24
36	36	SXMPi 25 NC Q 2xM12-5	39	-	5.5	-	M12x1-AG	-	146	160	54	6	-	210	5	97	-	89	-	10	-
37	37	SXMPi 30 NC H M12-8	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	160	160	54	6	-	210	5	97	35.5	89	42	10	24
38	38	SXMPi 30 NC Q M12-8	39	-	5.5	-	M12x1-AG	-	146	160	54	6	-	210	5	97	-	89	-	10	-
39	39	SXMPi 30 NC H 2xM12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	160	160	54	6	-	210	5	97	35.5	89	42	10	24
40	40	SXMPi 30 NC Q 2xM12-5	39	-	5.5	-	M12x1-AG	-	146	160	54	6	-	210	5	97	-	89	-	10	-
41	41	SXMPi 25 IMP H M12-8	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	160	160	54	6	-	210	5	97	35.5	89	42	10	24
42	42	SXMPi 25 IMP Q M12-8	39	-	5.5	-	M12x1-AG	-	146	160	54	6	-	210	5	97	-	89	-	10	-
43	43	SXMPi 25 IMP H 2xM12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	160	160	54	6	-	210	5	97	35.5	89	42	10	24
44	44	SXMPi 25 IMP Q 2xM12-5	39	-	5.5	-	M12x1-AG	-	146	160	54	6	-	210	5	97	-	89	-	10	-
45	45	SXMPi 30 IMP H M12-8	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	160	160	54	6	-	210	5	97	35.5	89	42	10	24
46	46	SXMPi 30 IMP Q M12-8	39	-	5.5	-	M12x1-AG	-	146	160	54	6	-	210	5	97	-	89	-	10	-
47	47	SXMPi 30 IMP H 2xM12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	160	160	54	6	-	210	5	97	35.5	89	42	10	24
48	48	SXMPi 30 IMP Q 2xM12-5	39	-	5.5	-	M12x1-AG	-	146	160	54	6	-	210	5	97	-	89	-	10	-
49	49	SXMPi 25 NO H PC 2xM12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	146	160	54	6	-	210	5	97	35.5	89	42	10	24
50	50	SXMPi 25 NC H PC M12-8	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	146	160	54	6	-	210	5	97	35.5	89	42	10	24
51	51	SXMPi 25 NC Q PC M12-8	39	-	5.5	-	M12x1-AG	-	146	160	54	6	-	210	5	97	-	89	-	10	-
52	52	SXMPi 25 NC H PC 2xM12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	146	160	54	6	-	210	5	97	35.5	89	42	10	24
53	53	SXMPi 25 NC Q PC 2xM12-5	39	-	5.5	-	M12x1-AG	-	146	160	54	6	-	210	5	97	-	89	-	10	-
54	54	SXMPi 25 IMP H PC 2xM12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	146	160	54	6	-	210	5	97	35.5	89	42	10	24
55	55	SXMPi 25 IMP Q PC 2xM12-5	39	-	5.5	-	M12x1-AG	-	146	160	54	6	-	210	5	97	-	89	-	10	-
56	56	SXMPi 30 IMP H PC 2xM12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	160	160	54	6	-	210	5	97	35.5	89	42	10	24
57	57	SXMPi 30 IMP Q PC 2xM12-5	39	-	5.5	-	M12x1-AG	-	146	160	54	6	-	210	5	97	-	89	-	10	-
58	58	SXMPi 25 NO H M12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	160	54	6	26	210	5	97	35.5	89	42	10	24
59	59	SXMPi 25 NO Q M12-5	39	-	5.5	-	M12x1-AG	-	108	146	54	6	26	210	5	97	-	89	-	10	-
60	60	SXMPi 30 NO H M12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	160	54	6	26	210	5	97	35.5	89	42	10	24
61	61	SXMPi 30 NO Q M12-5	39	-	5.5	-	M12x1-AG	-	108	146	54	6	26	210	5	97	-	89	-	10	-
62	62	SXMPi 25 NC H M12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	160	54	6	26	210	5	97	35.5	89	42	10	24
63	63	SXMPi 25 NC Q M12-5	39	-	5.5	-	M12x1-AG	-	108	146	54	6	26	210	5	97	-	89	-	10	-
64	64	SXMPi 30 NC H M12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	160	54	6	26	210	5	97	35.5	89	42	10	24
65	65	SXMPi 30 NC Q M12-5	39	-	5.5	-	M12x1-AG	-	108	146	54	6	26	210	5	97	-	89	-	10	-
66	66	SXMPi 25 IMP H M12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	160	54	6	26	210	5	97	35.5	89	42	10	24
67	67	SXMPi 25 IMP Q M12-5	39	-	5.5	-	M12x1-AG	-	108	146	54	6	26	210	5	97	-	89	-	10	-
68	68	SXMPi 30 IMP H M12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	160	54	6	26	210	5	97	35.5	89	42	10	24
69	69	SXMPi 30 IMP Q M12-5	39	-	5.5	-	M12x1-AG	-	108	146	54	6	26	210	5	97	-	89	-	10	-
70	70	SXMPi 25 NO H PC M12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	160	54	6	26	210	5	97	35.5	89	42	10	24
71	71	SXMPi 25 NO Q PC M12-5	39	-	5.5	-	M12x1-AG	-	108	146	54	6	26	210	5	97	-	89	-	10	-
72	72	SXMPi 30 NO H PC M12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	160	54	6	26	210	5	97	35.5	89	42	10	24
73	73	SXMPi 30 NO Q PC M12-5	39	-	5.5	-	M12x1-AG	-	108	146	54	6	26	210	5	97	-	89	-	10	-
74	74	SXMPi 25 NC H PC M12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	160	54	6	26	210	5	97	35.5	89	42	10	24
75	75	SXMPi 25 NC Q PC M12-5	39	-	5.5	-	M12x1-AG	-	108	146	54	6	26	210	5	97	-	89	-	10	-
76	76	SXMPi 30 NC H PC M12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	160	54	6	26	210	5	97	35.5	89	42	10	24
77	77	SXMPi 30 NC Q PC M12-5	39	-	5.5	-	M12x1-AG	-	108	146	54	6	26	210	5	97	-	89	-	10	-
78	78	SXMPi 25 IMP H PC M12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	160	54	6	26	210	5	97	35.5	89	42	10	24
79	79	SXMPi 25 IMP Q PC M12-5	39	-	5.5	-	M12x1-AG	-	108	146	54	6	26	210	5	97	-	89	-	10	-
80	80	SXMPi 30 IMP H PC M12-5	39	6.8	5.5	G3/8''-IG	M12x1-AG	M5-IG	108	160	54	6	26	210	5	97	35.5	89	42	10	24
81	81	SXMPi 30 IMP Q PC M12-5	39	-	5.5	-	M12x1-AG	-	108	146	54	6	26	210	5	97	-	89	-	10	-
82	82	SXMPi 30 IMP H PC M12-8	39	6.8	5.5	G3/8-IG	M12x1-AG	M5-IG	108	160	54	6	26	210	5	97	35.5	89	42	10	24
