Rod Type Actuator - SC50

Manufacturer	SATA Automation Co., Ltd.
Description	Rod Type Actuator SC50-AL05-S50-M2-S200W
Part number	SC50-AL05-S50-M2-S200W

CAD models

Request for quotation

Product selection

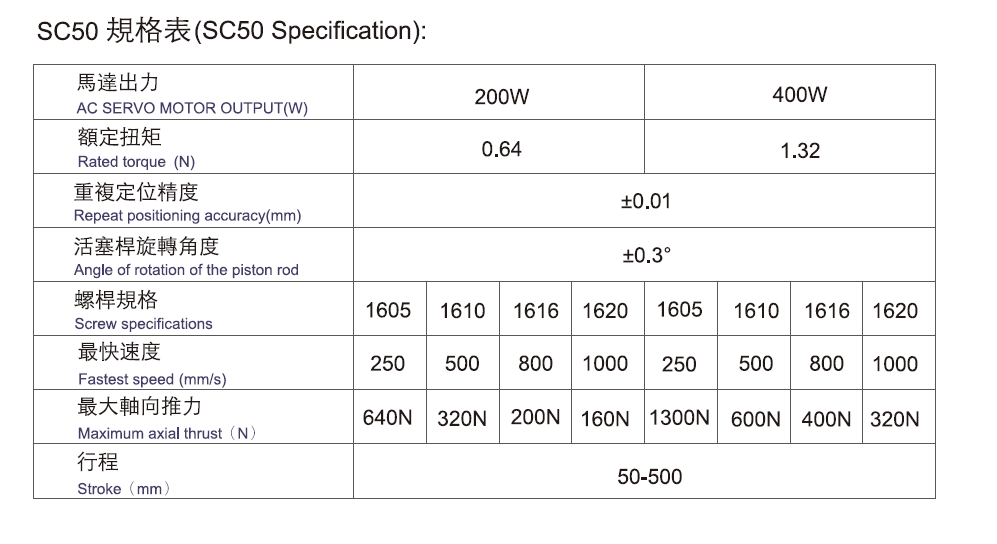

Index	Selector	Model	AC Servo Motor Output	Rated torque (N)	Repeatability positioning accuracy (mm)	Angle of rotation of the piston rod	Stroke	Magnetic switch
1	1	SC50	200W	0.64	±0.02	±0.3°	50-500	ALIF DFSE-020
2	2	SC50	400W	1.32	±0.02	±0.3°	50-500	ALIF DFSE-020

Installation method and Lead

Stroke

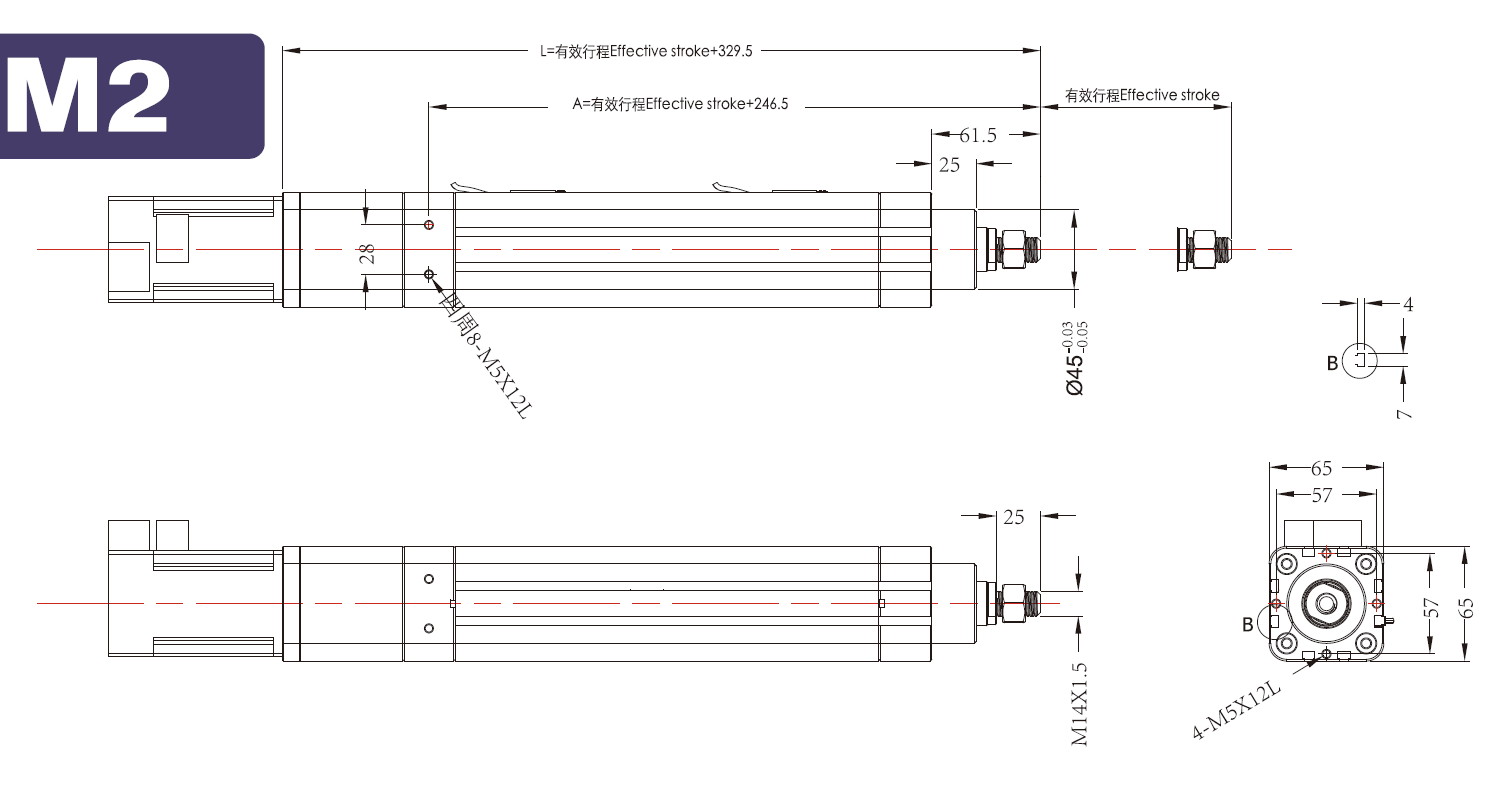

Motor direction

Motor brand and output

Brake

Contact the supplier

SATA Automation Co., Ltd.

SATA was first founded in 1997; initially acting as a agent selling HIWIN Linear Drive Mechanism in order to satisfy market demands; From there, Ger Yang has researched and developed the SATA XY TABLE and introduced an industrial robot from FANUC to develop models that apply to the markets.
