Single Turn Wave Springs - MST Series

Manufacturer	Rotor Clip Company
Description	Single Turn Wave Springs, 9.000 mm x 0.200 mm - MST-35_FH
Manufacturer Part Number	MST-35_FH
E-Shop link	https://www.rotorclip.com/product/MST-35
Product Page	https://www.rotorclip.com/product/MST-35
Load (N)	25.800

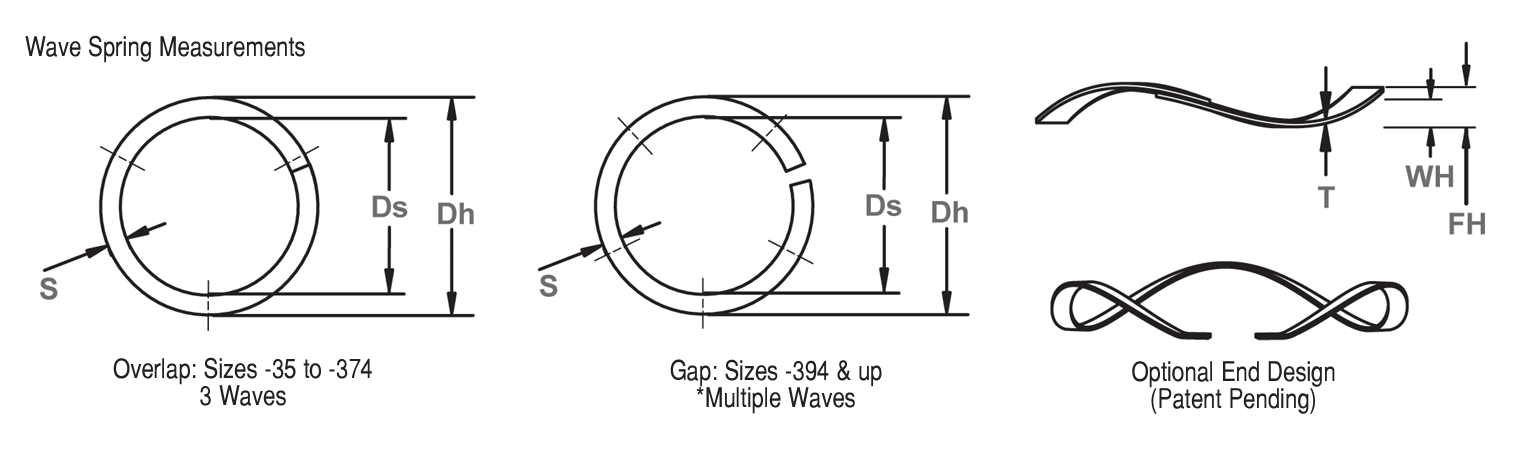

Free Height (mm)	1.500

Outside Diameter (mm)	9.000
Treat Spring Rate (N/mm)	52.000
Work Height (mm)	1.000
Section Nom (mm)	0.810
Thickness Nom (mm)	0.200
#Waves	3
#Active Turns	1

CAD models

Buy now

Product selection

Index	Selector	Manufacturer Part Number	Load (N)	Free Height (mm)	Outside Diameter (mm)	Treat Spring Rate (N/mm)	Work Height (mm)	Section Nom (mm)	Thickness Nom (mm)	#Waves	#Active Turns
1	1	MST-35_FH	25.800	1.500	9.000	52.000	1.000	0.810	0.200	3	1
2	75	MST-35_WH	25.800	1.500	9.000	52.000	1.000	0.810	0.200	3	1
3	86	MST-39_FH	27.600	1.570	10.000	48.000	1.000	1.020	0.200	3	1
4	97	MST-39_WH	27.600	1.570	10.000	48.000	1.000	1.020	0.200	3	1
5	108	MST-43_FH	29.400	1.830	11.000	35.000	1.000	1.020	0.200	3	1
6	119	MST-43_WH	29.400	1.830	11.000	35.000	1.000	1.020	0.200	3	1
7	130	MST-47_FH	33.400	1.570	12.000	59.000	1.000	1.170	0.250	3	1
8	141	MST-47_WH	33.400	1.570	12.000	59.000	1.000	1.170	0.250	3	1
9	152	MST-51_FH	37.800	1.570	13.000	66.000	1.000	1.470	0.250	3	1
10	2	MST-51_WH	37.800	1.570	13.000	66.000	1.000	1.470	0.250	3	1
11	13	MST-63_FH	44.500	2.290	16.000	65.000	1.570	1.980	0.250	3	1
12	24	MST-63_WH	44.500	2.290	16.000	65.000	1.570	1.980	0.250	3	1
13	35	MST-75_FH	53.400	3.050	19.000	35.000	1.570	1.980	0.250	3	1
14	46	MST-75_WH	53.400	3.050	19.000	35.000	1.570	1.980	0.250	3	1
15	57	MST-87_FH	62.300	2.790	22.000	48.000	1.570	2.390	0.300	3	1
16	68	MST-87_WH	62.300	2.790	22.000	48.000	1.570	2.390	0.300	3	1
17	72	MST-95_FH	66.700	3.560	24.000	35.000	1.570	2.390	0.300	3	1
18	73	MST-95_WH	66.700	3.560	24.000	35.000	1.570	2.390	0.300	3	1
19	74	MST-102_FH	71.200	2.540	26.010	111.000	1.980	3.380	0.410	3	1
20	76	MST-102_WH	71.200	2.540	26.010	111.000	1.980	3.380	0.410	3	1
21	77	MST-110_FH	75.600	2.790	27.990	85.000	1.980	3.380	0.410	3	1
22	78	MST-110_WH	75.600	2.790	27.990	85.000	1.980	3.380	0.410	3	1
23	79	MST-118_FH	84.500	3.300	30.000	66.000	1.980	3.380	0.410	3	1
24	80	MST-118_WH	84.500	3.300	30.000	66.000	1.980	3.380	0.410	3	1
25	81	MST-126_FH	89.000	3.810	32.000	52.000	1.980	3.380	0.410	3	1
26	82	MST-126_WH	89.000	3.810	32.000	52.000	1.980	3.380	0.410	3	1
27	83	MST-138_FH	97.900	4.570	35.000	38.000	1.980	3.380	0.410	3	1
28	84	MST-138_WH	97.900	4.570	35.000	38.000	1.980	3.380	0.410	3	1
29	85	MST-146_FH	102.300	3.810	37.010	58.000	1.980	3.630	0.460	3	1
30	87	MST-146_WH	102.300	3.810	37.010	58.000	1.980	3.630	0.460	3	1
31	88	MST-158_FH	111.200	5.080	40.010	37.000	1.980	3.630	0.460	3	1
32	89	MST-158_WH	111.200	5.080	40.010	37.000	1.980	3.630	0.460	3	1
33	90	MST-165_FH	115.700	3.050	42.010	99.000	1.980	3.630	0.460	4	1
34	91	MST-165_WH	115.700	3.050	42.010	99.000	1.980	3.630	0.460	4	1
35	92	MST-185_FH	129.000	3.810	46.990	68.000	1.980	3.630	0.460	4	1
36	93	MST-185_WH	129.000	3.810	46.990	68.000	1.980	3.630	0.460	4	1
37	94	MST-205_FH	142.400	3.560	51.990	121.000	2.360	3.760	0.610	4	1
38	95	MST-205_WH	142.400	3.560	51.990	121.000	2.360	3.760	0.610	4	1
39	96	MST-217_FH	151.300	3.810	54.990	100.000	2.360	3.760	0.610	4	1
40	98	MST-217_WH	151.300	3.810	54.990	100.000	2.360	3.760	0.610	4	1
41	99	MST-244_FH	169.100	4.320	62.000	85.000	2.360	4.520	0.610	4	1
42	100	MST-244_WH	169.100	4.320	62.000	85.000	2.360	4.520	0.610	4	1
43	101	MST-268_FH	186.900	4.320	68.000	131.000	2.770	4.780	0.760	4	1
44	102	MST-268_WH	186.900	4.320	68.000	131.000	2.770	4.780	0.760	4	1
45	103	MST-276_FH	191.300	4.320	70.000	119.000	2.790	4.780	0.760	4	1
46	104	MST-276_WH	191.300	4.320	70.000	119.000	2.790	4.780	0.760	4	1
47	105	MST-284_FH	195.800	4.570	72.010	108.000	2.790	4.780	0.760	4	1
48	106	MST-284_WH	195.800	4.570	72.010	108.000	2.790	4.780	0.760	4	1
49	107	MST-295_FH	204.700	5.080	75.010	94.000	2.770	4.780	0.760	4	1
50	109	MST-295_WH	204.700	5.080	75.010	94.000	2.770	4.780	0.760	4	1
51	110	MST-315_FH	218.000	5.590	80.010	76.000	2.790	4.780	0.760	4	1
52	111	MST-315_WH	218.000	5.590	80.010	76.000	2.790	4.780	0.760	4	1
53	112	MST-335_FH	231.400	5.590	84.990	83.000	2.790	5.920	0.760	4	1
54	113	MST-335_WH	231.400	5.590	84.990	83.000	2.790	5.920	0.760	4	1
55	114	MST-354_FH	249.200	6.350	89.990	68.000	2.790	5.920	0.760	4	1
56	115	MST-354_WH	249.200	6.350	89.990	68.000	2.790	5.920	0.760	4	1
57	116	MST-374_FH	262.500	7.370	95.000	57.000	2.790	5.920	0.760	4	1
58	117	MST-374_WH	262.500	7.370	95.000	57.000	2.790	5.920	0.760	4	1
59	118	MST-394_FH	275.900	4.570	100.000	157.000	2.790	5.920	0.760	5	1
60	120	MST-394_WH	275.900	4.570	100.000	157.000	2.790	5.920	0.760	5	1
61	121	MST-413_FH	289.200	5.080	105.000	134.000	2.790	5.920	0.760	5	1
62	122	MST-413_WH	289.200	5.080	105.000	134.000	2.790	5.920	0.760	5	1
63	123	MST-433_FH	302.600	5.330	110.010	115.000	2.790	5.920	0.760	5	1
64	124	MST-433_WH	302.600	5.330	110.010	115.000	2.790	5.920	0.760	5	1
65	125	MST-453_FH	315.900	6.350	115.010	99.000	3.180	5.920	0.760	5	1
66	126	MST-453_WH	315.900	6.350	115.010	99.000	3.180	5.920	0.760	5	1
67	127	MST-472_FH	329.300	7.110	119.990	86.000	3.200	5.920	0.760	5	1
68	128	MST-472_WH	329.300	7.110	119.990	86.000	3.200	5.920	0.760	5	1
69	129	MST-492_FH	342.600	7.620	124.990	76.000	3.200	5.920	0.760	5	1
70	131	MST-492_WH	342.600	7.620	124.990	76.000	3.200	5.920	0.760	5	1
71	132	MST-512_FH	356.000	8.640	130.000	67.000	3.300	5.920	0.760	5	1
72	133	MST-512_WH	356.000	8.640	130.000	67.000	3.300	5.920	0.760	5	1
73	134	MST-532_FH	369.300	9.400	135.000	59.000	3.180	5.920	0.760	5	1
74	135	MST-532_WH	369.300	9.400	135.000	59.000	3.180	5.920	0.760	5	1
75	136	MST-551_FH	382.700	6.860	140.000	108.000	3.180	5.920	0.760	6	1
76	137	MST-551_WH	382.700	6.860	140.000	108.000	3.180	5.920	0.760	6	1
77	138	MST-571_FH	396.000	7.370	145.010	97.000	3.180	5.920	0.760	6	1
78	139	MST-571_WH	396.000	7.370	145.010	97.000	3.180	5.920	0.760	6	1
79	140	MST-591_FH	404.900	8.000	150.010	87.000	3.180	5.920	0.760	6	1
80	142	MST-591_WH	404.900	8.000	150.010	87.000	3.180	5.920	0.760	6	1
81	143	MST-630_FH	440.500	9.400	159.990	71.000	3.180	5.920	0.760	6	1
82	144	MST-630_WH	440.500	9.400	159.990	71.000	3.180	5.920	0.760	6	1
83	145	MST-650_FH	453.900	10.410	165.000	64.000	3.180	5.920	0.760	6	1
84	146	MST-650_WH	453.900	10.410	165.000	64.000	3.180	5.920	0.760	6	1
85	147	MST-669_FH	467.200	11.180	170.000	58.000	3.180	5.920	0.760	6	1
86	148	MST-669_WH	467.200	11.180	170.000	58.000	3.180	5.920	0.760	6	1
87	149	MST-689_FH	480.600	8.130	175.010	116.000	3.960	9.530	0.810	6	1
88	150	MST-689_WH	480.600	8.130	175.010	116.000	3.960	9.530	0.810	6	1
89	151	MST-709_FH	493.900	8.640	180.010	105.000	3.960	9.530	0.810	6	1
90	153	MST-709_WH	493.900	8.640	180.010	105.000	3.960	9.530	0.810	6	1
91	154	MST-728_FH	507.300	9.140	184.990	97.000	3.960	9.530	0.810	6	1
92	155	MST-728_WH	507.300	9.140	184.990	97.000	3.960	9.530	0.810	6	1
93	156	MST-748_FH	520.600	9.910	189.990	88.000	3.960	9.530	0.810	6	1
94	157	MST-748_WH	520.600	9.910	189.990	88.000	3.960	9.530	0.810	6	1
95	158	MST-787_FH	547.300	7.110	200.000	174.000	3.960	9.530	0.810	7	1
96	159	MST-787_WH	547.300	7.110	200.000	174.000	3.960	9.530	0.810	7	1
97	160	MST-807_FH	560.700	7.370	205.000	161.000	3.960	9.530	0.810	7	1
98	161	MST-807_WH	560.700	7.370	205.000	161.000	3.960	9.530	0.810	7	1
99	162	MST-827_FH	578.500	7.870	210.010	149.000	3.960	9.530	0.810	7	1
100	3	MST-827_WH	578.500	7.870	210.010	149.000	3.960	9.530	0.810	7	1
101	4	MST-847_FH	591.800	8.380	215.010	138.000	3.960	9.530	0.810	7	1
102	5	MST-847_WH	591.800	8.380	215.010	138.000	3.960	9.530	0.810	7	1
103	6	MST-866_FH	605.200	8.640	219.990	128.000	3.960	9.530	0.810	7	1
104	7	MST-866_WH	605.200	8.640	219.990	128.000	3.960	9.530	0.810	7	1
105	8	MST-886_FH	618.500	7.110	224.990	203.000	3.960	9.530	0.810	8	1
106	9	MST-886_WH	618.500	7.110	224.990	203.000	3.960	9.530	0.810	8	1
107	10	MST-906_FH	631.900	6.100	230.000	303.000	3.960	9.530	0.810	9	1
108	11	MST-906_WH	631.900	6.100	230.000	303.000	3.960	9.530	0.810	9	1
109	12	MST-925_FH	645.200	6.350	235.000	283.000	3.960	9.530	0.810	9	1
110	14	MST-925_WH	645.200	6.350	235.000	283.000	3.960	9.530	0.810	9	1
111	15	MST-945_FH	658.600	6.350	240.000	265.000	3.960	9.530	0.810	9	1
112	16	MST-945_WH	658.600	6.350	240.000	265.000	3.960	9.530	0.810	9	1
113	17	MST-984_FH	685.300	6.860	250.010	232.000	3.960	9.530	0.810	9	1
114	18	MST-984_WH	685.300	6.860	250.010	232.000	3.960	9.530	0.810	9	1
115	19	MST-1024_FH	712.000	7.370	259.990	205.000	3.960	9.530	0.810	9	1
116	20	MST-1024_WH	712.000	7.370	259.990	205.000	3.960	9.530	0.810	9	1
117	21	MST-1043_FH	725.300	7.620	265.000	193.000	3.960	9.530	0.810	9	1
118	22	MST-1043_WH	725.300	7.620	265.000	193.000	3.960	9.530	0.810	9	1
119	23	MST-1063_FH	743.100	8.130	270.000	182.000	3.960	9.530	0.810	9	1
120	25	MST-1063_WH	743.100	8.130	270.000	182.000	3.960	9.530	0.810	9	1
121	26	MST-1102_FH	769.800	8.640	280.010	162.000	3.960	9.530	0.810	9	1
122	27	MST-1102_WH	769.800	8.640	280.010	162.000	3.960	9.530	0.810	9	1
123	28	MST-1142_FH	796.500	9.400	289.990	144.000	3.960	9.530	0.810	9	1
124	29	MST-1142_WH	796.500	9.400	289.990	144.000	3.960	9.530	0.810	9	1
125	30	MST-1181_FH	823.200	10.410	300.000	129.000	3.960	9.530	0.810	9	1
126	31	MST-1181_WH	823.200	10.410	300.000	129.000	3.960	9.530	0.810	9	1
127	32	MST-1221_FH	849.900	7.110	310.010	264.000	3.960	9.530	1.070	9	1
128	33	MST-1221_WH	849.900	7.110	310.010	264.000	3.960	9.530	1.070	9	1
129	34	MST-1260_FH	876.600	7.620	319.990	239.000	3.960	9.530	1.070	9	1
130	36	MST-1260_WH	876.600	7.620	319.990	239.000	3.960	9.530	1.070	9	1
131	37	MST-1339_FH	934.500	8.640	340.000	198.000	3.960	9.530	1.070	9	1
132	38	MST-1339_WH	934.500	8.640	340.000	198.000	3.960	9.530	1.070	9	1
133	39	MST-1378_FH	961.100	9.400	350.010	180.000	3.960	9.530	1.070	9	1
134	40	MST-1378_WH	961.100	9.400	350.010	180.000	3.960	9.530	1.070	9	1
135	41	MST-1417_FH	987.900	7.620	359.990	271.000	3.960	9.530	1.070	10	1
136	42	MST-1417_WH	987.900	7.620	359.990	271.000	3.960	9.530	1.070	10	1
137	43	MST-1457_FH	1014.600	8.130	370.000	249.000	3.960	9.530	1.070	10	1
138	44	MST-1457_WH	1014.600	8.130	370.000	249.000	3.960	9.530	1.070	10	1
139	45	MST-1496_FH	1041.300	8.640	380.010	229.000	3.960	9.530	1.070	10	1
140	47	MST-1496_WH	1041.300	8.640	380.010	229.000	3.960	9.530	1.070	10	1
141	48	MST-1535_FH	1072.400	9.140	389.990	211.000	3.960	9.530	1.070	10	1
142	49	MST-1535_WH	1072.400	9.140	389.990	211.000	3.960	9.530	1.070	10	1
143	50	MST-1575_FH	1099.100	9.650	400.000	196.000	3.960	9.530	1.070	10	1
144	51	MST-1575_WH	1099.100	9.650	400.000	196.000	3.960	9.530	1.070	10	1
145	52	MST-1614_FH	1125.800	8.380	410.010	251.000	3.960	12.700	1.070	10	1
146	53	MST-1614_WH	1125.800	8.380	410.010	251.000	3.960	12.700	1.070	10	1
147	54	MST-1654_FH	1152.500	8.890	419.990	233.000	3.960	12.700	1.070	10	1
148	55	MST-1654_WH	1152.500	8.890	419.990	233.000	3.960	12.700	1.070	10	1
149	56	MST-1693_FH	1179.200	7.620	430.000	317.000	3.960	12.700	1.070	11	1
150	58	MST-1693_WH	1179.200	7.620	430.000	317.000	3.960	12.700	1.070	11	1
151	59	MST-1732_FH	1205.900	8.130	440.000	295.000	3.960	12.700	1.070	11	1
152	60	MST-1732_WH	1205.900	8.130	440.000	295.000	3.960	12.700	1.070	11	1
153	61	MST-1811_FH	1263.700	8.890	459.990	256.000	3.960	12.700	1.070	11	1
154	62	MST-1811_WH	1263.700	8.890	459.990	256.000	3.960	12.700	1.070	11	1
155	63	MST-1890_FH	1317.100	8.130	480.010	318.000	3.960	12.700	1.070	12	1
156	64	MST-1890_WH	1317.100	8.130	480.010	318.000	3.960	12.700	1.070	12	1
157	65	MST-1969_FH	1370.500	8.890	500.000	280.000	3.960	12.700	1.070	12	1
158	66	MST-1969_WH	1370.500	8.890	500.000	280.000	3.960	12.700	1.070	12	1
159	67	MST-2126_FH	1481.800	8.890	540.000	303.000	3.960	12.700	1.070	13	1
160	69	MST-2126_WH	1481.800	8.890	540.000	303.000	3.960	12.700	1.070	13	1
161	70	MST-2284_FH	1593.000	8.890	580.010	327.000	3.960	12.700	1.070	14	1
162	71	MST-2284_WH	1593.000	8.890	580.010	327.000	3.960	12.700	1.070	14	1

Product Description

All models are provided for form and fit, please contact manufacturer for part measurements when required.

Documentation

Product Page

Contact the supplier

Rotor Clip Company

Rotor Clip is the global leader in the manufacturer of Retaining Rings, Wave Springs and Hose Clamps. With over 20,000 standard parts, we specialize in engineering the right part, for the right application every time whether it is a standard or custom.

Rotor Clip Company

Rotor Clip Company
187 Davidson Avenue
08873 Somerset
United States of America
www.rotorclip.com
info@rotorclip.com
