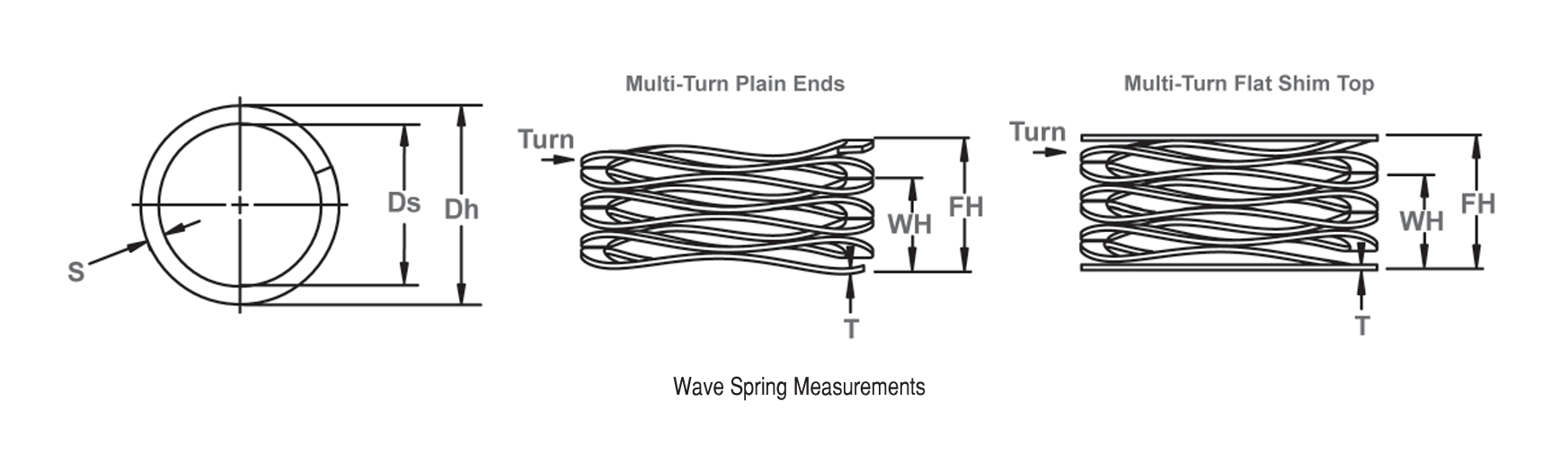

Multi Turn Wave Springs - Metric - MWM Series

Manufacturer	Rotor Clip Company
Description	Multi Turn Wave Springs, 5.990 mm x 0.150 mm - MWM-6 A_FH
Manufacturer Part Number	MWM-6 A_FH
E-Shop link	https://www.rotorclip.com/product/MWM-6 A
Product Page	https://www.rotorclip.com/product/MWM-6 A
Load (N)	12.000
Free Height (mm)	1.520

Outside Diameter (mm)	5.990
Treat Spring Rate (N/mm)	15.240
Work Height (mm)	0.740
Section Nom (mm)	0.610
Thickness Nom (mm)	0.150
#Waves	2.5
#Active Turns	3

CAD models

Buy now

Product selection

Index	Selector	Manufacturer Part Number	Load (N)	Free Height (mm)	Outside Diameter (mm)	Treat Spring Rate (N/mm)	Work Height (mm)	Section Nom (mm)	Thickness Nom (mm)	#Waves	#Active Turns
1	1	MWM-6 A_FH	12.000	1.520	5.990	15.240	0.740	0.610	0.150	2.5	3
2	112	MWM-6 A_WH	12.000	1.520	5.990	15.240	0.740	0.610	0.150	2.5	3
3	223	MWM-6 B_FH	12.000	2.030	5.990	11.250	0.970	0.610	0.150	2.5	4
4	334	MWM-6 B_WH	12.000	2.030	5.990	11.250	0.970	0.610	0.150	2.5	4
5	445	MWM-6 C_FH	12.000	2.540	5.990	9.090	1.220	0.610	0.150	2.5	5
6	556	MWM-6 C_WH	12.000	2.540	5.990	9.090	1.220	0.610	0.150	2.5	5
7	582	MWM-6 D_FH	12.000	3.050	5.990	7.620	1.470	0.610	0.150	2.5	6
8	593	MWM-6 D_WH	12.000	3.050	5.990	7.620	1.470	0.610	0.150	2.5	6
9	604	MWM-6 E_FH	12.000	3.560	5.990	6.470	1.700	0.610	0.150	2.5	7
10	2	MWM-6 E_WH	12.000	3.560	5.990	6.470	1.700	0.610	0.150	2.5	7
11	13	MWM-6 F_FH	12.000	4.060	5.990	5.690	1.960	0.610	0.150	2.5	8
12	24	MWM-6 F_WH	12.000	4.060	5.990	5.690	1.960	0.610	0.150	2.5	8
13	35	MWM-6 G_FH	12.000	4.570	5.990	5.030	2.180	0.610	0.150	2.5	9
14	46	MWM-6 G_WH	12.000	4.570	5.990	5.030	2.180	0.610	0.150	2.5	9
15	57	MWM-6 H_FH	12.000	5.590	5.990	4.140	2.690	0.610	0.150	2.5	11
16	68	MWM-6 H_WH	12.000	5.590	5.990	4.140	2.690	0.610	0.150	2.5	11
17	79	MWM-6 I_FH	12.000	6.600	5.990	3.500	3.180	0.610	0.150	2.5	13
18	90	MWM-6 I_WH	12.000	6.600	5.990	3.500	3.180	0.610	0.150	2.5	13
19	101	MWM-8 A_FH	30.000	2.820	8.000	28.810	1.800	0.810	0.250	2.5	3
20	113	MWM-8 A_WH	30.000	2.820	8.000	28.810	1.800	0.810	0.250	2.5	3
21	124	MWM-8 AF_FH	30.000	2.820	8.000	28.810	1.800	0.810	0.250	2.5	3
22	135	MWM-8 AF_WH	30.000	2.820	8.000	28.810	1.800	0.810	0.250	2.5	3
23	146	MWM-8 B_FH	30.000	3.760	8.000	24.610	2.540	0.810	0.250	2.5	4
24	157	MWM-8 B_WH	30.000	3.760	8.000	24.610	2.540	0.810	0.250	2.5	4
25	168	MWM-8 BF_FH	30.000	3.760	8.000	24.610	2.540	0.810	0.250	2.5	4
26	179	MWM-8 BF_WH	30.000	3.760	8.000	24.610	2.540	0.810	0.250	2.5	4
27	190	MWM-8 C_FH	30.000	4.700	8.000	18.170	3.070	0.810	0.250	2.5	5
28	201	MWM-8 C_WH	30.000	4.700	8.000	18.170	3.070	0.810	0.250	2.5	5
29	212	MWM-8 CF_FH	30.000	4.700	8.000	18.170	3.070	0.810	0.250	2.5	5
30	224	MWM-8 CF_WH	30.000	4.700	8.000	18.170	3.070	0.810	0.250	2.5	5
31	235	MWM-8 D_FH	30.000	5.640	8.000	16.400	3.810	0.810	0.250	2.5	6
32	246	MWM-8 D_WH	30.000	5.640	8.000	16.400	3.810	0.810	0.250	2.5	6
33	257	MWM-8 DF_FH	30.000	5.640	8.000	16.400	3.810	0.810	0.250	2.5	6
34	268	MWM-8 DF_WH	30.000	5.640	8.000	16.400	3.810	0.810	0.250	2.5	6
35	279	MWM-8 E_FH	30.000	6.580	8.000	13.270	4.320	0.810	0.250	2.5	7
36	290	MWM-8 E_WH	30.000	6.580	8.000	13.270	4.320	0.810	0.250	2.5	7
37	301	MWM-8 EF_FH	30.000	6.580	8.000	13.270	4.320	0.810	0.250	2.5	7
38	312	MWM-8 EF_WH	30.000	6.580	8.000	13.270	4.320	0.810	0.250	2.5	7
39	323	MWM-8 F_FH	30.000	7.520	8.000	11.690	4.950	0.810	0.250	2.5	8
40	335	MWM-8 F_WH	30.000	7.520	8.000	11.690	4.950	0.810	0.250	2.5	8
41	346	MWM-8 FF_FH	30.000	7.520	8.000	11.690	4.950	0.810	0.250	2.5	8
42	357	MWM-8 FF_WH	30.000	7.520	8.000	11.690	4.950	0.810	0.250	2.5	8
43	368	MWM-8 G_FH	30.000	8.460	8.000	10.450	5.590	0.810	0.250	2.5	9
44	379	MWM-8 G_WH	30.000	8.460	8.000	10.450	5.590	0.810	0.250	2.5	9
45	390	MWM-8 GF_FH	30.000	8.460	8.000	10.450	5.590	0.810	0.250	2.5	9
46	401	MWM-8 GF_WH	30.000	8.460	8.000	10.450	5.590	0.810	0.250	2.5	9
47	412	MWM-8 H_FH	30.000	10.340	8.000	8.620	6.860	0.810	0.250	2.5	11
48	423	MWM-8 H_WH	30.000	10.340	8.000	8.620	6.860	0.810	0.250	2.5	11
49	434	MWM-8 HF_FH	30.000	10.340	8.000	8.620	6.860	0.810	0.250	2.5	11
50	446	MWM-8 HF_WH	30.000	10.340	8.000	8.620	6.860	0.810	0.250	2.5	11
51	457	MWM-8 I_FH	30.000	12.220	8.000	6.910	7.870	0.810	0.250	2.5	13
52	468	MWM-8 I_WH	30.000	12.220	8.000	6.910	7.870	0.810	0.250	2.5	13
53	479	MWM-8 IF_FH	30.000	12.220	8.000	6.910	7.870	0.810	0.250	2.5	13
54	490	MWM-8 IF_WH	30.000	12.220	8.000	6.910	7.870	0.810	0.250	2.5	13
55	501	MWM-10 A_FH	35.000	3.960	10.010	18.130	2.030	0.810	0.280	2.5	3
56	512	MWM-10 A_WH	35.000	3.960	10.010	18.130	2.030	0.810	0.280	2.5	3
57	523	MWM-10 AF_FH	35.000	3.960	10.010	18.130	2.030	0.810	0.280	2.5	3
58	534	MWM-10 AF_WH	35.000	3.960	10.010	18.130	2.030	0.810	0.280	2.5	3
59	545	MWM-10 B_FH	35.000	5.280	10.010	14.060	2.790	0.810	0.280	2.5	4
60	557	MWM-10 B_WH	35.000	5.280	10.010	14.060	2.790	0.810	0.280	2.5	4
61	568	MWM-10 BF_FH	35.000	5.280	10.010	14.060	2.790	0.810	0.280	2.5	4
62	574	MWM-10 BF_WH	35.000	5.280	10.010	14.060	2.790	0.810	0.280	2.5	4
63	575	MWM-10 C_FH	35.000	6.600	10.010	11.480	3.560	0.810	0.280	2.5	5
64	576	MWM-10 C_WH	35.000	6.600	10.010	11.480	3.560	0.810	0.280	2.5	5
65	577	MWM-10 CF_FH	35.000	6.600	10.010	11.480	3.560	0.810	0.280	2.5	5
66	578	MWM-10 CF_WH	35.000	6.600	10.010	11.480	3.560	0.810	0.280	2.5	5
67	579	MWM-10 D_FH	35.000	7.920	10.010	9.700	4.320	0.810	0.280	2.5	6
68	580	MWM-10 D_WH	35.000	7.920	10.010	9.700	4.320	0.810	0.280	2.5	6
69	581	MWM-10 DF_FH	35.000	7.920	10.010	9.700	4.320	0.810	0.280	2.5	6
70	583	MWM-10 DF_WH	35.000	7.920	10.010	9.700	4.320	0.810	0.280	2.5	6
71	584	MWM-10 E_FH	35.000	9.250	10.010	8.400	5.080	0.810	0.280	2.5	7
72	585	MWM-10 E_WH	35.000	9.250	10.010	8.400	5.080	0.810	0.280	2.5	7
73	586	MWM-10 EF_FH	35.000	9.250	10.010	8.400	5.080	0.810	0.280	2.5	7
74	587	MWM-10 EF_WH	35.000	9.250	10.010	8.400	5.080	0.810	0.280	2.5	7
75	588	MWM-10 F_FH	35.000	10.570	10.010	7.410	5.840	0.810	0.280	2.5	8
76	589	MWM-10 F_WH	35.000	10.570	10.010	7.410	5.840	0.810	0.280	2.5	8
77	590	MWM-10 FF_FH	35.000	10.570	10.010	7.410	5.840	0.810	0.280	2.5	8
78	591	MWM-10 FF_WH	35.000	10.570	10.010	7.410	5.840	0.810	0.280	2.5	8
79	592	MWM-10 G_FH	35.000	11.890	10.010	6.620	6.600	0.810	0.280	2.5	9
80	594	MWM-10 G_WH	35.000	11.890	10.010	6.620	6.600	0.810	0.280	2.5	9
81	595	MWM-10 GF_FH	35.000	11.890	10.010	6.620	6.600	0.810	0.280	2.5	9
82	596	MWM-10 GF_WH	35.000	11.890	10.010	6.620	6.600	0.810	0.280	2.5	9
83	597	MWM-10 H_FH	35.000	13.210	10.010	5.990	7.370	0.810	0.280	2.5	10
84	598	MWM-10 H_WH	35.000	13.210	10.010	5.990	7.370	0.810	0.280	2.5	10
85	599	MWM-10 HF_FH	35.000	13.210	10.010	5.990	7.370	0.810	0.280	2.5	10
86	600	MWM-10 HF_WH	35.000	13.210	10.010	5.990	7.370	0.810	0.280	2.5	10
87	601	MWM-10 I_FH	35.000	14.530	10.010	5.470	8.130	0.810	0.280	2.5	11
88	602	MWM-10 I_WH	35.000	14.530	10.010	5.470	8.130	0.810	0.280	2.5	11
89	603	MWM-10 IF_FH	35.000	14.530	10.010	5.470	8.130	0.810	0.280	2.5	11
90	605	MWM-10 IF_WH	35.000	14.530	10.010	5.470	8.130	0.810	0.280	2.5	11
91	606	MWM-12 A_FH	40.000	4.340	11.990	20.190	2.360	1.170	0.280	2.5	3
92	607	MWM-12 A_WH	40.000	4.340	11.990	20.190	2.360	1.170	0.280	2.5	3
93	608	MWM-12 AF_FH	40.000	4.340	11.990	20.190	2.360	1.170	0.280	2.5	3
94	609	MWM-12 AF_WH	40.000	4.340	11.990	20.190	2.360	1.170	0.280	2.5	3
95	610	MWM-12 B_FH	40.000	5.790	11.990	15.290	3.180	1.170	0.280	2.5	4
96	611	MWM-12 B_WH	40.000	5.790	11.990	15.290	3.180	1.170	0.280	2.5	4
97	612	MWM-12 BF_FH	40.000	5.790	11.990	15.290	3.180	1.170	0.280	2.5	4
98	613	MWM-12 BF_WH	40.000	5.790	11.990	15.290	3.180	1.170	0.280	2.5	4
99	614	MWM-12 C_FH	40.000	7.240	11.990	12.210	3.960	1.170	0.280	2.5	5
100	3	MWM-12 C_WH	40.000	7.240	11.990	12.210	3.960	1.170	0.280	2.5	5
101	4	MWM-12 CF_FH	40.000	7.240	11.990	12.210	3.960	1.170	0.280	2.5	5
102	5	MWM-12 CF_WH	40.000	7.240	11.990	12.210	3.960	1.170	0.280	2.5	5
103	6	MWM-12 D_FH	40.000	8.690	11.990	10.160	4.750	1.170	0.280	2.5	6
104	7	MWM-12 D_WH	40.000	8.690	11.990	10.160	4.750	1.170	0.280	2.5	6
105	8	MWM-12 DF_FH	40.000	8.690	11.990	10.160	4.750	1.170	0.280	2.5	6
106	9	MWM-12 DF_WH	40.000	8.690	11.990	10.160	4.750	1.170	0.280	2.5	6
107	10	MWM-12 E_FH	40.000	10.130	11.990	8.700	5.540	1.170	0.280	2.5	7
108	11	MWM-12 E_WH	40.000	10.130	11.990	8.700	5.540	1.170	0.280	2.5	7
109	12	MWM-12 EF_FH	40.000	10.130	11.990	8.700	5.540	1.170	0.280	2.5	7
110	14	MWM-12 EF_WH	40.000	10.130	11.990	8.700	5.540	1.170	0.280	2.5	7
111	15	MWM-12 F_FH	40.000	11.580	11.990	7.610	6.320	1.170	0.280	2.5	8
112	16	MWM-12 F_WH	40.000	11.580	11.990	7.610	6.320	1.170	0.280	2.5	8
113	17	MWM-12 FF_FH	40.000	11.580	11.990	7.610	6.320	1.170	0.280	2.5	8
114	18	MWM-12 FF_WH	40.000	11.580	11.990	7.610	6.320	1.170	0.280	2.5	8
115	19	MWM-12 G_FH	40.000	13.030	11.990	6.760	7.110	1.170	0.280	2.5	9
116	20	MWM-12 G_WH	40.000	13.030	11.990	6.760	7.110	1.170	0.280	2.5	9
117	21	MWM-12 GF_FH	40.000	13.030	11.990	6.760	7.110	1.170	0.280	2.5	9
118	22	MWM-12 GF_WH	40.000	13.030	11.990	6.760	7.110	1.170	0.280	2.5	9
119	23	MWM-12 H_FH	40.000	14.480	11.990	6.100	7.920	1.170	0.280	2.5	10
120	25	MWM-12 H_WH	40.000	14.480	11.990	6.100	7.920	1.170	0.280	2.5	10
121	26	MWM-12 HF_FH	40.000	14.480	11.990	6.100	7.920	1.170	0.280	2.5	10
122	27	MWM-12 HF_WH	40.000	14.480	11.990	6.100	7.920	1.170	0.280	2.5	10
123	28	MWM-12 I_FH	40.000	15.930	11.990	5.550	8.710	1.170	0.280	2.5	11
124	29	MWM-12 I_WH	40.000	15.930	11.990	5.550	8.710	1.170	0.280	2.5	11
125	30	MWM-12 IF_FH	40.000	15.930	11.990	5.550	8.710	1.170	0.280	2.5	11
126	31	MWM-12 IF_WH	40.000	15.930	11.990	5.550	8.710	1.170	0.280	2.5	11
127	32	MWM-14 A_FH	50.000	4.950	14.000	18.060	2.180	1.520	0.300	2.5	3
128	33	MWM-14 A_WH	50.000	4.950	14.000	18.060	2.180	1.520	0.300	2.5	3
129	34	MWM-14 AF_FH	50.000	4.950	14.000	18.060	2.180	1.520	0.300	2.5	3
130	36	MWM-14 AF_WH	50.000	4.950	14.000	18.060	2.180	1.520	0.300	2.5	3
131	37	MWM-14 B_FH	50.000	6.600	14.000	13.670	2.950	1.520	0.300	2.5	4
132	38	MWM-14 B_WH	50.000	6.600	14.000	13.670	2.950	1.520	0.300	2.5	4
133	39	MWM-14 BF_FH	50.000	6.600	14.000	13.670	2.950	1.520	0.300	2.5	4
134	40	MWM-14 BF_WH	50.000	6.600	14.000	13.670	2.950	1.520	0.300	2.5	4
135	41	MWM-14 C_FH	50.000	8.260	14.000	11.000	3.710	1.520	0.300	2.5	5
136	42	MWM-14 C_WH	50.000	8.260	14.000	11.000	3.710	1.520	0.300	2.5	5
137	43	MWM-14 CF_FH	50.000	8.260	14.000	11.000	3.710	1.520	0.300	2.5	5
138	44	MWM-14 CF_WH	50.000	8.260	14.000	11.000	3.710	1.520	0.300	2.5	5
139	45	MWM-14 D_FH	50.000	9.910	14.000	9.290	4.520	1.520	0.300	2.5	6
140	47	MWM-14 D_WH	50.000	9.910	14.000	9.290	4.520	1.520	0.300	2.5	6
141	48	MWM-14 DF_FH	50.000	9.910	14.000	9.290	4.520	1.520	0.300	2.5	6
142	49	MWM-14 DF_WH	50.000	9.910	14.000	9.290	4.520	1.520	0.300	2.5	6
143	50	MWM-14 E_FH	50.000	11.560	14.000	8.030	5.330	1.520	0.300	2.5	7
144	51	MWM-14 E_WH	50.000	11.560	14.000	8.030	5.330	1.520	0.300	2.5	7
145	52	MWM-14 EF_FH	50.000	11.560	14.000	8.030	5.330	1.520	0.300	2.5	7
146	53	MWM-14 EF_WH	50.000	11.560	14.000	8.030	5.330	1.520	0.300	2.5	7
147	54	MWM-14 F_FH	50.000	13.210	14.000	7.110	6.170	1.520	0.300	2.5	8
148	55	MWM-14 F_WH	50.000	13.210	14.000	7.110	6.170	1.520	0.300	2.5	8
149	56	MWM-14 FF_FH	50.000	13.210	14.000	7.110	6.170	1.520	0.300	2.5	8
150	58	MWM-14 FF_WH	50.000	13.210	14.000	7.110	6.170	1.520	0.300	2.5	8
151	59	MWM-14 G_FH	50.000	14.860	14.000	6.370	7.010	1.520	0.300	2.5	9
152	60	MWM-14 G_WH	50.000	14.860	14.000	6.370	7.010	1.520	0.300	2.5	9
153	61	MWM-14 GF_FH	50.000	14.860	14.000	6.370	7.010	1.520	0.300	2.5	9
154	62	MWM-14 GF_WH	50.000	14.860	14.000	6.370	7.010	1.520	0.300	2.5	9
155	63	MWM-14 H_FH	50.000	16.510	14.000	5.770	7.850	1.520	0.300	2.5	10
156	64	MWM-14 H_WH	50.000	16.510	14.000	5.770	7.850	1.520	0.300	2.5	10
157	65	MWM-14 HF_FH	50.000	16.510	14.000	5.770	7.850	1.520	0.300	2.5	10
158	66	MWM-14 HF_WH	50.000	16.510	14.000	5.770	7.850	1.520	0.300	2.5	10
159	67	MWM-14 I_FH	50.000	18.160	14.000	5.290	8.710	1.520	0.300	2.5	11
160	69	MWM-14 I_WH	50.000	18.160	14.000	5.290	8.710	1.520	0.300	2.5	11
161	70	MWM-14 IF_FH	50.000	18.160	14.000	5.290	8.710	1.520	0.300	2.5	11
162	71	MWM-14 IF_WH	50.000	18.160	14.000	5.290	8.710	1.520	0.300	2.5	11
163	72	MWM-15 A_FH	50.000	5.180	15.010	28.530	3.430	1.470	0.230	3.5	3
164	73	MWM-15 A_WH	50.000	5.180	15.010	28.530	3.430	1.470	0.230	3.5	3
165	74	MWM-15 AF_FH	50.000	5.180	15.010	28.530	3.430	1.470	0.230	3.5	3
166	75	MWM-15 AF_WH	50.000	5.180	15.010	28.530	3.430	1.470	0.230	3.5	3
167	76	MWM-15 B_FH	50.000	6.910	15.010	21.400	4.570	1.470	0.230	3.5	4
168	77	MWM-15 B_WH	50.000	6.910	15.010	21.400	4.570	1.470	0.230	3.5	4
169	78	MWM-15 BF_FH	50.000	6.910	15.010	21.400	4.570	1.470	0.230	3.5	4
170	80	MWM-15 BF_WH	50.000	6.910	15.010	21.400	4.570	1.470	0.230	3.5	4
171	81	MWM-15 C_FH	50.000	8.640	15.010	17.120	5.720	1.470	0.230	3.5	5
172	82	MWM-15 C_WH	50.000	8.640	15.010	17.120	5.720	1.470	0.230	3.5	5
173	83	MWM-15 CF_FH	50.000	8.640	15.010	17.120	5.720	1.470	0.230	3.5	5
174	84	MWM-15 CF_WH	50.000	8.640	15.010	17.120	5.720	1.470	0.230	3.5	5
175	85	MWM-15 D_FH	50.000	10.360	15.010	14.260	6.860	1.470	0.230	3.5	6
176	86	MWM-15 D_WH	50.000	10.360	15.010	14.260	6.860	1.470	0.230	3.5	6
177	87	MWM-15 DF_FH	50.000	10.360	15.010	14.260	6.860	1.470	0.230	3.5	6
178	88	MWM-15 DF_WH	50.000	10.360	15.010	14.260	6.860	1.470	0.230	3.5	6
179	89	MWM-15 E_FH	50.000	12.090	15.010	12.230	8.000	1.470	0.230	3.5	7
180	91	MWM-15 E_WH	50.000	12.090	15.010	12.230	8.000	1.470	0.230	3.5	7
181	92	MWM-15 EF_FH	50.000	12.090	15.010	12.230	8.000	1.470	0.230	3.5	7
182	93	MWM-15 EF_WH	50.000	12.090	15.010	12.230	8.000	1.470	0.230	3.5	7
183	94	MWM-15 F_FH	50.000	13.820	15.010	10.700	9.140	1.470	0.230	3.5	8
184	95	MWM-15 F_WH	50.000	13.820	15.010	10.700	9.140	1.470	0.230	3.5	8
185	96	MWM-15 FF_FH	50.000	13.820	15.010	10.700	9.140	1.470	0.230	3.5	8
186	97	MWM-15 FF_WH	50.000	13.820	15.010	10.700	9.140	1.470	0.230	3.5	8
187	98	MWM-15 G_FH	50.000	15.540	15.010	9.510	10.290	1.470	0.230	3.5	9
188	99	MWM-15 G_WH	50.000	15.540	15.010	9.510	10.290	1.470	0.230	3.5	9
189	100	MWM-15 GF_FH	50.000	15.540	15.010	9.510	10.290	1.470	0.230	3.5	9
190	102	MWM-15 GF_WH	50.000	15.540	15.010	9.510	10.290	1.470	0.230	3.5	9
191	103	MWM-15 H_FH	50.000	17.270	15.010	8.560	11.430	1.470	0.230	3.5	10
192	104	MWM-15 H_WH	50.000	17.270	15.010	8.560	11.430	1.470	0.230	3.5	10
193	105	MWM-15 HF_FH	50.000	17.270	15.010	8.560	11.430	1.470	0.230	3.5	10
194	106	MWM-15 HF_WH	50.000	17.270	15.010	8.560	11.430	1.470	0.230	3.5	10
195	107	MWM-15 I_FH	50.000	19.000	15.010	7.780	12.570	1.470	0.230	3.5	11
196	108	MWM-15 I_WH	50.000	19.000	15.010	7.780	12.570	1.470	0.230	3.5	11
197	109	MWM-15 IF_FH	50.000	19.000	15.010	7.780	12.570	1.470	0.230	3.5	11
198	110	MWM-15 IF_WH	50.000	19.000	15.010	7.780	12.570	1.470	0.230	3.5	11
199	111	MWM-16 A_FH	55.000	5.410	16.000	30.930	3.630	1.470	0.250	3.5	3
200	114	MWM-16 A_WH	55.000	5.410	16.000	30.930	3.630	1.470	0.250	3.5	3
201	115	MWM-16 AF_FH	55.000	5.410	16.000	30.930	3.630	1.470	0.250	3.5	3
202	116	MWM-16 AF_WH	55.000	5.410	16.000	30.930	3.630	1.470	0.250	3.5	3
203	117	MWM-16 B_FH	55.000	7.210	16.000	23.040	4.830	1.470	0.250	3.5	4
204	118	MWM-16 B_WH	55.000	7.210	16.000	23.040	4.830	1.470	0.250	3.5	4
205	119	MWM-16 BF_FH	55.000	7.210	16.000	23.040	4.830	1.470	0.250	3.5	4
206	120	MWM-16 BF_WH	55.000	7.210	16.000	23.040	4.830	1.470	0.250	3.5	4
207	121	MWM-16 C_FH	55.000	9.020	16.000	18.510	6.050	1.470	0.250	3.5	5
208	122	MWM-16 C_WH	55.000	9.020	16.000	18.510	6.050	1.470	0.250	3.5	5
209	123	MWM-16 CF_FH	55.000	9.020	16.000	18.510	6.050	1.470	0.250	3.5	5
210	125	MWM-16 CF_WH	55.000	9.020	16.000	18.510	6.050	1.470	0.250	3.5	5
211	126	MWM-16 D_FH	55.000	10.820	16.000	15.360	7.240	1.470	0.250	3.5	6
212	127	MWM-16 D_WH	55.000	10.820	16.000	15.360	7.240	1.470	0.250	3.5	6
213	128	MWM-16 DF_FH	55.000	10.820	16.000	15.360	7.240	1.470	0.250	3.5	6
214	129	MWM-16 DF_WH	55.000	10.820	16.000	15.360	7.240	1.470	0.250	3.5	6
215	130	MWM-16 E_FH	55.000	12.620	16.000	13.200	8.460	1.470	0.250	3.5	7
216	131	MWM-16 E_WH	55.000	12.620	16.000	13.200	8.460	1.470	0.250	3.5	7
217	132	MWM-16 EF_FH	55.000	12.620	16.000	13.200	8.460	1.470	0.250	3.5	7
218	133	MWM-16 EF_WH	55.000	12.620	16.000	13.200	8.460	1.470	0.250	3.5	7
219	134	MWM-16 F_FH	55.000	16.230	16.000	10.260	10.870	1.470	0.250	3.5	9
220	136	MWM-16 F_WH	55.000	16.230	16.000	10.260	10.870	1.470	0.250	3.5	9
221	137	MWM-16 FF_FH	55.000	16.230	16.000	10.260	10.870	1.470	0.250	3.5	9
222	138	MWM-16 FF_WH	55.000	16.230	16.000	10.260	10.870	1.470	0.250	3.5	9
223	139	MWM-16 G_FH	55.000	19.840	16.000	8.390	13.280	1.470	0.250	3.5	11
224	140	MWM-16 G_WH	55.000	19.840	16.000	8.390	13.280	1.470	0.250	3.5	11
225	141	MWM-16 GF_FH	55.000	19.840	16.000	8.390	13.280	1.470	0.250	3.5	11
226	142	MWM-16 GF_WH	55.000	19.840	16.000	8.390	13.280	1.470	0.250	3.5	11
227	143	MWM-16 H_FH	55.000	23.440	16.000	7.100	15.700	1.470	0.250	3.5	13
228	144	MWM-16 H_WH	55.000	23.440	16.000	7.100	15.700	1.470	0.250	3.5	13
229	145	MWM-16 HF_FH	55.000	23.440	16.000	7.100	15.700	1.470	0.250	3.5	13
230	147	MWM-16 HF_WH	55.000	23.440	16.000	7.100	15.700	1.470	0.250	3.5	13
231	148	MWM-18 A_FH	55.000	5.720	18.010	27.070	3.680	1.830	0.250	3.5	3
232	149	MWM-18 A_WH	55.000	5.720	18.010	27.070	3.680	1.830	0.250	3.5	3
233	150	MWM-18 AF_FH	55.000	5.720	18.010	27.070	3.680	1.830	0.250	3.5	3
234	151	MWM-18 AF_WH	55.000	5.720	18.010	27.070	3.680	1.830	0.250	3.5	3
235	152	MWM-18 B_FH	55.000	7.620	18.010	20.820	4.980	1.830	0.250	3.5	4
236	153	MWM-18 B_WH	55.000	7.620	18.010	20.820	4.980	1.830	0.250	3.5	4
237	154	MWM-18 BF_FH	55.000	7.620	18.010	20.820	4.980	1.830	0.250	3.5	4
238	155	MWM-18 BF_WH	55.000	7.620	18.010	20.820	4.980	1.830	0.250	3.5	4
239	156	MWM-18 C_FH	55.000	9.530	18.010	16.660	6.220	1.830	0.250	3.5	5
240	158	MWM-18 C_WH	55.000	9.530	18.010	16.660	6.220	1.830	0.250	3.5	5
241	159	MWM-18 CF_FH	55.000	9.530	18.010	16.660	6.220	1.830	0.250	3.5	5
242	160	MWM-18 CF_WH	55.000	9.530	18.010	16.660	6.220	1.830	0.250	3.5	5
243	161	MWM-18 D_FH	55.000	11.430	18.010	13.880	7.470	1.830	0.250	3.5	6
244	162	MWM-18 D_WH	55.000	11.430	18.010	13.880	7.470	1.830	0.250	3.5	6
245	163	MWM-18 DF_FH	55.000	11.430	18.010	13.880	7.470	1.830	0.250	3.5	6
246	164	MWM-18 DF_WH	55.000	11.430	18.010	13.880	7.470	1.830	0.250	3.5	6
247	165	MWM-18 E_FH	55.000	13.340	18.010	11.960	8.740	1.830	0.250	3.5	7
248	166	MWM-18 E_WH	55.000	13.340	18.010	11.960	8.740	1.830	0.250	3.5	7
249	167	MWM-18 EF_FH	55.000	13.340	18.010	11.960	8.740	1.830	0.250	3.5	7
250	169	MWM-18 EF_WH	55.000	13.340	18.010	11.960	8.740	1.830	0.250	3.5	7
251	170	MWM-18 F_FH	55.000	17.150	18.010	9.290	11.230	1.830	0.250	3.5	9
252	171	MWM-18 F_WH	55.000	17.150	18.010	9.290	11.230	1.830	0.250	3.5	9
253	172	MWM-18 FF_FH	55.000	17.150	18.010	9.290	11.230	1.830	0.250	3.5	9
254	173	MWM-18 FF_WH	55.000	17.150	18.010	9.290	11.230	1.830	0.250	3.5	9
255	174	MWM-18 G_FH	55.000	22.860	18.010	6.960	14.960	1.830	0.250	3.5	12
256	175	MWM-18 G_WH	55.000	22.860	18.010	6.960	14.960	1.830	0.250	3.5	12
257	176	MWM-18 GF_FH	55.000	22.860	18.010	6.960	14.960	1.830	0.250	3.5	12
258	177	MWM-18 GF_WH	55.000	22.860	18.010	6.960	14.960	1.830	0.250	3.5	12
259	178	MWM-20 A_FH	70.000	6.320	19.990	21.360	3.050	1.980	0.250	3.5	3
260	180	MWM-20 A_WH	70.000	6.320	19.990	21.360	3.050	1.980	0.250	3.5	3
261	181	MWM-20 AF_FH	70.000	6.320	19.990	21.360	3.050	1.980	0.250	3.5	3
262	182	MWM-20 AF_WH	70.000	6.320	19.990	21.360	3.050	1.980	0.250	3.5	3
263	183	MWM-20 B_FH	70.000	8.430	19.990	16.020	4.060	1.980	0.250	3.5	4
264	184	MWM-20 B_WH	70.000	8.430	19.990	16.020	4.060	1.980	0.250	3.5	4
265	185	MWM-20 BF_FH	70.000	8.430	19.990	16.020	4.060	1.980	0.250	3.5	4
266	186	MWM-20 BF_WH	70.000	8.430	19.990	16.020	4.060	1.980	0.250	3.5	4
267	187	MWM-20 C_FH	70.000	10.540	19.990	12.820	5.080	1.980	0.250	3.5	5
268	188	MWM-20 C_WH	70.000	10.540	19.990	12.820	5.080	1.980	0.250	3.5	5
269	189	MWM-20 CF_FH	70.000	10.540	19.990	12.820	5.080	1.980	0.250	3.5	5
270	191	MWM-20 CF_WH	70.000	10.540	19.990	12.820	5.080	1.980	0.250	3.5	5
271	192	MWM-20 D_FH	70.000	12.650	19.990	10.980	6.270	1.980	0.250	3.5	6
272	193	MWM-20 D_WH	70.000	12.650	19.990	10.980	6.270	1.980	0.250	3.5	6
273	194	MWM-20 DF_FH	70.000	12.650	19.990	10.980	6.270	1.980	0.250	3.5	6
274	195	MWM-20 DF_WH	70.000	12.650	19.990	10.980	6.270	1.980	0.250	3.5	6
275	196	MWM-20 E_FH	70.000	14.760	19.990	9.410	7.320	1.980	0.250	3.5	7
276	197	MWM-20 E_WH	70.000	14.760	19.990	9.410	7.320	1.980	0.250	3.5	7
277	198	MWM-20 EF_FH	70.000	14.760	19.990	9.410	7.320	1.980	0.250	3.5	7
278	199	MWM-20 EF_WH	70.000	14.760	19.990	9.410	7.320	1.980	0.250	3.5	7
279	200	MWM-20 F_FH	70.000	18.970	19.990	7.140	9.170	1.980	0.250	3.5	9
280	202	MWM-20 F_WH	70.000	18.970	19.990	7.140	9.170	1.980	0.250	3.5	9
281	203	MWM-20 FF_FH	70.000	18.970	19.990	7.140	9.170	1.980	0.250	3.5	9
282	204	MWM-20 FF_WH	70.000	18.970	19.990	7.140	9.170	1.980	0.250	3.5	9
283	205	MWM-20 G_FH	70.000	25.300	19.990	5.350	12.220	1.980	0.250	3.5	12
284	206	MWM-20 G_WH	70.000	25.300	19.990	5.350	12.220	1.980	0.250	3.5	12
285	207	MWM-20 GF_FH	70.000	25.300	19.990	5.350	12.220	1.980	0.250	3.5	12
286	208	MWM-20 GF_WH	70.000	25.300	19.990	5.350	12.220	1.980	0.250	3.5	12
287	209	MWM-25 A_FH	80.000	6.630	24.990	21.720	2.950	2.390	0.300	3.5	3
288	210	MWM-25 A_WH	80.000	6.630	24.990	21.720	2.950	2.390	0.300	3.5	3
289	211	MWM-25 AF_FH	80.000	6.630	24.990	21.720	2.950	2.390	0.300	3.5	3
290	213	MWM-25 AF_WH	80.000	6.630	24.990	21.720	2.950	2.390	0.300	3.5	3
291	214	MWM-25 B_FH	80.000	8.840	24.990	16.320	3.940	2.390	0.300	3.5	4
292	215	MWM-25 B_WH	80.000	8.840	24.990	16.320	3.940	2.390	0.300	3.5	4
293	216	MWM-25 BF_FH	80.000	8.840	24.990	16.320	3.940	2.390	0.300	3.5	4
294	217	MWM-25 BF_WH	80.000	8.840	24.990	16.320	3.940	2.390	0.300	3.5	4
295	218	MWM-25 C_FH	80.000	11.050	24.990	13.010	4.900	2.390	0.300	3.5	5
296	219	MWM-25 C_WH	80.000	11.050	24.990	13.010	4.900	2.390	0.300	3.5	5
297	220	MWM-25 CF_FH	80.000	11.050	24.990	13.010	4.900	2.390	0.300	3.5	5
298	221	MWM-25 CF_WH	80.000	11.050	24.990	13.010	4.900	2.390	0.300	3.5	5
299	222	MWM-25 D_FH	80.000	13.260	24.990	10.860	5.890	2.390	0.300	3.5	6
300	225	MWM-25 D_WH	80.000	13.260	24.990	10.860	5.890	2.390	0.300	3.5	6
301	226	MWM-25 DF_FH	80.000	13.260	24.990	10.860	5.890	2.390	0.300	3.5	6
302	227	MWM-25 DF_WH	80.000	13.260	24.990	10.860	5.890	2.390	0.300	3.5	6
303	228	MWM-25 E_FH	80.000	15.470	24.990	9.320	6.880	2.390	0.300	3.5	7
304	229	MWM-25 E_WH	80.000	15.470	24.990	9.320	6.880	2.390	0.300	3.5	7
305	230	MWM-25 EF_FH	80.000	15.470	24.990	9.320	6.880	2.390	0.300	3.5	7
306	231	MWM-25 EF_WH	80.000	15.470	24.990	9.320	6.880	2.390	0.300	3.5	7
307	232	MWM-25 F_FH	80.000	19.890	24.990	7.240	8.840	2.390	0.300	3.5	9
308	233	MWM-25 F_WH	80.000	19.890	24.990	7.240	8.840	2.390	0.300	3.5	9
309	234	MWM-25 FF_FH	80.000	19.890	24.990	7.240	8.840	2.390	0.300	3.5	9
310	236	MWM-25 FF_WH	80.000	19.890	24.990	7.240	8.840	2.390	0.300	3.5	9
311	237	MWM-25 G_FH	80.000	26.520	24.990	5.430	11.790	2.390	0.300	3.5	12
312	238	MWM-25 G_WH	80.000	26.520	24.990	5.430	11.790	2.390	0.300	3.5	12
313	239	MWM-25 GF_FH	80.000	26.520	24.990	5.430	11.790	2.390	0.300	3.5	12
314	240	MWM-25 GF_WH	80.000	26.520	24.990	5.430	11.790	2.390	0.300	3.5	12
315	241	MWM-28 A_FH	80.000	7.240	27.990	28.120	4.390	2.390	0.380	3.5	3
316	242	MWM-28 A_WH	80.000	7.240	27.990	28.120	4.390	2.390	0.380	3.5	3
317	243	MWM-28 AF_FH	80.000	7.240	27.990	28.120	4.390	2.390	0.380	3.5	3
318	244	MWM-28 AF_WH	80.000	7.240	27.990	28.120	4.390	2.390	0.380	3.5	3
319	245	MWM-28 B_FH	80.000	9.650	27.990	21.000	5.840	2.390	0.380	3.5	4
320	247	MWM-28 B_WH	80.000	9.650	27.990	21.000	5.840	2.390	0.380	3.5	4
321	248	MWM-28 BF_FH	80.000	9.650	27.990	21.000	5.840	2.390	0.380	3.5	4
322	249	MWM-28 BF_WH	80.000	9.650	27.990	21.000	5.840	2.390	0.380	3.5	4
323	250	MWM-28 C_FH	80.000	12.070	27.990	16.840	7.320	2.390	0.380	3.5	5
324	251	MWM-28 C_WH	80.000	12.070	27.990	16.840	7.320	2.390	0.380	3.5	5
325	252	MWM-28 CF_FH	80.000	12.070	27.990	16.840	7.320	2.390	0.380	3.5	5
326	253	MWM-28 CF_WH	80.000	12.070	27.990	16.840	7.320	2.390	0.380	3.5	5
327	254	MWM-28 D_FH	80.000	14.480	27.990	14.060	8.790	2.390	0.380	3.5	6
328	255	MWM-28 D_WH	80.000	14.480	27.990	14.060	8.790	2.390	0.380	3.5	6
329	256	MWM-28 DF_FH	80.000	14.480	27.990	14.060	8.790	2.390	0.380	3.5	6
330	258	MWM-28 DF_WH	80.000	14.480	27.990	14.060	8.790	2.390	0.380	3.5	6
331	259	MWM-28 E_FH	80.000	16.890	27.990	12.020	10.240	2.390	0.380	3.5	7
332	260	MWM-28 E_WH	80.000	16.890	27.990	12.020	10.240	2.390	0.380	3.5	7
333	261	MWM-28 EF_FH	80.000	16.890	27.990	12.020	10.240	2.390	0.380	3.5	7
334	262	MWM-28 EF_WH	80.000	16.890	27.990	12.020	10.240	2.390	0.380	3.5	7
335	263	MWM-28 F_FH	80.000	19.300	27.990	10.530	11.710	2.390	0.380	3.5	8
336	264	MWM-28 F_WH	80.000	19.300	27.990	10.530	11.710	2.390	0.380	3.5	8
337	265	MWM-28 FF_FH	80.000	19.300	27.990	10.530	11.710	2.390	0.380	3.5	8
338	266	MWM-28 FF_WH	80.000	19.300	27.990	10.530	11.710	2.390	0.380	3.5	8
339	267	MWM-28 G_FH	80.000	21.720	27.990	9.370	13.180	2.390	0.380	3.5	9
340	269	MWM-28 G_WH	80.000	21.720	27.990	9.370	13.180	2.390	0.380	3.5	9
341	270	MWM-28 GF_FH	80.000	21.720	27.990	9.370	13.180	2.390	0.380	3.5	9
342	271	MWM-28 GF_WH	80.000	21.720	27.990	9.370	13.180	2.390	0.380	3.5	9
343	272	MWM-28 H_FH	80.000	26.540	27.990	7.660	16.100	2.390	0.380	3.5	11
344	273	MWM-28 H_WH	80.000	26.540	27.990	7.660	16.100	2.390	0.380	3.5	11
345	274	MWM-28 HF_FH	80.000	26.540	27.990	7.660	16.100	2.390	0.380	3.5	11
346	275	MWM-28 HF_WH	80.000	26.540	27.990	7.660	16.100	2.390	0.380	3.5	11
347	276	MWM-28 I_FH	80.000	31.370	27.990	6.480	19.020	2.390	0.380	3.5	13
348	277	MWM-28 I_WH	80.000	31.370	27.990	6.480	19.020	2.390	0.380	3.5	13
349	278	MWM-28 IF_FH	80.000	31.370	27.990	6.480	19.020	2.390	0.380	3.5	13
350	280	MWM-28 IF_WH	80.000	31.370	27.990	6.480	19.020	2.390	0.380	3.5	13
351	281	MWM-30 A_FH	90.000	7.620	30.000	21.870	3.510	2.390	0.380	3.5	3
352	282	MWM-30 A_WH	90.000	7.620	30.000	21.870	3.510	2.390	0.380	3.5	3
353	283	MWM-30 AF_FH	90.000	7.620	30.000	21.870	3.510	2.390	0.380	3.5	3
354	284	MWM-30 AF_WH	90.000	7.620	30.000	21.870	3.510	2.390	0.380	3.5	3
355	285	MWM-30 B_FH	90.000	10.160	30.000	16.480	4.700	2.390	0.380	3.5	4
356	286	MWM-30 B_WH	90.000	10.160	30.000	16.480	4.700	2.390	0.380	3.5	4
357	287	MWM-30 BF_FH	90.000	10.160	30.000	16.480	4.700	2.390	0.380	3.5	4
358	288	MWM-30 BF_WH	90.000	10.160	30.000	16.480	4.700	2.390	0.380	3.5	4
359	289	MWM-30 C_FH	90.000	12.700	30.000	13.170	5.870	2.390	0.380	3.5	5
360	291	MWM-30 C_WH	90.000	12.700	30.000	13.170	5.870	2.390	0.380	3.5	5
361	292	MWM-30 CF_FH	90.000	12.700	30.000	13.170	5.870	2.390	0.380	3.5	5
362	293	MWM-30 CF_WH	90.000	12.700	30.000	13.170	5.870	2.390	0.380	3.5	5
363	294	MWM-30 D_FH	90.000	15.240	30.000	10.970	7.040	2.390	0.380	3.5	6
364	295	MWM-30 D_WH	90.000	15.240	30.000	10.970	7.040	2.390	0.380	3.5	6
365	296	MWM-30 DF_FH	90.000	15.240	30.000	10.970	7.040	2.390	0.380	3.5	6
366	297	MWM-30 DF_WH	90.000	15.240	30.000	10.970	7.040	2.390	0.380	3.5	6
367	298	MWM-30 E_FH	90.000	17.780	30.000	9.400	8.200	2.390	0.380	3.5	7
368	299	MWM-30 E_WH	90.000	17.780	30.000	9.400	8.200	2.390	0.380	3.5	7
369	300	MWM-30 EF_FH	90.000	17.780	30.000	9.400	8.200	2.390	0.380	3.5	7
370	302	MWM-30 EF_WH	90.000	17.780	30.000	9.400	8.200	2.390	0.380	3.5	7
371	303	MWM-30 F_FH	90.000	20.320	30.000	8.220	9.370	2.390	0.380	3.5	8
372	304	MWM-30 F_WH	90.000	20.320	30.000	8.220	9.370	2.390	0.380	3.5	8
373	305	MWM-30 FF_FH	90.000	20.320	30.000	8.220	9.370	2.390	0.380	3.5	8
374	306	MWM-30 FF_WH	90.000	20.320	30.000	8.220	9.370	2.390	0.380	3.5	8
375	307	MWM-30 G_FH	90.000	22.860	30.000	7.310	10.540	2.390	0.380	3.5	9
376	308	MWM-30 G_WH	90.000	22.860	30.000	7.310	10.540	2.390	0.380	3.5	9
377	309	MWM-30 GF_FH	90.000	22.860	30.000	7.310	10.540	2.390	0.380	3.5	9
378	310	MWM-30 GF_WH	90.000	22.860	30.000	7.310	10.540	2.390	0.380	3.5	9
379	311	MWM-30 H_FH	90.000	27.940	30.000	5.990	12.900	2.390	0.380	3.5	11
380	313	MWM-30 H_WH	90.000	27.940	30.000	5.990	12.900	2.390	0.380	3.5	11
381	314	MWM-30 HF_FH	90.000	27.940	30.000	5.990	12.900	2.390	0.380	3.5	11
382	315	MWM-30 HF_WH	90.000	27.940	30.000	5.990	12.900	2.390	0.380	3.5	11
383	316	MWM-30 I_FH	90.000	33.020	30.000	5.060	15.240	2.390	0.380	3.5	13
384	317	MWM-30 I_WH	90.000	33.020	30.000	5.060	15.240	2.390	0.380	3.5	13
385	318	MWM-30 IF_FH	90.000	33.020	30.000	5.060	15.240	2.390	0.380	3.5	13
386	319	MWM-30 IF_WH	90.000	33.020	30.000	5.060	15.240	2.390	0.380	3.5	13
387	320	MWM-35 A_FH	110.000	8.380	35.000	25.930	4.140	3.380	0.410	3.5	3
388	321	MWM-35 A_WH	110.000	8.380	35.000	25.930	4.140	3.380	0.410	3.5	3
389	322	MWM-35 AF_FH	110.000	8.380	35.000	25.930	4.140	3.380	0.410	3.5	3
390	324	MWM-35 AF_WH	110.000	8.380	35.000	25.930	4.140	3.380	0.410	3.5	3
391	325	MWM-35 B_FH	110.000	11.180	35.000	19.420	5.510	3.380	0.410	3.5	4
392	326	MWM-35 B_WH	110.000	11.180	35.000	19.420	5.510	3.380	0.410	3.5	4
393	327	MWM-35 BF_FH	110.000	11.180	35.000	19.420	5.510	3.380	0.410	3.5	4
394	328	MWM-35 BF_WH	110.000	11.180	35.000	19.420	5.510	3.380	0.410	3.5	4
395	329	MWM-35 C_FH	110.000	13.970	35.000	15.520	6.880	3.380	0.410	3.5	5
396	330	MWM-35 C_WH	110.000	13.970	35.000	15.520	6.880	3.380	0.410	3.5	5
397	331	MWM-35 CF_FH	110.000	13.970	35.000	15.520	6.880	3.380	0.410	3.5	5
398	332	MWM-35 CF_WH	110.000	13.970	35.000	15.520	6.880	3.380	0.410	3.5	5
399	333	MWM-35 D_FH	110.000	16.760	35.000	12.930	8.260	3.380	0.410	3.5	6
400	336	MWM-35 D_WH	110.000	16.760	35.000	12.930	8.260	3.380	0.410	3.5	6
401	337	MWM-35 DF_FH	110.000	16.760	35.000	12.930	8.260	3.380	0.410	3.5	6
402	338	MWM-35 DF_WH	110.000	16.760	35.000	12.930	8.260	3.380	0.410	3.5	6
403	339	MWM-35 E_FH	110.000	19.560	35.000	11.080	9.630	3.380	0.410	3.5	7
404	340	MWM-35 E_WH	110.000	19.560	35.000	11.080	9.630	3.380	0.410	3.5	7
405	341	MWM-35 EF_FH	110.000	19.560	35.000	11.080	9.630	3.380	0.410	3.5	7
406	342	MWM-35 EF_WH	110.000	19.560	35.000	11.080	9.630	3.380	0.410	3.5	7
407	343	MWM-35 F_FH	110.000	22.350	35.000	9.710	11.020	3.380	0.410	3.5	8
408	344	MWM-35 F_WH	110.000	22.350	35.000	9.710	11.020	3.380	0.410	3.5	8
409	345	MWM-35 FF_FH	110.000	22.350	35.000	9.710	11.020	3.380	0.410	3.5	8
410	347	MWM-35 FF_WH	110.000	22.350	35.000	9.710	11.020	3.380	0.410	3.5	8
411	348	MWM-35 G_FH	110.000	25.150	35.000	8.630	12.400	3.380	0.410	3.5	9
412	349	MWM-35 G_WH	110.000	25.150	35.000	8.630	12.400	3.380	0.410	3.5	9
413	350	MWM-35 GF_FH	110.000	25.150	35.000	8.630	12.400	3.380	0.410	3.5	9
414	351	MWM-35 GF_WH	110.000	25.150	35.000	8.630	12.400	3.380	0.410	3.5	9
415	352	MWM-35 H_FH	110.000	30.730	35.000	7.050	15.140	3.380	0.410	3.5	11
416	353	MWM-35 H_WH	110.000	30.730	35.000	7.050	15.140	3.380	0.410	3.5	11
417	354	MWM-35 HF_FH	110.000	30.730	35.000	7.050	15.140	3.380	0.410	3.5	11
418	355	MWM-35 HF_WH	110.000	30.730	35.000	7.050	15.140	3.380	0.410	3.5	11
419	356	MWM-35 I_FH	110.000	36.320	35.000	5.970	17.910	3.380	0.410	3.5	13
420	358	MWM-35 I_WH	110.000	36.320	35.000	5.970	17.910	3.380	0.410	3.5	13
421	359	MWM-35 IF_FH	110.000	36.320	35.000	5.970	17.910	3.380	0.410	3.5	13
422	360	MWM-35 IF_WH	110.000	36.320	35.000	5.970	17.910	3.380	0.410	3.5	13
423	361	MWM-40 A_FH	150.000	9.140	40.010	40.450	5.440	3.630	0.530	3.5	3
424	362	MWM-40 A_WH	150.000	9.140	40.010	40.450	5.440	3.630	0.530	3.5	3
425	363	MWM-40 AF_FH	150.000	9.140	40.010	40.450	5.440	3.630	0.530	3.5	3
426	364	MWM-40 AF_WH	150.000	9.140	40.010	40.450	5.440	3.630	0.530	3.5	3
427	365	MWM-40 B_FH	150.000	12.190	40.010	30.280	7.240	3.630	0.530	3.5	4
428	366	MWM-40 B_WH	150.000	12.190	40.010	30.280	7.240	3.630	0.530	3.5	4
429	367	MWM-40 BF_FH	150.000	12.190	40.010	30.280	7.240	3.630	0.530	3.5	4
430	369	MWM-40 BF_WH	150.000	12.190	40.010	30.280	7.240	3.630	0.530	3.5	4
431	370	MWM-40 C_FH	150.000	15.240	40.010	24.200	9.040	3.630	0.530	3.5	5
432	371	MWM-40 C_WH	150.000	15.240	40.010	24.200	9.040	3.630	0.530	3.5	5
433	372	MWM-40 CF_FH	150.000	15.240	40.010	24.200	9.040	3.630	0.530	3.5	5
434	373	MWM-40 CF_WH	150.000	15.240	40.010	24.200	9.040	3.630	0.530	3.5	5
435	374	MWM-40 D_FH	150.000	18.290	40.010	20.160	10.850	3.630	0.530	3.5	6
436	375	MWM-40 D_WH	150.000	18.290	40.010	20.160	10.850	3.630	0.530	3.5	6
437	376	MWM-40 DF_FH	150.000	18.290	40.010	20.160	10.850	3.630	0.530	3.5	6
438	377	MWM-40 DF_WH	150.000	18.290	40.010	20.160	10.850	3.630	0.530	3.5	6
439	378	MWM-40 E_FH	150.000	21.340	40.010	17.270	12.650	3.630	0.530	3.5	7
440	380	MWM-40 E_WH	150.000	21.340	40.010	17.270	12.650	3.630	0.530	3.5	7
441	381	MWM-40 EF_FH	150.000	21.340	40.010	17.270	12.650	3.630	0.530	3.5	7
442	382	MWM-40 EF_WH	150.000	21.340	40.010	17.270	12.650	3.630	0.530	3.5	7
443	383	MWM-40 F_FH	150.000	24.380	40.010	15.140	14.480	3.630	0.530	3.5	8
444	384	MWM-40 F_WH	150.000	24.380	40.010	15.140	14.480	3.630	0.530	3.5	8
445	385	MWM-40 FF_FH	150.000	24.380	40.010	15.140	14.480	3.630	0.530	3.5	8
446	386	MWM-40 FF_WH	150.000	24.380	40.010	15.140	14.480	3.630	0.530	3.5	8
447	387	MWM-40 G_FH	150.000	27.430	40.010	13.450	16.280	3.630	0.530	3.5	9
448	388	MWM-40 G_WH	150.000	27.430	40.010	13.450	16.280	3.630	0.530	3.5	9
449	389	MWM-40 GF_FH	150.000	27.430	40.010	13.450	16.280	3.630	0.530	3.5	9
450	391	MWM-40 GF_WH	150.000	27.430	40.010	13.450	16.280	3.630	0.530	3.5	9
451	392	MWM-40 H_FH	150.000	33.530	40.010	11.000	19.890	3.630	0.530	3.5	11
452	393	MWM-40 H_WH	150.000	33.530	40.010	11.000	19.890	3.630	0.530	3.5	11
453	394	MWM-40 HF_FH	150.000	33.530	40.010	11.000	19.890	3.630	0.530	3.5	11
454	395	MWM-40 HF_WH	150.000	33.530	40.010	11.000	19.890	3.630	0.530	3.5	11
455	396	MWM-40 I_FH	150.000	39.620	40.010	9.300	23.500	3.630	0.530	3.5	13
456	397	MWM-40 I_WH	150.000	39.620	40.010	9.300	23.500	3.630	0.530	3.5	13
457	398	MWM-40 IF_FH	150.000	39.620	40.010	9.300	23.500	3.630	0.530	3.5	13
458	399	MWM-40 IF_WH	150.000	39.620	40.010	9.300	23.500	3.630	0.530	3.5	13
459	400	MWM-45 A_FH	225.000	9.910	45.010	49.210	5.330	3.630	0.460	4.5	3
460	402	MWM-45 A_WH	225.000	9.910	45.010	49.210	5.330	3.630	0.460	4.5	3
461	403	MWM-45 AF_FH	225.000	9.910	45.010	49.210	5.330	3.630	0.460	4.5	3
462	404	MWM-45 AF_WH	225.000	9.910	45.010	49.210	5.330	3.630	0.460	4.5	3
463	405	MWM-45 B_FH	225.000	13.210	45.010	36.160	6.990	3.630	0.460	4.5	4
464	406	MWM-45 B_WH	225.000	13.210	45.010	36.160	6.990	3.630	0.460	4.5	4
465	407	MWM-45 BF_FH	225.000	13.210	45.010	36.160	6.990	3.630	0.460	4.5	4
466	408	MWM-45 BF_WH	225.000	13.210	45.010	36.160	6.990	3.630	0.460	4.5	4
467	409	MWM-45 C_FH	225.000	16.510	45.010	30.550	9.140	3.630	0.460	4.5	5
468	410	MWM-45 C_WH	225.000	16.510	45.010	30.550	9.140	3.630	0.460	4.5	5
469	411	MWM-45 CF_FH	225.000	16.510	45.010	30.550	9.140	3.630	0.460	4.5	5
470	413	MWM-45 CF_WH	225.000	16.510	45.010	30.550	9.140	3.630	0.460	4.5	5
471	414	MWM-45 D_FH	225.000	19.810	45.010	24.950	10.800	3.630	0.460	4.5	6
472	415	MWM-45 D_WH	225.000	19.810	45.010	24.950	10.800	3.630	0.460	4.5	6
473	416	MWM-45 DF_FH	225.000	19.810	45.010	24.950	10.800	3.630	0.460	4.5	6
474	417	MWM-45 DF_WH	225.000	19.810	45.010	24.950	10.800	3.630	0.460	4.5	6
475	418	MWM-45 E_FH	225.000	23.110	45.010	21.610	12.700	3.630	0.460	4.5	7
476	419	MWM-45 E_WH	225.000	23.110	45.010	21.610	12.700	3.630	0.460	4.5	7
477	420	MWM-45 EF_FH	225.000	23.110	45.010	21.610	12.700	3.630	0.460	4.5	7
478	421	MWM-45 EF_WH	225.000	23.110	45.010	21.610	12.700	3.630	0.460	4.5	7
479	422	MWM-45 F_FH	225.000	26.420	45.010	18.850	14.480	3.630	0.460	4.5	8
480	424	MWM-45 F_WH	225.000	26.420	45.010	18.850	14.480	3.630	0.460	4.5	8
481	425	MWM-45 FF_FH	225.000	26.420	45.010	18.850	14.480	3.630	0.460	4.5	8
482	426	MWM-45 FF_WH	225.000	26.420	45.010	18.850	14.480	3.630	0.460	4.5	8
483	427	MWM-45 G_FH	225.000	29.720	45.010	16.710	16.260	3.630	0.460	4.5	9
484	428	MWM-45 G_WH	225.000	29.720	45.010	16.710	16.260	3.630	0.460	4.5	9
485	429	MWM-45 GF_FH	225.000	29.720	45.010	16.710	16.260	3.630	0.460	4.5	9
486	430	MWM-45 GF_WH	225.000	29.720	45.010	16.710	16.260	3.630	0.460	4.5	9
487	431	MWM-45 H_FH	225.000	36.320	45.010	13.630	19.810	3.630	0.460	4.5	11
488	432	MWM-45 H_WH	225.000	36.320	45.010	13.630	19.810	3.630	0.460	4.5	11
489	433	MWM-45 HF_FH	225.000	36.320	45.010	13.630	19.810	3.630	0.460	4.5	11
490	435	MWM-45 HF_WH	225.000	36.320	45.010	13.630	19.810	3.630	0.460	4.5	11
491	436	MWM-45 I_FH	225.000	42.930	45.010	11.500	23.370	3.630	0.460	4.5	13
492	437	MWM-45 I_WH	225.000	42.930	45.010	11.500	23.370	3.630	0.460	4.5	13
493	438	MWM-45 IF_FH	225.000	42.930	45.010	11.500	23.370	3.630	0.460	4.5	13
494	439	MWM-45 IF_WH	225.000	42.930	45.010	11.500	23.370	3.630	0.460	4.5	13
495	440	MWM-50 A_FH	225.000	10.290	50.010	39.720	4.620	3.630	0.460	4.5	3
496	441	MWM-50 A_WH	225.000	10.290	50.010	39.720	4.620	3.630	0.460	4.5	3
497	442	MWM-50 AF_FH	225.000	10.290	50.010	39.720	4.620	3.630	0.460	4.5	3
498	443	MWM-50 AF_WH	225.000	10.290	50.010	39.720	4.620	3.630	0.460	4.5	3
499	444	MWM-50 B_FH	225.000	13.720	50.010	30.550	6.350	3.630	0.460	4.5	4
500	447	MWM-50 B_WH	225.000	13.720	50.010	30.550	6.350	3.630	0.460	4.5	4
501	448	MWM-50 BF_FH	225.000	13.720	50.010	30.550	6.350	3.630	0.460	4.5	4
502	449	MWM-50 BF_WH	225.000	13.720	50.010	30.550	6.350	3.630	0.460	4.5	4
503	450	MWM-50 C_FH	225.000	17.150	50.010	23.310	7.490	3.630	0.460	4.5	5
504	451	MWM-50 C_WH	225.000	17.150	50.010	23.310	7.490	3.630	0.460	4.5	5
505	452	MWM-50 CF_FH	225.000	17.150	50.010	23.310	7.490	3.630	0.460	4.5	5
506	453	MWM-50 CF_WH	225.000	17.150	50.010	23.310	7.490	3.630	0.460	4.5	5
507	454	MWM-50 D_FH	225.000	20.570	50.010	19.260	8.890	3.630	0.460	4.5	6
508	455	MWM-50 D_WH	225.000	20.570	50.010	19.260	8.890	3.630	0.460	4.5	6
509	456	MWM-50 DF_FH	225.000	20.570	50.010	19.260	8.890	3.630	0.460	4.5	6
510	458	MWM-50 DF_WH	225.000	20.570	50.010	19.260	8.890	3.630	0.460	4.5	6
511	459	MWM-50 E_FH	225.000	24.000	50.010	16.710	10.540	3.630	0.460	4.5	7
512	460	MWM-50 E_WH	225.000	24.000	50.010	16.710	10.540	3.630	0.460	4.5	7
513	461	MWM-50 EF_FH	225.000	24.000	50.010	16.710	10.540	3.630	0.460	4.5	7
514	462	MWM-50 EF_WH	225.000	24.000	50.010	16.710	10.540	3.630	0.460	4.5	7
515	463	MWM-50 F_FH	225.000	27.430	50.010	14.470	11.890	3.630	0.460	4.5	8
516	464	MWM-50 F_WH	225.000	27.430	50.010	14.470	11.890	3.630	0.460	4.5	8
517	465	MWM-50 FF_FH	225.000	27.430	50.010	14.470	11.890	3.630	0.460	4.5	8
518	466	MWM-50 FF_WH	225.000	27.430	50.010	14.470	11.890	3.630	0.460	4.5	8
519	467	MWM-50 G_FH	225.000	30.860	50.010	13.030	13.590	3.630	0.460	4.5	9
520	469	MWM-50 G_WH	225.000	30.860	50.010	13.030	13.590	3.630	0.460	4.5	9
521	470	MWM-50 GF_FH	225.000	30.860	50.010	13.030	13.590	3.630	0.460	4.5	9
522	471	MWM-50 GF_WH	225.000	30.860	50.010	13.030	13.590	3.630	0.460	4.5	9
523	472	MWM-50 H_FH	225.000	37.720	50.010	10.710	16.710	3.630	0.460	4.5	11
524	473	MWM-50 H_WH	225.000	37.720	50.010	10.710	16.710	3.630	0.460	4.5	11
525	474	MWM-50 HF_FH	225.000	37.720	50.010	10.710	16.710	3.630	0.460	4.5	11
526	475	MWM-50 HF_WH	225.000	37.720	50.010	10.710	16.710	3.630	0.460	4.5	11
527	476	MWM-50 I_FH	225.000	44.580	50.010	9.010	19.610	3.630	0.460	4.5	13
528	477	MWM-50 I_WH	225.000	44.580	50.010	9.010	19.610	3.630	0.460	4.5	13
529	478	MWM-50 IF_FH	225.000	44.580	50.010	9.010	19.610	3.630	0.460	4.5	13
530	480	MWM-50 IF_WH	225.000	44.580	50.010	9.010	19.610	3.630	0.460	4.5	13
531	481	MWM-50 J_FH	225.000	51.440	50.010	7.770	22.480	3.630	0.460	4.5	15
532	482	MWM-50 J_WH	225.000	51.440	50.010	7.770	22.480	3.630	0.460	4.5	15
533	483	MWM-50 JF_FH	225.000	51.440	50.010	7.770	22.480	3.630	0.460	4.5	15
534	484	MWM-50 JF_WH	225.000	51.440	50.010	7.770	22.480	3.630	0.460	4.5	15
535	485	MWM-55 A_FH	250.000	11.050	54.990	31.450	3.100	3.630	0.460	4.5	3
536	486	MWM-55 A_WH	250.000	11.050	54.990	31.450	3.100	3.630	0.460	4.5	3
537	487	MWM-55 AF_FH	250.000	11.050	54.990	31.450	3.100	3.630	0.460	4.5	3
538	488	MWM-55 AF_WH	250.000	11.050	54.990	31.450	3.100	3.630	0.460	4.5	3
539	489	MWM-55 B_FH	250.000	14.730	54.990	23.550	4.110	3.630	0.460	4.5	4
540	491	MWM-55 B_WH	250.000	14.730	54.990	23.550	4.110	3.630	0.460	4.5	4
541	492	MWM-55 BF_FH	250.000	14.730	54.990	23.550	4.110	3.630	0.460	4.5	4
542	493	MWM-55 BF_WH	250.000	14.730	54.990	23.550	4.110	3.630	0.460	4.5	4
543	494	MWM-55 C_FH	250.000	18.420	54.990	18.860	5.160	3.630	0.460	4.5	5
544	495	MWM-55 C_WH	250.000	18.420	54.990	18.860	5.160	3.630	0.460	4.5	5
545	496	MWM-55 CF_FH	250.000	18.420	54.990	18.860	5.160	3.630	0.460	4.5	5
546	497	MWM-55 CF_WH	250.000	18.420	54.990	18.860	5.160	3.630	0.460	4.5	5
547	498	MWM-55 D_FH	250.000	22.100	54.990	15.720	6.200	3.630	0.460	4.5	6
548	499	MWM-55 D_WH	250.000	22.100	54.990	15.720	6.200	3.630	0.460	4.5	6
549	500	MWM-55 DF_FH	250.000	22.100	54.990	15.720	6.200	3.630	0.460	4.5	6
550	502	MWM-55 DF_WH	250.000	22.100	54.990	15.720	6.200	3.630	0.460	4.5	6
551	503	MWM-55 E_FH	250.000	25.780	54.990	13.460	7.210	3.630	0.460	4.5	7
552	504	MWM-55 E_WH	250.000	25.780	54.990	13.460	7.210	3.630	0.460	4.5	7
553	505	MWM-55 EF_FH	250.000	25.780	54.990	13.460	7.210	3.630	0.460	4.5	7
554	506	MWM-55 EF_WH	250.000	25.780	54.990	13.460	7.210	3.630	0.460	4.5	7
555	507	MWM-55 F_FH	250.000	29.460	54.990	11.790	8.260	3.630	0.460	4.5	8
556	508	MWM-55 F_WH	250.000	29.460	54.990	11.790	8.260	3.630	0.460	4.5	8
557	509	MWM-55 FF_FH	250.000	29.460	54.990	11.790	8.260	3.630	0.460	4.5	8
558	510	MWM-55 FF_WH	250.000	29.460	54.990	11.790	8.260	3.630	0.460	4.5	8
559	511	MWM-55 G_FH	250.000	33.150	54.990	10.470	9.270	3.630	0.460	4.5	9
560	513	MWM-55 G_WH	250.000	33.150	54.990	10.470	9.270	3.630	0.460	4.5	9
561	514	MWM-55 GF_FH	250.000	33.150	54.990	10.470	9.270	3.630	0.460	4.5	9
562	515	MWM-55 GF_WH	250.000	33.150	54.990	10.470	9.270	3.630	0.460	4.5	9
563	516	MWM-55 H_FH	250.000	40.510	54.990	8.570	11.330	3.630	0.460	4.5	11
564	517	MWM-55 H_WH	250.000	40.510	54.990	8.570	11.330	3.630	0.460	4.5	11
565	518	MWM-55 HF_FH	250.000	40.510	54.990	8.570	11.330	3.630	0.460	4.5	11
566	519	MWM-55 HF_WH	250.000	40.510	54.990	8.570	11.330	3.630	0.460	4.5	11
567	520	MWM-55 I_FH	250.000	47.880	54.990	7.250	13.410	3.630	0.460	4.5	13
568	521	MWM-55 I_WH	250.000	47.880	54.990	7.250	13.410	3.630	0.460	4.5	13
569	522	MWM-55 IF_FH	250.000	47.880	54.990	7.250	13.410	3.630	0.460	4.5	13
570	524	MWM-55 IF_WH	250.000	47.880	54.990	7.250	13.410	3.630	0.460	4.5	13
571	525	MWM-55 J_FH	250.000	55.250	54.990	6.290	15.470	3.630	0.460	4.5	15
572	526	MWM-55 J_WH	250.000	55.250	54.990	6.290	15.470	3.630	0.460	4.5	15
573	527	MWM-55 JF_FH	250.000	55.250	54.990	6.290	15.470	3.630	0.460	4.5	15
574	528	MWM-55 JF_WH	250.000	55.250	54.990	6.290	15.470	3.630	0.460	4.5	15
575	529	MWM-60 A_FH	275.000	11.430	59.990	57.590	6.650	3.760	0.610	4.5	3
576	530	MWM-60 A_WH	275.000	11.430	59.990	57.590	6.650	3.760	0.610	4.5	3
577	531	MWM-60 AF_FH	275.000	11.430	59.990	57.590	6.650	3.760	0.610	4.5	3
578	532	MWM-60 AF_WH	275.000	11.430	59.990	57.590	6.650	3.760	0.610	4.5	3
579	533	MWM-60 B_FH	275.000	15.240	59.990	43.130	8.860	3.760	0.610	4.5	4
580	535	MWM-60 B_WH	275.000	15.240	59.990	43.130	8.860	3.760	0.610	4.5	4
581	536	MWM-60 BF_FH	275.000	15.240	59.990	43.130	8.860	3.760	0.610	4.5	4
582	537	MWM-60 BF_WH	275.000	15.240	59.990	43.130	8.860	3.760	0.610	4.5	4
583	538	MWM-60 C_FH	275.000	19.050	59.990	34.480	11.070	3.760	0.610	4.5	5
584	539	MWM-60 C_WH	275.000	19.050	59.990	34.480	11.070	3.760	0.610	4.5	5
585	540	MWM-60 CF_FH	275.000	19.050	59.990	34.480	11.070	3.760	0.610	4.5	5
586	541	MWM-60 CF_WH	275.000	19.050	59.990	34.480	11.070	3.760	0.610	4.5	5
587	542	MWM-60 D_FH	275.000	22.860	59.990	28.720	13.280	3.760	0.610	4.5	6
588	543	MWM-60 D_WH	275.000	22.860	59.990	28.720	13.280	3.760	0.610	4.5	6
589	544	MWM-60 DF_FH	275.000	22.860	59.990	28.720	13.280	3.760	0.610	4.5	6
590	546	MWM-60 DF_WH	275.000	22.860	59.990	28.720	13.280	3.760	0.610	4.5	6
591	547	MWM-60 E_FH	275.000	26.670	59.990	24.610	15.490	3.760	0.610	4.5	7
592	548	MWM-60 E_WH	275.000	26.670	59.990	24.610	15.490	3.760	0.610	4.5	7
593	549	MWM-60 EF_FH	275.000	26.670	59.990	24.610	15.490	3.760	0.610	4.5	7
594	550	MWM-60 EF_WH	275.000	26.670	59.990	24.610	15.490	3.760	0.610	4.5	7
595	551	MWM-60 F_FH	275.000	30.480	59.990	21.520	17.700	3.760	0.610	4.5	8
596	552	MWM-60 F_WH	275.000	30.480	59.990	21.520	17.700	3.760	0.610	4.5	8
597	553	MWM-60 FF_FH	275.000	30.480	59.990	21.520	17.700	3.760	0.610	4.5	8
598	554	MWM-60 FF_WH	275.000	30.480	59.990	21.520	17.700	3.760	0.610	4.5	8
599	555	MWM-60 G_FH	275.000	34.290	59.990	19.160	19.940	3.760	0.610	4.5	9
600	558	MWM-60 G_WH	275.000	34.290	59.990	19.160	19.940	3.760	0.610	4.5	9
601	559	MWM-60 GF_FH	275.000	34.290	59.990	19.160	19.940	3.760	0.610	4.5	9
602	560	MWM-60 GF_WH	275.000	34.290	59.990	19.160	19.940	3.760	0.610	4.5	9
603	561	MWM-60 H_FH	275.000	41.910	59.990	15.670	24.360	3.760	0.610	4.5	11
604	562	MWM-60 H_WH	275.000	41.910	59.990	15.670	24.360	3.760	0.610	4.5	11
605	563	MWM-60 HF_FH	275.000	41.910	59.990	15.670	24.360	3.760	0.610	4.5	11
606	564	MWM-60 HF_WH	275.000	41.910	59.990	15.670	24.360	3.760	0.610	4.5	11
607	565	MWM-60 I_FH	275.000	49.530	59.990	13.250	28.780	3.760	0.610	4.5	13
608	566	MWM-60 I_WH	275.000	49.530	59.990	13.250	28.780	3.760	0.610	4.5	13
609	567	MWM-60 IF_FH	275.000	49.530	59.990	13.250	28.780	3.760	0.610	4.5	13
610	569	MWM-60 IF_WH	275.000	49.530	59.990	13.250	28.780	3.760	0.610	4.5	13
611	570	MWM-60 J_FH	275.000	57.150	59.990	11.490	33.220	3.760	0.610	4.5	15
612	571	MWM-60 J_WH	275.000	57.150	59.990	11.490	33.220	3.760	0.610	4.5	15
613	572	MWM-60 JF_FH	275.000	57.150	59.990	11.490	33.220	3.760	0.610	4.5	15
614	573	MWM-60 JF_WH	275.000	57.150	59.990	11.490	33.220	3.760	0.610	4.5	15

Product Description

All models are provided for form and fit, please contact manufacturer for part measurements when required.

Documentation

Product Page

Contact the supplier

Rotor Clip Company

Rotor Clip is the global leader in the manufacturer of Retaining Rings, Wave Springs and Hose Clamps. With over 20,000 standard parts, we specialize in engineering the right part, for the right application every time whether it is a standard or custom.

Rotor Clip Company

Rotor Clip Company
187 Davidson Avenue
08873 Somerset
United States of America
www.rotorclip.com
info@rotorclip.com
