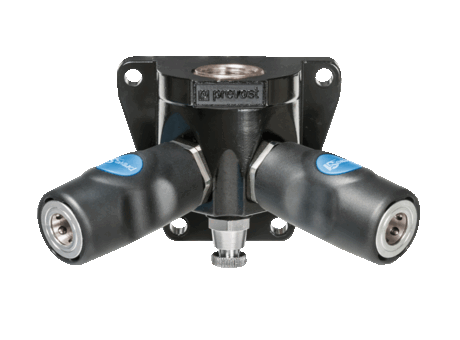

ISO B WALL BRACKET

Female thread double port wall bracket - 2 couplers and drain - ISO 6150 B Profile



Manufacturer	Prevost
Description	ISO B WALL BRACKET Female thread double port wall bracket - 2 couplers and drain - ISO 6150 B Profile
Manufacturer Part Number	ISI 068103WK
Flow rate (l/min)	833
Passage diameter (mm)	6
Profile	ISO 6150B
Material	Composite
Pressure loss (bar)	0.6
Pressure (bar)	6
Max operating pressure (bar)	12

Min operating pressure (bar)	2
Safety	Safety
Tapping	G1/2
Max temperature (°C)	70
Min temperature (°C)	-15
Disconnection	Button
Type of sealing	Valved
Product origin	FR
Packaging	1
Weight (Kg)	0.72

CAD models

Request for quotation

Product selection

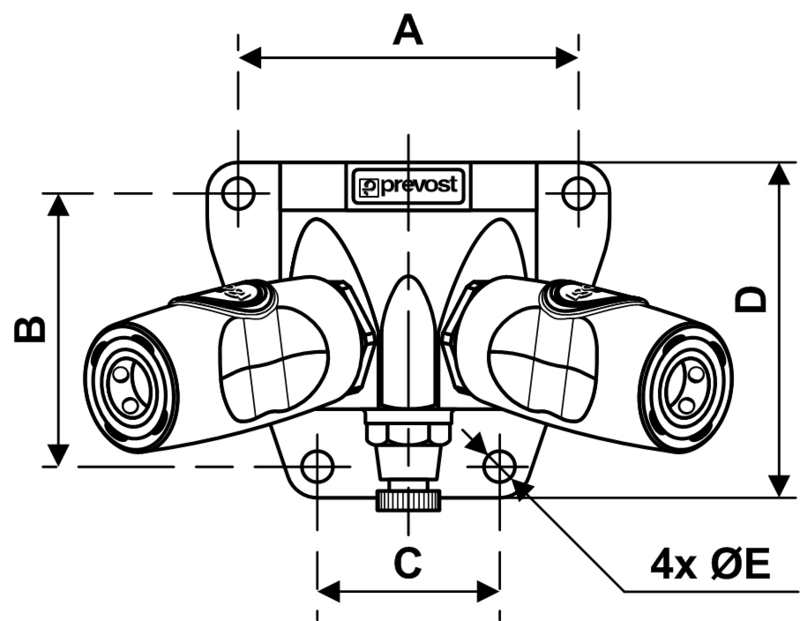

Index	CAD	Selector	Manufacturer Part Number	Description	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Flow rate (l/min)	Passage diameter (mm)	Profile	Material	Pressure loss (bar)	Pressure (bar)	Max operating pressure (bar)	Min operating pressure (bar)	Safety	Tapping	Max temperature (°C)	Min temperature (°C)	Disconnection	Type of sealing	Product origin	Packaging	Weight (Kg)
1		1	ISI 068103WK	ISO B WALL BRACKET Female thread double port wall bracket - 2 couplers and drain - ISO 6150 B Profile	71	57	38	70	6.5	833	6	ISO 6150B	Composite	0.6	6	12	2	Safety	G1/2	70	-15	Button	Valved	FR	1	0.72
2		2	ISI 068104WK	ISO B WALL BRACKET Female thread double port wall bracket - 2 couplers and drain - ISO 6150 B Profile	71	57	38	70	6.5	833	6	ISO 6150B	Composite	0.6	6	12	2	Safety	G3/4	70	-15	Button	Valved	FR	1	0.704
3	No CAD available	3	ISI 068203WK	ISO B WALL BRACKET Female thread double port wall bracket - 2 couplers and drain - ISO 6150 B Profile	71	57	38	70	6.5	833	6	ISO 6150B		0.6	6	12	2		NPT1/2	70	-15			FR		0.75
4		4	ISI 068204WK	ISO B WALL BRACKET Female thread double port wall bracket - 2 couplers and drain - ISO 6150 B Profile	71	57	38	70	6.5	833	6	ISO 6150B	Composite	0.6	6	12	2	Safety	NPT3/4	70	-15	Button	Valved	FR	1	0.712
