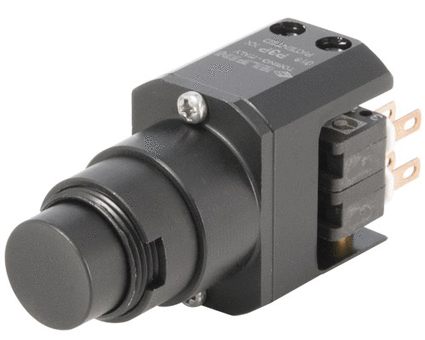

3-position enabling switches

Manufacturer	New Elfin
Description	3-position enabling switch, 2 N.O.+2 N.C, Faston terminals 2.8x0.5
Part Number	016P3P22F
Colour	Black
Pack	1
Weight - gr	35,000
Custums Tariff No.	85365080
GTIN	8052878001865
Approvals	CE, (UL-CSA Microswitch only)
Compliance with standards	IEC-EN60947-5-8, IEC-EN60204-1, IEC-EN11161
Operating temperatures	-30° ÷ +70°C
Protection degree	IP40 - IP66 with 016GP28+020CGS (IEC-EN60529)

Protection against impact	IK06 (IEC-EN62262)
Mechanical durability	Position 1-2: 1.000.000 operations
Mechanical durability	Position 2-3: 500.000 operations
Safety Parameters	B10d:1.000.000 oper. pos.2-3 (UNI-EN-ISO 13849-1)

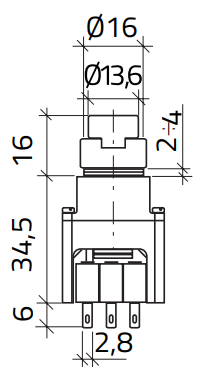

Fixing diameter	16.5mm - Thickness 1÷6mm
Rated insulation voltage	Ui 300V - Uimp 2.5KV (EN-IEC60947-1)
Overvoltage category	Class I (IEC-EN61140)
Microswitches electrical ratings	Vn 250V max AC-DC, In 5Amax, Ith 10A, Ui 300V
Microswitches electrical perfomances	20.000 operations with load 250V-5A-cosphi 0.8
Actuating forces	Position 1-2: 10N Position 2-3: 25N
Microswitch	1NO - 1NC change over, snap action
Warranty period	18 months

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Colour	Weight - gr
1	1	016P3P22F	3-position enabling switch, 2 N.O.+2 N.C, Faston terminals 2.8x0.5	Black	35,000
2	2	016P3P33F	3-position enabling switch, 3 N.O.+3 N.C, Faston terminals 2.8x0.5	Black	35,000

Documentation

016 - ENABLING SWITCHES AND ACCESSORIES

Contact the supplier

New Elfin

New Elfin is a manufacturer of control pushbuttons, pilot lights, mushroom buttons, emergency buttons, an important line of items for control and monitoring safety, from two-handed control panels to flashing voltage presence devices.
