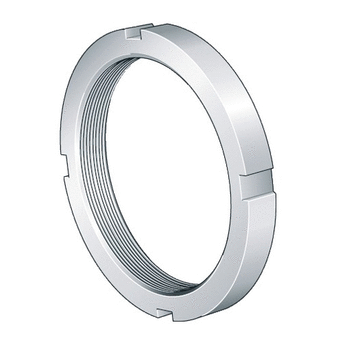

KM Series Bearing Lock Nut, KM13

Manufacturer	FAG (Schaeffler)
Description	KM Series Bearing Lock Nut, 85 mm OD
Part Number	KM13
MI Item Number	02296639
Distributor	Motion Industries
Motion Internal Description	KM13 LOCKNUT
E-Shop link	https://motionindustries.com/products/sku/02296639
Material	Steel
Face Diameter	79 mm

Lock Nut Type	For Lock Washer
Lock Washer or Locking Device Part Number	MB13
Outside Diameter	85 mm
Overall Nut Width	12 mm
Series	KM
Slot Depth	3 mm
Slot Width	7 mm
Thread Size	M65x2 mm
Weight	0.46 lbs

CAD models

Buy now

Product selection

Index	Selector	MI Item Number	Description	Material	Face Diameter	Lock Nut Type	Lock Washer or Locking Device Part Number	Outside Diameter	Overall Nut Width	Series	Slot Depth	Slot Width	Thread Size	Weight
1	1	02296639	KM Series Bearing Lock Nut, 85 mm OD	Steel	79 mm	For Lock Washer	MB13	85 mm	12 mm	KM	3 mm	7 mm	M65x2 mm	0.46 lbs
