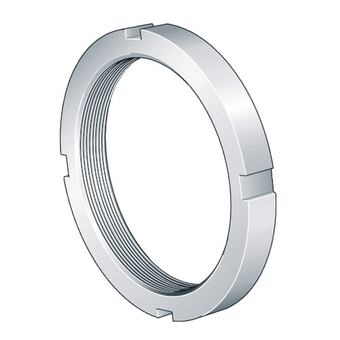

KM Series Bearing Lock Nut, KM11

Manufacturer	FAG (Schaeffler)
Description	KM Series Bearing Lock Nut, 75 mm OD
Part Number	KM11
MI Item Number	01369929
Distributor	Motion Industries
Motion Internal Description	KM 11 LOCKNUT
E-Shop link	https://motionindustries.com/products/sku/01369929
Material	Steel
Face Diameter	67 mm

Lock Nut Type	For Lock Washer
Lock Washer or Locking Device Part Number	MB12
Outside Diameter	75 mm
Overall Nut Width	12 mm
Series	KM
Slot Depth	3 mm
Slot Width	7 mm
Thread Size	M55x2 mm;M55x2 mm
Weight	0.35 lbs

CAD models

Buy now

Product selection

Index	Selector	MI Item Number	Description	Material	Face Diameter	Lock Nut Type	Lock Washer or Locking Device Part Number	Outside Diameter	Overall Nut Width	Series	Slot Depth	Slot Width	Thread Size	Weight
1	1	01369929	KM Series Bearing Lock Nut, 75 mm OD	Steel	67 mm	For Lock Washer	MB12	75 mm	12 mm	KM	3 mm	7 mm	M55x2 mm;M55x2 mm	0.35 lbs
