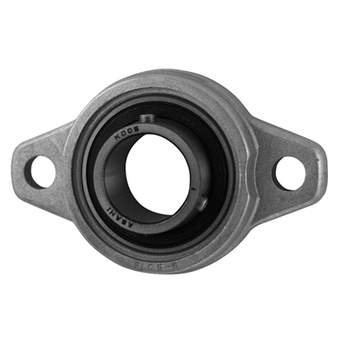

Flange-Mount Ball Bearing Unit, KFL002

Manufacturer	AMI Bearings
Description	Flange-Mount Ball Bearing Unit, 2-Bolt Flange, 15 mm Bore, ZDC Alloy Housing Material, Light Duty, Set Screw Locking, Contact Seal Seal
Manufacturer Part Number	KFL002
MI Item Number	02705795
Distributor	Motion Industries
E-Shop link	https://motionindustries.com/products/sku/02705795
Bolt Center-to-Center Length	53 mm
Bore Diameter	15 mm
Bore Type	Round
Duty Type	Light Duty
Housing Material	ZDC Alloy

Length Through Bore	0.866 in
Locking Device	Set Screw
Lubrication Type	Non-Relubricable
Mounting Type	2-Bolt Flange
Overall Length/Diameter	67 mm
Radial Dynamic Load Capacity	2150 lbf
Radial Static Load Capacity	1080 lbf
Replacement Bearing	K002
Seal Type	Contact Seal
Series	KFL000

CAD models

Buy now

Product selection

Index	Selector	MI Item Number	Description	Bolt Center-to-Center Length	Bore Diameter	Bore Type	Duty Type	Housing Material	Length Through Bore	Locking Device	Lubrication Type	Mounting Type	Overall Length/Diameter	Radial Dynamic Load Capacity	Radial Static Load Capacity	Replacement Bearing	Seal Type	Series
1	1	02705795	Flange-Mount Ball Bearing Unit, 2-Bolt Flange, 15 mm Bore, ZDC Alloy Housing Material, Light Duty, Set Screw Locking, Contact Seal Seal	53 mm	15 mm	Round	Light Duty	ZDC Alloy	0.866 in	Set Screw	Non-Relubricable	2-Bolt Flange	67 mm	2150 lbf	1080 lbf	K002	Contact Seal	KFL000
