By FRANZ RÜBIG & SÖHNE GmbH & Co KG Schmiedetechnik

Chain series "C“

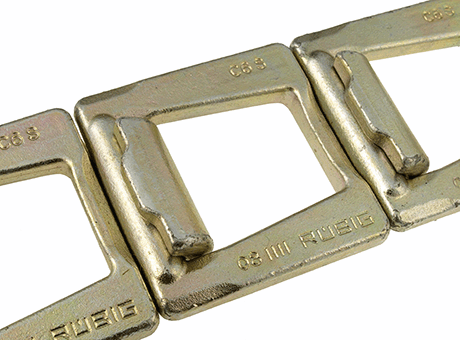

drop forged high-strength chains / high breaking load / weldable / new hook shape

Manufacturer	FRANZ RÜBIG & SÖHNE GmbH & Co KG Schmiedetechnik
Description	Chain series C6S
Part Number	7606600
type	C6S
Webshop LINK:	https://www.rubig-shop.com/en/product/ruebig-chain-pitch-606-mm/

CAD models

Request for quotation

Product selection

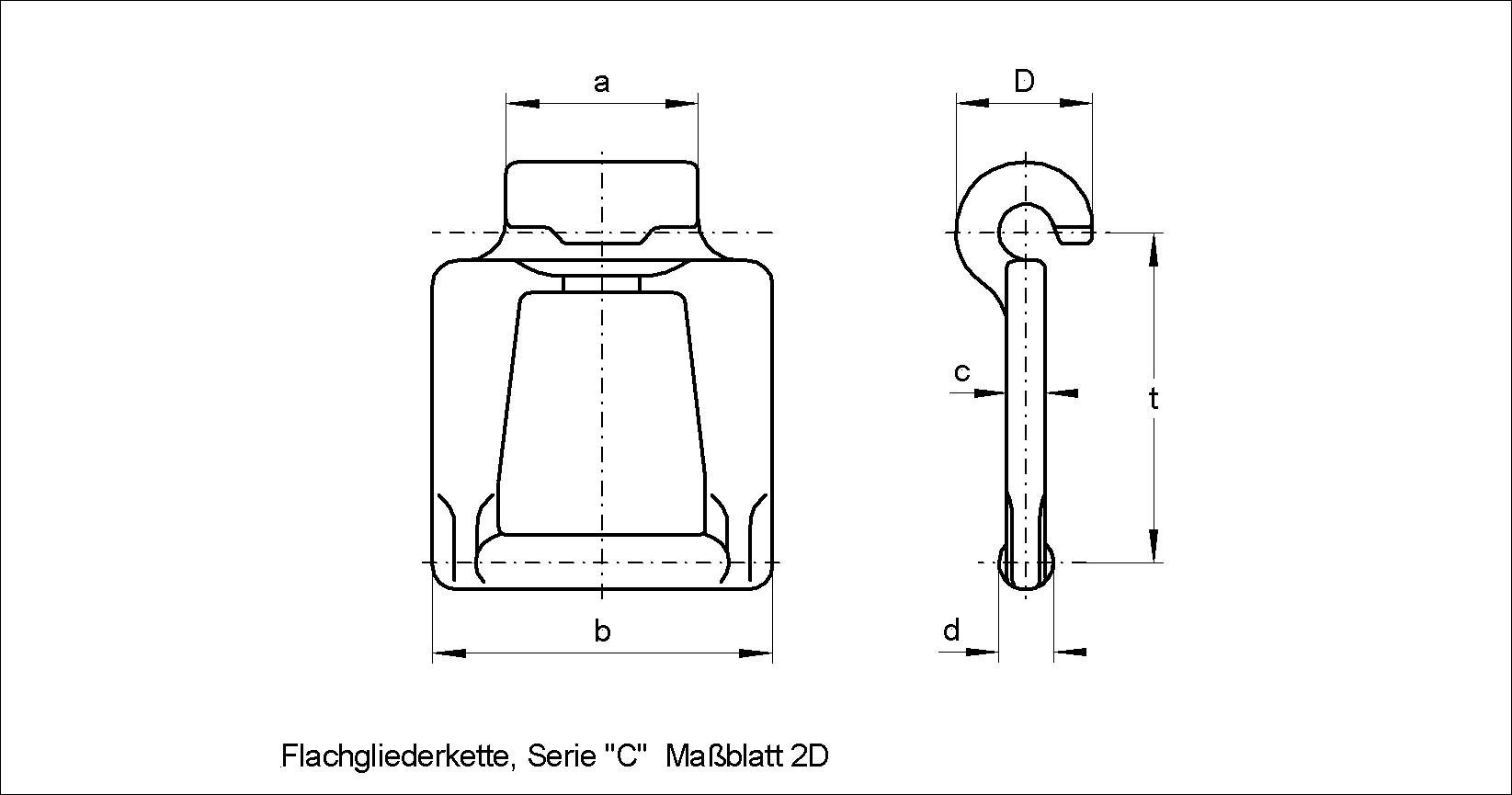

Index	Selector	Part Number	Description	b	a	c	d	t	type
1	1	7606600	Chain series C6S	62	37	10	7	60,6	C6S
2	2	7670600	Chain series C7S	62	37	10	7	67	C7S
3	3	7670700	Chain series C7V	62	37	10	7	67	C7V
4	4	7780700	Chain series Cs8V	72	41	13	8	78,5	Cs8V
5	5	7785600	Chain series C8S	82	47	13	8	78,5	C8S
6	6	7785700	Chain series C8V	82	47	13	8	78,5	C8V
7	7	7100700	Chain series C10V	85	49	14	10	100	C10V
8	8	7125700	Chain series C13V	85	50	16	11,5	125	C13V

Product Description

The optimized variant for extended operating time

−higher operating and breaking load due to special hook design (larger hook wrap)
−resistable to influences of weather
−drop forged and hardened
−easy to assemble and disassemble by hand
−weldable
