Covered Bearings - Bearing Mount - Urethane - Precision Sealed - Double Bearing -Metric

Covered Bearings

Manufacturer	Fixtureworks
Description	5mm 2RS x 20mm DIA x 10mm WD
Part Number	MCBD-052010-35UR

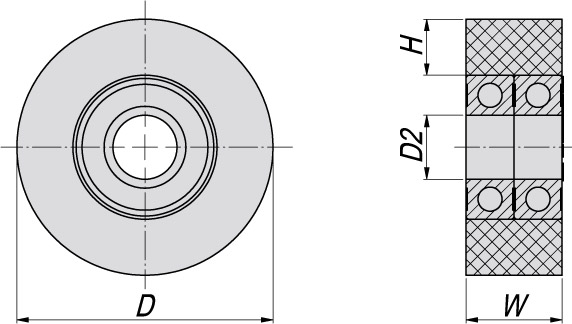

D Overall Diameter mm	20
D2 Inside - Bearing Diameter mm	5
(Ref)<br>H mm	3

W Overall Width mm	10
Bearing Part No.	605-2RS
No. of Bearings	2
Durometer Shore A	35
Material	Urethane
Color	Yellow

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	D Overall Diameter mm	D2 Inside - Bearing Diameter mm	(Ref)<br>H mm	W Overall Width mm	Bearing Part No.	No. of Bearings	Durometer Shore A	Material	Color
1	1	MCBD-052010-35UR	20	5	3	10	605-2RS	2	35	Urethane	Yellow
2	12	MCBD-052010-60UR	20	5	3	10	605-2RS	2	60	Urethane	Blue
3	22	MCBD-052010-95UR	20	5	3	10	605-2RS	2	95	Urethane	Black
4	23	MCBD-062512-35UR	25	6	3	12	606-2RS	2	35	Urethane	Yellow
5	24	MCBD-062512-60UR	25	6	3	12	606-2RS	2	60	Urethane	Blue
6	25	MCBD-062512-95UR	25	6	3	12	606-2RS	2	95	Urethane	Black
7	26	MCBD-083014-35UR	30	8	4	14	608-2RS	2	35	Urethane	Yellow
8	27	MCBD-083014-60UR	30	8	4	14	608-2RS	2	60	Urethane	Blue
9	28	MCBD-083014-95UR	30	8	4	14	608-2RS	2	95	Urethane	Black
10	2	MCBD-093514-35UR	35	9	6	14	609-2RS	2	35	Urethane	Yellow
11	3	MCBD-093514-60UR	35	9	6	14	609-2RS	2	60	Urethane	Blue
12	4	MCBD-093514-95UR	35	9	6	14	609-2RS	2	95	Urethane	Black
13	5	MCBD-103516-35UR	35	10	5	16	6000-2RS	2	35	Urethane	Yellow
14	6	MCBD-103516-60UR	35	10	5	16	6000-2RS	2	60	Urethane	Blue
15	7	MCBD-103516-95UR	35	10	5	16	6000-2RS	2	95	Urethane	Black
16	8	MCBD-104016-35UR	40	10	7	16	6000-2RS	2	35	Urethane	Yellow
17	9	MCBD-104016-60UR	40	10	7	16	6000-2RS	2	60	Urethane	Blue
18	10	MCBD-104016-95UR	40	10	7	16	6000-2RS	2	95	Urethane	Black
19	11	MCBD-124016-35UR	40	12	6	16	6001-2RS	2	35	Urethane	Yellow
20	13	MCBD-124016-60UR	40	12	6	16	6001-2RS	2	60	Urethane	Blue
21	14	MCBD-124016-95UR	40	12	6	16	6001-2RS	2	95	Urethane	Black
22	15	MCBD-125016-35UR	50	12	11	16	6001-2RS	2	35	Urethane	Yellow
23	16	MCBD-125016-60UR	50	12	11	16	6001-2RS	2	60	Urethane	Blue
24	17	MCBD-125016-95UR	50	12	11	16	6001-2RS	2	95	Urethane	Black
25	18	MCBD-154518-95UR	45	15	7	18	6002-2RS	2	95	Urethane	Black
26	19	MCBD-175020-95UR	50	17	8	20	6003-2RS	2	95	Urethane	Black
27	20	MCBD-206024-95UR	60	20	9	24	6004-2RS	2	95	Urethane	Black
28	21	MCBD-257024-95UR	70	25	12	24	6005-2RS	2	95	Urethane	Black

Product Description

These covered bearings have a smooth urethane surface that is cast directly to a set of two precision sealed ball bearings. They provide smooth, quiet and non-marring operation. The urethane provides excellent abrasion resistance and durability. They are available in 35, 60 and to 95 durometer.
