OAT

Wedge profile backing ring, with metal core and a PP-GR coating. According to ANSI B16.5 cl.150 for stub QRNM and QRAM.



Manufacturer	FIP
Description	Wedge profile backing ring, with metal core and a PP-GR coating. According to ANSI B16.5 cl.150 for stub QRNM and QRAM. OAT
Item Number	OAT012
Distribution countries	worldwide

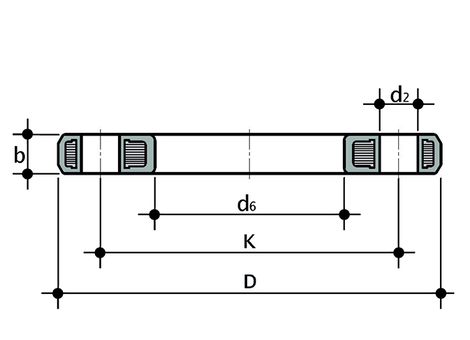

d (inch)	1/2''
DN	15
b	13
d2(mm)	16

d2(inch)	45874
d6	28
D	97
k(mm)	60.3
k(inch)	2" 3/8
n	4
**Nm	10
g	209

CAD models

Request for quotation

Product selection

Index	Selector	Item Number	d (inch)	DN	b	d2(mm)	d2(inch)	d6	D	k(mm)	k(inch)	n	**Nm	g
1	1	OAT012	1/2''	15	13	16	45874	28	97	60.3	2" 3/8	4	10	209
2	2	OAT034	3/4''	20	15	16	45874	34	109	69.9	2" 3/4	4	15	316
3	3	OAT100	1''	25	17	16	45874	42	117	79.4	3" 1/8	4	15	433
4	4	OAT114	1 1/4''	32	18	16	45874	51	139	88.9	3" 1/2	4	20	702
5	5	OAT112	1 1/2''	40	19	16	45874	62	149	98.4	3" 7/8	4	25	804
6	6	OAT200	2''	50	19	20	45750	78	163	120.7	4" 3/4	4	35	918
7	7	OAT212	2 1/2''	65	19	20	45750	92	186	139.7	5" 1/2	4	35	1155
8	8	OAT300	3''	80	20	20	45750	111	198	152.4	6"	4	35	1175
9	9	OAT400	4''	100	20	20	45750	133	232	190.5	7" 1/2	8	35	1570
