FDV

Fixed flange with solvent weld socket according to EN/ISO/DIN with serrated raised face for flat gaskets (for gasket sizes, see QHV). Drilling: PN 10/16 up to DN 150; PN 10 from DN 200



Manufacturer	FIP
Description	Fixed flange with solvent weld socket according to EN/ISO/DIN with serrated raised face for flat gaskets (for gasket sizes, see QHV). Drilling: PN 10/16 up to DN 150; PN 10 from DN 200 FDV
Item Number	FDV025
g	105
Notes	* PMA maximum admissible working pressure; **nominal tightening torque

CAD models

Request for quotation

Product selection

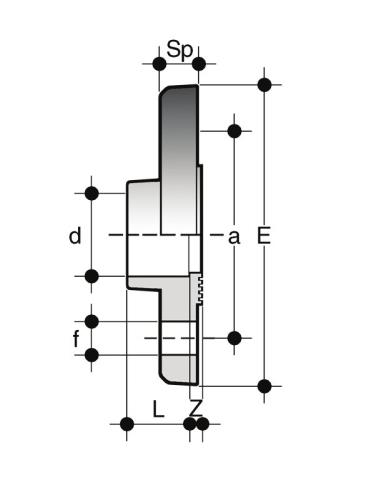

Index	Selector	Item Number	d	DN	*PMA (bar)	a	E	L	Z	**(Nm)	f	Sp	g
1	1	FDV025	25	20	10	75	105	19	4.5	<10	14	12	105
2	2	FDV032	32	25	10	85	115	22	4.5	10	14	14	150
3	3	FDV040	40	32	10	100	140	26	4.5	13	18	15	230
4	4	FDV050	50	40	10	110	150	31	4.5	13	18	16	280
5	5	FDV063	63	50	10	125	163	38	4.5	15	18	18	390
6	6	FDV075	75	65	10	145	185	44	5	17	18	19	525
7	7	FDV090	90	80	10	160	200	51	7	18	18	20	710
8	8	FDV110	110	100	10	180	220	61	8	20	18	22	955
