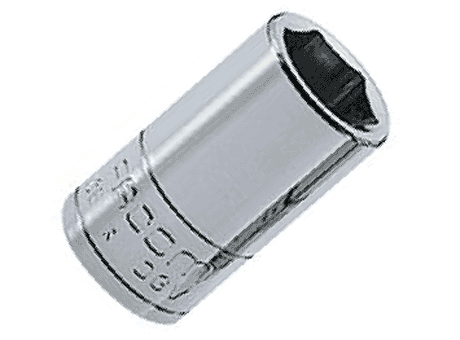

R Metric OGV® 6-point sockets



Manufacturer	FACOM
Description	Metric OGV® 6-point socket of 10 mm
Part number	R.10
Mass	17.7 g

CAD models

Request for quotation

Product selection

Index	Selector	Item code	S (mm)	Ø d1 (mm)	Ø d2 (mm)	t (mm)	L (mm)	Mass (g)
1	1	R.3,2	3.2	5.9	11.2	2.4	22	7.3
2	2	R.4	4	6.9	11.2	2.6	22	7.7
3	3	R.5	5	8.2	11.2	4.8	22	8.1
4	4	R.5,5	5.5	8.8	11.2	4.8	22	8.4
5	5	R.6	6	9.4	11.2	5.6	22	8.6
6	6	R.7	7	11	11	6	22	9.2
7	7	R.8	8	12	12	6.5	22	11.5
8	8	R.9	9	13.2	13.2	6.5	22	14.3
9	9	R.10	10	14.7	14.7	7.8	22	17.7
10	10	R.11	11	15.8	15.8	9	22	19.4
11	11	R.12	12	17	17	9.5	22	23.2
12	12	R.13	13	17.7	17.7	10	22	23.7
13	13	R.14	14	18.7	18.7	10	22	26.1
