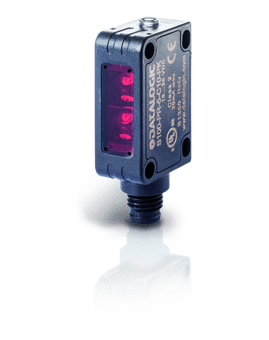

Miniature Photoelectric Sensor - S100

The S100 Sensor basic line offers the most competitive pricing, universal and easy installation without settings. The S100 line is now enriched with IO-Link connectivity and a new high performance RGB contrast Sensor._x000D_

Manufacturer	DATALOGIC
Description	Miniature Photoelectric Sensor - S100-PR-2-B00-PK
Part Number	950811030
Model	S100-PR-2-B00-PK
Optic Function	Polarized Retroreflective (short)
Connection	2 m cable
Output	PNP

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Model	Optic Function	Connection	Output
1	1	950810001	Miniature Photoelectric Sensor - S100-PR-5-B10-OZ	S100-PR-5-B10-OZ	Polarized Retroreflective (long)	M8 connector	IO-Link
2	12	950810002	Miniature Photoelectric Sensor - S100-PR-5-T10-OZ	S100-PR-5-T10-OZ	Transparent Retroreflective (long)	M8 connector	IO-Link
3	23	950810003	Miniature Photoelectric Sensor - S100-PR-5-M10-OZ	S100-PR-5-M10-OZ	Background suppression (long range)	M8 connector	IO-Link
4	34	950810004	Miniature Photoelectric Sensor - S100-PR-5-W00-OZ	S100-PR-5-W00-OZ	Mark Reader	M8 connector	IO-Link
5	45	950811110	Miniature Photoelectric Sensor - S100-PR-2-FG00-PK	S100-PR-2-FG00-PK	Through beam	2 m cable	PNP
6	46	950811250	Miniature Photoelectric Sensor - S100-PR-5-FG00-PK	S100-PR-5-FG00-PK	Through beam	M8 connector	PNP
7	47	950811010	Miniature Photoelectric Sensor - S100-PR-2-A00-PK	S100-PR-2-A00-PK	Retroreflective	2 m cable	PNP
8	48	950811150	Miniature Photoelectric Sensor - S100-PR-5-A00-PK	S100-PR-5-A00-PK	Retroreflective	M8 connector	PNP
9	49	950811030	Miniature Photoelectric Sensor - S100-PR-2-B00-PK	S100-PR-2-B00-PK	Polarized Retroreflective (short)	2 m cable	PNP
10	2	950811170	Miniature Photoelectric Sensor - S100-PR-5-B00-PK	S100-PR-5-B00-PK	Polarized Retroreflective (short)	M8 connector	PNP
11	3	950811290	Miniature Photoelectric Sensor - S100-PR-2-B10-PK	S100-PR-2-B10-PK	Polarized Retroreflective (long)	2 m cable	PNP
12	4	950811300	Miniature Photoelectric Sensor - S100-PR-5-B10-NK	S100-PR-5-B10-NK	Polarized Retroreflective (long)	M8 connector	NPN
13	5	950811310	Miniature Photoelectric Sensor - S100-PR-5-B10-PK	S100-PR-5-B10-PK	Polarized Retroreflective (long)	M8 connector	PNP
14	6	950811050	Miniature Photoelectric Sensor - S100-PR-2-C00-PK	S100-PR-2-C00-PK	Diffuse proximity (short)	2 m cable	PNP
15	7	950811190	Miniature Photoelectric Sensor - S100-PR-5-C00-PK	S100-PR-5-C00-PK	Diffuse proximity (short)	M8 connector	PNP
16	8	950811070	Miniature Photoelectric Sensor - S100-PR-2-C10-PK	S100-PR-2-C10-PK	Diffuse proximity (long)	2 m cable	PNP
17	9	950811210	Miniature Photoelectric Sensor - S100-PR-5-C10-PK	S100-PR-5-C10-PK	Diffuse proximity (long)	M8 connector	PNP
18	10	950811090	Miniature Photoelectric Sensor - S100-PR-2-D00-PK	S100-PR-2-D00-PK	Fixed focus	2 m cable	PNP
19	11	950811230	Miniature Photoelectric Sensor - S100-PR-5-D00-PK	S100-PR-5-D00-PK	Fixed focus	M8 connector	PNP
20	13	950811130	Miniature Photoelectric Sensor - S100-PR-2-M00-PH	S100-PR-2-M00-PH	Background suppression (short range)	2 m cable	PNP
21	14	950811270	Miniature Photoelectric Sensor - S100-PR-5-M00-PH	S100-PR-5-M00-PH	Background suppression (short range)	M8 connector	PNP
22	15	950811430	Miniature Photoelectric Sensor - S100-PR-2-M10-PH	S100-PR-2-M10-PH	Background suppression (long range)	2 m cable	PNP
23	16	950811400	Miniature Photoelectric Sensor - S100-PR-5-M10-NH	S100-PR-5-M10-NH	Background suppression (long range)	M8 connector	NPN
24	17	950811410	Miniature Photoelectric Sensor - S100-PR-5-M10-PH	S100-PR-5-M10-PH	Background suppression (long range)	M8 connector	PNP
25	18	950811240	Miniature Photoelectric Sensor - S100-PR-5-FG00-NK	S100-PR-5-FG00-NK	Through beam	M8 connector	NPN
26	19	950811140	Miniature Photoelectric Sensor - S100-PR-5-A00-NK	S100-PR-5-A00-NK	Retroreflective	M8 connector	NPN
27	20	950811160	Miniature Photoelectric Sensor - S100-PR-5-B00-NK	S100-PR-5-B00-NK	Polarized Retroreflective (short)	M8 connector	NPN
28	21	950811350	Miniature Photoelectric Sensor - S100-PR-5-T00-NH	S100-PR-5-T00-NH	Transparent Retroreflective (short)	M8 connector	NPN
29	22	950811340	Miniature Photoelectric Sensor - S100-PR-5-T00-PH	S100-PR-5-T00-PH	Transparent Retroreflective (short)	M8 connector	PNP
30	24	950811390	Miniature Photoelectric Sensor - S100-PR-5-T10-NH	S100-PR-5-T10-NH	Transparent Retroreflective (long)	M8 connector	NPN
31	25	950811380	Miniature Photoelectric Sensor - S100-PR-5-T10-PH	S100-PR-5-T10-PH	Transparent Retroreflective (long)	M8 connector	PNP
32	26	950811180	Miniature Photoelectric Sensor - S100-PR-5-C00-NK	S100-PR-5-C00-NK	Diffuse proximity (short)	M8 connector	NPN
33	27	950811200	Miniature Photoelectric Sensor - S100-PR-5-C10-NK	S100-PR-5-C10-NK	Diffuse proximity (long)	M8 connector	NPN
34	28	950811220	Miniature Photoelectric Sensor - S100-PR-5-D00-NK	S100-PR-5-D00-NK	Fixed focus	M8 connector	NPN
35	29	950811260	Miniature Photoelectric Sensor - S100-PR-5-M00-NH	S100-PR-5-M00-NH	Background suppression (short range)	M8 connector	NPN
36	30	950811100	Miniature Photoelectric Sensor - S100-PR-2-FG00-NK	S100-PR-2-FG00-NK	Through beam	2 m cable	NPN
37	31	950811000	Miniature Photoelectric Sensor - S100-PR-2-A00-NK	S100-PR-2-A00-NK	Retroreflective	2 m cable	NPN
38	32	950811020	Miniature Photoelectric Sensor - S100-PR-2-B00-NK	S100-PR-2-B00-NK	Polarized Retroreflective (short)	2 m cable	NPN
39	33	950811280	Miniature Photoelectric Sensor - S100-PR-2-B10-NK	S100-PR-2-B10-NK	Polarized Retroreflective (long)	2 m cable	NPN
40	35	950811330	Miniature Photoelectric Sensor - S100-PR-2-T00-NH	S100-PR-2-T00-NH	Transparent Retroreflective (short)	2 m cable	NPN
41	36	950811320	Miniature Photoelectric Sensor - S100-PR-2-T00-PH	S100-PR-2-T00-PH	Transparent Retroreflective (short)	2 m cable	PNP
42	37	950811370	Miniature Photoelectric Sensor - S100-PR-2-T10-NH	S100-PR-2-T10-NH	Transparent Retroreflective (long)	2 m cable	NPN
43	38	950811360	Miniature Photoelectric Sensor - S100-PR-2-T10-PH	S100-PR-2-T10-PH	Transparent Retroreflective (long)	2 m cable	PNP
44	39	950811040	Miniature Photoelectric Sensor - S100-PR-2-C00-NK	S100-PR-2-C00-NK	Diffuse proximity (short)	2 m cable	NPN
45	40	950811060	Miniature Photoelectric Sensor - S100-PR-2-C10-NK	S100-PR-2-C10-NK	Diffuse proximity (long)	2 m cable	NPN
46	41	950811080	Miniature Photoelectric Sensor - S100-PR-2-D00-NK	S100-PR-2-D00-NK	Fixed focus	2 m cable	NPN
47	42	950811120	Miniature Photoelectric Sensor - S100-PR-2-M00-NH	S100-PR-2-M00-NH	Background suppression (short range)	2 m cable	NPN
48	43	950811420	Miniature Photoelectric Sensor - S100-PR-2-M10-NH	S100-PR-2-M10-NH	Background suppression (long range)	2 m cable	NPN
49	44	950810005	Miniature Photoelectric Sensor - S100-PR-5-W00-PK	S100-PR-5-W00-PK	Mark Reader	M8 connector	PNP
