By BREVETTI STENDALTO

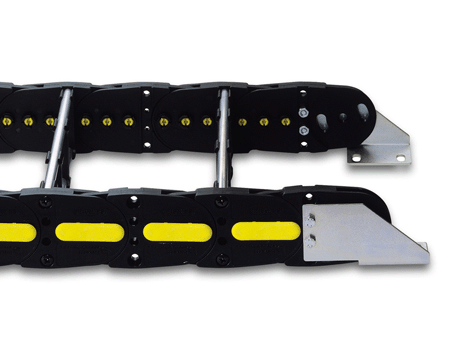

Serie Heavy 308B - Nylon cable chain with un-screwable aluminium rods



Manufacturer	BREVETTI STENDALTO
Description	Serie Heavy 308B - Nylon cable chain, A = 156 mm, R = 150 mm, length: 800 mm, Aluminium rods mounted every second link, Bright zinc-plated steel, Assembled kit, position 1
Part number	308B100150 + A308KM1
Mass	2.28 kg
Material	Nylon

CAD models

Request for quotation

Product selection

Index	Selector	Chain	A (mm)	B (mm)	C (mm)	D (mm)	*R (mm)	Weight (kg/m)
1	1	308B100*	156	75	100	48	150-180-200-230-280-400	2.85
2	2	308B150*	206	75	150	48	150-180-200-230-280-400	3
3	3	308B200*	256	75	200	48	150-180-200-230-280-400	3.15
4	4	308B250*	306	75	250	48	150-180-200-230-280-400	3.3
5	5	308B300*	356	75	300	48	150-180-200-230-280-400	3.45
6	7	308B**	C+56	75	…..	48	150-180-200-230-280-400	0

Travel (mm)

R

Kit end brackets

C

Aluminium rods
