DIFV(A)

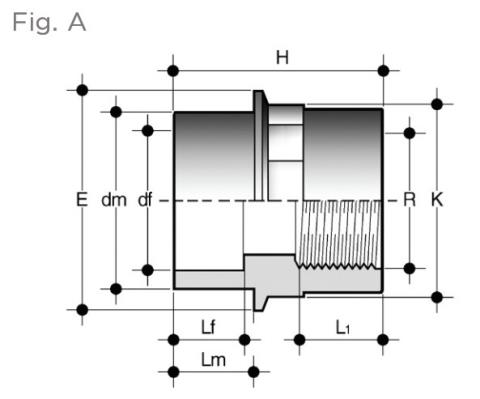

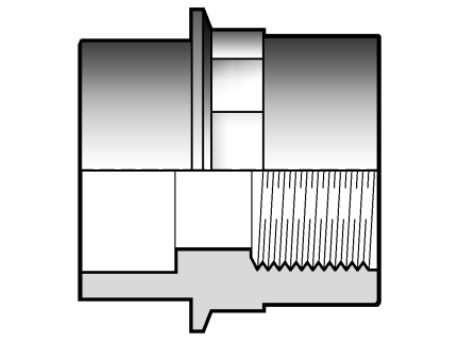

Double adaptor with solvent weld socket df, solvent weld spigot dm and BSP threaded female end R (fig. A)



Manufacturer	FIP
Description	Double adaptor with solvent weld socket df, solvent weld spigot dm and BSP threaded female end R (fig. A) DIFV(A)
Item Number	DIFV020016038

CAD modely

Požadavek cenové nabídky

Výběr produktu

Index	Selector	Item Number	PN	E	H	L1	K	Lf	Lm
1	1	DIFV020016038	16	28	36	11,4	24	14	16
2	2	DIFV025020012	16	34	42	15	29	16	19
3	3	DIFV032025034	16	40	49	16,3	35	19	22
4	4	DIFV040032100	16	52	57	19,1	44	22	26
5	5	DIFV050040114	16	59	67	21,4	54	26	31
6	6	DIFV063050112	16	70	77	21,4	64	31	38
