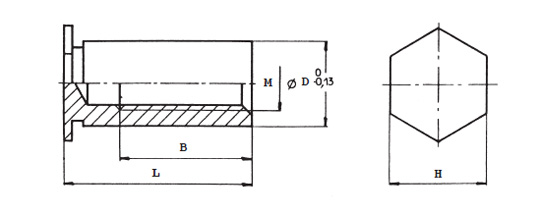

Dimensions
1/1
Clinch stand offs for metallic support - type CBM: closed end
| Manufacturer | SIMAF |
|---|---|
| Description | Clinch stand-off threaded, M3 x 0,50, material case-hardened steel, zinc plated , length 8 |
| Part number | 3CBM1-A-8 |
| Material | case-hardened steel, zinc plated |
CAD models
Please make sure this software has been installed.
This site is protected by reCAPTCHA and the Google
Privacy Policy and
Terms of Service apply.
The link to this page has been copied in your clipboard.
Product selection
| Index | Selector | Part number | Material | Taraudage M | Ø D (mm) | H (mm) | L (mm) | B mini. (mm) | Epaisseur mini du support E (mm) | Hole P+0.1 (mm) | Minimum Distance of the edge X (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1 | 3CBM1-A-8 | case-hardened steel, zinc plated | M3 x 0,50 | 4.2 | 5 | 8 | 4 | 1 | 4.2 | 6 |
| 2 | 2 | 3CBM1-A-10 | case-hardened steel, zinc plated | M3 x 0,50 | 4.2 | 5 | 10 | 4 | 1 | 4.2 | 6 |
| 3 | 3 | 3CBM1-A-12 | case-hardened steel, zinc plated | M3 x 0,50 | 4.2 | 5 | 12 | 5 | 1 | 4.2 | 6 |
| 4 | 4 | 3CBM1-A-14 | case-hardened steel, zinc plated | M3 x 0,50 | 4.2 | 5 | 14 | 6.5 | 1 | 4.2 | 6 |
| 5 | 5 | 3CBM1-A-16 | case-hardened steel, zinc plated | M3 x 0,50 | 4.2 | 5 | 16 | 6.5 | 1 | 4.2 | 6 |
| 6 | 6 | 3CBM1-A-18 | case-hardened steel, zinc plated | M3 x 0,50 | 4.2 | 5 | 18 | 9.5 | 1 | 4.2 | 6 |
| 7 | 7 | 3CBM1-A-20 | case-hardened steel, zinc plated | M3 x 0,50 | 4.2 | 5 | 20 | 9.5 | 1 | 4.2 | 6 |
| 8 | 8 | 3CBM1-A-22 | case-hardened steel, zinc plated | M3 x 0,50 | 4.2 | 5 | 22 | 9.5 | 1 | 4.2 | 6 |
| 9 | 9 | 3CBM2-A-8 | case-hardened steel, zinc plated | M3 x 0,50 | 5.4 | 7 | 8 | 4 | 1 | 5.4 | 7 |
| 10 | 10 | 3CBM2-A-10 | case-hardened steel, zinc plated | M3 x 0,50 | 5.4 | 7 | 10 | 4 | 1 | 5.4 | 7 |
| 11 | 11 | 3CBM2-A-12 | case-hardened steel, zinc plated | M3 x 0,50 | 5.4 | 7 | 12 | 5 | 1 | 5.4 | 7 |
| 12 | 12 | 3CBM2-A-14 | case-hardened steel, zinc plated | M3 x 0,50 | 5.4 | 7 | 14 | 6.5 | 1 | 5.4 | 7 |
| 13 | 13 | 3CBM2-A-16 | case-hardened steel, zinc plated | M3 x 0,50 | 5.4 | 7 | 16 | 6.5 | 1 | 5.4 | 7 |
| 14 | 14 | 3CBM2-A-18 | case-hardened steel, zinc plated | M3 x 0,50 | 5.4 | 7 | 18 | 9.5 | 1 | 5.4 | 7 |
| 15 | 15 | 3CBM2-A-20 | case-hardened steel, zinc plated | M3 x 0,50 | 5.4 | 7 | 20 | 9.5 | 1 | 5.4 | 7 |
| 16 | 16 | 3CBM2-A-22 | case-hardened steel, zinc plated | M3 x 0,50 | 5.4 | 7 | 22 | 9.5 | 1 | 5.4 | 7 |
| 17 | 17 | 4CBM-A-8 | case-hardened steel, zinc plated | M4 x 0,70 | 7.1 | 8 | 8 | 4 | 1.3 | 7.2 | 8 |
| 18 | 18 | 4CBM-A-10 | case-hardened steel, zinc plated | M4 x 0,70 | 7.1 | 8 | 10 | 4 | 1.3 | 7.2 | 8 |
| 19 | 19 | 4CBM-A-12 | case-hardened steel, zinc plated | M4 x 0,70 | 7.1 | 8 | 12 | 5 | 1.3 | 7.2 | 8 |
| 20 | 20 | 4CBM-A-14 | case-hardened steel, zinc plated | M4 x 0,70 | 7.1 | 8 | 14 | 6.5 | 1.3 | 7.2 | 8 |
| 21 | 21 | 4CBM-A-16 | case-hardened steel, zinc plated | M4 x 0,70 | 7.1 | 8 | 16 | 6.5 | 1.3 | 7.2 | 8 |
| 22 | 22 | 4CBM-A-18 | case-hardened steel, zinc plated | M4 x 0,70 | 7.1 | 8 | 18 | 9.5 | 1.3 | 7.2 | 8 |
| 23 | 23 | 4CBM-A-20 | case-hardened steel, zinc plated | M4 x 0,70 | 7.1 | 8 | 20 | 9.5 | 1.3 | 7.2 | 8 |
| 24 | 24 | 4CBM-A-22 | case-hardened steel, zinc plated | M4 x 0,70 | 7.1 | 8 | 22 | 9.5 | 1.3 | 7.2 | 8 |
| 25 | 25 | 5CBM-A-8 | case-hardened steel, zinc plated | M5 x 0,80 | 7.1 | 8 | 8 | 4 | 1.3 | 7.2 | 8 |
| 26 | 26 | 5CBM-A-10 | case-hardened steel, zinc plated | M5 x 0,80 | 7.1 | 8 | 10 | 4 | 1.3 | 7.2 | 8 |
| 27 | 27 | 5CBM-A-12 | case-hardened steel, zinc plated | M5 x 0,80 | 7.1 | 8 | 12 | 5 | 1.3 | 7.2 | 8 |
| 28 | 28 | 5CBM-A-14 | case-hardened steel, zinc plated | M5 x 0,80 | 7.1 | 8 | 14 | 6.5 | 1.3 | 7.2 | 8 |
| 29 | 29 | 5CBM-A-16 | case-hardened steel, zinc plated | M5 x 0,80 | 7.1 | 8 | 16 | 6.5 | 1.3 | 7.2 | 8 |
| 30 | 30 | 5CBM-A-18 | case-hardened steel, zinc plated | M5 x 0,80 | 7.1 | 8 | 18 | 9.5 | 1.3 | 7.2 | 8 |
| 31 | 31 | 5CBM-A-20 | case-hardened steel, zinc plated | M5 x 0,80 | 7.1 | 8 | 20 | 9.5 | 1.3 | 7.2 | 8 |
| 32 | 32 | 5CBM-A-22 | case-hardened steel, zinc plated | M5 x 0,80 | 7.1 | 8 | 22 | 9.5 | 1.3 | 7.2 | 8 |
| 33 | 33 | 3CBM1-X-8 | stainless steel 303 F 00, passivated | M3 x 0,50 | 4.2 | 5 | 8 | 4 | 1 | 4.2 | 6 |
| 34 | 34 | 3CBM1-X-10 | stainless steel 303 F 00, passivated | M3 x 0,50 | 4.2 | 5 | 10 | 4 | 1 | 4.2 | 6 |
| 35 | 35 | 3CBM1-X-12 | stainless steel 303 F 00, passivated | M3 x 0,50 | 4.2 | 5 | 12 | 5 | 1 | 4.2 | 6 |
| 36 | 36 | 3CBM1-X-14 | stainless steel 303 F 00, passivated | M3 x 0,50 | 4.2 | 5 | 14 | 6.5 | 1 | 4.2 | 6 |
| 37 | 37 | 3CBM1-X-16 | stainless steel 303 F 00, passivated | M3 x 0,50 | 4.2 | 5 | 16 | 6.5 | 1 | 4.2 | 6 |
| 38 | 38 | 3CBM1-X-18 | stainless steel 303 F 00, passivated | M3 x 0,50 | 4.2 | 5 | 18 | 9.5 | 1 | 4.2 | 6 |
| 39 | 39 | 3CBM1-X-20 | stainless steel 303 F 00, passivated | M3 x 0,50 | 4.2 | 5 | 20 | 9.5 | 1 | 4.2 | 6 |
| 40 | 40 | 3CBM1-X-22 | stainless steel 303 F 00, passivated | M3 x 0,50 | 4.2 | 5 | 22 | 9.5 | 1 | 4.2 | 6 |
| 41 | 41 | 3CBM2-X-8 | stainless steel 303 F 00, passivated | M3 x 0,50 | 5.4 | 7 | 8 | 4 | 1 | 5.4 | 7 |
| 42 | 42 | 3CBM2-X-10 | stainless steel 303 F 00, passivated | M3 x 0,50 | 5.4 | 7 | 10 | 4 | 1 | 5.4 | 7 |
| 43 | 43 | 3CBM2-X-12 | stainless steel 303 F 00, passivated | M3 x 0,50 | 5.4 | 7 | 12 | 5 | 1 | 5.4 | 7 |
| 44 | 44 | 3CBM2-X-14 | stainless steel 303 F 00, passivated | M3 x 0,50 | 5.4 | 7 | 14 | 6.5 | 1 | 5.4 | 7 |
| 45 | 45 | 3CBM2-X-16 | stainless steel 303 F 00, passivated | M3 x 0,50 | 5.4 | 7 | 16 | 6.5 | 1 | 5.4 | 7 |
| 46 | 46 | 3CBM2-X-18 | stainless steel 303 F 00, passivated | M3 x 0,50 | 5.4 | 7 | 18 | 9.5 | 1 | 5.4 | 7 |
| 47 | 47 | 3CBM2-X-20 | stainless steel 303 F 00, passivated | M3 x 0,50 | 5.4 | 7 | 20 | 9.5 | 1 | 5.4 | 7 |
| 48 | 48 | 3CBM2-X-22 | stainless steel 303 F 00, passivated | M3 x 0,50 | 5.4 | 7 | 22 | 9.5 | 1 | 5.4 | 7 |
| 49 | 49 | 4CBM-X-8 | stainless steel 303 F 00, passivated | M4 x 0,70 | 7.1 | 8 | 8 | 4 | 1.3 | 7.2 | 8 |
| 50 | 50 | 4CBM-X-10 | stainless steel 303 F 00, passivated | M4 x 0,70 | 7.1 | 8 | 10 | 4 | 1.3 | 7.2 | 8 |
| 51 | 51 | 4CBM-X-12 | stainless steel 303 F 00, passivated | M4 x 0,70 | 7.1 | 8 | 12 | 5 | 1.3 | 7.2 | 8 |
| 52 | 52 | 4CBM-X-14 | stainless steel 303 F 00, passivated | M4 x 0,70 | 7.1 | 8 | 14 | 6.5 | 1.3 | 7.2 | 8 |
| 53 | 53 | 4CBM-X-16 | stainless steel 303 F 00, passivated | M4 x 0,70 | 7.1 | 8 | 16 | 6.5 | 1.3 | 7.2 | 8 |
| 54 | 54 | 4CBM-X-18 | stainless steel 303 F 00, passivated | M4 x 0,70 | 7.1 | 8 | 18 | 9.5 | 1.3 | 7.2 | 8 |
| 55 | 55 | 4CBM-X-20 | stainless steel 303 F 00, passivated | M4 x 0,70 | 7.1 | 8 | 20 | 9.5 | 1.3 | 7.2 | 8 |
| 56 | 56 | 4CBM-X-22 | stainless steel 303 F 00, passivated | M4 x 0,70 | 7.1 | 8 | 22 | 9.5 | 1.3 | 7.2 | 8 |
| 57 | 57 | 5CBM-X-8 | stainless steel 303 F 00, passivated | M5 x 0,80 | 7.1 | 8 | 8 | 4 | 1.3 | 7.2 | 8 |
| 58 | 58 | 5CBM-X-10 | stainless steel 303 F 00, passivated | M5 x 0,80 | 7.1 | 8 | 10 | 4 | 1.3 | 7.2 | 8 |
| 59 | 59 | 5CBM-X-12 | stainless steel 303 F 00, passivated | M5 x 0,80 | 7.1 | 8 | 12 | 5 | 1.3 | 7.2 | 8 |
| 60 | 60 | 5CBM-X-14 | stainless steel 303 F 00, passivated | M5 x 0,80 | 7.1 | 8 | 14 | 6.5 | 1.3 | 7.2 | 8 |
| 61 | 61 | 5CBM-X-16 | stainless steel 303 F 00, passivated | M5 x 0,80 | 7.1 | 8 | 16 | 6.5 | 1.3 | 7.2 | 8 |
| 62 | 62 | 5CBM-X-18 | stainless steel 303 F 00, passivated | M5 x 0,80 | 7.1 | 8 | 18 | 9.5 | 1.3 | 7.2 | 8 |
| 63 | 63 | 5CBM-X-20 | stainless steel 303 F 00, passivated | M5 x 0,80 | 7.1 | 8 | 20 | 9.5 | 1.3 | 7.2 | 8 |
| 64 | 64 | 5CBM-X-22 | stainless steel 303 F 00, passivated | M5 x 0,80 | 7.1 | 8 | 22 | 9.5 | 1.3 | 7.2 | 8 |
