blind rivet nut, countersunk head with knurles on the body, closed end type TPB

Manufacturer	SIMAF
Description	Blind rivet nut M3, material acier
Part number	3 TPB 15
Material	acier

CAD models

Request for quotation

Product selection

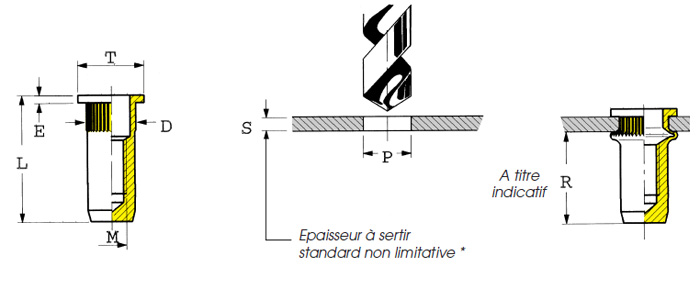

Index	Selector	M	Part number	Material	grip range in mm S	D (mm)	E (mm)	P +0.1 (mm)	T (mm)	L (mm)	R (mm)
1	1	3	3 TPB 15	acier	0,5 to 1,5	5	0.8	5.1	7	12.6	7.7
2	2	3	3 TPB 25	acier	1,5 to 2,5	5	0.8	5.1	7	13.6	7.7
3	3	3	3 TPB 35	acier	2,5 to 3,5	5	0.8	5.1	7	14.6	7.7
4	4	4	4 TPB 15	acier	0,5 to 1,5	6	0.8	6.1	8	14.8	10.5
5	5	4	4 TPB 30	acier	1,5 to 3	6	0.8	6.1	8	14.8	10.5
6	6	4	4 TPB 40	acier	3 to 4,5	6	0.8	6.1	8	15.8	10.5
7	7	5	5 TPB 15	acier	0,5 to 1,5	7	1	7.1	9	17.2	12.2
8	8	5	5 TPB 30	acier	1,5 to 3	7	1	7.1	9	18.7	12.2
9	9	5	5 TPB 45	acier	3 to 4,5	7	1	7.1	9	20.2	12.2
10	10	6	6 TPB 20	acier	1 to 2	9	1.5	9.1	11	20.5	14
11	11	6	6 TPB 35	acier	2 to 3,5	9	1.5	9.1	11	22.5	14
12	12	6	6 TPB 50	acier	3,5 to 5	9	1.5	9.1	11	23.5	14
13	13	8	8 TPB 25	acier	1 to 2,5	11	1.5	11.1	14	22.3	14.8
14	14	8	8 TPB 40	acier	2,5 to 4	11	1.5	11.1	14	23.8	14.8
15	15	8	8 TPB 55	acier	4 to 5,5	11	1.5	11.1	14	25.3	14.8
16	16	10	10 TPB 25	acier	1 to 2,5	13	1.5	13.1	16	26.8	18
17	17	10	10 TPB 40	acier	2,5 to 4	13	1.5	13.1	16	27.5	18
18	18	10	10 TPB 55	acier	4 to 5,5	13	1.5	13.1	16	29.8	18
19	19	12	12 TPB 30	acier	1,5 to 3	16	2	16.1	20	34.9	24.5
20	20	12	12 TPB 45	acier	3 to 4,5	16	2	16.1	20	35.5	24.5
21	21	12	12 TPB 60	acier	4,5 to 6	16	2	16.1	20	37.9	24.5
22	22	3	3 TPB 15 X	inox	0,5 to 1,5	5	0.8	5.1	7	12.6	7.7
23	23	3	3 TPB 25 X	inox	1,5 to 2,5	5	0.8	5.1	7	13.6	7.7
24	24	3	3 TPB 35 X	inox	2,5 to 3,5	5	0.8	5.1	7	14.6	7.7
25	25	4	4 TPB 15 X	inox	0,5 to 1,5	6	0.8	6.1	8	14.8	10.5
26	26	4	4 TPB 30 X	inox	1,5 to 3	6	0.8	6.1	8	14.8	10.5
27	27	4	4 TPB 40 X	inox	3 to 4,5	6	0.8	6.1	8	15.8	10.5
28	28	5	5 TPB 15 X	inox	0,5 to 1,5	7	1	7.1	9	17.2	12.2
29	29	5	5 TPB 30 X	inox	1,5 to 3	7	1	7.1	9	18.7	12.2
30	30	5	5 TPB 45 X	inox	3 to 4,5	7	1	7.1	9	20.2	12.2
31	31	6	6 TPB 20 X	inox	1 to 2	9	1.5	9.1	11	20.5	14
32	32	6	6 TPB 35 X	inox	2 to 3,5	9	1.5	9.1	11	22.5	14
33	33	6	6 TPB 50 X	inox	3,5 to 5	9	1.5	9.1	11	23.5	14
34	34	8	8 TPB 25 X	inox	1 to 2,5	11	1.5	11.1	14	22.3	14.8
35	35	8	8 TPB 40 X	inox	2,5 to 4	11	1.5	11.1	14	23.8	14.8
36	36	8	8 TPB 55 X	inox	4 to 5,5	11	1.5	11.1	14	25.3	14.8
37	37	10	10 TPB 25 X	inox	1 to 2,5	13	1.5	13.1	16	26.8	18
38	38	10	10 TPB 40 X	inox	2,5 to 4	13	1.5	13.1	16	27.5	18
39	39	10	10 TPB 55 X	inox	4 to 5,5	13	1.5	13.1	16	29.8	18
40	40	12	12 TPB 30 X	inox	1,5 to 3	16	2	16.1	20	34.9	24.5
41	41	12	12 TPB 45 X	inox	3 to 4,5	16	2	16.1	20	35.5	24.5
42	42	12	12 TPB 60 X	inox	4,5 to 6	16	2	16.1	20	37.9	24.5
