thrust ball bearing

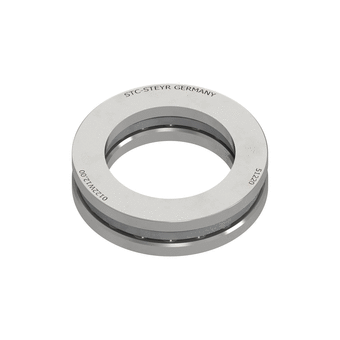

one-direction bearing (DIN 711)

Manufacturer	STC-STEYR Wälzlager Deutschland GmbH
Description	thrust ball bearing 51296
Part Number	51296

CAD modelleri

Fiyat teklif talebi

Ürün seçimi

Index	Selector	Part Number	Description	d [mm]	B [mm]	C [kN]	C0 [kN]	limited speed grease: n [min-1]	limited speed oil: n [min-1]	m [kg]
1	1	51100	thrust ball bearing 51100	10	9	9.9	15.2	9900	12700	0.02
2	79	51200	thrust ball bearing 51200	10	11	12.6	18.5	8300	11000	0.03
3	90	51101	thrust ball bearing 51101	12	9	10.1	16.3	9300	12900	0.02
4	101	51201	thrust ball bearing 51201	12	11	13.2	20.6	8300	10700	0.035
5	112	51102	thrust ball bearing 51102	15	9	10.5	17.9	8800	11700	0.025
6	123	51202	thrust ball bearing 51202	15	12	16.2	26.8	7400	9700	0.045
7	134	51103	thrust ball bearing 51103	17	9	11.3	21.2	9000	11700	0.025
8	145	51203	thrust ball bearing 51203	17	12	16.8	29.3	7000	9500	0.055
9	156	51104	thrust ball bearing 51104	35	10	14.6	29	7900	9800	0.04
10	2	51204	thrust ball bearing 51204	40	14	22	40.4	6300	8000	0.085
11	13	51105	thrust ball bearing 51105	25	11	17.9	38.3	6700	8900	0.06
12	24	51205	thrust ball bearing 51205	47	15	27.4	53.7	5600	7400	0.11
13	35	51305	thrust ball bearing 51305	52	18	34.2	59	4700	6200	0.12
14	46	51405	thrust ball bearing 51405	25	24	54.3	95.4	3800	5000	0.335
15	57	51106	thrust ball bearing 51106	47	11	18.4	42.9	6300	8300	0.07
16	68	51206	thrust ball bearing 51206	52	16	25.4	50	5000	6500	0.13
17	76	51306	thrust ball bearing 51306	60	21	36.8	69.5	4000	5300	0.255
18	77	51406	thrust ball bearing 51406	70	28	71.7	134	3300	4200	0.52
19	78	51107	thrust ball bearing 51107	52	12	19.7	50.2	5800	7400	0.08
20	80	51207	thrust ball bearing 51207	62	18	34.5	72.1	4200	5500	0.22
21	81	51307	thrust ball bearing 51307	68	24	48.1	95.5	3400	4500	0.385
22	82	51407	thrust ball bearing 51407	80	32	84.6	169	2800	3700	0.745
23	83	51108	thrust ball bearing 51108	60	13	25.5	61.6	5300	6900	0.12
24	84	51208	thrust ball bearing 51208	68	19	46.2	103	4000	5200	0.275
25	85	51308	thrust ball bearing 51308	78	26	61.5	119	3300	4200	0.525
26	86	51408	thrust ball bearing 51408	90	36	111	224	2600	3300	1.1
27	87	51109	thrust ball bearing 51109	65	14	26.3	69.2	4700	6200	0.15
28	88	51209	thrust ball bearing 51209	73	20	39	85.9	3800	4900	0.315
29	89	51309	thrust ball bearing 51309	85	28	74.2	149	3100	3900	0.655
30	91	51409	thrust ball bearing 51409	100	39	127	260	2400	2900	1.4
31	92	51110	thrust ball bearing 51110	70	14	26.7	73.9	4600	6100	0.16
32	93	51210	thrust ball bearing 51210	78	22	48.6	115	3600	4400	0.365
33	94	51310	thrust ball bearing 51310	95	31	86.1	186	2800	3500	0.93
34	95	51410	thrust ball bearing 51410	110	43	159	336	2200	2800	2
35	96	51111	thrust ball bearing 51111	78	16	30.4	82.6	4100	5200	0.24
36	97	51211	thrust ball bearing 51211	90	25	60.2	144	3100	3900	0.595
37	98	51311	thrust ball bearing 51311	105	35	103	221	2400	3100	1.3
38	99	51411	thrust ball bearing 51411	120	48	177	384	2000	2300	2.6
39	100	51112	thrust ball bearing 51112	85	17	40.7	122	3800	4900	0.305
40	102	51212	thrust ball bearing 51212	95	26	62.2	149	3000	3700	0.65
41	103	51312	thrust ball bearing 51312	110	35	100	222	2400	2900	1.4
42	104	51412	thrust ball bearing 51412	130	51	194	422	1800	2100	3.1
43	105	51113	thrust ball bearing 51113	90	18	36.8	106	3600	4800	0.325
44	106	51213	thrust ball bearing 51213	100	27	63.6	162	2800	3500	0.79
45	107	51313	thrust ball bearing 51313	115	36	104	236	2200	2900	1.5
46	108	51413	thrust ball bearing 51413	140	56	211	480	1700	2100	4
47	109	51114	thrust ball bearing 51114	95	18	39.4	120	3600	4500	0.345
48	110	51214	thrust ball bearing 51214	70	27	64.6	169	2800	3600	0.78
49	111	51314	thrust ball bearing 51314	125	40	134	311	2100	2600	2
50	113	51414	thrust ball bearing 51414	150	60	229	537	1600	2000	5
51	114	51115	thrust ball bearing 51115	75	19	43.5	143	3400	4300	0.405
52	115	51215	thrust ball bearing 51215	75	27	66	178	2700	3400	0.82
53	116	51315	thrust ball bearing 51315	135	44	159	383	1900	2400	2.6
54	117	51415	thrust ball bearing 51415	75	65	248	603	1500	1800	6.8
55	118	51116	thrust ball bearing 51116	80	19	44.3	150	3200	4300	0.425
56	119	51216	thrust ball bearing 51216	115	28	74.9	202	2700	3400	0.91
57	120	51316	thrust ball bearing 51316	80	44	156	382	1900	2300	2.7
58	121	51416	thrust ball bearing 51416	170	68	265	661	1400	1700	7.9
59	122	51117	thrust ball bearing 51117	110	19	45	163	3300	4200	0.435
60	124	51217	thrust ball bearing 51217	125	31	97.3	271	2400	3000	1.2
61	125	51317	thrust ball bearing 51317	150	49	187	452	1800	2200	3.5
62	126	51417	thrust ball bearing 51417	180	72	281	749	1400	1600	9.4
63	127	51118	thrust ball bearing 51118	120	22	57.6	204	2800	3700	0.65
64	128	51218	thrust ball bearing 51218	135	35	117	325	2200	2700	1.7
65	129	51318	thrust ball bearing 51318	155	50	194	496	1700	2200	3.8
66	130	51418	thrust ball bearing 51418	190	77	302	797	1300	1500	11.2
67	131	51120	thrust ball bearing 51120	100	25	77.4	255	2600	3100	0.98
68	132	51220	thrust ball bearing 51220	100	38	124	335	1900	2400	2.2
69	133	51320	thrust ball bearing 51320	100	55	226	604	1500	1800	5
70	135	51420	thrust ball bearing 51420	100	85	367	1049	990	1400	15.2
71	136	51122	thrust ball bearing 51122	110	25	86.1	313	2400	3200	1.1
72	137	51222	thrust ball bearing 51222	110	38	128	381	1900	2400	2.4
73	138	51322	thrust ball bearing 51322	110	63	281	798	1400	1700	7.8
74	139	51422	thrust ball bearing 51422	110	95	408	1211	920	1300	19.8
75	140	51124	thrust ball bearing 51124	120	25	87.8	332	2300	3000	1.2
76	141	51224	thrust ball bearing 51224	120	39	139	429	1800	2200	2.7
77	142	51324	thrust ball bearing 51324	120	70	323	969	1300	1500	11.2
78	143	51424	thrust ball bearing 51424	120	102	507	1718	830	1100	29.2
79	144	51126	thrust ball bearing 51126	130	30	110	421	2100	2600	1.9
80	146	51226	thrust ball bearing 51226	130	45	184	584	1600	2000	4
81	147	51326	thrust ball bearing 51326	130	75	352	1109	1300	2300	12.8
82	148	51426	thrust ball bearing 51426	130	110	518	1712	780	1000	32
83	149	51128	thrust ball bearing 51128	140	31	108	433	2000	2600	2.1
84	150	51228	thrust ball bearing 51228	140	46	186	615	1500	1800	4.3
85	151	51328	thrust ball bearing 51328	140	80	391	1283	980	1300	15.6
86	152	51428	thrust ball bearing 51428	140	112	513	1703	740	1000	34
87	153	51130	thrust ball bearing 51130	150	31	109	438	1900	2400	2.2
88	154	51230	thrust ball bearing 51230	150	50	235	776	1500	1800	6.1
89	155	51330	thrust ball bearing 51330	150	80	398	1359	950	1300	16.6
90	157	51430	thrust ball bearing 51430	150	120	545	1911	700	950	43
91	158	51132	thrust ball bearing 51132	160	31	112	457	1900	2300	2.4
92	159	51232	thrust ball bearing 51232	160	51	236	846	1400	1700	6.6
93	160	51332	thrust ball bearing 51332	160	87	436	1622	880	1200	21.2
94	161	51134	thrust ball bearing 51134	170	34	129	540	1800	2100	3.3
95	162	51234	thrust ball bearing 51234	170	55	280	995	1300	1700	8.2
96	163	51334	thrust ball bearing 51334	170	87	464	1723	840	1100	21.8
97	164	51136	thrust ball bearing 51136	225	34	132	558	1700	2100	3.5
98	165	51236	thrust ball bearing 51236	180	56	288	1052	1300	1500	8.7
99	166	51336	thrust ball bearing 51336	180	95	513	1969	780	1100	28.6
100	3	51138	thrust ball bearing 51138	190	37	168	697	1600	2000	4
101	4	51238	thrust ball bearing 51238	190	62	324	1255	1200	1400	12
102	5	51338	thrust ball bearing 51338	190	105	577	2388	730	940	37
103	6	51140	thrust ball bearing 51140	250	37	170	720	1500	1800	4.2
104	7	51240	thrust ball bearing 51240	200	62	340	1335	1200	1400	11.8
105	8	51340	thrust ball bearing 51340	200	110	625	2640	660	900	45
106	9	51144	thrust ball bearing 51144	220	37	180	805	1500	1900	4.6
107	10	51244	thrust ball bearing 51244	220	63	350	1480	990	1300	12.8
108	11	51148	thrust ball bearing 51148	240	45	235	1045	1300	1600	7.5
109	12	51248	thrust ball bearing 51248	240	78	470	2025	830	1100	23
110	14	51152	thrust ball bearing 51152	260	45	240	1105	1300	1500	8
111	15	51252	thrust ball bearing 51252	260	79	480	2190	790	1100	24.8
112	16	51156	thrust ball bearing 51156	350	53	325	1480	980	1300	12.2
113	17	51256	thrust ball bearing 51256	280	80	500	2355	770	1000	26.2
114	18	51060	thrust ball bearing 51060	300	30	110	645	1500	1800	4.1
115	19	51160	thrust ball bearing 51160	380	62	365	1765	830	1100	17.4
116	20	51260	thrust ball bearing 51260	300	95	605	3015	630	840	42
117	21	51064	thrust ball bearing 51064	320	30	115	745	1500	1800	4.3
118	22	51164	thrust ball bearing 51164	320	63	375	1865	830	1100	19
119	23	51264	thrust ball bearing 51264	320	95	580	3005	630	800	45
120	25	51068	thrust ball bearing 51068	380	30	115	695	1400	1700	4.6
121	26	51168	thrust ball bearing 51168	420	64	380	1980	800	1100	20.6
122	27	51268	thrust ball bearing 51268	460	96	605	3240	560	740	48.5
123	28	51368	thrust ball bearing 51368	540	160	1045	5920	420	550	136
124	29	51072	thrust ball bearing 51072	400	30	120	825	1400	1700	4.8
125	30	51172	thrust ball bearing 51172	440	65	390	2100	770	1000	22
126	31	51272	thrust ball bearing 51272	360	110	745	4185	530	700	70
127	32	51076	thrust ball bearing 51076	380	30	125	805	1400	1600	5.1
128	33	51176	thrust ball bearing 51176	460	65	400	2205	790	1000	23
129	34	51276	thrust ball bearing 51276	520	112	735	4185	530	690	72.5
130	36	51080	thrust ball bearing 51080	440	30	125	835	1300	1600	5.4
131	37	51180	thrust ball bearing 51180	480	65	405	2310	740	1000	24
132	38	51280	thrust ball bearing 51280	400	112	765	4505	530	690	78.5
133	39	51084	thrust ball bearing 51084	460	30	125	890	1300	1600	5.7
134	40	51184	thrust ball bearing 51184	500	65	410	2425	740	1000	25.6
135	41	51284	thrust ball bearing 51284	580	130	890	5510	450	590	109
136	42	51088	thrust ball bearing 51088	480	30	130	915	1300	1500	5.8
137	43	51188	thrust ball bearing 51188	540	80	530	3285	630	850	41.5
138	44	51288	thrust ball bearing 51288	600	130	910	5705	460	600	114
139	45	51092	thrust ball bearing 51092	500	30	130	960	1300	1500	6.3
140	47	51192	thrust ball bearing 51192	560	80	530	3265	630	800	44
141	48	51292	thrust ball bearing 51292	620	130	925	5930	450	580	121
142	49	51096	thrust ball bearing 51096	520	30	135	1005	1200	1500	6.5
143	50	51196	thrust ball bearing 51196	580	80	545	3585	590	780	46
144	51	51296	thrust ball bearing 51296	650	135	1000	6565	420	560	130
145	52	510/500	thrust ball bearing 510/500	540	30	135	1130	1200	1400	6.6
146	53	511/500	thrust ball bearing 511/500	600	80	555	3620	590	780	47.5
147	54	512/500	thrust ball bearing 512/500	670	135	1015	6855	410	520	136
148	55	510/530	thrust ball bearing 510/530	580	38	205	1605	880	1200	11.2
149	56	511/530	thrust ball bearing 511/530	640	85	650	4405	560	740	58.5
150	58	510/560	thrust ball bearing 510/560	610	38	205	1680	890	1200	11.4
151	59	511/560	thrust ball bearing 511/560	670	85	655	4690	530	690	60.5
152	60	510/600	thrust ball bearing 510/600	650	38	215	1825	830	1100	12.2
153	61	511/600	thrust ball bearing 511/600	710	85	665	4850	530	690	65.5
154	62	510/630	thrust ball bearing 510/630	680	38	225	1945	830	1100	12.6
155	63	511/630	thrust ball bearing 511/630	750	95	735	5420	480	630	84
156	64	510/670	thrust ball bearing 510/670	730	45	290	2405	720	920	21
157	65	511/670	thrust ball bearing 511/670	800	105	860	6780	420	550	106
158	66	510/710	thrust ball bearing 510/710	780	53	365	2865	630	830	28.2
159	67	511/710	thrust ball bearing 511/710	850	112	950	7725	410	520	130
160	69	510/750	thrust ball bearing 510/750	820	53	365	3055	630	840	29.5
161	70	511/750	thrust ball bearing 511/750	900	120	1015	8730	370	480	157
162	71	511/800	thrust ball bearing 511/800	950	120	1015	9100	370	480	157
163	72	511/850	thrust ball bearing 511/850	1000	120	1075	9530	340	440	163
164	73	511/900	thrust ball bearing 511/900	900	130	1140	10950	330	430	207
165	74	511/950	thrust ball bearing 511/950	1120	135	1335	12130	300	390	233
166	75	511/1000	thrust ball bearing 511/1000	1000	140	1335	13225	290	380	278

Ürün Açıklaması

Axial deep groove ball bearings are manufactured in both the single-thrust and double-thrust versions. The single-thrust bearings consist of the shaft locating washer, ball and cage assembly and the housing locating washer. The double-thrust version consists of two housing locating washers, two ball and cage assemblies and the shaft locating washer / intermediate washer. Both bearings accommodate large axial loads. Alignment errors can be corrected using axial deep groove ball bearings with spherical housing locating washers and, if applicable, support washers.

Tedarikçi ile iletişim kurun

STC-Steyr Wälzlager Deutschland GmbH

Rolling bearings | Enclosures | Drive technology

STC-Steyr Wälzlager Deutschland GmbH

STC-Steyr Wälzlager Deutschland GmbH
Rosenthaler Straße 40/41
10178 Berlin
Germany
www.stc-steyr.com
info@stc-steyr.com
