deep groove ball bearing

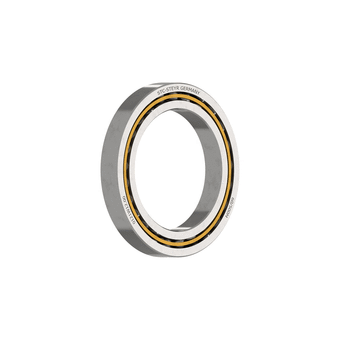

single-row (DIN-625-1), cylindrical borehole, without seals or shields

Manufacturer	STC-STEYR Wälzlager Deutschland GmbH
Description	deep groove ball bearing 61972
Part Number	61972

CAD modelleri

Fiyat teklif talebi

Ürün seçimi

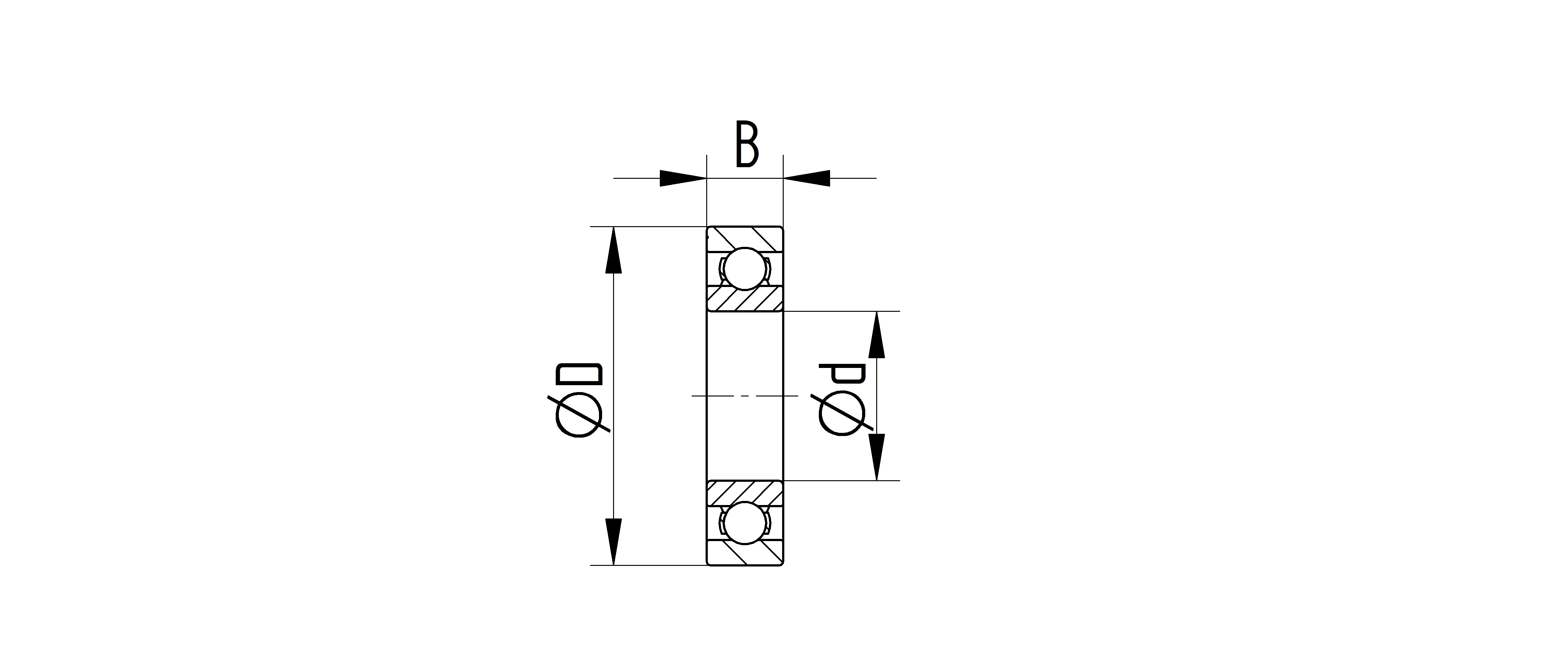

Index	Selector	Part Number	Description	d [mm]	B [mm]	C [kN]	C0 [kN]	limited speed grease: n [min-1]	limited speed oil: n [min-1]	m [kg]
1	1	6000	deep groove ball bearing 6000	10	8	4.6	1.9	54600	65200	0.02
2	112	6200	deep groove ball bearing 6200	10	9	5.3	2.4	56000	34000	0.03
3	223	6300	deep groove ball bearing 6300	10	11	8.5	3.4	41400	48900	0.05
4	238	61800	deep groove ball bearing 61800	10	5	1.4	0.58	69200	79300	0.005
5	249	61900	deep groove ball bearing 61900	10	6	2	0.84	63800	74600	0.01
6	260	6001	deep groove ball bearing 6001	12	8	5.4	2.4	52700	59900	0.02
7	271	6201	deep groove ball bearing 6201	12	10	7.2	3.1	41600	48900	0.035
8	282	6301	deep groove ball bearing 6301	12	12	9.9	4.1	35800	44500	0.06
9	293	61801	deep groove ball bearing 61801	12	5	1.4	0.66	60700	69300	0.005
10	2	61901	deep groove ball bearing 61901	12	6	2.2	0.97	54600	65900	0.01
11	13	6002	deep groove ball bearing 6002	15	9	5.8	2.8	41900	48900	0.03
12	24	6202	deep groove ball bearing 6202	15	11	7.8	3.7	35200	42700	0.045
13	35	6302	deep groove ball bearing 6302	15	13	11.6	5.3	30300	37800	0.08
14	46	61802	deep groove ball bearing 61802	15	5	1.5	0.78	52000	58800	0.005
15	57	61902	deep groove ball bearing 61902	15	7	4.4	2.2	44800	54800	0.015
16	68	6003	deep groove ball bearing 6003	17	10	6.2	3.2	36500	44500	0.04
17	79	6203	deep groove ball bearing 6203	17	12	11.3	5.4	29700	37700	0.065
18	90	6303	deep groove ball bearing 6303	17	14	14.1	6.5	27400	33300	0.12
19	101	6403	deep groove ball bearing 6403	17	17	22.7	10.7	18600	27800	0.265
20	113	61803	deep groove ball bearing 61803	17	5	1.7	0.9	46100	55300	0.01
21	124	61903	deep groove ball bearing 61903	17	7	4.6	2.5	41500	49600	0.02
22	135	6004	deep groove ball bearing 6004	20	12	9.7	4.9	29900	37800	0.07
23	146	6204	deep groove ball bearing 6204	47	14	15.4	7.5	20400	31200	0.11
24	157	6304	deep groove ball bearing 6304	52	15	18.1	8.9	19600	30000	0.14
25	168	6404	deep groove ball bearing 6404	20	19	30.3	14.8	15600	23500	0.4
26	179	61804	deep groove ball bearing 61804	32	7	4	2.3	36400	43900	0.02
27	190	61904	deep groove ball bearing 61904	20	9	6.2	3.6	33300	43000	0.04
28	201	62/22	deep groove ball bearing 62/22	22	14	13.9	7.6	19800	29200	0.12
29	212	63/22	deep groove ball bearing 63/22	56	16	18.5	9.1	18500	27700	0.18
30	224	6005	deep groove ball bearing 6005	25	12	11.7	6.5	20600	31500	0.08
31	229	6205	deep groove ball bearing 6205	52	15	14.7	7.6	18700	27600	0.13
32	230	6305	deep groove ball bearing 6305	62	17	23.1	11.5	16400	23600	0.23
33	231	6405	deep groove ball bearing 6405	80	21	34.7	19	13300	19700	0.525
34	232	61805	deep groove ball bearing 61805	25	7	4.3	2.6	29400	36900	0.02
35	233	61905	deep groove ball bearing 61905	42	9	6.9	4.3	26800	35700	0.045
36	234	62/28	deep groove ball bearing 62/28	58	16	16.6	9.3	16500	25900	0.18
37	235	63/28	deep groove ball bearing 63/28	28	18	24.6	13.4	14800	21900	0.295
38	236	6006	deep groove ball bearing 6006	30	13	13.5	8.3	17600	27600	0.12
39	237	6206	deep groove ball bearing 6206	30	16	20.1	11	15500	23600	0.2
40	239	6306	deep groove ball bearing 6306	30	19	28.8	15.8	13300	19800	0.355
41	240	6406	deep groove ball bearing 6406	90	23	42.4	23.3	11700	17900	0.735
42	241	61806	deep groove ball bearing 61806	42	7	4.5	2.9	20300	31400	0.025
43	242	61906	deep groove ball bearing 61906	30	9	7.2	4.5	19700	29600	0.05
44	243	6007	deep groove ball bearing 6007	35	14	16.3	10.1	15700	23900	0.16
45	244	6207	deep groove ball bearing 6207	72	17	26.7	15.3	13600	19500	0.29
46	245	6307	deep groove ball bearing 6307	35	21	34.2	18.7	12600	18900	0.465
47	246	6407	deep groove ball bearing 6407	100	25	54.8	30.2	10500	16000	0.96
48	247	61807	deep groove ball bearing 61807	47	7	4.6	3.1	18500	27500	0.03
49	248	61907	deep groove ball bearing 61907	55	10	9.6	6.7	16700	25900	0.08
50	250	6008	deep groove ball bearing 6008	68	15	17.7	11.3	14400	21800	0.19
51	251	6208	deep groove ball bearing 6208	80	18	32.5	18.5	11500	17800	0.375
52	252	6308	deep groove ball bearing 6308	90	23	41.2	23.7	11500	16900	0.625
53	253	6408	deep groove ball bearing 6408	110	27	62.9	35.6	9600	13900	1.3
54	254	61808	deep groove ball bearing 61808	52	7	4.9	3.4	16700	25500	0.035
55	255	61908	deep groove ball bearing 61908	62	12	13.7	9.7	14900	23700	0.12
56	256	6209	deep groove ball bearing 6209	85	19	34.9	21.5	11400	16500	0.415
57	257	6309	deep groove ball bearing 6309	100	25	54	30.8	9900	14900	0.83
58	258	6409	deep groove ball bearing 6409	120	29	75.4	44.6	9000	12800	1.5
59	259	61809	deep groove ball bearing 61809	58	7	6.4	5.9	14500	21500	0.04
60	261	61909	deep groove ball bearing 61909	68	12	13.7	10.7	13500	19500	0.14
61	262	6010	deep groove ball bearing 6010	80	16	22.9	15.8	11600	17900	0.26
62	263	6210	deep groove ball bearing 6210	90	20	37	23.1	10600	14700	0.46
63	264	6310	deep groove ball bearing 6310	110	27	64	36.9	8900	12800	1.1
64	265	6410	deep groove ball bearing 6410	130	31	85.2	51.2	8100	11700	1.9
65	266	61810	deep groove ball bearing 61810	65	7	6.7	6.6	13400	19700	0.05
66	267	61910	deep groove ball bearing 61910	72	12	14.6	11.5	12600	18500	0.14
67	268	6011	deep groove ball bearing 6011	90	18	29.6	21	10500	15500	0.385
68	269	6211	deep groove ball bearing 6211	100	21	44.9	28.3	9600	13800	0.61
69	270	6311	deep groove ball bearing 6311	120	29	72.2	44.9	8400	11800	1.4
70	272	6411	deep groove ball bearing 6411	140	33	99.2	61.8	7300	10700	2.3
71	273	61811	deep groove ball bearing 61811	72	9	9	8.5	12500	18500	0.085
72	274	61911	deep groove ball bearing 61911	80	13	16.4	13.6	11400	16500	0.19
73	275	6012	deep groove ball bearing 6012	95	18	30.6	22.8	10000	14800	0.425
74	276	6212	deep groove ball bearing 6212	110	22	54.8	35.2	8600	12600	0.79
75	277	6312	deep groove ball bearing 6312	130	31	84.1	51.6	7500	10700	1.7
76	278	6412	deep groove ball bearing 6412	150	35	105	67.7	6700	9900	2.8
77	279	61812	deep groove ball bearing 61812	78	10	11.7	11.1	11400	16700	0.11
78	280	61912	deep groove ball bearing 61912	85	13	16.1	14.2	10500	15600	0.2
79	281	6013	deep groove ball bearing 6013	100	18	31.9	24.8	9300	13600	0.44
80	283	6213	deep groove ball bearing 6213	120	23	57.8	40.2	8000	11700	0.98
81	284	6313	deep groove ball bearing 6313	140	33	96.3	59.1	7000	10000	2.1
82	285	6413	deep groove ball bearing 6413	160	37	117	77	6400	9500	3.3
83	286	61813	deep groove ball bearing 61813	85	10	12.2	12.5	10500	15800	0.13
84	287	61913	deep groove ball bearing 61913	90	13	17	15.9	9800	14900	0.22
85	288	6014	deep groove ball bearing 6014	110	20	38.7	30.7	8500	12900	0.6
86	289	6214	deep groove ball bearing 6214	125	24	62.2	44.7	7400	10800	1.1
87	290	6314	deep groove ball bearing 6314	150	35	109	66.7	6700	9200	2.5
88	291	6414	deep groove ball bearing 6414	180	42	141	101	5800	8500	4.9
89	292	61814	deep groove ball bearing 61814	90	10	12.2	13	9600	15000	0.14
90	294	61914	deep groove ball bearing 61914	100	16	23.5	20.6	9000	13700	0.345
91	295	6015	deep groove ball bearing 6015	115	20	40.4	33.1	7900	11800	0.645
92	296	6215	deep groove ball bearing 6215	130	25	68.9	48.8	7100	9800	1.2
93	297	6315	deep groove ball bearing 6315	160	37	116	76	5900	8900	3
94	298	6415	deep groove ball bearing 6415	190	45	152	112	5500	7900	6.9
95	299	61815	deep groove ball bearing 61815	95	10	12.4	14.2	8900	13600	0.15
96	300	61915	deep groove ball bearing 61915	105	16	23.8	19.3	8500	12900	0.375
97	301	6016	deep groove ball bearing 6016	125	22	49.2	39.5	7500	10800	0.84
98	302	6216	deep groove ball bearing 6216	140	26	70.9	54.1	6400	9400	1.4
99	303	6316	deep groove ball bearing 6316	80	39	129	85.3	5700	8400	3.6
100	3	6416	deep groove ball bearing 6416	200	48	160	124	5200	7300	8
101	4	61816	deep groove ball bearing 61816	100	10	12.7	14.9	8400	12700	0.15
102	5	61916	deep groove ball bearing 61916	110	16	24.4	20.3	7900	11900	0.395
103	6	6017	deep groove ball bearing 6017	85	22	51.7	42.5	7200	10800	0.88
104	7	6217	deep groove ball bearing 6217	150	28	84.6	63.5	6000	8900	1.8
105	8	6317	deep groove ball bearing 6317	180	41	139	93.7	5400	7800	4.3
106	9	6417	deep groove ball bearing 6417	210	52	169	134	4800	7000	9.5
107	10	61817	deep groove ball bearing 61817	110	13	19.1	20.5	7900	11700	0.265
108	11	61917	deep groove ball bearing 61917	120	18	31.3	29.7	7400	10800	0.555
109	12	6018	deep groove ball bearing 6018	140	24	60.5	48.5	6700	10000	1.1
110	14	6218	deep groove ball bearing 6218	160	30	99	72.8	5700	8300	2.1
111	15	6318	deep groove ball bearing 6318	190	43	148	105	5200	7300	4.9
112	16	6418	deep groove ball bearing 6418	225	54	185	149	4600	6600	11.6
113	17	61818	deep groove ball bearing 61818	90	13	19	21.5	7400	10900	0.285
114	18	61918	deep groove ball bearing 61918	90	18	32.7	30.7	7200	10900	0.59
115	19	6019	deep groove ball bearing 6019	95	24	63	53.4	6400	9300	1.2
116	20	6219	deep groove ball bearing 6219	170	32	112	79.5	5400	7800	2.6
117	21	6319	deep groove ball bearing 6319	200	45	157	115	4800	6800	5.7
118	22	61819	deep groove ball bearing 61819	95	13	19.4	22.8	7200	10900	0.3
119	23	61919	deep groove ball bearing 61919	95	18	32.8	32.9	6700	9700	0.61
120	25	6020	deep groove ball bearing 6020	100	24	62.1	53.5	6000	9400	1.3
121	26	6220	deep groove ball bearing 6220	100	34	126	92.4	5200	7300	3.1
122	27	6320	deep groove ball bearing 6320	100	47	169	139	4700	6700	7.1
123	28	61820	deep groove ball bearing 61820	100	13	19.3	23.9	6600	9900	0.315
124	29	61920	deep groove ball bearing 61920	100	20	41.8	40.6	6400	9300	0.82
125	30	6021	deep groove ball bearing 6021	105	26	75.8	65.4	5700	8300	1.6
126	31	6221	deep groove ball bearing 6221	105	36	138	101	4900	6800	3.7
127	32	6321	deep groove ball bearing 6321	105	49	182	152	4300	6300	8.3
128	33	61821	deep groove ball bearing 61821	105	13	20.4	19.2	6700	10000	0.315
129	34	61921	deep groove ball bearing 61921	105	20	43.1	43.9	6000	9300	0.86
130	36	6022	deep groove ball bearing 6022	110	28	83.9	71.7	5400	7800	2
131	37	6222	deep groove ball bearing 6222	110	38	150	115	4700	6600	4.4
132	38	6322	deep groove ball bearing 6322	110	50	199	180	4200	6000	9.6
133	39	16022	deep groove ball bearing 16022	110	19	60	57	5000	8000	1.45
134	40	61822	deep groove ball bearing 61822	110	16	28.1	25.8	6100	9500	0.605
135	41	61922	deep groove ball bearing 61922	110	20	42.8	44.1	6100	9000	0.89
136	42	6024	deep groove ball bearing 6024	120	28	85.8	79.8	5200	7300	2
137	43	6224	deep groove ball bearing 6224	120	40	144	118	4400	6200	5.1
138	44	6324	deep groove ball bearing 6324	120	55	207	182	3700	5500	12.6
139	45	61824	deep groove ball bearing 61824	120	16	28.3	27.4	5700	8300	0.655
140	47	61924	deep groove ball bearing 61924	120	22	54.3	55.7	5400	7800	1.2
141	48	6026	deep groove ball bearing 6026	130	33	110	100	4700	7000	3.2
142	49	6226	deep groove ball bearing 6226	130	40	151	131	3900	5600	5.8
143	50	6326	deep groove ball bearing 6326	130	58	229	215	4400	4900	17.6
144	51	61826	deep groove ball bearing 61826	130	18	37.4	42.5	5200	7800	0.92
145	52	61926	deep groove ball bearing 61926	130	24	64.8	65.5	5000	7500	1.8
146	53	6028	deep groove ball bearing 6028	140	33	109	106	4400	6600	3.3
147	54	6228	deep groove ball bearing 6228	140	42	163	148	3700	5300	7.5
148	55	6328	deep groove ball bearing 6328	140	62	247	239	4100	4700	22.2
149	56	61828	deep groove ball bearing 61828	140	18	38.3	45.9	4900	7400	0.98
150	58	61928	deep groove ball bearing 61928	140	24	66.1	70.4	5800	6900	1.7
151	59	6030	deep groove ball bearing 6030	150	35	122	124	4100	6000	4.8
152	60	6230	deep groove ball bearing 6230	150	45	170	163	3500	5000	9.5
153	61	6330	deep groove ball bearing 6330	150	65	269	282	3800	4300	26
154	62	61830	deep groove ball bearing 61830	190	20	47.9	59.8	4700	6600	1.4
155	63	61930	deep groove ball bearing 61930	150	28	86.7	90.8	5400	6200	3.1
156	64	6032	deep groove ball bearing 6032	160	38	140	142	5000	5600	6
157	65	6232	deep groove ball bearing 6232	160	48	182	181	3300	4400	14.6
158	66	6332	deep groove ball bearing 6332	160	68	273	283	3400	3900	29
159	67	61832	deep groove ball bearing 61832	160	20	48	62.5	4300	6200	1.4
160	69	61932	deep groove ball bearing 61932	160	28	91.3	97.1	5200	5900	3.2
161	70	6034	deep groove ball bearing 6034	170	42	167	172	4500	5200	7.9
162	71	6234	deep groove ball bearing 6234	170	52	210	222	3700	4200	17.6
163	72	6334	deep groove ball bearing 6334	170	72	306	337	3200	3700	34
164	73	61834	deep groove ball bearing 61834	170	22	60.7	77.2	4000	6000	1.9
165	74	61934	deep groove ball bearing 61934	170	28	91.9	106	4900	5500	3.4
166	75	6036	deep groove ball bearing 6036	180	46	186	197	4100	4700	10.4
167	76	6236	deep groove ball bearing 6236	180	52	227	235	3500	4000	18.6
168	77	6336	deep groove ball bearing 6336	180	75	348	396	3100	3500	42
169	78	61836	deep groove ball bearing 61836	180	22	61.7	80.1	3700	5500	2
170	80	61936	deep groove ball bearing 61936	180	33	116	133	4500	5300	5.1
171	81	6038	deep groove ball bearing 6038	190	46	191	214	3900	4800	11
172	82	6238	deep groove ball bearing 6238	190	55	249	280	3400	3800	23
173	83	6338	deep groove ball bearing 6338	190	78	366	423	2900	3300	49.5
174	84	61838	deep groove ball bearing 61838	190	24	75.2	96.8	3600	5300	2.6
175	85	61938	deep groove ball bearing 61938	190	33	114	131	4300	4900	5.3
176	86	6040	deep groove ball bearing 6040	200	51	220	250	3700	4200	14.2
177	87	6240	deep groove ball bearing 6240	200	58	275	310	3200	3600	27.8
178	88	61840	deep groove ball bearing 61840	250	24	76.5	105	3200	4900	2.7
179	89	61940	deep groove ball bearing 61940	200	38	150	165	3900	4800	7.4
180	91	6044	deep groove ball bearing 6044	220	56	250	295	3300	4000	18.6
181	92	6244	deep groove ball bearing 6244	220	65	300	370	2800	3200	36.5
182	93	6344	deep groove ball bearing 6344	220	88	415	525	2600	3000	72
183	94	61844	deep groove ball bearing 61844	220	24	79	110	3100	4400	3
184	95	61944	deep groove ball bearing 61944	220	38	155	180	3700	4200	8.1
185	96	6048	deep groove ball bearing 6048	360	56	255	320	3100	3600	19.4
186	97	6248	deep groove ball bearing 6248	440	72	360	470	2500	2900	50.5
187	98	6348	deep groove ball bearing 6348	240	95	445	590	2300	2600	91.5
188	99	16048	deep groove ball bearing 16048	240	37	180	220	3100	3500	14.6
189	100	61848	deep groove ball bearing 61848	240	28	110	150	2900	3900	4.5
190	102	61948	deep groove ball bearing 61948	320	38	160	200	3400	3900	8.7
191	103	6052	deep groove ball bearing 6052	400	65	290	380	2800	3200	29.2
192	104	6252	deep groove ball bearing 6252	260	80	390	535	2300	2600	66
193	105	6352	deep groove ball bearing 6352	260	102	510	710	2100	2300	115
194	106	16052	deep groove ball bearing 16052	400	44	240	310	2800	3200	21.2
195	107	61852	deep groove ball bearing 61852	260	28	115	165	2700	3800	4.8
196	108	61952	deep groove ball bearing 61952	260	46	215	275	3200	3600	14.6
197	109	6056	deep groove ball bearing 6056	420	65	305	410	2600	2900	31.5
198	110	6256	deep groove ball bearing 6256	280	80	425	600	2300	2600	70.5
199	111	6356	deep groove ball bearing 6356	580	108	575	860	1900	2200	141
200	114	16056	deep groove ball bearing 16056	420	44	245	335	2600	2900	23.2
201	115	61856	deep groove ball bearing 61856	280	33	140	200	3000	3400	8
202	116	61956	deep groove ball bearing 61956	380	46	215	285	3000	3100	14.8
203	117	6060	deep groove ball bearing 6060	460	74	360	505	2400	2700	43.5
204	118	6260	deep groove ball bearing 6260	540	85	460	675	2000	2300	88.5
205	119	16060	deep groove ball bearing 16060	460	50	290	410	2400	2700	31.5
206	120	61860	deep groove ball bearing 61860	380	38	170	245	2700	3100	10.6
207	121	61960	deep groove ball bearing 61960	420	56	270	380	2500	2900	24.6
208	122	6064	deep groove ball bearing 6064	320	74	375	545	2300	2600	46.5
209	123	6264	deep groove ball bearing 6264	580	92	530	805	1900	2200	110
210	125	16064	deep groove ball bearing 16064	480	50	285	405	2300	2600	34
211	126	60964	deep groove ball bearing 60964	440	37	215	315	2500	2800	15.8
212	127	61864	deep groove ball bearing 61864	400	38	170	255	2500	2900	10.8
213	128	61964	deep groove ball bearing 61964	440	56	280	405	2500	2800	25.6
214	129	6068	deep groove ball bearing 6068	520	82	425	645	2100	2300	62
215	130	6268	deep groove ball bearing 6268	620	92	560	910	1800	2000	109
216	131	16068	deep groove ball bearing 16068	520	57	350	525	2000	2300	45.5
217	132	61868	deep groove ball bearing 61868	420	38	180	280	2400	2800	11.6
218	133	61968	deep groove ball bearing 61968	460	56	280	430	2200	2500	26.2
219	134	6072	deep groove ball bearing 6072	540	82	470	740	2000	2300	65
220	136	16072	deep groove ball bearing 16072	360	57	355	555	2000	2300	48.5
221	137	60872	deep groove ball bearing 60872	440	25	125	215	2300	2600	6.4
222	138	61872	deep groove ball bearing 61872	440	38	185	285	2300	2600	12.2
223	139	61972	deep groove ball bearing 61972	480	56	290	455	2300	2600	28
224	140	6076	deep groove ball bearing 6076	560	82	460	750	1900	2200	67
225	141	16076	deep groove ball bearing 16076	560	57	375	625	1900	2200	51.5
226	142	61876	deep groove ball bearing 61876	480	46	245	390	2100	2400	20
227	143	61976	deep groove ball bearing 61976	520	65	345	540	2100	2400	39.5
228	144	6080	deep groove ball bearing 6080	600	90	520	870	1800	2000	87.5
229	145	60880	deep groove ball bearing 60880	500	31	165	285	2000	2300	15.6
230	147	60980	deep groove ball bearing 60980	540	44	265	440	2000	2100	27.6
231	148	61880	deep groove ball bearing 61880	400	46	250	405	2000	2300	20.6
232	149	61980	deep groove ball bearing 61980	540	65	345	575	2000	2100	41.5
233	150	6084	deep groove ball bearing 6084	620	90	510	890	1700	1900	90.5
234	151	61884	deep groove ball bearing 61884	420	46	250	430	1900	2200	21.6
235	152	61984	deep groove ball bearing 61984	560	65	355	610	1900	2200	43.5
236	153	6088	deep groove ball bearing 6088	650	94	560	975	1600	1900	106
237	154	60888	deep groove ball bearing 60888	540	31	160	290	1900	2200	16.6
238	155	60988	deep groove ball bearing 60988	600	50	315	555	1700	2000	40
239	156	61888	deep groove ball bearing 61888	540	46	255	445	1900	2200	22.6
240	158	61988	deep groove ball bearing 61988	600	74	415	720	1700	1900	61
241	159	6092	deep groove ball bearing 6092	680	100	585	1065	1500	1700	121
242	160	61892	deep groove ball bearing 61892	580	56	325	575	1700	2000	35
243	161	61992	deep groove ball bearing 61992	620	74	430	760	1700	1800	62
244	162	6096	deep groove ball bearing 6096	700	100	625	1150	1500	1700	126
245	163	61896	deep groove ball bearing 61896	600	56	325	605	1700	1900	37
246	164	61996	deep groove ball bearing 61996	650	78	455	820	1600	1800	74
247	165	60/500	deep groove ball bearing 60/500	720	100	605	1155	1400	1600	135
248	166	608/500	deep groove ball bearing 608/500	620	37	230	445	1600	1800	20
249	167	618/500	deep groove ball bearing 618/500	620	56	335	625	1600	1800	41
250	169	619/500	deep groove ball bearing 619/500	670	78	465	875	1500	1700	76
251	170	60/530	deep groove ball bearing 60/530	780	112	650	1275	1300	1500	187
252	171	609/530	deep groove ball bearing 609/530	710	57	430	820	1400	1600	60.5
253	172	618/530	deep groove ball bearing 618/530	650	56	335	655	1500	1700	40
254	173	619/530	deep groove ball bearing 619/530	710	82	490	930	1400	1600	91.5
255	174	60/560	deep groove ball bearing 60/560	820	115	670	1490	1200	1400	208
256	175	608/560	deep groove ball bearing 608/560	680	37	230	465	1400	1600	30.5
257	176	618/560	deep groove ball bearing 618/560	680	56	345	695	1400	1600	42.5
258	177	619/560	deep groove ball bearing 619/560	750	85	495	995	1300	1500	105
259	178	60/600	deep groove ball bearing 60/600	870	118	730	1515	1200	1300	232
260	180	618/600	deep groove ball bearing 618/600	730	60	365	770	1300	1500	52.5
261	181	619/600	deep groove ball bearing 619/600	800	90	595	1230	1200	1400	124
262	182	60/630	deep groove ball bearing 60/630	920	128	830	1780	1100	1200	288
263	183	618/630	deep groove ball bearing 618/630	780	69	440	980	1200	1400	73.5
264	184	619/630	deep groove ball bearing 619/630	850	100	630	1355	1200	1300	162
265	185	60/670	deep groove ball bearing 60/670	980	136	910	2045	920	1100	345
266	186	609/670	deep groove ball bearing 609/670	900	73	555	1230	1100	1200	144
267	187	618/670	deep groove ball bearing 618/670	820	69	450	1010	1100	1300	84.5
268	188	619/670	deep groove ball bearing 619/670	900	103	675	1505	1100	1200	185
269	189	60/710	deep groove ball bearing 60/710	710	140	965	2215	860	1000	371
270	191	609/710	deep groove ball bearing 609/710	950	78	560	1310	920	1100	152
271	192	618/710	deep groove ball bearing 618/710	870	74	480	1110	1100	1200	93.5
272	193	619/710	deep groove ball bearing 619/710	950	106	670	1520	910	1100	220
273	194	60/750	deep groove ball bearing 60/750	1090	150	1005	2385	800	930	485
274	195	618/750	deep groove ball bearing 618/750	920	78	530	1265	920	1100	110
275	196	619/750	deep groove ball bearing 619/750	750	112	770	1820	860	1000	252
276	197	60/800	deep groove ball bearing 60/800	800	155	1015	2570	760	880	540
277	198	608/800	deep groove ball bearing 608/800	980	57	405	1010	860	1000	101
278	199	618/800	deep groove ball bearing 618/800	980	82	560	1375	860	1000	129
279	200	619/800	deep groove ball bearing 619/800	800	115	845	2050	810	940	275
280	202	60/850	deep groove ball bearing 60/850	1220	165	1120	2945	690	800	636
281	203	608/850	deep groove ball bearing 608/850	1030	57	405	1025	770	940	75
282	204	618/850	deep groove ball bearing 618/850	850	82	565	1435	770	940	140
283	205	619/850	deep groove ball bearing 619/850	1120	118	840	2175	770	840	307
284	206	60/900	deep groove ball bearing 60/900	900	170	1150	3145	640	730	720
285	207	618/900	deep groove ball bearing 618/900	900	85	620	1620	710	830	158
286	208	619/900	deep groove ball bearing 619/900	900	122	855	2315	680	780	347
287	209	60/950	deep groove ball bearing 60/950	1360	180	1170	3290	580	680	851
288	210	618/950	deep groove ball bearing 618/950	1150	90	640	1740	680	790	188
289	211	619/950	deep groove ball bearing 619/950	1250	132	1025	2840	640	730	386
290	213	60/1000	deep groove ball bearing 60/1000	1000	185	1370	3955	540	630	939
291	214	608/1000	deep groove ball bearing 608/1000	1000	71	560	1575	620	750	177
292	215	609/1000	deep groove ball bearing 609/1000	1000	103	825	2395	570	680	414
293	216	618/1000	deep groove ball bearing 618/1000	1000	100	640	1815	620	740	247
294	217	619/1000	deep groove ball bearing 619/1000	1000	140	1010	2805	570	680	520
295	218	60/1060	deep groove ball bearing 60/1060	1060	195	1355	3930	510	600	1069
296	219	618/1060	deep groove ball bearing 618/1060	1060	100	735	2135	570	660	263
297	220	619/1060	deep groove ball bearing 619/1060	1060	150	1020	3035	540	620	614
298	221	60/1120	deep groove ball bearing 60/1120	1120	200	1475	4430	470	530	1250
299	222	618/1120	deep groove ball bearing 618/1120	1120	106	745	2200	540	620	315
300	225	619/1120	deep groove ball bearing 619/1120	1120	150	1050	3110	500	600	657
301	226	618/1180	deep groove ball bearing 618/1180	1180	106	760	2360	500	550	330
302	227	619/1180	deep groove ball bearing 619/1180	1180	160	1155	3630	240	280	783
303	228	618/1250	deep groove ball bearing 618/1250	1250	112	860	2790	450	520	385

Ürün Açıklaması

Single-row deep groove ball bearings are radial bearings that cannot be dismantled. They can accommodate both radial and axial loads and are designed for multiple purposes. These are the most frequently used antifriction bearings, due to their straightforward design, their suitability for high revolution speeds and their operational and maintenance durability. Sealed deep groove ball bearings are deep groove ball bearings with either seal plates (rubbing contact seals) or shields (non-contact seals). Bearings with duplex seals are grease-filled, and are employable in a temperature range from -30 °C to 110 °C. It is recommended to use special greases when the long-term temperature remains above 70 °C. Deep groove ball bearings are available with a snap ring groove in the outer ring to accommodate straightforward and space-saving axial installation in bearing housings. STC-Steyr deep groove ball bearings are available with polyamide, brass, or sheet steel cages.

Tedarikçi ile iletişim kurun

STC-Steyr Wälzlager Deutschland GmbH

Rolling bearings | Enclosures | Drive technology

STC-Steyr Wälzlager Deutschland GmbH

STC-Steyr Wälzlager Deutschland GmbH
Rosenthaler Straße 40/41
10178 Berlin
Germany
www.stc-steyr.com
info@stc-steyr.com
