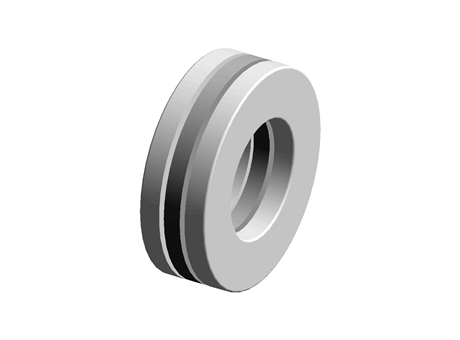

Cylindrical roller thrust bearings, single row, complete bearings

Manufacturer	SKF
Description	Cylindrical roller thrust bearings, single row, complete bearings, Bore Ø 440 mm, Outside Ø 600 mm
Part number	81288 M
Mass bearing	110 kg

CAD modelleri

Fiyat teklif talebi

Ürün seçimi

Ayrıntı düzeyi

Index	Selector	Part number	Bore Ø :<br />d (mm)	Outside Ø :<br />D (mm)	Nominal height :<br />H (mm)	Roller Ø :<br />Dw (mm)	Outside Ø shaft washer :<br />d1 (mm)	Bore Ø housing washer :<br />D1 (mm)	Height shaft washer :<br />B (mm)	Chamfer dimension housing washer :<br />r1,2min. (mm)	Abutment Ø shaft :<br />damin. (mm)	Abutment Ø housing :<br />Damax. (mm)	Fillet radius :<br />ramax. (mm)	Basic dynamic load rating :<br />C (kN)	Basic static load rating :<br />C0 (kN)	Fatigue load limit :<br />Pu (kN)	Reference speed (rpm)	Limiting speed (rpm)	Minimum axial load factor :<br />A	Mass bearing (kg)	Popular item
1	1	81208 TN	40	68	19	9	68	42	5	1	66	43	1	83	255	26.5	1900	3800	0.0052	0.249	Yes
2	2	81280 M	400	540	112	45	535	405	33.5	4	531	433	3	2120	10400	735	240	500	8.653	73
3	3	811/670 M	670	800	105	42	795	675	31.5	4	777	693	3	2550	16300	980	200	400	21.255	110
4	4	891/630 M	630	750	73	30	746	634	21.5	3	720	660	2.5	1630	11200	695	240	480	10	62
5	5	81276 M	380	520	112	45	515	385	33.5	4	511	413	3	2080	10000	720	260	500	8	75
6	6	81168 M	340	420	64	25	416	344	19.5	2	414	354	2	900	4900	355	380	800	1.921	22.42
7	7	81176 M	380	460	65	25	456	384	20	2	453	393	2	900	5000	355	360	750	2	22
8	8	81264 M	320	440	95	38	435	325	28.5	3	434	348	2.5	1530	7200	530	300	600	4.147	42.5
9	9	81272 M	360	500	110	45	495	365	32.5	4	492	393	3	2040	9650	695	260	530	7.45	65.5
10	10	811/560 M	560	670	85	34	665	565	25.5	3	662	584	2.5	1760	11000	710	260	500	9.68	58
11	11	811/500 M	500	600	80	32	595	505	24	2.1	592	519	2	1560	9300	620	280	560	6.919	46
12	12	811/630 M	630	750	95	38	746	634	28.5	3	732	650	2.5	2160	13700	865	220	450	15.015	80
13	13	358060	530	710	120	60	704	536	30	5	680	560	4	3650	18600	1180	200	400	27.677	135
14	14	81188 M	440	540	80	32	535	444	24	2.1	533	459	2	1430	8000	550	300	600	5.12	39.5
15	15	BGSB 358371	508	762	139.7	64	758.83	511.18	37.84	6.4	727	557	6	4900	26500	1660	220	430	56.18	40.5
16	16	811/600 M/HB1	600	710	85	34	705	605	25.5	3	702	624	2.5	1800	11600	720	240	500	10.765	64
17	17	81112 TN	60	85	17	7.5	85	62	4.75	1	82	62	1	80	300	30.5	1800	3600	0.0072	0.266	Yes
18	18	891/500 M	500	600	60	25	597	503	17.5	2.1	575	525	2	1220	8150	540	300	600	5.3	34
19	19	811/900 M	900	1060	130	52	1054	906	39	5	1032	928	4	4000	27000	1500	150	300	58	210
20	20	81268 M	340	460	96	38	455	345	29	3	452	367	2.5	1600	7800	570	300	600	4.867	47
21	21	811/800 M	800	950	120	48	945	805	36	4	923	827	3	3450	22000	1290	170	340	39	165
22	22	89172 M	360	440	48	20	437	363	14	2	420	380	2	680	4150	290	400	800	1.4	15.5
23	23	812/900 M	900	1180	220	90	1175	905	65	7.5	1130	950	6	8500	49000	2650	100	200	190	698
24	24	812/530 M	530	710	140	60	705	535	40	5	701	572	4	3650	18600	1180	180	360	28	154
25	25	811/750 M	750	900	120	48	895	755	36	4	873	777	3	3250	21200	1250	170	340	35.955	155
26	26	89176 M	380	460	48	20	457	383	14	2	440	400	2	710	4400	305	400	800	1.5	16.5
27	27	891/560 M	560	670	67	28	666	564	19.5	3	643	587	2.5	1370	9150	585	280	530	6.698	46.5
28	28	812/950 M	950	1250	236	100	1240	960	68	7.5	1200	1000	6	10000	58500	3150	90	180	270	805
29	29	812/560 M	560	750	150	60	745	565	45	5	741	611	4	3800	20000	1270	170	340	32	187
30	30	891/600 M	600	710	67	28	706	604	19.5	3	683	627	2.5	1430	9650	610	260	530	7.45	49.5
31	31	812/500 M	500	670	135	56	665	505	39.5	5	661	540	4	3200	16300	1060	190	380	21.255	133
32	32	89180 M	400	480	48	20	477	403	14	2	460	420	2	735	4650	320	400	800	1.7	17.5
33	33	81288 M	440	600	130	52	595	445	39	5	591	479	4	2900	14600	980	220	430	17.053	110
34	34	811/850 M	850	1000	120	48	995	855	36	4	973	877	3	3450	23200	1340	160	320	43	170
35	49	812/600 M	600	800	160	64	795	605	48	5	789	651	4	4400	24000	1460	160	320	46	240
36	50	89184 M	420	500	48	20	497	423	14	2	480	440	2	765	4900	335	380	750	1.9	18
37	35	891/670 M	670	800	78	34	795	675	22	4	769	701	3	2000	13400	815	220	450	14	75.5
38	36	81292 M	460	620	130	52	615	465	39	5	611	499	4	2700	13400	900	200	430	14	118
39	51	89188 M	440	540	60	25	537	443	17.5	2.1	515	465	2	1040	6400	440	320	630	3.3	30
40	52	891/710 M	710	850	85	36	845	715	24.5	4	816	744	3	2200	15000	900	200	400	18	95
41	37	891/750 M	750	900	90	38	895	755	26	4	863	787	3	2400	16600	1000	190	380	22.045	115
42	38	891/530 M	530	640	67	28	636	534	19.5	3	613	557	2.5	1370	8800	570	280	560	6.2	44
43	53	811/1120 M	1120	1320	160	64	1314	1126	48	5	1284	1156	4	6000	41500	2160	110	220	140	410
44	54	812/630 M	630	850	175	68	842	638	53.5	6	808	672	5	4800	26000	1560	140	280	54.08	295
45	39	891/850 M	850	1000	90	38	995	855	26	4	963	887	3	2600	19000	1100	180	360	29	130
46	40	811/950 M	950	1120	135	54	1114	956	40.5	5	1089	981	4	4400	30000	1630	140	280	72	250
47	55	812/670 M	670	900	180	75	892	678	52.5	6	860	710	5	5700	30500	1800	140	280	74.42	335
48	56	81192 M	460	560	80	32	555	464	24	2.1	553	479	2	1460	8500	570	300	600	5.8	41
49	41	81296 M	480	650	135	56	645	485	39.5	5	641	520	4	3350	17000	1100	200	400	23.12	128
50	42	891/800 M	800	950	90	38	946	804	26	4	913	837	3	2500	18000	1040	190	380	26	120
51	57	812/710 M	710	950	190	75	945	715	57.5	6	905	855	5	5850	32000	1830	130	260	82	413
52	58	81196 M	480	580	80	32	576	484	24	2.1	573	500	2	1460	8500	560	280	560	5.78	43
53	43	891/1000 M	1000	1180	109	48	1175	1005	30.5	5	1138	1042	4	3900	28500	1560	150	280	65	220
54	44	89196 M	480	580	60	25	577	483	17.5	2.1	555	505	2	1100	6950	465	320	630	3.9	32.5
55	59	812/750 M	750	1000	195	80	992	758	57.5	6	955	795	5	6550	36000	2080	120	240	100	445
56	60	811/1000 M	1000	1180	140	56	1174	1006	42	5	1146	1034	4	4750	32500	1760	130	260	84	285
57	45	812/850 M	850	1120	212	90	1110	860	61	7.5	1075	895	6	8150	45500	2550	110	220	170	580
58	46	812/1000 M	1000	1320	250	100	1308	1012	75	9.5	1260	1060	8	10200	60000	3200	85	170	290	965
59	61	891/1060 M	1060	1250	115	50	1245	1065	32.5	5	1205	1105	4	4150	31000	1630	140	260	76.88	260
60	62	891/900 M	900	1060	95	42	1055	905	26.5	5	1022	938	4	3050	22000	1250	170	340	39	150
61	47	812/800 M	800	1060	205	85	1055	805	60	7.5	1015	845	6	7350	40500	2280	110	220	130	515
62	48	811/1060 M	1060	1250	150	60	1244	1066	45	5	1215	1095	4	5300	37500	1960	120	240	110	225
63	63	812/1060 M	1060	1400	265	110	1395	1063	77.5	9.5	1340	1120	8	12000	71000	3650	75	150	400	1150
64	64	891/1120 M	1120	1320	122	54	1315	1125	34	5	1274	1066	4	4900	36500	1900	130	260	110	305
65	65	891/950 M	950	1120	103	45	1115	955	29	5	1080	990	4	3450	25000	1400	160	300	50	185
66	66	89192 M	460	560	60	25	557	463	17.5	2.1	535	485	2	1080	6700	450	320	630	3.6	31.5
67	81	81230 M	150	215	50	21	212	153	14.5	1.5	211	158	1.5	465	1900	170	630	1300	0.289	7.2	Yes
68	82	81152 M	260	320	45	18	317	263	13.5	1.5	316	268	1.5	490	2600	200	530	1100	0.541	9.08	Yes
69	67	81206 TN	30	52	16	7.5	52	32	4.25	0.6	50	31	0.6	50	134	13.4	2400	4800	0.00144	0.123	Yes
70	68	81140 M	200	250	37	15	247	203	11	1.1	243	206	1.1	310	1500	125	700	1400	0.18	4.95	Yes
71	83	81164 M	320	400	63	25	396	324	19	2	394	334	2	880	4650	345	400	800	1.73	20.74
72	84	81120 TN	100	135	25	11	135	102	7	1	131	104	1	156	630	62	1200	2400	0.0318	0.95	Yes
73	69	81234 M	170	240	55	22	237	173	16.5	1.5	235	180	1.5	540	2280	200	560	1100	0.416	9.3	Yes
74	70	81184 M	420	500	65	25	495	424	20	2	493	433	2	980	5850	400	340	700	2.738	24
75	85	81124 TN	120	155	25	11	155	122	7	1	151	124	1	170	735	68	1100	2200	0.0432	1.12	Yes
76	86	81226 TN	130	190	45	19	187	133	13	1.5	181	137	1.5	380	1460	137	700	1400	0.171	3.98	Yes
77	71	81172 M	360	440	65	25	436	364	20	2	434	374	2	900	4900	355	380	750	1.9	19.5
78	72	81132 TN	160	200	31	12	198	162	9.5	1	195	165	1	216	1020	90	850	1700	0.0832	2.12	Yes
79	87	81116 TN	80	105	19	7.5	105	82	5.75	1	102	83	1	81.5	335	34	1500	3000	0.00898	0.4	Yes
80	88	81220 TN	100	150	38	15	150	103	11.5	1.1	142	107	1.1	270	1060	104	900	1800	0.0899	2.2	Yes
81	73	81128 TN	140	180	31	12	178	142	9.5	1	175	145	1	208	930	85	900	1800	0.0692	1.9	Yes
82	74	81222 TN	110	160	38	15	160	113	11.5	1.1	152	117	1.1	260	1000	98	850	1700	0.08	2.29	Yes
83	89	81215 TN	75	110	27	11	110	77	8	1	106	79	1	137	490	50	1200	2400	0.0192	0.8	Yes
84	90	81224 TN	120	170	39	15	170	123	12	1.1	162	127	1.1	255	1000	96.5	800	1600	0.08	2.54	Yes
85	75	81207 TN	35	62	18	7.5	62	37	5.25	1	58	39	1	62	190	19.3	2000	4000	0.00289	0.208	Yes
86	76	81217 TN	85	125	31	12	125	88	9.5	1	119	90	1	170	640	67	1100	2200	0.0328	1.2	Yes
87	91	81109 TN	45	65	14	6	65	47	4	0.6	63	47	0.6	45	153	15.3	2200	4500	0.00187	0.13	Yes
88	92	81209 TN	45	73	20	9	73	47	5.5	1	70	48	1	83	255	26.5	1800	3600	0.0052	0.287	Yes
89	77	81110 TN	50	70	14	6	70	52	4	0.6	68	52	0.6	47.5	166	16.6	2200	4300	0.0022	0.14	Yes
90	78	81111 TN	55	78	16	6	78	57	5	0.6	77	56	0.6	69.5	285	29	1900	3800	0.0065	0.233	Yes
91	93	81113 TN	65	90	18	7.5	90	67	5.25	1	87	67	1	83	320	32.5	1700	3400	0.00819	0.31	Yes
92	94	81102 TN	15	28	9	3.5	28	16	2.75	0.3	27	16	0.3	11.2	27	2.5	4300	8500	5.8E-05	0.024	Yes
93	79	81103 TN	17	30	9	3.5	30	18	2.75	0.3	29	18	0.3	12.2	31.5	2.9	4300	8500	7.9E-05	0.027	Yes
94	80	81104 TN	20	35	10	4.5	35	21	2.75	0.3	34	21	0.3	18.6	48	4.7	3800	7500	0.00018	0.037	Yes
95	95	81105 TN	25	42	11	5	42	26	3	0.6	41	26	0.6	25	69.5	6.8	3200	6300	0.00039	0.053	Yes
96	96	81212 TN	60	95	26	11	95	62	7.5	1	91	64	1	137	465	47.5	1400	2800	0.0173	0.65	Yes
97	97	81107 TN	35	52	12	5	52	37	3.5	0.6	51	36	0.6	29	93	9.2	2800	5600	0.00069	0.073	Yes
98	98	81213 TN	65	100	27	11	100	67	8	1	96	69	1	140	490	50	1300	2600	0.0192	0.721	Yes
99	113	81214 TN	70	105	27	11	105	72	8	1	102	74	1	146	530	55	1300	2600	0.0225	0.768	Yes
100	114	81218 TN	90	135	35	14	135	93	10.5	1.1	129	95	1.1	232	865	90	1000	2000	0.0599	1.77	Yes
101	99	81108 TN	40	60	13	6	60	42	3.5	0.6	58	42	0.6	43	137	13.7	2400	5000	0.0015	0.105	Yes
102	100	81216 TN	80	115	28	11	115	82	8.5	1	112	84	1	160	610	63	1200	2400	0.0298	0.9	Yes
103	115	81211 TN	55	90	25	11	90	57	7	1	85	59	1	122	390	40	1400	2800	0.0122	0.568	Yes
104	116	81232 M	160	225	51	21	222	163	15	1.5	220	168	1.5	480	2000	176	600	1200	0.32	7.607	Yes
105	101	81117 TN	85	110	19	7.5	110	87	5.75	1	108	87	1	88	365	37.5	1500	3000	0.0107	0.42	Yes
106	102	81248 M	240	340	78	32	335	244	23	2.1	335	261	2.1	1100	4900	390	400	800	1.921	21.95	Yes
107	117	81118 TN	90	120	22	9	120	92	6.5	1	117	93	1	110	450	45.5	1300	2600	0.0162	0.62	Yes
108	118	81244 M	220	300	63	26	297	224	18.5	2	296	230	2	750	3350	275	480	950	0.898	14.88	Yes
109	103	81134 TN	170	215	34	14	213	172	10	1.1	209	176	1.1	285	1340	118	800	1600	0.144	2.41	Yes
110	104	81210 TN	50	78	22	9	78	52	6.5	1	75	53	1	91.5	300	31	1700	3400	0.0072	0.362	Yes
111	119	81228 M	140	200	46	19	197	143	13.5	1.5	191	147	1.5	360	1400	129	700	1400	0.157	5.07
112	120	81106 TN	30	47	11	5	47	32	3	0.6	46	31	0.6	27	78	7.7	3000	6000	0.00049	0.057	Yes
113	105	81238 M	190	270	62	26	267	194	18	2	265	200	2	695	2900	250	500	1000	0.673	12.11
114	106	81156 M	280	350	53	22	347	283	15.5	1.5	346	288	1.5	680	3550	275	480	950	1.008	12.61
115	121	811/530 M	530	640	85	34	635	535	25.5	3	632	554	2.5	1730	10600	680	260	530	8.989	55.5
116	122	81114 TN	70	95	18	7.5	95	72	5.25	1	92	72	1	86.5	345	34.5	1700	3400	0.00952	0.332	Yes
117	107	81236 M	180	250	56	22	247	183	17	1.5	245	190	1.5	550	2400	204	560	1100	0.461	9.93
118	108	81240 M	200	280	62	26	277	204	18	2	275	210	2	720	3100	255	500	1000	0.769	13.55
119	123	81160 M	300	380	62	25	376	304	18.5	2	373	315	2	850	4400	335	430	850	1.549	19.43
120	124	81148 M	240	300	45	18	297	243	13.5	1.5	296	248	1.5	475	2450	196	560	1100	0.48	8.45	Yes
121	109	81122 TN	110	145	25	11	145	112	7	1	141	114	1	163	680	65.5	1100	2200	0.037	1.04
122	110	81115 TN	75	100	19	7.5	100	77	5.75	1	97	78	1	83	335	34	1600	3200	0.00898	0.393	Yes
123	125	81252 M	260	360	79	32	355	264	23.5	2.1	353	280	2.1	1140	5300	415	380	750	2.247	27
124	126	81138 M	190	240	37	15	237	193	11	1.1	233	197	1.1	310	1460	125	700	1400	0.171	4.74	Yes
125	111	81144 M	220	270	37	15	267	223	11	1.1	263	226	1.1	335	1700	137	670	1300	0.231	5.22	Yes
126	112	81130 TN	150	190	31	12	188	152	9.5	1	185	155	1	212	1000	88	850	1700	0.08	2.2	Yes
127	127	81126 TN	130	170	30	12	170	132	9	1	165	135	1	200	880	81.5	950	1900	0.062	1.67
128	128	81136 M	180	225	34	14	222	183	10	1.1	219	185	1.1	270	1270	110	750	1500	0.129	3.7	Yes
