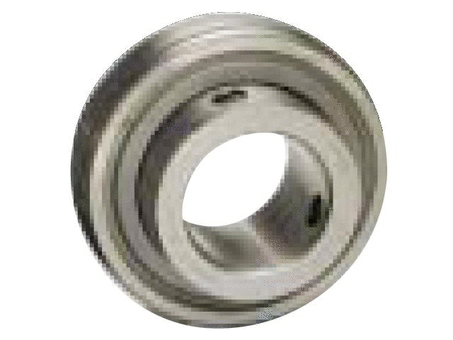

SBN & CSB Bearing Inserts

Manufacturer	P.T. International Corp.
Description	SBN & CSB Bearing Inserts
Manufacturer Part Number	CSB 203
Part Number Page	http://ptinternationalsyndication.thomasnet-navigator.com/item/bearing-inserts/sbn-csb-bearing-inserts/csb-203
Weight [lb]	0.22
Seal Type	K-Type
d - Bore Dia. of Bearing [mm]	17
d - Bore Dia. of Bearing [in]
D - Dimension [in]	1.5748
D - Dimension [mm]	40
Bi - Dimension [in]	0.8661
Bi - Dimension [mm]	22

Be - Dimension [mm]	12
Be - Dimension [in]	0.4724
N - Dimension [in]	0.2362
N - Dimension [mm]	6
M - Dimension [mm]	16
M - Dimension [in]	0.6299
G - Dimension [in]	0.1772
G - Dimension [mm]	4.5
Ds - Dimension	10-32UNF
Basic Load Rating [lbf]	2,040
Basic Static Load Rating [lbf]	1,020
Type	Cylindrical (CSB)

CAD modelleri

Fiyat teklif talebi

Ürün seçimi

Index	Selector	Manufacturer Part Number	Description	d - Bore Dia. of Bearing [mm]	d - Bore Dia. of Bearing [in]	D - Dimension [in]	D - Dimension [mm]	Bi - Dimension [in]	Bi - Dimension [mm]	Be - Dimension [mm]	Be - Dimension [in]	N - Dimension [in]	N - Dimension [mm]	M - Dimension [mm]	M - Dimension [in]
1	1	SB 201N	SBN & CSB Bearing Inserts	12		1.5748	40	0.8661	22	12	0.4724	0.2362	6	16	0.6299
2	12	SB 201 8 N	SBN & CSB Bearing Inserts		0.5	1.5748	40	0.8661	22	12	0.4724	0.2362	6	16	0.6299
3	23	SB 202 15MM N	SBN & CSB Bearing Inserts	15		1.5748	40	0.8661	22	12	0.4724	0.2362	6	16	0.6299
4	34	SB 202 10 N	SBN & CSB Bearing Inserts		0.625	1.5748	40	0.8661	22	12	0.4724	0.2362	6	16	0.6299
5	44	SB 203 17MM N	SBN & CSB Bearing Inserts	17		1.5748	40	0.8661	22	12	0.4724	0.2362	6	16	0.6299
6	45	SB 204 12 N	SBN & CSB Bearing Inserts		0.75	1.8504	47	0.9843	25	14	0.5512	0.2756	7	18	0.7087
7	46	SB 204N	SBN & CSB Bearing Inserts	20		1.8504	47	0.9843	25	14	0.5512	0.2756	7	18	0.7087
8	47	SB 205 14 N	SBN & CSB Bearing Inserts		0.875	2.0472	52	1.0630	27	15	0.5906	0.2953	7.5	19.5	0.7677
9	48	SB 205 15 N	SBN & CSB Bearing Inserts		0.9375	2.0472	52	1.0630	27	15	0.5906	0.2953	7.5	19.5	0.7677
10	2	SB 205N	SBN & CSB Bearing Inserts	25		2.0472	52	1.0630	27	15	0.5906	0.2953	7.5	19.5	0.7677
11	3	SB 205 16 N	SBN & CSB Bearing Inserts		1	2.0472	52	1.0630	27	15	0.5906	0.2953	7.5	19.5	0.7677
12	4	SB 206 17 N	SBN & CSB Bearing Inserts		1 1/16	2.4409	62	1.1811	30	16	0.6299	0.3150	8	22	0.8661
13	5	SB 206 18 N	SBN & CSB Bearing Inserts		1.125	2.4409	62	1.1811	30	16	0.6299	0.3150	8	22	0.8661
14	6	SB 206 30MM N	SBN & CSB Bearing Inserts	30		2.4409	62	1.1811	30	16	0.6299	0.3150	8	22	0.8661
15	7	SB 206 19 N	SBN & CSB Bearing Inserts		1.1875	2.4409	62	1.1811	30	16	0.6299	0.3150	8	22	0.8661
16	8	SB 206 20 N	SBN & CSB Bearing Inserts		1.25	2.4409	62	1.1811	30	16	0.6299	0.3150	8	22	0.8661
17	9	SB 207 20 N	SBN & CSB Bearing Inserts		1.25	2.8346	72	1.2598	32	17	0.6693	0.3346	8.5	23.5	0.9252
18	10	SB 207 21 N	SBN & CSB Bearing Inserts		1 5/16	2.8346	72	1.2598	32	17	0.6693	0.3346	8.5	23.5	0.9252
19	11	SB 207 22 N	SBN & CSB Bearing Inserts		1.375	2.8346	72	1.2598	32	17	0.6693	0.3346	8.5	23.5	0.9252
20	13	SB 207N	SBN & CSB Bearing Inserts	35		2.8346	72	1.2598	32	17	0.6693	0.3346	8.5	23.5	0.9252
21	14	SB 207 23 N	SBN & CSB Bearing Inserts		1.4375	2.8346	72	1.2598	32	17	0.6693	0.3346	8.5	23.5	0.9252
22	15	SB 208 24 N	SBN & CSB Bearing Inserts		1.5	3.1496	80	1.3386	34	18	0.7087	0.3543	9	25	0.9843
23	16	SB 208 25N	SBN & CSB Bearing Inserts		1 9/16	3.1496	80	1.3386	34	18	0.7087	0.3543	9	25	0.9843
24	17	SB 208N	SBN & CSB Bearing Inserts	40		3.1496	80	1.3386	34	18	0.7087	0.3543	9	25	0.9843
25	18	CSB 201	SBN & CSB Bearing Inserts	12		1.5748	40	0.8661	22	12	0.4724	0.2362	6	16	0.6299
26	19	CSB 201 8 N	SBN & CSB Bearing Inserts		0.5	1.5748	40	0.8661	22	12	0.4724	0.2362	6	16	0.6299
27	20	CSB 202	SBN & CSB Bearing Inserts	15		1.5748	40	0.8661	22	12	0.4724	0.2362	6	16	0.6299
28	21	CSB 202 10 N	SBN & CSB Bearing Inserts		0.625	1.5748	40	0.8661	22	12	0.4724	0.2362	6	16	0.6299
29	22	CSB 203	SBN & CSB Bearing Inserts	17		1.5748	40	0.8661	22	12	0.4724	0.2362	6	16	0.6299
30	24	CSB 204 12 N	SBN & CSB Bearing Inserts		0.75	1.8504	47	0.9843	25	14	0.5512	0.2756	7	18	0.7087
31	25	CSB 204 20MM N	SBN & CSB Bearing Inserts	20		1.8504	47	0.9843	25	14	0.5512	0.2756	7	18	0.7087
32	26	CSB 205 14 N	SBN & CSB Bearing Inserts		0.875	2.0472	52	1.0630	27	15	0.5906	0.2953	7.5	19.5	0.7677
33	27	CSB 205 15	SBN & CSB Bearing Inserts		0.9375	2.0472	52	1.0630	27	15	0.5906	0.2953	7.5	19.5	0.7677
34	28	CSB 205 25MM N	SBN & CSB Bearing Inserts	25		2.0472	52	1.0630	27	15	0.5906	0.2953	7.5	19.5	0.7677
35	29	CSB 205 16 N	SBN & CSB Bearing Inserts		1	2.0472	52	1.0630	27	15	0.5906	0.2953	7.5	19.5	0.7677
36	30	CSB 206 17	SBN & CSB Bearing Inserts		1 1/16	2.4409	62	1.1811	30	16	0.6299	0.3150	8	22	0.8661
37	31	CSB 206 18	SBN & CSB Bearing Inserts		1.125	2.4409	62	1.1811	30	16	0.6299	0.3150	8	22	0.8661
38	32	CSB 206 30MM N	SBN & CSB Bearing Inserts	30		2.4409	62	1.1811	30	16	0.6299	0.3150	8	22	0.8661
39	33	CSB 206 19 N	SBN & CSB Bearing Inserts		1.1875	2.4409	62	1.1811	30	16	0.6299	0.3150	8	22	0.8661
40	35	CSB 206 20 N	SBN & CSB Bearing Inserts		1.25	2.4409	62	1.1811	30	16	0.6299	0.3150	8	22	0.8661
41	36	CSB 207 20 N	SBN & CSB Bearing Inserts		1.25	2.8346	72	1.2598	32	17	0.6693	0.3346	8.5	23.5	0.9252
42	37	CSB 207 21	SBN & CSB Bearing Inserts		1 5/16	2.8346	72	1.2598	32	17	0.6693	0.3346	8.5	23.5	0.9252
43	38	CSB 207 22 N	SBN & CSB Bearing Inserts		1.375	2.8346	72	1.2598	32	17	0.6693	0.3346	8.5	23.5	0.9252
44	39	CSB 207 35MM N	SBN & CSB Bearing Inserts	35		2.8346	72	1.2598	32	17	0.6693	0.3346	8.5	23.5	0.9252
45	40	CSB 207 23 N	SBN & CSB Bearing Inserts		1.4375	2.8346	72	1.2598	32	17	0.6693	0.3346	8.5	23.5	0.9252
46	41	CSB 208 24 N	SBN & CSB Bearing Inserts		1.5	3.1496	80	1.3386	34	18	0.7087	0.3543	9	25	0.9843
47	42	CSB 208 25	SBN & CSB Bearing Inserts		1 9/16	3.1496	80	1.3386	34	18	0.7087	0.3543	9	25	0.9843
48	43	CSB 208 40MM N	SBN & CSB Bearing Inserts	40		3.1496	80	1.3386	34	18	0.7087	0.3543	9	25	0.9843

Ürün Açıklaması

Set screw lock
Narrow inner race
K-type seals
Spherical (SB) and cylindrical (CSB)

Belgelendirme

SB/CSB Bearing Inserts - Dimensions

K-Type Seal

Product Page Link

Part Number Page Link

Tedarikçi ile iletişim kurun

P.T. International Corp.

P.T. International offers a wide range of European Metric and American Standard Industrial Power Transmission Products. PTI was founded in 1994 and has over 20 years focusing on metric products.
