Single row deep groove ball bearings - Open

Manufacturer	NSK
Description	Single row deep groove ball bearings - Open - 60/22
Part number	60/22
Mass	0.074 kg
Inner diameter	22 mm
Outer diameter	44 mm

Radial load	9400 N
Radial load2	5050 N
Radial load3	960
Radial load4	515
Rotary speed (greased)	17000 rpm
Angular speed (oiled)	20000 rpm

CAD modelleri

Fiyat teklif talebi

Ürün seçimi

Ayrıntı düzeyi

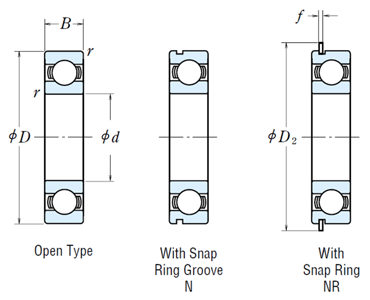

Index	Selector	d (mm)	D (mm)	B (mm)	r min (mm)	Cr (N)	C0r (N)	Cr (kgf)	C0r (kgf)	fo	Speed limit - Grease (rpm)	Speed limit - Oil (rpm)	Bearing part number	Mass (kg)
1	1	10	19	5	0.3	1720	840	175	86	14.8	34000	40000	6800	0.005
2	2	10	22	6	0.3	2700	1270	275	129	14	32000	38000	6900	0.009
3	3	10	26	8	0.3	4550	1970	465	201	12.4	30000	36000	6000	0.018
4	4	10	30	9	0.6	5100	2390	520	244	13.2	24000	30000	6200	0.032
5	5	10	35	11	0.6	8100	3450	825	350	11.2	22000	26000	6300	0.052
6	6	12	21	5	0.3	1920	1040	195	106	15.3	32000	38000	6801	0.006
7	7	12	24	6	0.3	2890	1460	295	149	14.5	30000	36000	6901	0.01
8	8	12	28	7	0.3	5100	2370	520	241	13	28000	32000	16001	0.019
9	9	12	28	8	0.3	5100	2370	520	241	13	28000	32000	6001	0.022
10	10	12	32	10	0.6	6800	3050	695	310	12.3	22000	28000	6201	0.037
11	11	12	37	12	1	9700	4200	990	425	11.1	20000	24000	6301	0.06
12	12	15	24	5	0.3	2070	1260	212	128	15.8	28000	34000	6802	0.007
13	13	15	28	7	0.3	4350	2260	440	230	14.3	26000	30000	6902	0.015
14	14	15	32	8	0.3	5600	2830	570	289	13.9	24000	28000	16002	0.027
15	15	15	32	9	0.3	5600	2830	570	289	13.9	24000	28000	6002	0.031
16	16	15	35	11	0.6	7650	3750	780	380	13.2	20000	24000	6202	0.045
17	17	15	42	13	1	11400	5450	1170	555	12.3	17000	20000	6302	0.083
18	18	17	26	5	0.3	2630	1570	268	160	15.7	26000	30000	6803	0.007
19	19	17	30	7	0.3	4600	2550	470	260	14.7	24000	28000	6903	0.017
20	20	17	35	8	0.3	6000	3250	610	330	14.4	22000	26000	16003	0.033
21	21	17	35	10	0.3	6000	3250	610	330	14.4	22000	26000	6003	0.041
22	22	17	40	12	0.6	9550	4800	975	490	13.2	17000	20000	6203	0.067
23	23	17	47	14	1	13600	6650	1390	675	12.4	15000	18000	6303	0.113
24	24	20	32	7	0.3	4000	2470	410	252	15.5	22000	26000	6804	0.017
25	25	20	37	9	0.3	6400	3700	650	375	14.7	19000	22000	6904	0.037
26	26	20	42	8	0.3	7900	4450	810	455	14.5	18000	20000	16004	0.048
27	27	20	42	12	0.6	9400	5000	955	510	13.8	18000	20000	6004	0.068
28	28	20	47	14	1	12800	6600	1300	670	13.1	15000	18000	6204	0.107
29	29	20	52	15	1.1	15900	7900	1620	805	12.4	14000	17000	6304	0.145
30	30	22	44	12	0.6	9400	5050	960	515	14	17000	20000	60/22	0.074
31	31	22	50	14	1	12900	6800	1320	695	13.5	14000	16000	62/22	0.119
32	32	22	56	16	1.1	18400	9250	1870	940	12.4	13000	16000	63/22	0.179
33	33	25	37	7	0.3	4500	3150	455	320	16.1	18000	22000	6805	0.021
34	34	25	42	9	0.3	7050	4550	715	460	15.4	16000	19000	6905	0.042
35	35	25	47	8	0.3	8850	5600	905	570	15.1	15000	18000	16005	0.059
36	36	25	47	12	0.6	10100	5850	1030	595	14.5	15000	18000	6005	0.079
37	37	25	52	15	1	14000	7850	1430	800	13.9	13000	15000	6205	0.129
38	38	25	62	17	1.1	20600	11200	2100	1150	13.2	11000	13000	6305	0.235
39	39	28	52	12	0.6	12500	7400	1270	755	14.5	14000	16000	60/28	0.096
40	40	28	58	16	1	16600	9500	1700	970	13.9	12000	14000	62/28	0.175
41	41	28	68	18	1.1	26700	14000	2730	1430	12.4	10000	13000	63/28	0.287
42	42	30	42	7	0.3	4700	3650	480	370	16.4	15000	18000	6806	0.024
43	43	30	47	9	0.3	7250	5000	740	510	15.8	14000	17000	6906	0.052
44	44	30	55	9	0.3	11200	7350	1150	750	15.2	13000	15000	16006	0.087
45	45	30	55	13	1	13200	8300	1350	845	14.7	13000	15000	6006	0.116
46	46	30	62	16	1	19500	11300	1980	1150	13.8	11000	13000	6206	0.199
47	47	30	72	19	1.1	26700	15000	2720	1530	13.3	9500	12000	6306	0.345
48	48	32	58	13	1	15100	9150	1530	935	14.5	12000	14000	60/32	0.122
49	49	32	65	17	1	20700	11600	2120	1190	13.6	10000	12000	62/32	0.225
50	50	32	75	20	1.1	29900	17000	3050	1730	13.2	9000	11000	63/32	0.389
51	51	35	47	7	0.3	4900	4100	500	420	16.7	14000	16000	6807	0.027
52	52	35	55	10	0.6	10600	7250	1080	740	15.5	12000	15000	6907	0.075
53	53	35	62	9	0.3	11700	8200	1190	835	15.6	11000	13000	16007	0.107
54	54	35	62	14	1	16000	10300	1630	1050	14.8	11000	13000	6007	0.151
55	55	35	72	17	1.1	25700	15300	2620	1560	13.8	9500	11000	6207	0.284
56	56	35	80	21	1.5	33500	19200	3400	1960	13.2	8500	10000	6307	0.464
57	57	40	52	7	0.3	6350	5550	650	565	17	12000	14000	6808	0.031
58	58	40	62	12	0.6	13700	10000	1390	1020	15.7	11000	13000	6908	0.112
59	59	40	68	9	0.3	12600	9650	1290	985	16	10000	12000	16008	0.13
60	60	40	68	15	1	16800	11500	1710	1180	15.3	10000	12000	6008	0.19
61	61	40	80	18	1.1	29100	17900	2970	1820	14	8500	10000	6208	0.366
62	62	40	90	23	1.5	40500	24000	4150	2450	13.2	7500	9000	6308	0.636
63	63	45	58	7	0.3	6600	6150	670	625	17.2	11000	13000	6809	0.038
64	64	45	68	12	0.6	14100	10900	1440	1110	15.9	9500	12000	6909	0.126
65	65	45	75	10	0.6	14900	11400	1520	1160	15.9	9000	11000	16009	0.167
66	66	45	75	16	1	20900	15200	2140	1550	15.3	9000	11000	6009	0.241
67	67	45	85	19	1.1	31500	20400	3200	2080	14.4	7500	9000	6209	0.42
68	68	45	100	25	1.5	53000	32000	5400	3250	13.1	6700	8000	6309	0.829
69	69	50	65	7	0.3	6400	6200	655	635	17.2	9500	11000	6810	0.05
70	70	50	72	12	0.6	14500	11700	1480	1200	16.1	9000	11000	6910	0.135
71	71	50	80	10	0.6	15400	12400	1570	1260	16.1	8500	10000	16010	0.175
72	72	50	80	16	1	21800	16600	2220	1700	15.6	8500	10000	6010	0.261
73	73	50	90	20	1.1	35000	23200	3600	2370	14.4	7100	8500	6210	0.459
74	74	50	110	27	2	62000	38500	6300	3900	13.2	6000	7500	6310	1.06
75	75	55	72	9	0.3	8800	8500	900	865	17	8500	10000	6811	0.081
76	76	55	80	13	1	16000	13300	1630	1350	16.2	8000	9500	6911	0.189
77	77	55	90	11	0.6	19400	16300	1980	1660	16.2	7500	9000	16011	0.257
78	78	55	90	18	1.1	28300	21200	2880	2170	15.3	7500	9000	6011	0.381
79	79	55	100	21	1.5	43500	29300	4450	2980	14.3	6300	7500	6211	0.619
80	80	55	120	29	2	71500	44500	7300	4550	13.1	5600	6700	6311	1.37
81	81	60	78	10	0.3	11500	10900	1170	1120	16.9	8000	9500	6812	0.103
82	82	60	85	13	1	19400	16300	1980	1660	16.2	7500	9000	6912	0.192
83	83	60	95	11	0.6	20000	17500	2040	1780	16.3	7100	8500	16012	0.281
84	84	60	95	18	1.1	29500	23200	3000	2370	15.6	7100	8500	6012	0.412
85	85	60	110	22	1.5	52500	36000	5350	3700	14.3	5600	7100	6212	0.783
86	86	60	130	31	2.1	82000	52000	8350	5300	13.1	5300	6300	6312	1.72
87	87	65	85	10	0.6	11900	12100	1220	1230	17	7500	8500	6813	0.128
88	88	65	90	13	1	17400	16100	1770	1640	16.6	7100	8500	6913	0.218
89	89	65	100	11	0.6	20500	18700	2090	1910	16.5	6700	8000	16013	0.3
90	90	65	100	18	1.1	30500	25200	3100	2570	15.8	6700	8000	6013	0.439
91	91	65	120	23	1.5	57500	40000	5850	4100	14.4	5300	6300	6213	1
92	92	65	140	33	2.1	92500	60000	9450	6100	13.2	4800	6000	6313	2.11
93	93	70	90	10	0.6	12100	12700	1230	1300	17.2	6700	8000	6814	0.134
94	94	70	100	16	1	23700	21200	2420	2160	16.3	6300	7500	6914	0.349
95	95	70	110	13	0.6	26800	23600	2730	2410	16.3	6000	7100	16014	0.441
96	96	70	110	20	1.1	38000	31000	3900	3150	15.6	6000	7100	6014	0.608
97	97	70	125	24	1.5	62000	44000	6350	4500	14.5	5000	6300	6214	1.09
98	98	70	150	35	2.1	104000	68000	10600	6950	13.2	4500	5300	6314	2.57
99	99	75	95	10	0.6	12500	13900	1280	1410	17.3	6300	7500	6815	0.149
100	100	75	105	16	1	24400	22600	2480	2300	16.5	6000	7100	6915	0.364
101	101	75	115	13	0.6	27600	25300	2820	2580	16.4	5600	6700	16015	0.463
102	102	75	115	20	1.1	39500	33500	4050	3400	15.8	5600	6700	6015	0.649
103	103	75	130	25	1.5	66000	49500	6750	5050	14.7	4800	5600	6215	1.19
104	104	75	160	37	2.1	113000	77000	11600	7850	13.2	4300	5000	6315	3.08
105	105	80	100	10	0.6	12700	14500	1290	1470	17.4	6000	7100	6816	0.151
106	106	80	110	16	1	25000	24000	2540	2450	16.6	5600	6700	6916	0.391
107	107	80	125	14	0.6	32000	29600	3250	3000	16.4	5300	6300	16016	0.621
108	108	80	125	22	1.1	47500	40000	4850	4050	15.6	5300	6300	6016	0.872
109	109	80	140	26	2	72500	53000	7400	5400	14.6	4500	5300	6216	1.42
110	110	80	170	39	2.1	123000	86500	12500	8850	13.3	4000	4800	6316	3.67
111	111	85	110	13	1	18700	20000	1910	2040	17.1	5600	6700	6817	0.263
112	112	85	120	18	1.1	32000	29600	3250	3000	16.4	5300	6300	6917	0.55
113	113	85	130	14	0.6	33000	31500	3350	3200	16.5	5000	6000	16017	0.652
114	114	85	130	22	1.1	49500	43000	5050	4400	15.8	5000	6000	6017	0.918
115	115	85	150	28	2	84000	62000	8550	6300	14.5	4300	5000	6217	1.76
116	116	85	180	41	3	133000	97000	13500	9850	13.3	3800	4500	6317	4.28
117	117	90	115	13	1	19000	21000	1940	2140	17.2	5300	6300	6818	0.276
118	118	90	125	18	1.1	33000	31500	3350	3200	16.5	5000	6000	6918	0.585
119	119	90	140	16	1	41500	39500	4250	4000	16.3	4800	5600	16018	0.873
120	120	90	140	24	1.5	58000	50000	5950	5050	15.6	4800	5600	6018	1.19
121	121	90	160	30	2	96000	71500	9800	7300	14.5	4000	4800	6218	2.18
122	122	90	190	43	3	143000	107000	14500	11000	13.3	3600	4300	6318	4.98
123	123	95	120	13	1	19300	22000	1970	2240	17.2	5000	6000	6819	0.297
124	124	95	130	18	1.1	33500	33500	3450	3400	16.6	4800	5600	6919	0.601
125	125	95	145	16	1	43000	42000	4350	4250	16.4	4500	5300	16019	0.904
126	126	95	145	24	1.5	60500	54000	6150	5500	15.8	4500	5300	6019	1.23
127	127	95	170	32	2.1	109000	82000	11100	8350	14.4	3800	4500	6219	2.64
128	128	95	200	45	3	153000	119000	15600	12100	13.3	3000	3600	6319	5.76
129	129	100	125	13	1	19600	23000	2000	2340	17.3	4800	5600	6820	0.31
130	130	100	140	20	1.1	43000	42000	4350	4250	16.4	4500	5300	6920	0.828
131	131	100	150	16	1	42500	42000	4300	4300	16.5	4300	5300	16020	0.945
132	132	100	150	24	1.5	60000	54000	6150	5550	15.9	4300	5300	6020	1.29
133	133	100	180	34	2.1	122000	93000	12500	9500	14.4	3600	4300	6220	3.17
134	134	100	215	47	3	173000	141000	17700	14400	13.2	2800	3400	6320	7.04
135	135	105	130	13	1	19800	23900	2020	2440	17.4	4800	5600	6821	0.324
136	136	105	145	20	1.1	42500	42000	4300	4300	16.5	4300	5300	6921	0.856
137	137	105	160	18	1	52000	50500	5300	5150	16.3	4000	4800	16021	1.24
138	138	105	160	26	2	72500	66000	7400	6700	15.8	4000	4800	6021	1.58
139	139	105	190	36	2.1	133000	105000	13600	10700	14.4	3400	4000	6221	3.79
140	140	105	225	49	3	184000	154000	18700	15700	13.2	2600	3200	6321	8.09
141	141	110	140	16	1	28100	32500	2860	3350	17.1	4300	5300	6822	0.497
142	142	110	150	20	1.1	43500	44500	4450	4550	16.6	4300	5000	6922	0.893
143	143	110	170	19	1	57500	56500	5850	5800	16.3	3800	4500	16022	1.51
144	144	110	170	28	2	85000	73000	8650	7450	15.5	3800	4500	6022	1.94
145	145	110	200	38	2.1	144000	117000	14700	11900	14.3	2800	3400	6222	4.45
146	146	110	240	50	3	205000	179000	20900	18300	13.2	2400	3000	6322	9.51
147	147	120	150	16	1	28900	35500	2950	3650	17.3	4000	4800	6824	0.537
148	148	120	165	22	1.1	53000	54000	5400	5500	16.5	3800	4500	6924	1.21
149	149	120	180	19	1	56500	57500	5800	5850	16.5	3600	4300	16024	1.6
150	150	120	180	28	2	88000	80000	9000	8150	15.7	3600	4300	6024	2.08
151	151	120	215	40	2.1	155000	131000	15800	13400	14.4	2600	3200	6224	5.29
152	152	120	260	55	3	207000	185000	21100	18800	13.5	2200	2800	6324	12.5
153	153	130	165	18	1.1	37000	44000	3750	4450	17.1	3600	4300	6826	0.758
154	154	130	180	24	1.5	65000	67500	6650	6850	16.5	3400	4000	6926	1.57
155	155	130	200	22	1.1	75500	77500	7700	7900	16.4	3000	3600	16026	2.4
156	156	130	200	33	2	106000	101000	10800	10300	15.8	3000	3600	6026	3.26
157	157	130	230	40	3	167000	146000	17000	14900	14.5	2400	3000	6226	5.96
158	158	130	280	58	4	229000	214000	23400	21800	13.6	2200	2600	6326	15.2
159	159	140	175	18	1.1	38500	48000	3900	4850	17.3	3400	4000	6828	0.832
160	160	140	190	24	1.5	66500	72000	6800	7300	16.6	3200	3800	6928	1.67
161	161	140	210	22	1.1	77500	82500	7900	8400	16.5	2800	3400	16028	2.84
162	162	140	210	33	2	110000	109000	11200	11100	16	2800	3400	6028	3.48
163	163	140	250	42	3	166000	150000	17000	15300	14.9	2200	2800	6228	7.68
164	164	140	300	62	4	253000	246000	25800	25100	13.6	2000	2400	6328	18.5
165	165	150	190	20	1.1	47500	58500	4850	5950	17.1	3200	3800	6830	1.15
166	166	150	210	28	2	85000	90500	8650	9200	16.5	2600	3200	6930	3.01
167	167	150	225	24	1.1	84000	91000	8550	9250	16.6	2600	3000	16030	3.62
168	168	150	225	35	2.1	126000	126000	12800	12800	15.9	2600	3000	6030	4.24
169	169	150	270	45	3	176000	168000	18000	17100	15.1	2000	2600	6230	10
170	170	150	320	65	4	274000	284000	28000	28900	13.9	1800	2200	6330	22.7
171	171	160	200	20	1.1	48500	61000	4950	6250	17.2	2600	3200	6832	1.23
172	172	160	220	28	2	87000	96000	8850	9800	16.6	2600	3000	6932	2.71
173	173	160	240	25	1.5	99000	108000	10100	11000	16.5	2400	2800	16032	4.2
174	174	160	240	38	2.1	137000	135000	13900	13800	15.9	2400	2800	6032	5.15
175	175	160	290	48	3	185000	186000	18900	19000	15.4	1900	2400	6232	12.8
176	176	160	340	68	4	278000	287000	28300	29200	13.9	1700	2000	6332	26.2
177	177	170	215	22	1.1	60000	75000	6100	7650	17.1	2600	3000	6834	1.86
178	178	170	230	28	2	86000	97000	8750	9850	16.7	2400	2800	6934	3.34
179	179	170	260	28	1.5	114000	126000	11700	12900	16.5	2200	2600	16034	5.71
180	180	170	260	42	2.1	161000	161000	16400	16400	15.8	2200	2600	6034	6.89
181	181	170	310	52	4	212000	224000	21700	22800	15.3	1800	2200	6234	15.8
182	182	170	360	72	4	325000	355000	33500	36000	13.6	1600	2000	6334	36.6
183	183	180	225	22	1.1	60500	78500	6200	8000	17.2	2400	2800	6836	1.98
184	184	180	250	33	2	119000	128000	12100	13100	16.4	2200	2600	6936	4.16
185	185	180	280	31	2	145000	157000	14700	16000	16.3	2000	2400	16036	7.5
186	186	180	280	46	2.1	180000	185000	18400	18800	15.6	2000	2400	6036	8.88
187	187	180	320	52	4	227000	241000	23200	24600	15.1	1700	2000	6236	15.9
188	188	180	380	75	4	355000	405000	36000	41500	13.9	1500	1800	6336	43.1
189	189	190	240	24	1.5	73000	93500	7450	9550	17.1	2200	2600	6838	2.53
190	190	190	260	33	2	113000	127000	11500	13000	16.6	2200	2600	6938	5.18
191	191	190	290	31	2	149000	168000	15200	17100	16.4	2000	2400	16038	7.78
192	192	190	290	46	2.1	188000	201000	19200	20500	15.8	2000	2400	6038	9.39
193	193	190	340	55	4	255000	282000	26000	28700	15	1600	2000	6238	22.3
194	194	190	400	78	5	355000	415000	36000	42500	14.1	1400	1700	6338	49.7
195	195	200	250	24	1.5	74000	98000	7550	10000	17.2	2200	2600	6840	2.67
196	196	200	280	38	2.1	143000	158000	14600	16100	16.4	2000	2400	6940	7.28
197	197	200	310	34	2	161000	180000	16400	18300	16.4	1900	2200	16040	10
198	198	200	310	51	2.1	207000	226000	21100	23000	15.6	1900	2200	6040	12
199	199	200	360	58	4	269000	310000	27400	31500	15.2	1500	1800	6240	26.7
200	200	200	420	80	5	380000	445000	38500	45500	13.8	1300	1600	6340	55.3
201	201	220	270	24	1.5	76500	107000	7800	10900	17.4	1900	2400	6844	2.9
202	202	220	300	38	2.1	146000	169000	14900	17300	16.6	1800	2200	6944	7.88
203	203	220	340	37	2.1	180000	217000	18400	22100	16.5	1600	2000	16044	13.1
204	204	220	340	56	3	235000	271000	24000	27600	15.6	1700	2000	6044	18.6
205	205	220	400	65	4	310000	375000	31500	38500	15.1	1300	1600	6244	37.4
206	206	220	460	88	5	410000	520000	42000	53000	14.3	1200	1500	6344	73.9
207	207	240	300	28	2	98500	137000	10000	14000	17.3	1700	2000	6848	4.48
208	208	240	320	38	2.1	154000	190000	15700	19400	16.8	1700	2000	6948	8.49
209	209	240	360	37	2.1	196000	243000	19900	24700	16.5	1500	1900	16048	13.9
210	210	240	360	56	3	244000	296000	24900	30000	15.9	1500	1900	6048	19.9
211	211	240	440	72	4	340000	430000	34500	44000	15.2	1200	1500	6248	50.5
212	212	240	500	95	5	470000	625000	48000	63500	14.2	1100	1300	6348	94.4
213	213	260	320	28	2	101000	148000	10300	15100	17.4	1600	1900	6852	4.84
214	214	260	360	46	2.1	204000	255000	20800	26000	16.5	1500	1800	6952	14
215	215	260	400	44	3	237000	310000	24100	31500	16.4	1400	1700	16052	21.1
216	216	260	400	65	4	291000	375000	29700	38500	15.8	1400	1700	6052	29.4
217	217	260	480	80	5	400000	540000	41000	55000	15.1	1100	1300	6252	67
218	218	260	540	102	6	505000	710000	51500	72500	14.6	1000	1200	6352	118
219	219	280	350	33	2	133000	191000	13600	19500	17.3	1500	1700	6856	7.2
220	220	280	380	46	2.1	209000	272000	21300	27700	16.6	1400	1700	6956	15.1
221	221	280	420	44	3	243000	330000	24700	33500	16.5	1300	1600	16056	22.7
222	222	280	420	65	4	300000	410000	31000	41500	16	1300	1600	6056	31.2
223	223	280	500	80	5	400000	550000	41000	56000	15.2	1000	1300	6256	70.4
224	224	280	580	108	6	570000	840000	58000	86000	14.5	900	1100	6356	144
225	225	300	380	38	2.1	166000	233000	17000	23800	17.1	1300	1600	6860	10.3
226	226	300	420	56	3	269000	370000	27400	38000	16.4	1300	1500	6960	23.9
227	227	300	460	50	4	285000	405000	29000	41000	16.4	1200	1400	16060	31.5
228	228	300	460	74	4	355000	500000	36500	51000	15.8	1200	1400	6060	44.2
229	229	300	540	85	5	465000	670000	47500	68500	15.1	950	1200	6260	87.8
230	230	320	400	38	2.1	168000	244000	17200	24900	17.2	1300	1500	6864	10.8
231	231	320	440	56	3	266000	375000	27100	38000	16.5	1200	1400	6964	25.3
232	232	320	480	50	4	293000	430000	29800	44000	16.5	1100	1300	16064	33.2
233	233	320	480	74	4	390000	570000	40000	58000	15.7	1100	1300	6064	46.5
234	234	320	580	92	5	530000	805000	54500	82500	15	850	1100	6264	111
235	235	340	420	38	2.1	175000	265000	17800	27100	17.3	1200	1400	6868	11.5
236	236	340	460	56	3	273000	400000	27800	40500	16.6	1100	1300	6968	26.6
237	237	340	520	82	5	440000	660000	45000	67500	15.6	1000	1200	6068	62.3
238	238	340	620	92	6	530000	820000	54000	83500	15.3	800	1000	6268	129
239	239	360	440	38	2.1	192000	290000	19600	29600	17.3	1100	1300	6872	11.8
240	240	360	480	56	3	280000	425000	28500	43000	16.7	1100	1300	6972	27.9
241	241	360	540	82	5	460000	720000	47000	73500	15.7	950	1200	6072	65.3
242	242	360	650	95	6	555000	905000	57000	92000	15.4	750	950	6272	145
243	243	380	480	46	2.1	238000	375000	24200	38000	17.1	1000	1200	6876	19.5
244	244	380	520	65	4	325000	510000	33000	52000	16.6	950	1200	6976	40
245	245	380	560	82	5	455000	725000	46500	74000	15.9	900	1100	6076	68
246	246	400	500	46	2.1	241000	390000	24600	40000	17.2	950	1200	6880	20.5
247	247	400	540	65	4	335000	540000	34000	55000	16.7	900	1100	6980	42
248	248	400	600	90	5	510000	825000	52000	84000	15.7	850	1000	6080	88.4
249	249	420	520	46	2.1	245000	410000	25000	41500	17.3	900	1100	6884	21.4
250	250	420	560	65	4	340000	570000	35000	58500	16.8	900	1100	6984	43.6
251	251	420	620	90	5	530000	895000	54000	91000	15.8	800	1000	6084	92.2
252	252	440	540	46	2.1	248000	425000	25300	43500	17.4	900	1100	6888	22.3
253	253	440	600	74	4	395000	680000	40500	69000	16.6	800	1000	6988	60.2
254	254	440	650	94	6	550000	965000	56000	98500	16	750	900	6088	106
255	255	460	580	56	3	310000	550000	31500	56000	17.1	800	1000	6892	34.3
256	256	460	620	74	4	405000	720000	41500	73500	16.7	800	950	6992	62.6
257	257	460	680	100	6	605000	1080000	62000	110000	15.8	710	850	6092	123
258	258	480	600	56	3	315000	575000	32000	58500	17.2	800	950	6896	35.4
259	259	480	650	78	5	450000	815000	45500	83000	16.6	750	900	6996	73.5
260	260	480	700	100	6	605000	1090000	61500	111000	15.9	710	850	6096	127
261	261	500	620	56	3	320000	600000	33000	61000	17.3	750	900	68/500	37.2
262	262	500	670	78	5	460000	865000	47000	88000	16.7	710	850	69/500	82
263	263	500	720	100	6	630000	1170000	64000	120000	16	670	800	60/500	131
264	264	530	650	56	3	325000	625000	33000	63500	17.4	710	850	68/530	39.8
265	265	530	710	82	5	455000	870000	46500	88500	16.8	670	800	69/530	89.8
266	266	530	780	112	6	680000	1300000	69500	133000	16	600	750	60/530	184
267	267	560	680	56	3	330000	650000	33500	66500	17.4	670	800	68/560	41.5
268	268	560	750	85	5	525000	1040000	53500	106000	16.7	600	750	69/560	105
269	269	560	820	115	6	735000	1500000	75000	153000	16.2	560	670	60/560	203
270	270	600	730	60	3	355000	735000	36000	75000	17.5	600	710	68/600	50.9
271	271	600	800	90	5	550000	1160000	56500	118000	16.9	560	670	69/600	120
272	272	600	870	118	6	790000	1640000	80500	168000	16.1	530	630	60/600	236
273	273	630	780	69	4	420000	890000	43000	90500	17.3	560	670	68/630	71.3
274	274	630	850	100	6	625000	1350000	64000	138000	16.7	530	630	69/630	163
275	275	630	920	128	7.5	750000	1620000	76500	165000	16.4	480	600	60/630	285
276	276	670	820	69	4	435000	965000	44500	98000	17.4	500	630	68/670	75.4
277	277	670	900	103	6	675000	1460000	68500	149000	16.7	480	560	69/670	181
278	278	670	980	136	7.5	765000	1730000	78000	177000	16.6	450	530	60/670	351
279	279	710	870	74	4	480000	1100000	49000	113000	17.4	480	560	68/710	92.6
280	280	710	950	106	6	715000	1640000	72500	167000	16.8	450	530	69/710	208
281	281	750	920	78	5	525000	1260000	53500	128000	17.4	430	530	68/750	110
282	282	750	1000	112	6	785000	1840000	80000	188000	16.7	400	500	69/750	245
283	283	800	980	82	5	530000	1310000	54000	133000	17.5	400	480	68/800	132
284	284	800	1060	115	6	825000	2050000	84500	209000	16.8	380	450	69/800	275

Option 1

Option 2

Belgelendirme

NSK Product Finder

Rolling_Bearings_EN.pdf

DeepGroove_EN.pdf

Tedarikçi ile iletişim kurun

NSK

NSK Türkiye - Dünyanın önde gelen rulman, lineer teknoloji parçaları ve direksiyon sistemleri üreticilerinden biri olarak, çeşitli sanayi sektörlerine yönelik standart ve ihtiyaca özel ürünler sunar.

NSK Deutschland GmbH

NSK Deutschland GmbH
Harkortstrasse 15
40880 Ratingen
Germany
Website Holland
Denmark website
Sweden website
Finland website
Norway website
Korea website
info-de@nsk.com
NSK France S.A.S.

NSK France S.A.S.
Quartier de l’Europe
2, Rue Georges Guynemer
78283 Guyancourt Cedex
France
Website France
Website Greece
info-fr@nsk.com
NSK Italia S.p.A.

NSK Italia S.p.A.
Via Garibaldi 215
Garbagnate
20024 Milanese
Italy
www.nskeurope.it
info-it@nsk.com
NSK Spain, S.A.

NSK Spain, S.A.
C/ Tarragona, 161 Cuerpo Bajo
2a Planta
08014 Barcelona
Spain
Website Portugal
info-es@nsk.com

NSK UK Ltd.

NSK UK Ltd.
Northern Road, Newark
NG24 2JF Nottinghamshire
United Kingdom of Great Britain and Northern Ireland
www.nskeurope.com
info-uk@nsk.com
NSK Polska Sp.z o.o.

NSK Polska Sp.z o.o.
Migdałowa 4/73
02-796 Warszawa
Poland
Website Poland
Website Czechia
Website Hungary
Website Slovenia
Website Slovakia
Website Bulgaria
Website Serbia
info-pl@nsk.com
NSK Polska Sp. z o.o. Russian Branch

NSK Polska Sp. z o.o. Russian Branch
Office I 703, Bldg 29,
18th Line of Vasilievskiy Ostrov,
199178 San Petersburg
Poland
www.nskeurope.ru
info-ru@nsk.com
NSK Rulmanlari Orta Dog˘ u Tic. Ltd. S¸ ti

NSK Rulmanlari Orta Dog˘ u Tic. Ltd. S¸ ti
19 Mayis Mah. Atatürk Cad.
Ulya Engın I˙s¸ Merkezı No: 68 Kat. 6
P.K.: 34734 Kozyatag˘ i - I˙stanbul
Turkey
www.nskeurope.com.tr
turkey@nsk.com
