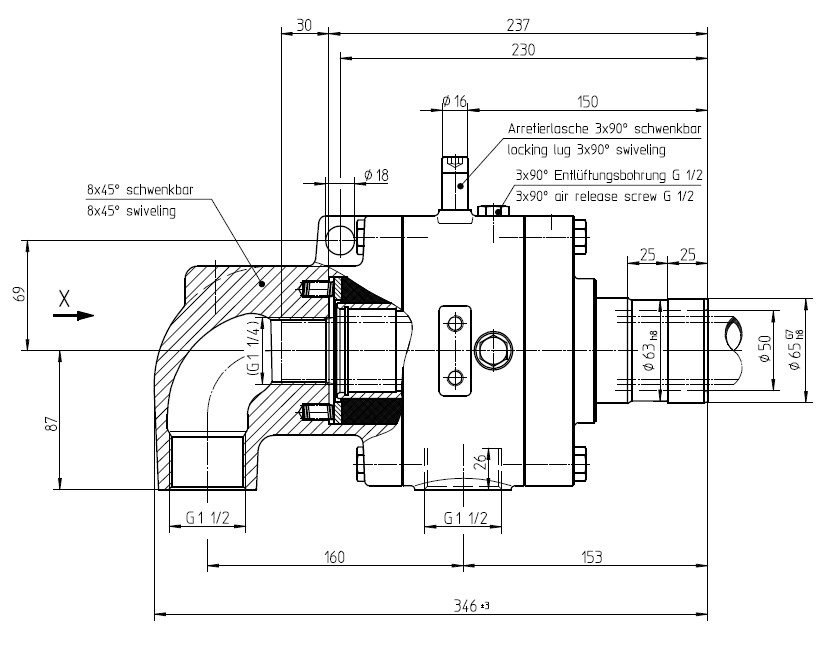

HWX 250 K

Robust, dual-channel DN50 sealing head with large bearing spacing and up to 50% higher speed than the standard H.


Manufacturer maierGroup
Description HWX 250 K
Manufacturer Part Number 1108585
Product Page https://maier-heidenheim.com/ddf/baureihe-h/
Material Guss
Mass 22 kg
Quantity 1
Media Wasser, Dampf
max flow rate bis 14,7 m³/h
max speed 150000/(DN x PN)
max temperature -10…230 °C
max pressure -0,2…28 bar
Inner diameter of rotor 50 mm
Housing connection B G 1 1/2
Housing connection C G 1 1/2
Rotor connection K-flange 65 mm
Diameter of inner tube support G 1 1/4
Overall length 347 mm
CAD modelleri
Fiyat teklif talebi
Lütfen bu yazılımın yüklendiğinden emin olun.

Ürün seçimi

Ürün Açıklaması

Flexible, robust, and low-maintenance: The reinforced version of the H series is designed for a wide range of media and a large pressure and temperature range up to higher speeds. This means you only need one solution for a wide variety of applications. As a result, you can reduce your maintenance and storage costs in the long term.
