VKDBEM

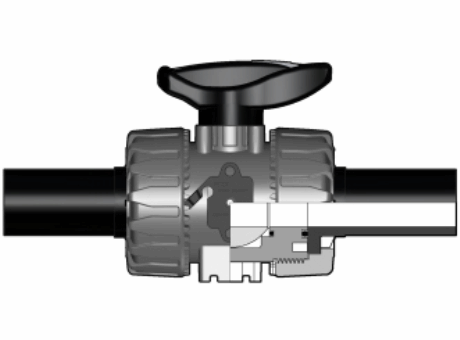

DUAL BLOCK® 2-way ball valve with PE100 SDR 11 male end connectors for butt welding or electrofusion (CVDE)



Manufacturer	FIP
Description	DUAL BLOCK® 2-way ball valve with PE100 SDR 11 male end connectors for butt welding or electrofusion (CVDE)
Item Number	VKDBEM020E

CAD-modeller

Offertbegäran

Produktinformation

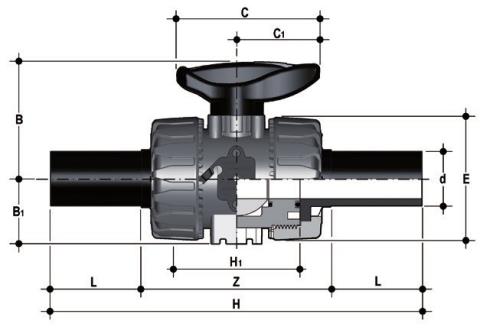

Index	Selector	Item Number	O-Ring Type	d	DN	PN	B1	C	C1	E	H	H1	L	Z
1	1	VKDBEM020E	EPDM	20	15	10	29	67	40	54	175	65	41	94
2	2	VKDBEM025E	EPDM	25	20	10	34,5	85	49	65	210	70	52	106
3	3	VKDBEM032E	EPDM	32	25	10	39	85	49	73	226	78	55	117
4	4	VKDBEM040E	EPDM	40	32	10	46	108	64	86	243	88	56	131
5	5	VKDBEM050E	EPDM	50	40	10	52	108	64	98	261	93	58	145
6	6	VKDBEM063E	EPDM	63	50	10	62	134	76	122	293	111	66	161
7	7	VKDBEM020F	FPM	20	15	10	29	67	40	54	175	65	41	94
8	8	VKDBEM025F	FPM	25	20	10	34,5	85	49	65	210	70	52	106
9	9	VKDBEM032F	FPM	32	25	10	39	85	49	73	226	78	55	117
10	10	VKDBEM040F	FPM	40	32	10	46	108	64	86	243	88	56	131
11	11	VKDBEM050F	FPM	50	40	10	52	108	64	98	261	93	58	145
12	12	VKDBEM063F	FPM	63	50	10	62	134	76	122	293	111	66	161
