[STAINLESS ECCENTRIC] Cam Follower CFH..MA

Hexagon socket on stud head (Ød: 5mm ~ 10mm)

Manufacturer	JNS
Description	[Stainless Eccentric] Cam Follower: hexagon socket on stud head
Part Number	JNS_CFH5MA
Installation Method	Hexagon socket on stud head
Material	STAINLESS STEEL
Outer Diameter D (mm)	13

Outer Ring	Cylinderical
Outer Ring Width C (mm)	9
Roller Guide	Cage
Seal Structure	Shield Type
Stud Diameter d (mm)	5

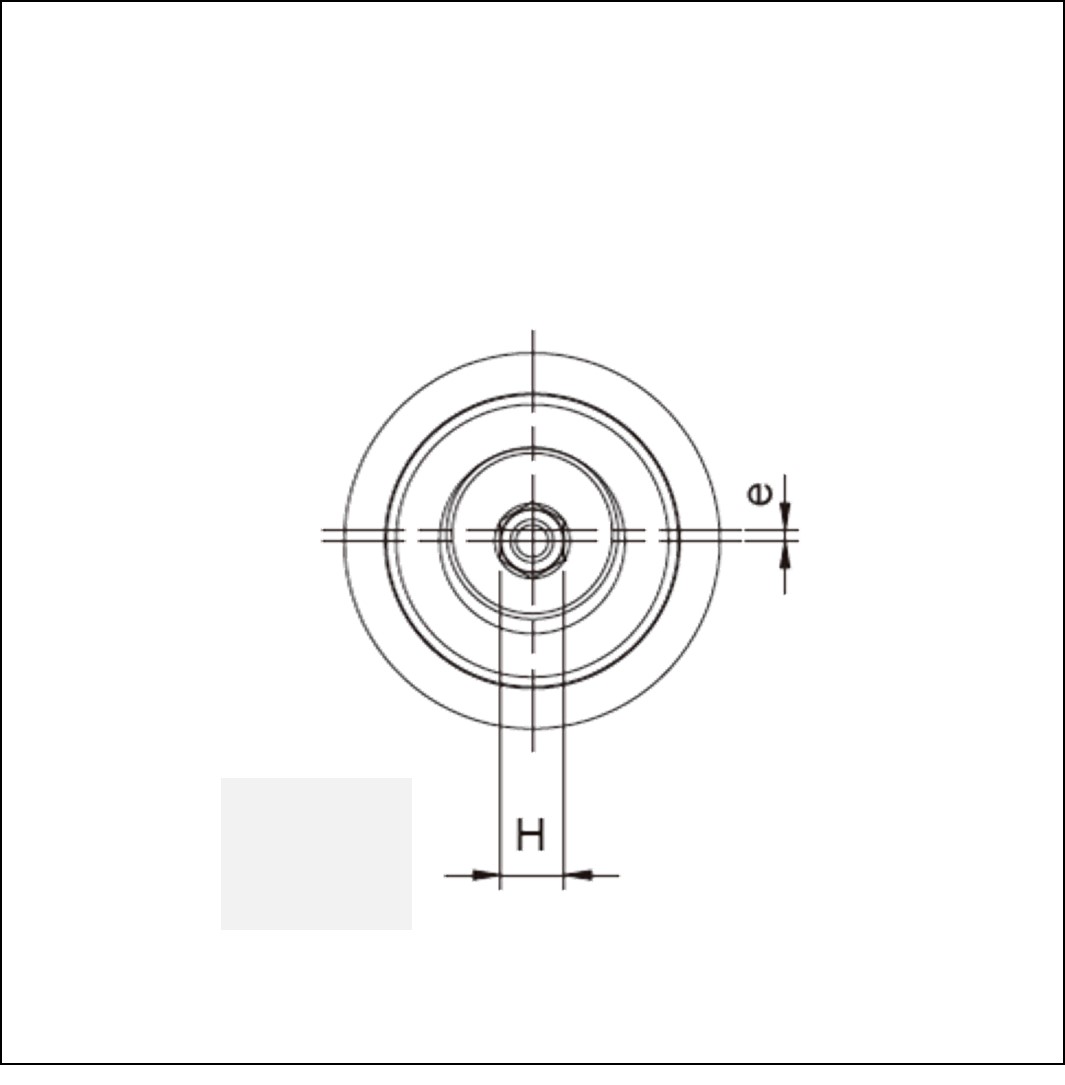

Type	Eccentric

modelmi CAD

Žiadosť o cenovú ponuku

Výber produktov

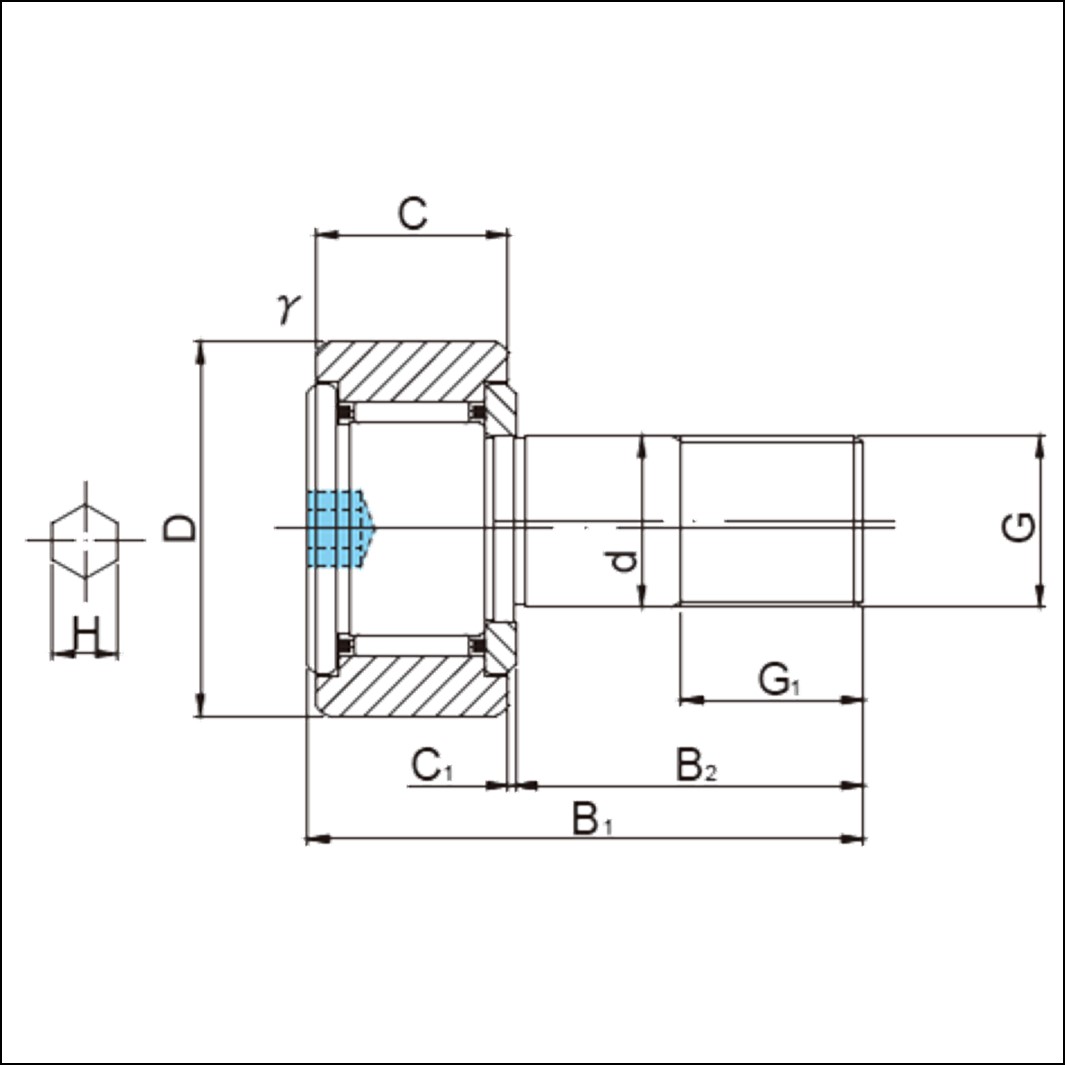

Index	Selector	Part Number	Description	Installation Method	Material	Outer Diameter D (mm)	Outer Ring	Outer Ring Width C (mm)	Roller Guide	Overall Length B1 (mm)	Seal Structure	Stud Diameter d (mm)	Thread Stud G	Type
1	1	JNS_CFH5MA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head	Hexagon socket on stud head	STAINLESS STEEL	13	Cylinderical	9	Cage	23	Shield Type	5	M5 x 0.8	Eccentric
2	12	JNS_CFH5MUUA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - seals	Hexagon socket on stud head	STAINLESS STEEL	13	Cylinderical	9	Cage	23	Sealed Type	5	M5 x 0.8	Eccentric
3	23	JNS_CFH5MRA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	13	Crowned	9	Cage	23	Shield Type	5	M5 x 0.8	Eccentric
4	34	JNS_CFH5MUURA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	13	Crowned	9	Cage	23	Sealed Type	5	M5 x 0.8	Eccentric
5	36	JNS_CFH5VMA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement	Hexagon socket on stud head	STAINLESS STEEL	13	Cylinderical	9	Full Complement	23	Shield Type	5	M5 x 0.8	Eccentric
6	37	JNS_CFH5VMUUA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement - seals	Hexagon socket on stud head	STAINLESS STEEL	13	Cylinderical	9	Full Complement	23	Sealed Type	5	M5 x 0.8	Eccentric
7	38	JNS_CFH5VMRA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	13	Crowned	9	Full Complement	23	Shield Type	5	M5 x 0.8	Eccentric
8	39	JNS_CFH5VMUURA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	13	Crowned	9	Full Complement	23	Sealed Type	5	M5 x 0.8	Eccentric
9	40	JNS_CFH6MA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head	Hexagon socket on stud head	STAINLESS STEEL	16	Cylinderical	11	Cage	28	Shield Type	6	M6 x 1	Eccentric
10	2	JNS_CFH6MUUA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - seals	Hexagon socket on stud head	STAINLESS STEEL	16	Cylinderical	11	Cage	28	Sealed Type	6	M6 x 1	Eccentric
11	3	JNS_CFH6MRA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	16	Crowned	11	Cage	28	Shield Type	6	M6 x 1	Eccentric
12	4	JNS_CFH6MUURA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	16	Crowned	11	Cage	28	Sealed Type	6	M6 x 1	Eccentric
13	5	JNS_CFH6VMA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement	Hexagon socket on stud head	STAINLESS STEEL	16	Cylinderical	11	Full Complement	28	Shield Type	6	M6 x 1	Eccentric
14	6	JNS_CFH6VMUUA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement - seals	Hexagon socket on stud head	STAINLESS STEEL	16	Cylinderical	11	Full Complement	28	Sealed Type	6	M6 x 1	Eccentric
15	7	JNS_CFH6VMRA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	16	Crowned	11	Full Complement	28	Shield Type	6	M6 x 1	Eccentric
16	8	JNS_CFH6VMUURA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	16	Crowned	11	Full Complement	28	Sealed Type	6	M6 x 1	Eccentric
17	9	JNS_CFH8MA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head	Hexagon socket on stud head	STAINLESS STEEL	19	Cylinderical	11	Cage	32	Shield Type	8	M8 x 1.25	Eccentric
18	10	JNS_CFH8MUUA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - seals	Hexagon socket on stud head	STAINLESS STEEL	19	Cylinderical	11	Cage	32	Sealed Type	8	M8 x 1.25	Eccentric
19	11	JNS_CFH8MRA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	19	Crowned	11	Cage	32	Shield Type	8	M8 x 1.25	Eccentric
20	13	JNS_CFH8MUURA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	19	Crowned	11	Cage	32	Sealed Type	8	M8 x 1.25	Eccentric
21	14	JNS_CFH8VMA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement	Hexagon socket on stud head	STAINLESS STEEL	19	Cylinderical	11	Full Complement	32	Shield Type	8	M8 x 1.25	Eccentric
22	15	JNS_CFH8VMUUA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement - seals	Hexagon socket on stud head	STAINLESS STEEL	19	Cylinderical	11	Full Complement	32	Sealed Type	8	M8 x 1.25	Eccentric
23	16	JNS_CFH8VMRA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	19	Crowned	11	Full Complement	32	Shield Type	8	M8 x 1.25	Eccentric
24	17	JNS_CFH8VMUURA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	19	Crowned	11	Full Complement	32	Sealed Type	8	M8 x 1.25	Eccentric
25	18	JNS_CFH10MA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head	Hexagon socket on stud head	STAINLESS STEEL	22	Cylinderical	12	Cage	36	Shield Type	10	M10 x 1.25	Eccentric
26	19	JNS_CFH10MUUA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - seals	Hexagon socket on stud head	STAINLESS STEEL	22	Cylinderical	12	Cage	36	Sealed Type	10	M10 x 1.25	Eccentric
27	20	JNS_CFH10MRA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	22	Crowned	12	Cage	36	Shield Type	10	M10 x 1.25	Eccentric
28	21	JNS_CFH10MUURA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	22	Crowned	12	Cage	36	Sealed Type	10	M10 x 1.25	Eccentric
29	22	JNS_CFH10VMA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement	Hexagon socket on stud head	STAINLESS STEEL	22	Cylinderical	12	Full Complement	36	Shield Type	10	M10 x 1.25	Eccentric
30	24	JNS_CFH10VMUUA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement - seals	Hexagon socket on stud head	STAINLESS STEEL	22	Cylinderical	12	Full Complement	36	Sealed Type	10	M10 x 1.25	Eccentric
31	25	JNS_CFH10VMRA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	22	Crowned	12	Full Complement	36	Shield Type	10	M10 x 1.25	Eccentric
32	26	JNS_CFH10VMUURA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	22	Crowned	12	Full Complement	36	Sealed Type	10	M10 x 1.25	Eccentric
33	27	JNS_CFH10-1MA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head	Hexagon socket on stud head	STAINLESS STEEL	26	Cylinderical	12	Cage	36	Shield Type	10	M10 x 1.25	Eccentric
34	28	JNS_CFH10-1MUUA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - seals	Hexagon socket on stud head	STAINLESS STEEL	26	Cylinderical	12	Cage	36	Sealed Type	10	M10 x 1.25	Eccentric
35	29	JNS_CFH10-1MRA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	26	Crowned	12	Cage	36	Shield Type	10	M10 x 1.25	Eccentric
36	30	JNS_CFH10-1MUURA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	26	Crowned	12	Cage	36	Sealed Type	10	M10 x 1.25	Eccentric
37	31	JNS_CFH10-1VMA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement	Hexagon socket on stud head	STAINLESS STEEL	26	Cylinderical	12	Full Complement	36	Shield Type	10	M10 x 1.25	Eccentric
38	32	JNS_CFH10-1VMUUA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement - seals	Hexagon socket on stud head	STAINLESS STEEL	26	Cylinderical	12	Full Complement	36	Sealed Type	10	M10 x 1.25	Eccentric
39	33	JNS_CFH10-1VMRA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	26	Crowned	12	Full Complement	36	Shield Type	10	M10 x 1.25	Eccentric
40	35	JNS_CFH10-1VMUURA	[Stainless Eccentric] Cam Follower: hexagon socket on stud head - full complement - seals - crowned outer ring	Hexagon socket on stud head	STAINLESS STEEL	26	Crowned	12	Full Complement	36	Sealed Type	10	M10 x 1	Eccentric

Popis výrobku

UU: with seals - R: crowned outer ring - V: full complement

Dokumentácia

Catalog

Obráťte sa na dodávateľa.

JNS

Manufacturer of Needle Roller Bearings
