[STAINLESS ECCENTRIC] Cam Follower CFH..M

Screwdriver slot on stud head (Ød: 5mm ~ 10mm)

Manufacturer	JNS
Description	[Stainless Eccentric] Cam Follower: screwdriver slot
Part Number	CFH5M
Installation Method	Screwdriver slot
Material	STAINLESS STEEL

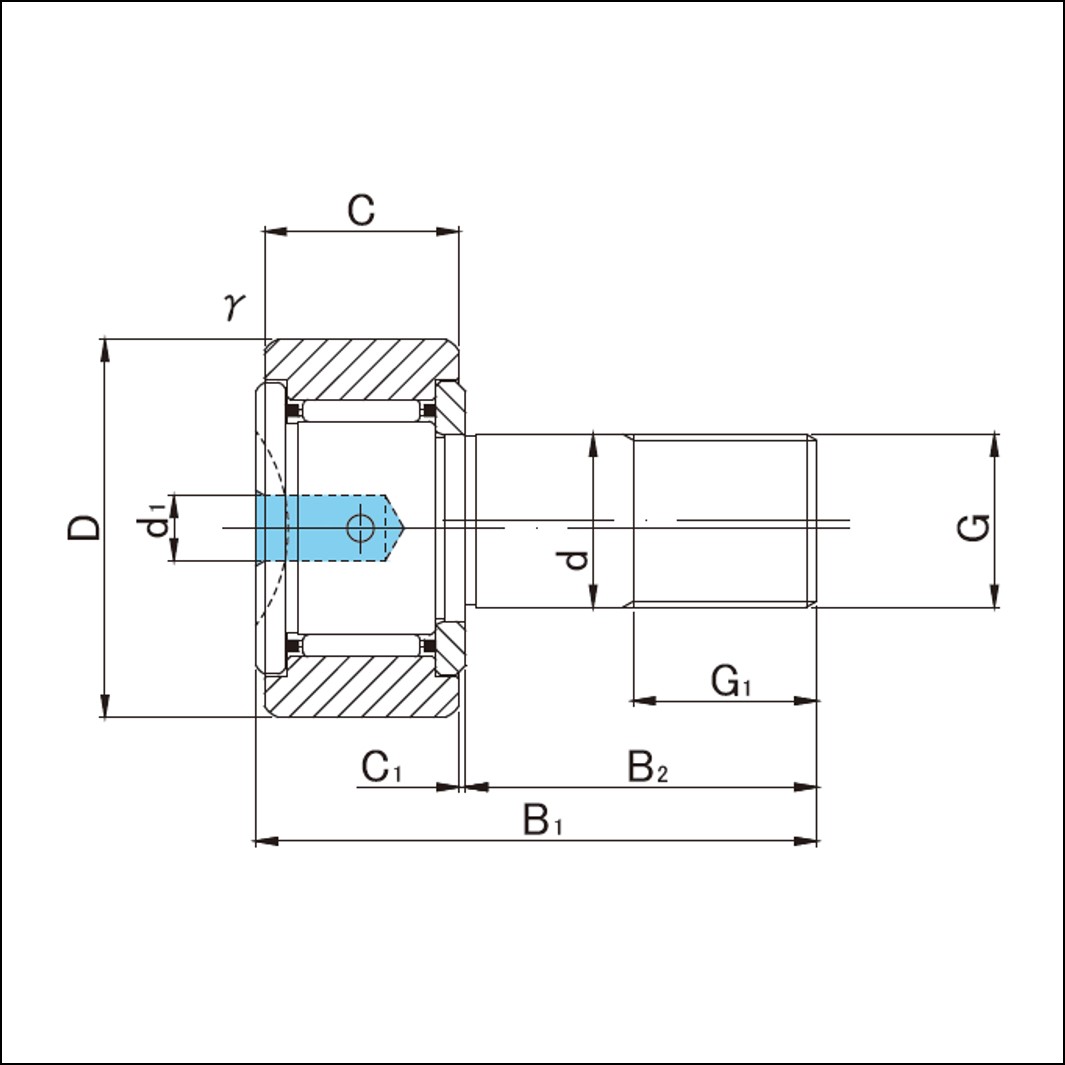

Outer Diameter D (mm)	13

Outer Ring	Cylinderical
Outer Ring Width C (mm)	9
Roller Guide	Cage
Seal Structure	Shield Type
Stud Diameter d (mm)	5
Type	Eccentric

modelmi CAD

Žiadosť o cenovú ponuku

Výber produktov

Index	Selector	Part Number	Description	Installation Method	Material	Outer Diameter D (mm)	Outer Ring	Outer Ring Width C (mm)	Roller Guide	Overall Length B1 (mm)	Seal Structure	Stud Diameter d (mm)	Thread Stud G	Type
1	1	CFH5M	[Stainless Eccentric] Cam Follower: screwdriver slot	Screwdriver slot	STAINLESS STEEL	13	Cylinderical	9	Cage	23	Shield Type	5	M5 x 0.8	Eccentric
2	12	CFH5MUU	[Stainless Eccentric] Cam Follower: screwdriver slot - seals	Screwdriver slot	STAINLESS STEEL	13	Cylinderical	9	Cage	23	Sealed Type	5	M5 x 0.8	Eccentric
3	23	CFH5MR	[Stainless Eccentric] Cam Follower: screwdriver slot - crowned outer ring	Screwdriver slot	STAINLESS STEEL	13	Crowned	9	Cage	23	Shield Type	5	M5 x 0.8	Eccentric
4	34	CFH5MUUR	[Stainless Eccentric] Cam Follower: screwdriver slot - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	13	Crowned	9	Cage	23	Sealed Type	5	M5 x 0.8	Eccentric
5	36	CFH5VM	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement	Screwdriver slot	STAINLESS STEEL	13	Cylinderical	9	Full Complement	23	Shield Type	5	M5 x 0.8	Eccentric
6	37	CFH5VMUU	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement - seals	Screwdriver slot	STAINLESS STEEL	13	Cylinderical	9	Full Complement	23	Sealed Type	5	M5 x 0.8	Eccentric
7	38	CFH5VMR	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement - crowned outer ring	Screwdriver slot	STAINLESS STEEL	13	Crowned	9	Full Complement	23	Shield Type	5	M5 x 0.8	Eccentric
8	39	CFH5VMUUR	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	13	Crowned	9	Full Complement	23	Sealed Type	5	M5 x 0.8	Eccentric
9	40	CFH6M	[Stainless Eccentric] Cam Follower: screwdriver slot	Screwdriver slot	STAINLESS STEEL	16	Cylinderical	11	Cage	28	Shield Type	6	M6 x 1	Eccentric
10	2	CFH6MUU	[Stainless Eccentric] Cam Follower: screwdriver slot - seals	Screwdriver slot	STAINLESS STEEL	16	Cylinderical	11	Cage	28	Sealed Type	6	M6 x 1	Eccentric
11	3	CFH6MR	[Stainless Eccentric] Cam Follower: screwdriver slot - crowned outer ring	Screwdriver slot	STAINLESS STEEL	16	Crowned	11	Cage	28	Shield Type	6	M6 x 1	Eccentric
12	4	CFH6MUUR	[Stainless Eccentric] Cam Follower: screwdriver slot - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	16	Crowned	11	Cage	28	Sealed Type	6	M6 x 1	Eccentric
13	5	CFH6VM	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement	Screwdriver slot	STAINLESS STEEL	16	Cylinderical	11	Full Complement	28	Shield Type	6	M6 x 1	Eccentric
14	6	CFH6VMUU	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement - seals	Screwdriver slot	STAINLESS STEEL	16	Cylinderical	11	Full Complement	28	Sealed Type	6	M6 x 1	Eccentric
15	7	CFH6VMR	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement - crowned outer ring	Screwdriver slot	STAINLESS STEEL	16	Crowned	11	Full Complement	28	Shield Type	6	M6 x 1	Eccentric
16	8	CFH6VMUUR	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	16	Crowned	11	Full Complement	28	Sealed Type	6	M6 x 1	Eccentric
17	9	CFH8M	[Stainless Eccentric] Cam Follower: screwdriver slot	Screwdriver slot	STAINLESS STEEL	19	Cylinderical	11	Cage	32	Shield Type	8	M8 x 1.25	Eccentric
18	10	CFH8MUU	[Stainless Eccentric] Cam Follower: screwdriver slot - seals	Screwdriver slot	STAINLESS STEEL	19	Cylinderical	11	Cage	32	Sealed Type	8	M8 x 1.25	Eccentric
19	11	CFH8MR	[Stainless Eccentric] Cam Follower: screwdriver slot - crowned outer ring	Screwdriver slot	STAINLESS STEEL	19	Crowned	11	Cage	32	Shield Type	8	M8 x 1.25	Eccentric
20	13	CFH8MUUR	[Stainless Eccentric] Cam Follower: screwdriver slot - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	19	Crowned	11	Cage	32	Sealed Type	8	M8 x 1.25	Eccentric
21	14	CFH8VM	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement	Screwdriver slot	STAINLESS STEEL	19	Cylinderical	11	Full Complement	32	Shield Type	8	M8 x 1.25	Eccentric
22	15	CFH8VMUU	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement - seals	Screwdriver slot	STAINLESS STEEL	19	Cylinderical	11	Full Complement	32	Sealed Type	8	M8 x 1.25	Eccentric
23	16	CFH8VMR	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement - crowned outer ring	Screwdriver slot	STAINLESS STEEL	19	Crowned	11	Full Complement	32	Shield Type	8	M8 x 1.25	Eccentric
24	17	CFH8VMUUR	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	19	Crowned	11	Full Complement	32	Sealed Type	8	M8 x 1.25	Eccentric
25	18	CFH10M	[Stainless Eccentric] Cam Follower: screwdriver slot	Screwdriver slot	STAINLESS STEEL	22	Cylinderical	12	Cage	36	Shield Type	10	M10 x 1.25	Eccentric
26	19	CFH10MUU	[Stainless Eccentric] Cam Follower: screwdriver slot - seals	Screwdriver slot	STAINLESS STEEL	22	Cylinderical	12	Cage	36	Sealed Type	10	M10 x 1.25	Eccentric
27	20	CFH10MR	[Stainless Eccentric] Cam Follower: screwdriver slot - crowned outer ring	Screwdriver slot	STAINLESS STEEL	22	Crowned	12	Cage	36	Shield Type	10	M10 x 1.25	Eccentric
28	21	CFH10MUUR	[Stainless Eccentric] Cam Follower: screwdriver slot - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	22	Crowned	12	Cage	36	Sealed Type	10	M10 x 1.25	Eccentric
29	22	CFH10VM	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement	Screwdriver slot	STAINLESS STEEL	22	Cylinderical	12	Full Complement	36	Shield Type	10	M10 x 1.25	Eccentric
30	24	CFH10VMUU	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement - seals	Screwdriver slot	STAINLESS STEEL	22	Cylinderical	12	Full Complement	36	Sealed Type	10	M10 x 1.25	Eccentric
31	25	CFH10VMR	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement - crowned outer ring	Screwdriver slot	STAINLESS STEEL	22	Crowned	12	Full Complement	36	Shield Type	10	M10 x 1.25	Eccentric
32	26	CFH10VMUUR	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	22	Crowned	12	Full Complement	36	Sealed Type	10	M10 x 1.25	Eccentric
33	27	CFH10-1M	[Stainless Eccentric] Cam Follower: screwdriver slot	Screwdriver slot	STAINLESS STEEL	26	Cylinderical	12	Cage	36	Shield Type	10	M10 x 1.25	Eccentric
34	28	CFH10-1MUU	[Stainless Eccentric] Cam Follower: screwdriver slot - seals	Screwdriver slot	STAINLESS STEEL	26	Cylinderical	12	Cage	36	Sealed Type	10	M10 x 1.25	Eccentric
35	29	CFH10-1MR	[Stainless Eccentric] Cam Follower: screwdriver slot - crowned outer ring	Screwdriver slot	STAINLESS STEEL	26	Crowned	12	Cage	36	Shield Type	10	M10 x 1.25	Eccentric
36	30	CFH10-1MUUR	[Stainless Eccentric] Cam Follower: screwdriver slot - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	26	Crowned	12	Cage	36	Sealed Type	10	M10 x 1.25	Eccentric
37	31	CFH10-1VM	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement	Screwdriver slot	STAINLESS STEEL	26	Cylinderical	12	Full Complement	36	Shield Type	10	M10 x 1.25	Eccentric
38	32	CFH10-1VMUU	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement - seals	Screwdriver slot	STAINLESS STEEL	26	Cylinderical	12	Full Complement	36	Sealed Type	10	M10 x 1.25	Eccentric
39	33	CFH10-1VMR	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement - crowned outer ring	Screwdriver slot	STAINLESS STEEL	26	Crowned	12	Full Complement	36	Shield Type	10	M10 x 1.25	Eccentric
40	35	CFH10-1VMUUR	[Stainless Eccentric] Cam Follower: screwdriver slot - full complement - seals - crowned outer ring	Screwdriver slot	STAINLESS STEEL	26	Crowned	12	Full Complement	36	Sealed Type	10	M10 x 1.25	Eccentric

Popis výrobku

UU: with seals - R: crowned outer ring - V: full complement

Dokumentácia

Catalog

Obráťte sa na dodávateľa.

JNS

Manufacturer of Needle Roller Bearings
