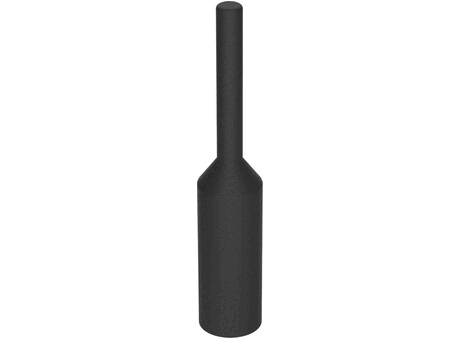

V0510 High Temperature Pull Plugs

Manufacturer	Wixroyd
Description	V0510 High Temperature Pull Plugs, V0510.AC0102
Order No.	V0510.AC0102
Distributor	Wixroyd Group Ltd

образцами САПР

Запрос предложения

Выбор товара

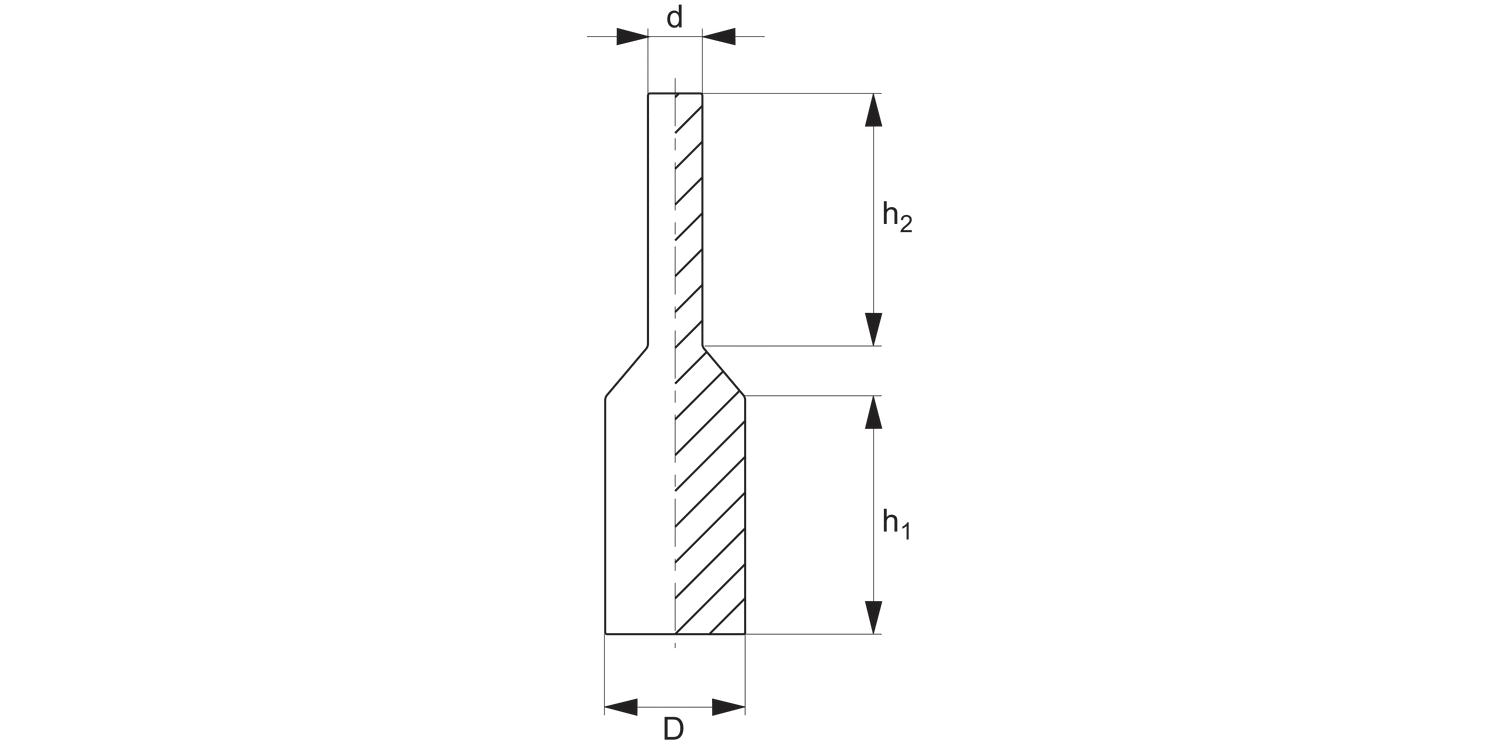

Index	Selector	Order No.	Description	Order No.	d<sub>1</sub>	d<sub>2</sub>	h<sub>1</sub>	h<sub>2</sub>
1	1	V0510.AC0102	V0510 High Temperature Pull Plugs, V0510.AC0102	V0510.AC0102	1.7	1.2	15.9	15.5
2	2	V0510.AC0106	V0510 High Temperature Pull Plugs, V0510.AC0106	V0510.AC0106	2.4	1.3	17.8	17.8
3	3	V0510.AC0114	V0510 High Temperature Pull Plugs, V0510.AC0114	V0510.AC0114	3.2	1.6	15.9	15.9
4	4	V0510.AC0122	V0510 High Temperature Pull Plugs, V0510.AC0122	V0510.AC0122	4.0	1.6	15.9	19.1
5	5	V0510.AC0124	V0510 High Temperature Pull Plugs, V0510.AC0124	V0510.AC0124	5.0	2.8	25.4	25.4
6	6	V0510.AC0130	V0510 High Temperature Pull Plugs, V0510.AC0130	V0510.AC0130	6.5	3.3	25.4	25.4
7	7	V0510.AC0132	V0510 High Temperature Pull Plugs, V0510.AC0132	V0510.AC0132	8.5	3.9	25.4	25.4
8	8	V0510.AC0138	V0510 High Temperature Pull Plugs, V0510.AC0138	V0510.AC0138	10.2	4.0	25.4	25.4
9	9	V0510.AC0140	V0510 High Temperature Pull Plugs, V0510.AC0140	V0510.AC0140	12.0	6.2	25.4	25.4
10	10	V0510.AC0142	V0510 High Temperature Pull Plugs, V0510.AC0142	V0510.AC0142	13.5	6.4	25.4	25.4
11	11	V0510.AC0146	V0510 High Temperature Pull Plugs, V0510.AC0146	V0510.AC0146	15.5	6.4	25.4	25.4

Описане продукта

Silicone, natural. Temperature resistant to +300°C.

For masking plain or threaded holes. Pull out tab improves ease of removal after finishing process.

Sold subject to minimum pack quantity.
