WEH® Ultra-High Pressure Hand valve - straight design

Needle valve for high-pressure applications

Manufacturer	WEH FluidTech
Description	WEH® Ultra-High Pessure Hand Valve with straight design, M16x1.5, TNW: 3.5 mm, 2,500 bar
Part Number	C1-189590
Technical nominal bore	3.5 mm
Max. allowable Operating pressure PS	2,500 bar
Temperature range	+5 °C to +50 °C
Medium	Air / water / hydraulic oil (only oils according to fluid group 2 DGR)

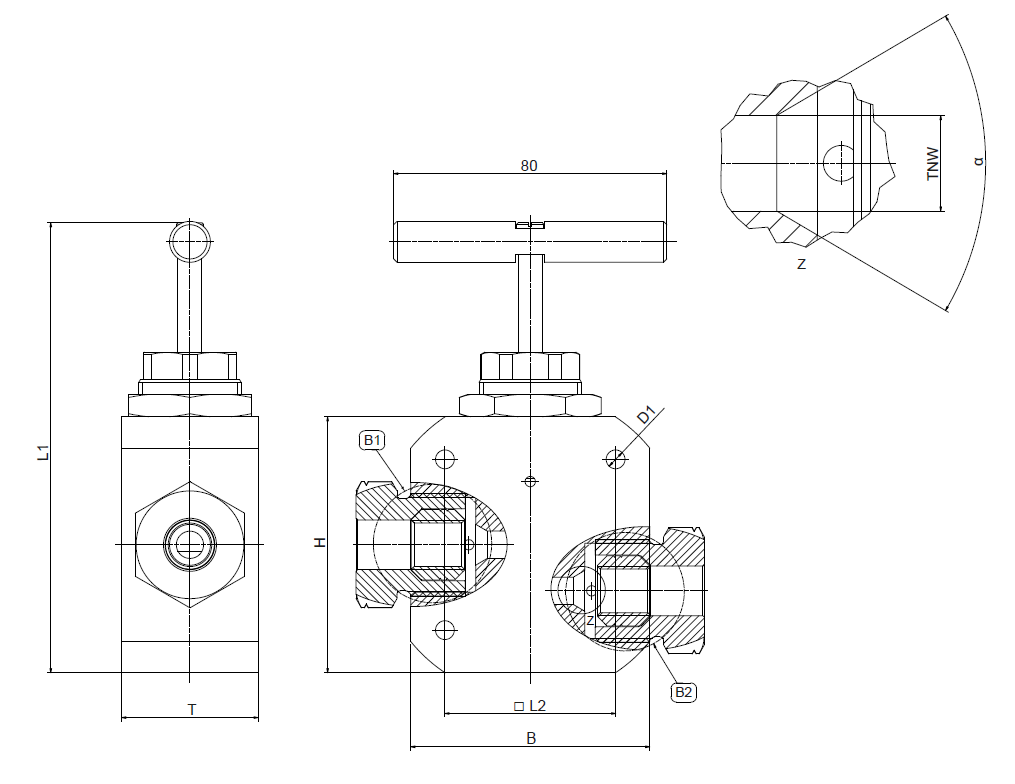

Thread B1 = B2	M16x1.5

CAD-modeller

Forespørsel om prisoverslag

Produktutvalg

Index	Selector	Part Number	Description	Technical nominal bore	Max. allowable Operating pressure PS	Temperature range	Medium	Thread B1 = B2
1	1	C1-189590	WEH® Ultra-High Pessure Hand Valve with straight design, M16x1.5, TNW: 3.5 mm, 2,500 bar	3.5 mm	2,500 bar	+5 °C to +50 °C	Air / water / hydraulic oil (only oils according to fluid group 2 DGR)	M16x1.5
2	5	C1-189592	WEH® Ultra-High Pessure Hand Valve with straight design, 9/16"-18 UNF, TNW: 3.5 mm, 2,500 bar	3.5 mm	2,500 bar	+5 °C to +50 °C	Air / water / hydraulic oil (only oils according to fluid group 2 DGR)	9/16“-18 UNF
3	6	C1-189582	WEH® Ultra-High Pessure Hand Valve with straight design, M20x1.5, TNW: 5 mm, 2,500 bar	5.0 mm	2,500 bar	+5 °C to +50 °C	Air / water / hydraulic oil (only oils according to fluid group 2 DGR)	M20x1.5
4	7	C1-189584	WEH® Ultra-High Pessure Hand Valve with straight design, 3/4"-16 UNF, TNW: 5 mm, 2,500 bar	5.0 mm	2,500 bar	+5 °C to +50 °C	Air / water / hydraulic oil (only oils according to fluid group 2 DGR)	3/4“-16 UNF
5	8	C1-189575	WEH® Ultra-High Pessure Hand Valve with straight design, M30x2, TNW: 8 mm, 2,500 bar	8.0 mm	2,500 bar	+5 °C to +50 °C	Air / water / hydraulic oil (only oils according to fluid group 2 DGR)	M30x2
6	9	C1-189577	WEH® Ultra-High Pessure Hand Valve with straight design, 1 1/8"-12 UNF, TNW: 8 mm, 2,500 bar	8.0 mm	2,500 bar	+5 °C to +50 °C	Air / water / hydraulic oil (only oils according to fluid group 2 DGR)	1 1/8“-12 UNF
7	10	C1-189333	WEH® Ultra-High Pessure Hand Valve with straight design, M16x1.5, TNW: 2.5 mm, 4,200 bar	2.5 mm	4,200 bar	+5 °C to +50 °C	Air / water / hydraulic oil (only oils according to fluid group 2 DGR)	M16x1.5
8	11	C1-189519	WEH® Ultra-High Pessure Hand Valve with straight design, 9/16“-18 UNF, TNW: 2.5 mm, 4,200 bar	2.5 mm	4,200 bar	+5 °C to +50 °C	Air / water / hydraulic oil (only oils according to fluid group 2 DGR)	9/16“-18 UNF
9	12	C1-189549	WEH® Ultra-High Pessure Hand Valve with straight design, M20x1.5, TNW: 3.2 mm, 4,200 bar	3.2 mm	4,200 bar	+5 °C to +50 °C	Air / water / hydraulic oil (only oils according to fluid group 2 DGR)	M20x1.5
10	2	C1-189550	WEH® Ultra-High Pessure Hand Valve with straight design, 3/4“-16 UNF, TNW: 3.2 mm, 4,200 bar	3.2 mm	4,200 bar	+5 °C to +50 °C	Air / water / hydraulic oil (only oils according to fluid group 2 DGR)	3/4“-16 UNF
11	3	C1-189562	WEH® Ultra-High Pessure Hand Valve with straight design, M30x2, TNW: 4.5 mm, 4,200 bar	4.5 mm	4,200 bar	+5 °C to +50 °C	Air / water / hydraulic oil (only oils according to fluid group 2 DGR)	M30x2
12	4	C1-189563	WEH® Ultra-High Pessure Hand Valve with straight design, 1 1/8“-12 UNF, TNW: 4.5 mm, 4,200 bar	4.5 mm	4,200 bar	+5 °C to +50 °C	Air / water / hydraulic oil (only oils according to fluid group 2 DGR)	1 1/8“-12 UNF

Produktbeskrivelse

Wherever the media flow within a pipe system needs to be shut off or opened manually in both directions, the WEH manual valves perform this function with absolute reliability. The WEH® ultra-high pressure hand valves are needle valves that can be used to shut off the media flow. The valves are extremely smooth- running and only two to three turns are required to open them completely.

High flow rates: As the technical nominal diameter of the WEH manual valves is larger than standard pipe diameters, the pressure drop is significantly lower than with comparable products.

Three differently arranged mounting holes enable a variety of mounting options:

• laterally on a panel

• laterally on rails

The diagonally arranged lateral fixing holes also prevent unintentional twisting of the pipe connections when the hand lever is actuated, thus ensuring a permanent seal.

Applications

The WEH® ultra-high pressure hand valves are specially designed for hydraulic applications in the high-pressure range. We are happy to offer alternative versions for other media ranges and applications on request.
