[SEPARABLE] Roller Follower RNAST..

Without an inner ring (Ød: 7mm ~ 60mm)

Manufacturer	JNS
Description	[Separable] Roller Follower without an inner ring
Part Number	RNAST5
Material	CARBON STEEL

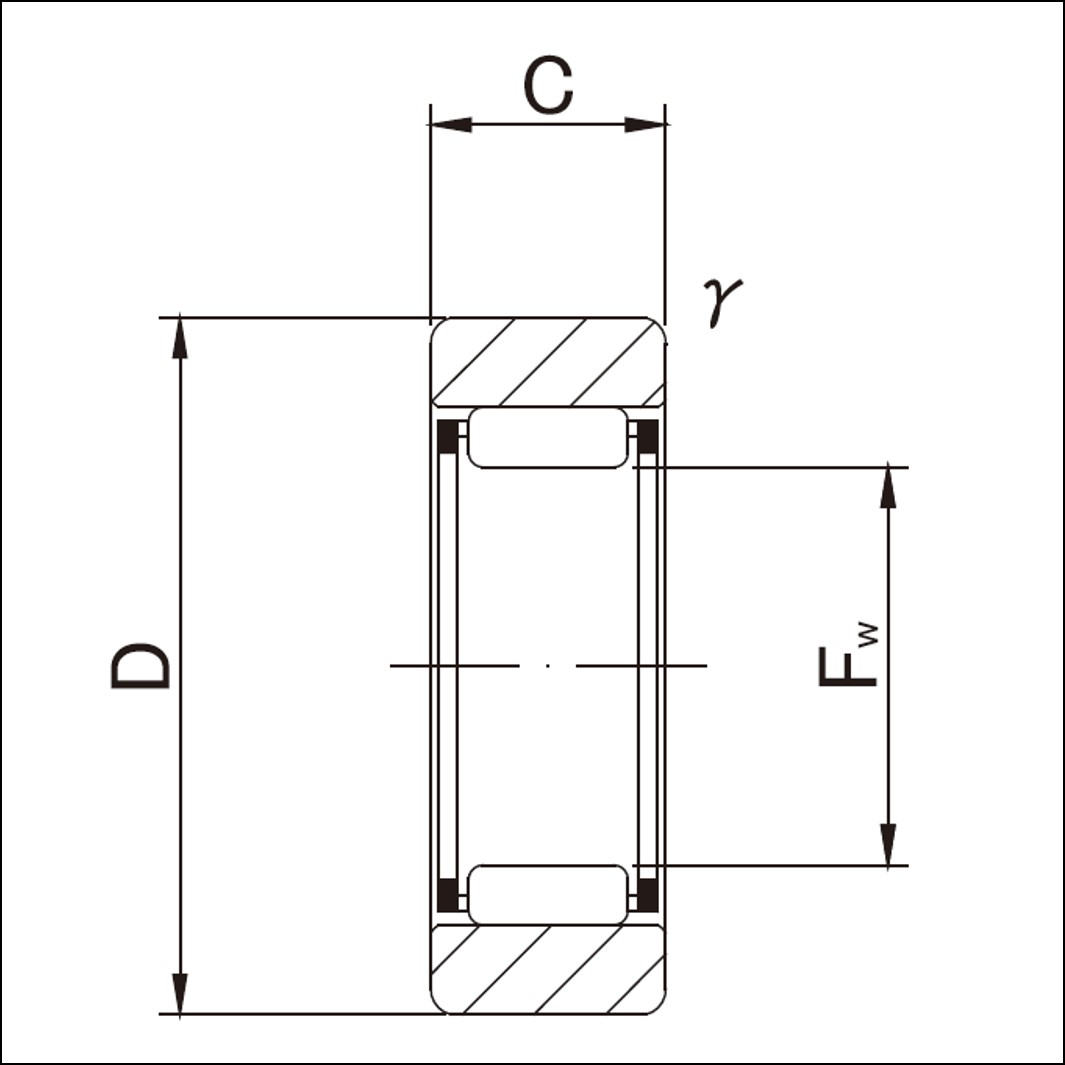

Outer Diameter D (mm)	16
Outer Ring	Cylinderical

Outer Ring Width C (mm)	7.8
Roller Guide	Cage
Shaft Diameter d (mm)	7
Seal Structure	Shield Type
Type	Separable

CAD-modeller

Forespørsel om prisoverslag

Produktutvalg

Index	Selector	Part Number	Description	Material	Outer Diameter D (mm)	Outer Ring	Outer Ring Width C (mm)	Roller Guide	Shaft Diameter d (mm)	Seal Structure	Type
1	1	RNAST5	[Separable] Roller Follower without an inner ring	CARBON STEEL	16	Cylinderical	7.8	Cage	7	Shield Type	Separable
2	12	RNAST5R	[Separable] Roller Follower without an inner ring - crowned outer ring	CARBON STEEL	16	Crowned	7.8	Cage	7	Shield Type	Separable
3	22	RNAST6	[Separable] Roller Follower without an inner ring	CARBON STEEL	19	Cylinderical	9.8	Cage	10	Shield Type	Separable
4	23	RNAST6R	[Separable] Roller Follower without an inner ring - crowned outer ring	CARBON STEEL	19	Crowned	9.8	Cage	10	Shield Type	Separable
5	24	RNAST8	[Separable] Roller Follower without an inner ring	CARBON STEEL	24	Cylinderical	9.8	Cage	12	Shield Type	Separable
6	25	RNAST8R	[Separable] Roller Follower without an inner ring - crowned outer ring	CARBON STEEL	24	Crowned	9.8	Cage	12	Shield Type	Separable
7	26	RNAST10	[Separable] Roller Follower without an inner ring	CARBON STEEL	30	Cylinderical	11.8	Cage	14	Shield Type	Separable
8	27	RNAST10R	[Separable] Roller Follower without an inner ring - crowned outer ring	CARBON STEEL	30	Crowned	11.8	Cage	14	Shield Type	Separable
9	28	RNAST12	[Separable] Roller Follower without an inner ring	CARBON STEEL	32	Cylinderical	11.8	Cage	16	Shield Type	Separable
10	2	RNAST12R	[Separable] Roller Follower without an inner ring - crowned outer ring	CARBON STEEL	32	Crowned	11.8	Cage	16	Shield Type	Separable
11	3	RNAST15	[Separable] Roller Follower without an inner ring	CARBON STEEL	35	Cylinderical	11.8	Cage	20	Shield Type	Separable
12	4	RNAST15R	[Separable] Roller Follower without an inner ring - crowned outer ring	CARBON STEEL	35	Crowned	11.8	Cage	20	Shield Type	Separable
13	5	RNAST17	[Separable] Roller Follower without an inner ring	CARBON STEEL	40	Cylinderical	15.8	Cage	22	Shield Type	Separable
14	6	RNAST17R	[Separable] Roller Follower without an inner ring - crowned outer ring	CARBON STEEL	40	Crowned	15.8	Cage	22	Shield Type	Separable
15	7	RNAST20	[Separable] Roller Follower without an inner ring	CARBON STEEL	47	Cylinderical	15.8	Cage	25	Shield Type	Separable
16	8	RNAST20R	[Separable] Roller Follower without an inner ring - crowned outer ring	CARBON STEEL	47	Crowned	15.8	Cage	25	Shield Type	Separable
17	9	RNAST25	[Separable] Roller Follower without an inner ring	CARBON STEEL	52	Cylinderical	15.8	Cage	30	Shield Type	Separable
18	10	RNAST25R	[Separable] Roller Follower without an inner ring - crowned outer ring	CARBON STEEL	52	Crowned	15.8	Cage	30	Shield Type	Separable
19	11	RNAST30	[Separable] Roller Follower without an inner ring	CARBON STEEL	62	Cylinderical	19.8	Cage	38	Shield Type	Separable
20	13	RNAST30R	[Separable] Roller Follower without an inner ring - crowned outer ring	CARBON STEEL	62	Crowned	19.8	Cage	38	Shield Type	Separable
21	14	RNAST35	[Separable] Roller Follower without an inner ring	CARBON STEEL	72	Cylinderical	19.8	Cage	42	Shield Type	Separable
22	15	RNAST35R	[Separable] Roller Follower without an inner ring - crowned outer ring	CARBON STEEL	72	Crowned	19.8	Cage	42	Shield Type	Separable
23	16	RNAST40	[Separable] Roller Follower without an inner ring	CARBON STEEL	80	Cylinderical	19.8	Cage	50	Shield Type	Separable
24	17	RNAST40R	[Separable] Roller Follower without an inner ring - crowned outer ring	CARBON STEEL	80	Crowned	19.8	Cage	50	Shield Type	Separable
25	18	RNAST45	[Separable] Roller Follower without an inner ring	CARBON STEEL	85	Cylinderical	19.8	Cage	55	Shield Type	Separable
26	19	RNAST45R	[Separable] Roller Follower without an inner ring - crowned outer ring	CARBON STEEL	85	Crowned	19.8	Cage	55	Shield Type	Separable
27	20	RNAST50	[Separable] Roller Follower without an inner ring	CARBON STEEL	90	Cylinderical	19.8	Cage	60	Shield Type	Separable
28	21	RNAST50R	[Separable] Roller Follower without an inner ring - crowned outer ring	CARBON STEEL	90	Crowned	19.8	Cage	60	Shield Type	Separable

Produktbeskrivelse

R: crowned outer ring

Dokumentasjon

Catalog

Ta kontakt med leverandøren

JNS

Manufacturer of Needle Roller Bearings
