EXTREME BEARING

EXW - SS 316 2-hole spherical flange bearings



Manufacturer	EXTREME BEARING
Description	SS 316 2-hole spherical flange bearings, Size 024, Spherical roller bearing, Type-T, Housing seal : Radial seal, AS type, Cover seal : Cover seal, VK type
Part number	EXW T 024 AS VK
Axis diameter	23.81 mm
Axis diameter	15/16 inch
Dynamic load	59 kN
Static load	62 kN

CAD-modellen

Offerteaanvraag

Productselectie

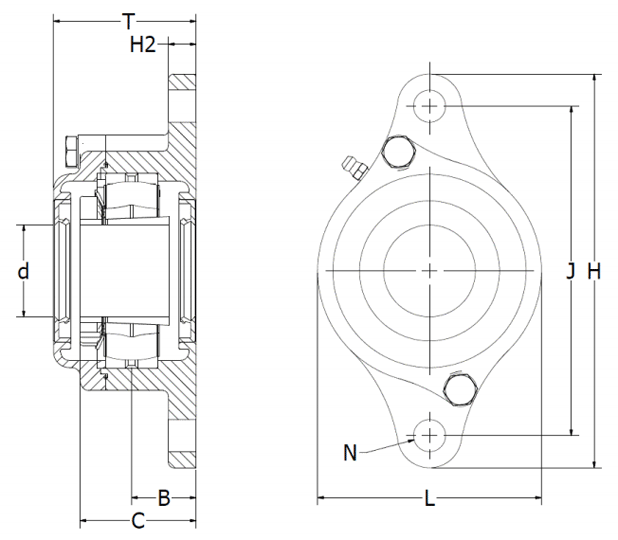

Index	Selector	Type	d (mm)	d (inch)	B (mm)	C (mm)	T (mm)	H2 (mm)	J (mm)	L (mm)	H (mm)	N (mm)	Grease hole	Basic load rating<br />for spherical<br />roller bearing<br />Dynamic (kN)	Basic load rating<br />for spherical<br />roller bearing<br />Static (kN)	Basic load rating<br />for double roll<br />ball bearing<br />Dynamic (kN)	Basic load rating<br />for double roll<br />ball bearing<br />Static (kN)	Axial movement (mm)	Seal seat (mm)
1	1	EXW-024	23.81	15/16	25	44	54	12	99	73	122	12	M6	59	62	15.7	4.7	3.5	42x7
2	2	EXW-025	25	62/63	25	44	54	12	99	73	122	12	M6	59	62	15.7	4.7	3.5	42x7
3	3	EXW-A25	25.4	1	25	44	54	12	99	73	122	12	M6	59	62	15.7	4.7	3.5	42x7
4	4	EXW-028	28.57	1 1/8	26	48	60	12	117	84	140	12	M6	81	88	16	5.2	3.5	47x7
5	5	EXW-030	30	1 1/6	26	48	60	12	117	84	140	12	M6	81	88	16	5.2	3.5	47x7
6	6	EXW-A30	30.16	1 1/5	26	48	60	12	117	84	140	12	M6	81	88	16	5.2	3.5	47x7
7	7	EXW-032	31.75	1 1/4	28	50	60	12	130	93	156	13	M6	88	100	19	6.5	3.5	52x7
8	8	EXW-A35	34.9	1 3/8	28	50	60	12	130	93	156	13	M6	88	100	19	6.5	3.5	52x7
9	9	EXW-035	35	1 3/8	28	50	60	12	130	93	156	13	M6	88	100	19	6.5	3.5	52x7
10	10	EXW-037	36.51	1 4/9	28	51	62	12	144	98	172	14	M6	95	105	22	7.5	3.5	62x7
11	11	EXW-038	38.1	1 1/2	28	51	62	12	144	98	172	14	M6	95	105	22	7.5	3.5	62x7
12	12	EXW-040	40	1 4/7	28	51	62	12	144	98	172	14	M6	95	105	22	7.5	3.5	62x7
13	13	EXW-043	42.86	1 2/3	32	57	69	14	149	106	179	16	M6	100	120	22.9	8.1	4	62x7
14	14	EXW-044	44.45	1 3/4	32	57	69	14	149	106	179	16	M6	100	120	22.9	8.1	4	62x7
15	15	EXW-045	45	1 3/4	32	57	69	14	149	106	179	16	M6	100	120	22.9	8.1	4	62x7
16	16	EXW-049	49.2	2	34	60	73	16.5	157	114	189	16	M6	120	140	25	9.6	4	72x7
17	17	EXW-050	50	2	34	60	73	16.5	157	114	189	16	M6	120	140	25	9.6	4	72x7
18	18	EXW-051	50.8	2	34	60	73	16.5	157	114	189	16	M6	120	140	25	9.6	4	72x7

Bearing

Housing seal

Cover seal
