EXTREME BEARING

EXL - SS 316 3-bolt flange bracket bearing housings



Manufacturer	EXTREME BEARING
Description	SS 316 3-bolt flange bracket bearing housings, Size 028, Spherical roller bearing, Type-T, Housing seal : Radial seal, AS type, Cover seal : Cover seal, VK type
Part number	EXL T 028 AS VK
Axis diameter	28.57 mm
Axis diameter	1 1/8 inch
Dynamic load	81 kN
Static load	88 kN

CAD-modellen

Offerteaanvraag

Productselectie

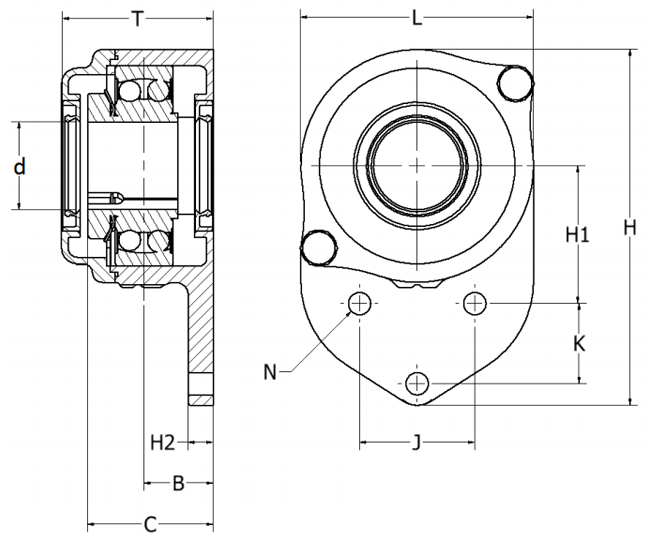

Index	Selector	Type	d (mm)	d (inch)	B (mm)	C (mm)	T (mm)	H1 (mm)	H2 (mm)	K (mm)	J (mm)	N (mm)	L (mm)	H (mm)	Grease hole	Basic load rating<br />for spherical<br />roller bearing<br />Dynamic (kN)	Basic load rating<br />for spherical<br />roller bearing<br />Static (kN)	Basic load rating<br />for double roll<br />ball bearing<br />Dynamic (kN)	Basic load rating<br />for double roll<br />ball bearing<br />Static (kN)	Axial movement (mm)	Seal seat (mm)
1	4	EXL-028	28.57	1 1/8	26	48	60	52.4	12	31.8	47.6	11	84	141.1	M6	81	88	16	5.2	3.5	47x7
2	5	EXL-030	30	1 1/6	26	48	60	52.4	12	31.8	47.6	11	84	141.1	M6	81	88	16	5.2	3.5	47x7
3	6	EXL-A30	30.16	1 1/5	26	48	60	52.4	12	31.8	47.6	11	84	141.1	M6	81	88	16	5.2	3.5	47x7
4	7	EXL-032	31.75	1 1/4	28	50	60	55	12	32	46	12.5	93	143.5	M6	88	100	19	6.5	3.5	52x7
5	8	EXL-A35	34.9	1 3/8	28	50	60	55	12	32	46	12.5	93	143.5	M6	88	100	19	6.5	3.5	52x7
6	9	EXL-035	35	1 3/8	28	50	60	55	12	32	46	12.5	93	143.5	M6	88	100	19	6.5	3.5	52x7
7	10	EXL-037	36.51	1 4/9	28	51	62	60	12	41	50	12.5	98	158.6	M6	95	105	22	7.5	3.5	62x7
8	11	EXL-038	38.1	1 1/2	28	51	62	60	12	41	50	12.5	98	158.6	M6	95	105	22	7.5	3.5	62x7
9	12	EXL-040	40	1 4/7	28	51	62	60	12	41	50	12.5	98	158.6	M6	95	105	22	7.5	3.5	62x7

Bearing

Housing seal

Cover seal
