EXF - SS 316 4-bolt flange bearings

Manufacturer	EXTREME BEARING
Description	SS 316 4-bolt flange bearings, Size 024, Spherical roller bearing, Type-T, Housing seal : Radial seal, AS type, Cover seal : Cover seal, VK type
Part number	EXF T 024 AS VK
Axis diameter	23.81 mm
Axis diameter	15/16 inch
Dynamic load	59 kN
Static load	62 kN

CAD-modellen

Offerteaanvraag

Productselectie

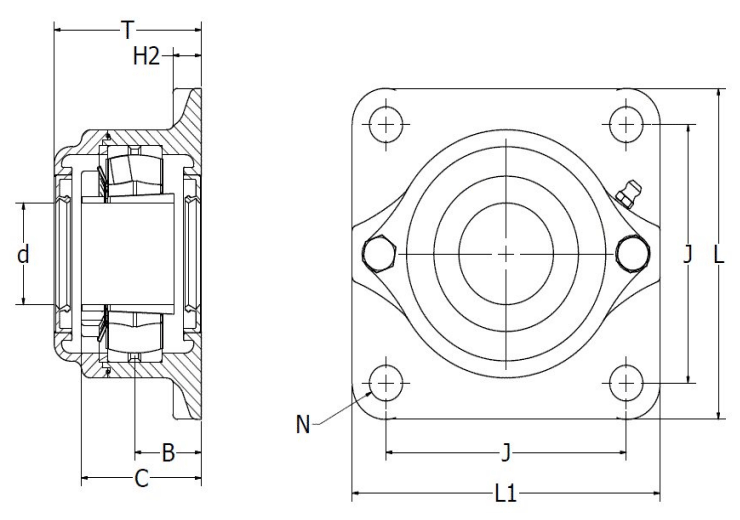

Index	Selector	Type	d (mm)	d (inch)	B (mm)	C (mm)	T (mm)	H2 (mm)	J (mm)	L (mm)	L1 (mm)	N (mm)	Grease hole	Basic load rating<br />for spherical<br />roller bearing<br />Dynamic (kN)	Basic load rating<br />for spherical<br />roller bearing<br />Static (kN)	Basic load rating<br />for double roll<br />ball bearing<br />Dynamic (kN)	Basic load rating<br />for double roll<br />ball bearing<br />Static (kN)	Axial movement (mm)	Seal seat (mm)
1	1	EXF-024	23.81	15/16	25	44	54	12	70	95	95	12	M6	59	62	15.7	4.7	3.5	42x7
2	2	EXF-025	25	62/63	25	44	54	12	70	95	95	12	M6	59	62	15.7	4.7	3.5	42x7
3	3	EXF-A25	25.4	1	25	44	54	12	70	95	95	12	M6	59	62	15.7	4.7	3.5	42x7
4	4	EXF-028	28.57	1 1/8	26	48	60	12	83	108	108	12	M6	81	88	16	5.2	3.5	47x7
5	5	EXF-030	30	1 1/6	26	48	60	12	83	108	108	12	M6	81	88	16	5.2	3.5	47x7
6	6	EXF-A30	30.16	1 1/5	26	48	60	12	83	108	108	12	M6	81	88	16	5.2	3.5	47x7
7	7	EXF-032	31.75	1 1/4	28	50	60	12	92	118	118	13	M6	88	100	19	6.5	3.5	52x7
8	8	EXF-A35	34.9	1 3/8	28	50	60	12	92	118	118	13	M6	88	100	19	6.5	3.5	52x7
9	9	EXF-035	35	1 3/8	28	50	60	12	92	118	118	13	M6	88	100	19	6.5	3.5	52x7
10	10	EXF-037	36.51	1 4/9	28	51	62	12	101	130	130	14	M6	95	105	22	7.5	3.5	62x7
11	11	EXF-038	38.1	1 1/2	28	51	62	12	101	130	130	14	M6	95	105	22	7.5	3.5	62x7
12	12	EXF-040	40	1 4/7	28	51	62	12	101	130	130	14	M6	95	105	22	7.5	3.5	62x7
13	13	EXF-043	42.86	1 2/3	32	57	69	12	105	137	137	16	M6	100	120	22.9	8.1	4	62x7
14	14	EXF-044	44.45	1 3/4	32	57	69	12	105	137	137	16	M6	100	120	22.9	8.1	4	62x7
15	15	EXF-045	45	1 3/4	32	57	69	12	105	137	137	16	M6	100	120	22.9	8.1	4	62x7
16	16	EXF-049	49.2	2	34	60	73	12	111	143	148	18	M6	120	140	25	9.6	4	72x7
17	17	EXF-050	50	2	34	60	73	12	111	143	148	18	M6	120	140	25	9.6	4	72x7
18	18	EXF-051	50.8	2	34	60	73	12	111	143	148	18	M6	120	140	25	9.6	4	72x7
19	19	EXF-054	53.9	2 1/8	34	62	74	14	130	162	162	18	M6	145	175	30	11.2	4	72x7
20	20	EXF-055	55	2 1/6	34	62	74	14	130	162	162	18	M6	145	175	30	11.2	4	72x7
21	21	EXF-056	55.56	2 1/5	36	66	79	14	143	175	175	18	M6	180	220	32.5	12.5	4	82x7
22	22	EXF-057	57.15	2 1/4	36	66	79	14	143	175	175	18	M6	180	220	32.5	12.5	4	82x7
23	23	EXF-060	60	2 3/8	36	66	79	14	143	175	175	18	M6	180	220	32.5	12.5	4	82x7
24	24	EXF-062	61.91	2 4/9	42	71	91	20	152	197	197	23	1/8'' BSP	190	250			7	100x10
25	25	EXF-064	63.5	2 1/2	42	71	91	20	152	197	197	23	1/8'' BSP	190	250			7	100x10
26	26	EXF-065	65	2 5/9	42	71	91	20	152	197	197	23	1/8'' BSP	190	250			7	100x10
27	27	EXF-068	68.26	2 2/3	46	77	104	20	152	193	193	19	1/8'' BSP	210	275			9	100x10
28	28	EXF-A70	69.85	2 3/4	46	77	104	20	152	193	193	19	1/8'' BSP	210	275			9	100x10
29	29	EXF-070	70	2 3/4	46	77	104	20	152	193	193	19	1/8'' BSP	210	275			9	100x10
30	30	EXF-A75	74.61	3	47	87	104	24	159	200	200	19	1/8'' BSP	250	325			9	110x12
31	31	EXF-075	75	3	47	87	104	24	159	200	200	19	1/8'' BSP	250	325			9	110x12
32	32	EXF-076	76.2	3	47	87	104	24	159	200	200	19	1/8'' BSP	250	325			9	110x12
33	33	EXF-080	80	3 1/7	48	84	108	23	165	208	208	23	1/8'' BSP	305	410			5	110x12
34	34	EXF-081	80.9	3 1/5	48	84	108	23	165	208	208	23	1/8'' BSP	305	410			5	110x12
35	35	EXF-083	82.55	3 1/4	48	84	108	23	165	208	208	23	1/8'' BSP	305	410			5	110x12
36	36	EXF-087	87.31	3 4/9	46	87	104	28	187	235	235	23	1/8'' BSP	375	500			12	130x12
37	37	EXF-089	88.9	3 1/2	46	87	104	28	187	235	235	23	1/8'' BSP	375	500			12	130x12
38	38	EXF-090	90	3 5/9	46	87	104	28	187	235	235	23	1/8'' BSP	375	500			12	130x12
39	39	EXF-100	100	4	59	104	127	29.3	210	265	265	27	1/8'' BSP	530	700			10	130x12
40	42	EXF-102	101.6	4	59	104	127	29.3	210	265	265	27	1/8'' BSP	530	700			10	130x12

Bearing

Housing seal

Cover seal

Documentatie

Product page

Contacteer de leverancier

EXTREME BEARING

Corrosion free roller bearings
