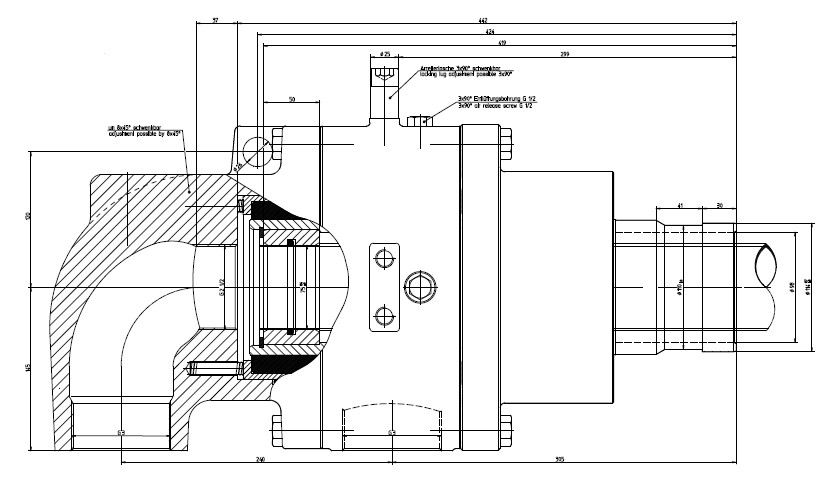

HWA 2099 K

Robust, dual-channel DN100 sealing head with large bearing spacing and up to 50% higher speed than the standard H.


Manufacturer maierGroup
Description HWA 2099 K
Manufacturer Part Number 1108880
Product Page https://maier-heidenheim.com/ddf/baureihe-h/
Material Guss
Mass 92 kg
Quantity 1
Media Wasser, Dampf
max flow rate bis 75 m³/h
max speed 150000/(DN x PN)
max temperature -10…230 °C
max pressure -0,2…28 bar
Inner diameter of rotor 98 mm
Housing connection B G3
Housing connection C G3
Rotor connection K-flange 114 mm
Diameter of inner tube support 75 mm
Overall length 609 mm
캐드 모델
가격 견적 요청(RFQ)
이 소프트웨어가 설치되었는지 확인하십시오.

제품 선택

제품 설명

Flexible, robust, and low-maintenance: The reinforced version of the H series is designed for a wide range of media and a large pressure and temperature range up to higher speeds. This means you only need one solution for a wide variety of applications. As a result, you can reduce your maintenance and storage costs in the long term.
