Circular Helical Spring WY(75% compression)

Manufacturer	Dongguan Forrun Hardware Co., Ltd.
Description	Circular Helical Spring WY(75% compression) FYWY3-5
Part number	FYWY3-5

CADモデル

見積もり依頼

製品セレクション

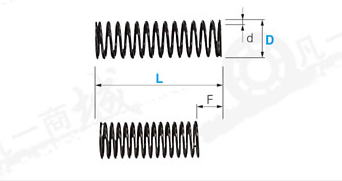

Index	Selector	Type	D	L	d	Compression length	F max	Load(N{kgf}max)
1	12	FYWY3	3	5	0.16	1	3.75	0.38{0.04}
2	13	FYWY3	3	10	0.2	2	7.5	0.75{0.08}
3	58	FYWY3	3	15	0.23	3.6	11.2	1.12{0.11}
4	59	FYWY3	3	20	0.23	3.6	15	1.5{0.15}
5	60	FYWY3	3	25	0.25	5.5	18.7	1.87{0.19}
6	61	FYWY3	3	30	0.26	6.5	22.5	2.25{0.23}
7	62	FYWY4	4	5	0.2	1.1	3.75	0.38{0.04}
8	63	FYWY4	4	10	0.23	1.9	7.5	0.7{0.08}
9	64	FYWY4	4	15	0.23	1.9	11.2	1.1{0.11}
10	14	FYWY4	4	20	0.25	2.7	15	1.5{0.15}
11	15	FYWY4	4	25	0.29	5	18.7	1.8{0.19}
12	65	FYWY4	4	30	0.29	5	22.5	2.2{0.23}
13	66	FYWY4	4	35	0.32	7.7	26.2	2.6{0.26}
14	16	FYWY4	4	40	0.32	7.7	30	2.9{0.3}
15	67	FYWY5	5	10	0.25	1.7	7.5	0.7{0.08}
16	68	FYWY5	5	15	0.25	1.7	11.2	1.1{0.11}
17	69	FYWY5	5	20	0.3	3.2	15	1.5{0.15}
18	70	FYWY5	5	25	0.3	3.2	18.7	1.8{0.19}
19	71	FYWY5	5	30	0.35	6.3	22.5	2.2{0.23}
20	17	FYWY5	5	35	0.35	6.3	26.2	2.6{0.26}
21	72	FYWY5	5	40	0.38	9.2	30	2.9{0.3}
22	73	FYWY5	5	45	0.38	9.2	33.7	3.3{0.34}
23	74	FYWY5	5	50	0.38	9.2	37.5	3.7{0.38}
24	75	FYWY6	6	10	0.3	2.1	7.5	0.75{0.08}
25	18	FYWY6	6	15	0.32	2.8	11.2	1.1{0.11}
26	76	FYWY6	6	20	0.32	2.8	15	1.5{0.15}
27	77	FYWY6	6	25	0.35	4.1	18.7	1.8{0.19}
28	78	FYWY6	6	30	0.38	5.6	22.5	2.2{0.23}
29	79	FYWY6	6	35	0.38	5.6	26.2	2.6{0.26}
30	80	FYWY6	6	40	0.4	7.2	30	2.9{0.3}
31	81	FYWY6	6	45	0.4	7.2	33.7	3.3{0.34}
32	82	FYWY6	6	50	0.4	7.2	37.5	3.7{0.38}
33	83	FYWY6	6	55	0.45	12.2	41.2	4.0{0.41}
34	1	FYWY6	6	60	0.45	12.2	45	4.4{0.45}
35	2	FYWY6	6	65	0.45	12.2	48.7	4.8{0.49}
36	3	FYWY6	6	70	0.45	12.2	52.5	5.1{0.53}
37	19	FYWY8	8	10	0.35	2.1	7.5	0.75{0.08}
38	20	FYWY8	8	15	0.38	3	11.2	1.1{0.11}
39	4	FYWY8	8	20	0.4	3.5	15	1.5{0.15}
40	47	FYWY8	8	25	0.4	3.5	18.7	1.8{0.19}
41	48	FYWY8	8	30	0.45	5.7	22.5	2.2{0.23}
42	49	FYWY8	8	35	0.45	5.7	26.2	2.6{0.26}
43	50	FYWY8	8	40	0.45	5.7	30	2.9{0.3}
44	51	FYWY8	8	45	0.45	5.7	33.7	3.3{0.34}
45	52	FYWY8	8	50	0.5	9	37.5	3.7{0.38}
46	53	FYWY8	8	55	0.5	9	41.2	4.0{0.41}
47	54	FYWY8	8	60	0.5	9	45	4.4{0.45}
48	55	FYWY8	8	65	0.5	9	48.7	4.8{0.49}
49	5	FYWY8	8	70	0.5	9	52.5	5.1{0.53}
50	21	FYWY10	10	15	0.5	3	11.2	2.26{0.23}
51	22	FYWY10	10	20	0.55	4.6	15	2.9{0.3}
52	23	FYWY10	10	25	0.55	4.6	18.7	3.7{0.37}
53	24	FYWY10	10	30	0.6	6.6	22.5	4.4{0.45}
54	25	FYWY10	10	35	0.6	6.6	26.2	5.1{0.52}
55	26	FYWY10	10	40	0.65	9.1	30	5.9{0.6}
56	27	FYWY10	10	45	0.65	9.1	33.7	6.6{0.67}
57	28	FYWY10	10	50	0.65	9.1	37.5	7.4{0.75}
58	29	FYWY10	10	55	0.7	12.6	41.2	8.1{0.82}
59	30	FYWY10	10	60	0.7	12.6	45	8.8{0.9}
60	31	FYWY10	10	65	0.7	12.6	48.7	9.6{0.97}
61	32	FYWY10	10	70	0.7	12.6	52.5	10.3{1.05}
62	33	FYWY13	13	20	0.6	3.9	15	2.9{0.3}
63	6	FYWY13	13	25	0.65	5.1	18.7	3.7{0.37}
64	34	FYWY13	13	30	0.65	5.1	22.5	4.4{0.45}
65	35	FYWY13	13	35	0.7	6.7	26.2	5.1{0.52}
66	36	FYWY13	13	40	0.75	8.7	30	5.9{0.6}
67	37	FYWY13	13	45	0.75	8.7	33.7	6.6{0.67}
68	38	FYWY13	13	50	0.8	11.6	37.5	7.4{0.75}
69	39	FYWY13	13	55	0.8	11.6	41.2	8.1{0.82}
70	40	FYWY13	13	60	0.8	11.6	45	8.8{0.9}
71	41	FYWY13	13	65	0.85	15.3	48.7	9.6{0.97}
72	42	FYWY13	13	70	0.85	15.3	52.5	10.3{1.05}
73	43	FYWY16	16	20	0.65	3.6	15	2.9{0.3}
74	44	FYWY16	16	25	0.7	4.6	18.7	3.7{0.37}
75	45	FYWY16	16	30	0.75	5.7	22.5	4.4{0.45}
76	46	FYWY16	16	35	0.8	7	26.2	5.1{0.52}
77	7	FYWY16	16	40	0.85	9	30	5.9{0.6}
78	56	FYWY16	16	45	0.85	9	33.7	6.6{0.67}
79	8	FYWY16	16	50	0.9	11.3	37.5	7.4{0.75}
80	9	FYWY16	16	55	0.9	11.3	41.2	8.1{0.82}
81	10	FYWY16	16	60	0.9	11.3	45	8.8{0.9}
82	11	FYWY16	16	65	0.9	11.3	48.7	9.6{0.97}
83	57	FYWY16	16	70	0.9	11.3	52.5	10.3{1.05}
