Walter Stauffenberg GmbH & Co. KG

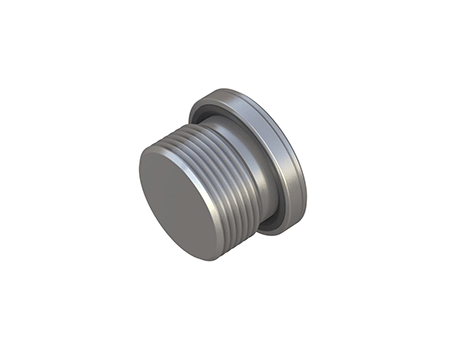

Blanking Screw for Ports Type FI-VS-...-R-WD



Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	Blanking Screw for Ports Type FI-VS-...-R-WD
Part number	FI-VS-R1/8-WD-B-W3
Mass	0.7 kg

CAD modelle

Árajánlat kérése

Termék kiválasztása

Index	Selector	PN (bar)	Thread T	D1 (mm)	L1 (mm)	i (mm)	S1 (mm)	Weight ca. per 100 (kg)	Torque for thread T (N.m)	Ordering Codes
1	1	400	15	14	12.3	8	5	0.7	G 1/8"	FI-VS-R1/8-WD-B-W3
2	2	400	33	19	17.3	12	6	1.9	G 1/4"	FI-VS-R1/4-WD-B-W3
3	3	400	70	22	17.3	12	8	2.7	G 3/8"	FI-VS-R3/8-WD-B-W3
4	4	400	90	27	19.3	14	10	4.6	G 1/2"	FI-VS-R1/2-WD-B-W3
5	5	400	150	32	21.3	16	12	8	G 3/4"	FI-VS-R3/4-WD-B-W3
6	6	400	220	40	22.8	16	17	12.8	G 1"	FI-VS-R1-WD-B-W3
7	7	315	500	50	22.8	16	22	19.9	G 1 1/4"	FI-VS-R1-1/4-WD-B-W3
8	8	315	500	55	22.8	16	24	26.2	G 1 1/2"	FI-VS-R1-1/2-WD-B-W3
